Complete 2004 Dodge Ram 3500 Radio Wiring Diagram Guide for Repair

Begin with color-coded harness identification: Locate the 16-pin connector behind the dashboard center stack–black housing with orange, yellow, and violet wires for constant power. The brown/pink stripe leads to the ignition-controlled feed, while the dark blue stripe handles antenna activation. Ground clusters typically terminate in a single black wire secured to the chassis grounding stud near the firewall.

Avoid仮 wiring guesswork by cross-referencing resistance values across speaker outputs. Front door drivers should register 3.5–4.2 ohms on the solid light green and green/orange circuits. Rear compartment traces follow similar resistance ranges–brown/white for the subwoofer output when equipped. Verify continuity before soldering–inconsistent load readings point to damaged voice coils or disconnected harnesses.

Factory integration requires precise fusing. The primary power circuit demands a 25-amp inline fuse–no substitutions. Secondary memory circuits tolerate 10-amp maximum; exceeding this risks melting the thin-gauge violet wire that retains preset channels. Shielded coaxial outputs (dark blue/white) carry amplified signals–protect these runs with corrugated loom tubing when routing through the transmission tunnel.

Retain climate control synchronization by keeping the factory data link intact. The pink stripe wire carries CAN bus communications–splicing disrupts temperature display messages. For aftermarket head units, bypass this entirely by using an adapter harness matching the OE connector pinout (Metra 70-1002). Off-the-shelf solutions often miss the auxiliary input redirection pin (pin 11 on the C2 connector).

Factory Stereo Harness Connections for Heavy-Duty Pickup

Locate the OEM speaker harness behind the receiver cavity. Pinouts follow this sequence: driver’s door (+ white, – white/brown), passenger door (+ gray, – gray/brown), rear left (+ brown, – tan), rear right (+ dark green, – dark green/brown). Verify each lead with a 12 V test light before splicing.

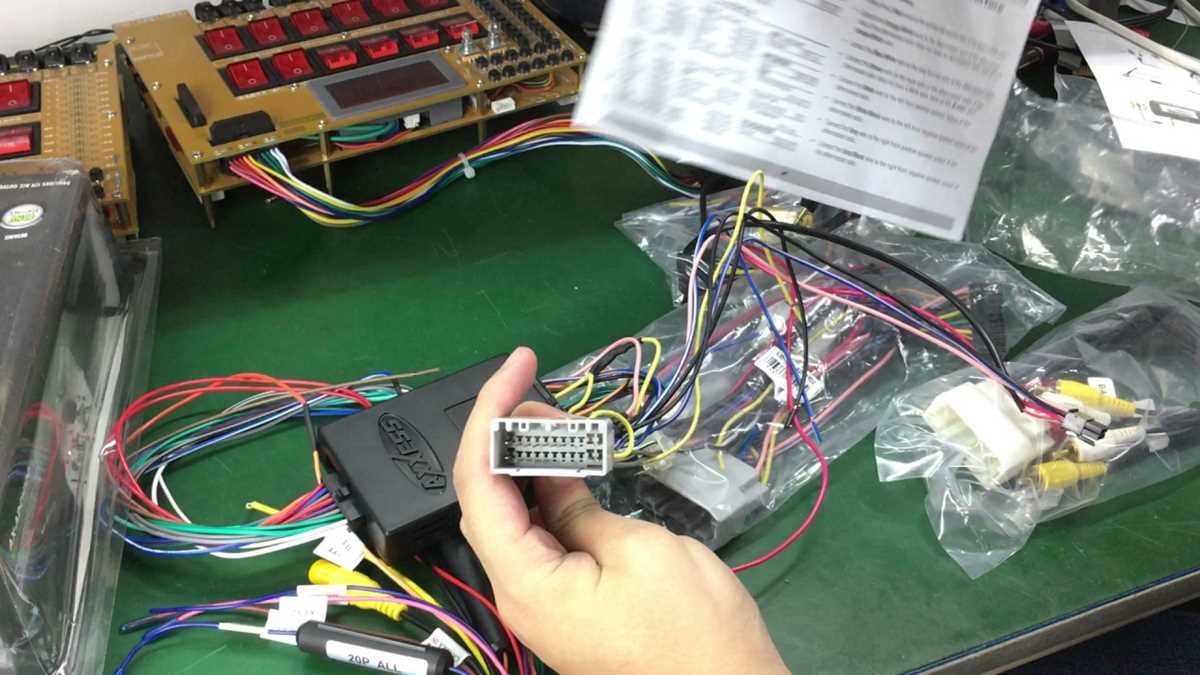

Aftermarket Interface Plug Options

• Metra 70-1002: Direct plug-in for 6-disc CD units retention; retains factory amplifier trigger.
• Scosche CR03: Includes reverse lockout wire (blue/white) for automatic antenna retract.
• PAC RP5-CH11: Keeps chime module intact; requires jumper from pink (ignition) to yellow (battery) for retained accessory power.

For vehicles equipped with the Infinity premium system, bypass the external amplifier by routing orange/light blue (left) and orange/dark blue (right) straight to the new head unit’s front outputs. Cap the violet/light blue and brown/white wires–these carry balanced preamp signals and will cause distortion if left floating.

Ground distribution block: utilize the factory bolt behind the glovebox hinge. Scrape paint to bare metal, attach ring terminal with star washer, and torque to 18 in-lbs. Avoid grounding through seat belt bolts–these threads are not rated for continuous current draw.

1. Disconnect negative battery terminal before handling any harness.
2. Label each wire with masking tape before cutting–color alone is not sufficient for full-size cab variants.
3. Use butt connectors crimped with a ratcheting tool, then heat-shrink with dual-wall adhesive tubing for waterproof protection.
4. Route new harness through existing firewall grommet to prevent chafing against hood release cable.

Reverse polarity protection: if installing a marine-grade deck, insert a 1 N4007 diode in series with the yellow (battery) lead, cathode facing the receiver. This prevents back-feed during jump-starts, which can damage solid-state memory.

Illumination dimming: splice the grey wire (dash dimmer positive) to the new unit’s illumination input. If LEDs glow too brightly, add a 2.7 kΩ resistor in parallel to the dimmer circuit–this mimics the factory rheostat resistance curve.

Steering wheel controls: match the black/white (common ground) and brown/yellow (resistance ladder) wires to the aftermarket adapter. Test each button press with a multimeter in continuity mode before finalizing connections–resistance values must align within ±5% of the adapter’s reference chart.

Finding the OEM Audio Connector in a Heavy-Duty Pickup from the Early 2000s

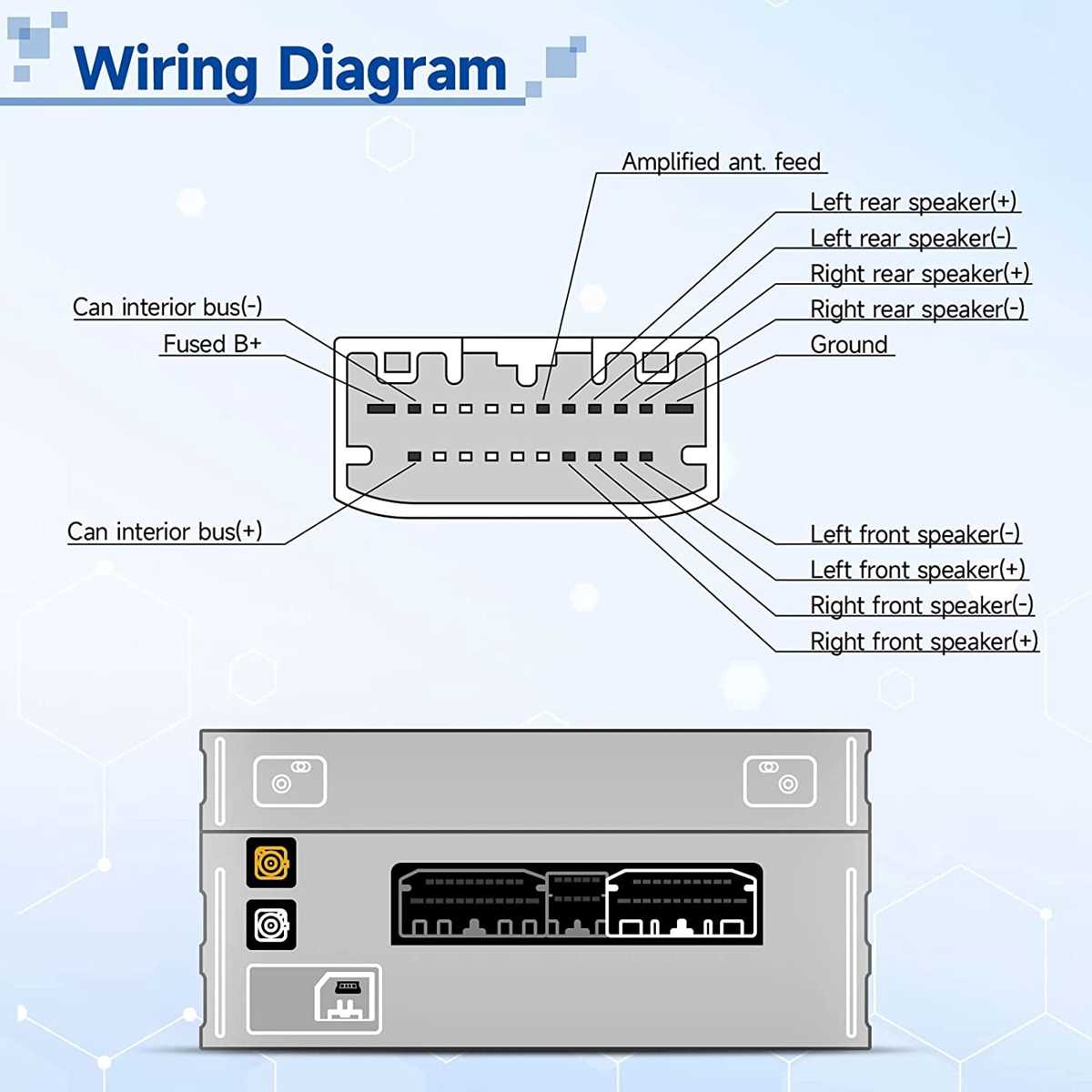

Start by lowering the glovebox until it hangs on its hinges–no tools required. Behind the right-side panel, tucked alongside the HVAC duct, you’ll spot a gray 16-pin plug bundled with reddish-brown, yellow, violet, and pink leads. Pin 1 (constant 12V) is top-left; ground sits at pin 6; front-left speaker feeds through pins 8 and 10.

If the connector isn’t visible, slide the climate-control bezel outward by pressing the plastic clips at 5 and 7 o’clock–it releases without breaking–and feel behind the ash tray shelf; the harness often loops there when a previous owner rerouted it.

Decoding Harness Colors for Custom Stereo Upgrades

Begin by locating the 12-pin connector at the back of the factory head unit–this will be your primary interface. The orange cable with a white stripe delivers constant power (battery voltage), while the solid orange wire activates with ignition. Swap these incorrectly, and you’ll drain the battery in hours. Verify with a multimeter before making permanent connections.

Ground connections use black wires, often with a thin white tracer. Unlike generic harnesses, this vehicle’s ground paths may split into multiple strands–tie them together with a single 10-gauge jumper to avoid signal noise. Avoid splicing into body ground points; the chassis near the steering column offers the cleanest path.

Speaker outputs follow this pattern: gray (front left positive), gray-black (front left negative), purple (front right positive), purple-black (front right negative). Rear channels mirror this scheme with green and green-black for the left, and brown and brown-black for the right. Polarity flips can cancel bass frequencies–label every wire before cutting.

For amplified systems, the dark blue wire (with a red stripe) triggers the power antenna or amplifier turn-on circuit. If the factory amp isn’t present, repurpose this lead as a remote turn-on for aftermarket equipment. Connect it directly to the new amp’s remote terminal; resistance in this line can cause intermittent power drops.

Steering wheel control adapters require data from the light green wire (with an orange stripe). This wire carries resistive signals for button presses–install a dedicated adapter module rather than attempting direct splicing. Failure to isolate this circuit risks damaging the vehicle’s control module.

Dim lighting adjustments rely on the pale yellow wire, which varies voltage between 0-12V based on dash dimmer settings. Aftermarket stereos with automatic screen dimming must connect to this wire through a 100-ohm resistor to prevent flickering. Omitting this step leaves nighttime visibility inconsistent.

Step-by-Step Guide to Connecting Power and Ground Leads in Your Heavy-Duty Pickup Audio System

Locate the constant 12V lead–typically a yellow wire with a 10-12 gauge diameter–on the vehicle’s harness bundle near the dashboard rear. Strip 6mm of insulation using wire strippers, then crimp a female spade connector. Connect this directly to the head unit’s corresponding terminal to ensure uninterrupted memory retention for preset stations and clock settings, avoiding parasitic drain from interior lights or door triggers.

Identify the ignition-switched power source–usually a red or pink wire–on the fuse box panel under the driver-side kick panel. Insert a 15A fuse tap into slot #13 (accessory position) of the under-hood fuse block, matching the wire’s 20-gauge specification. Route the tap’s output through a grommet into the cabin, then splice it to the head unit’s ignition input using a heat-shrink butt splice to prevent corrosion from moisture or road grime.

• Test ground polarity before finalizing: touch a multimeter probe to the chassis mounting point (bare metal bolt near the passenger-side footwell) and the other to the negative battery post. A reading below 0.2V confirms a low-resistance path.
• Avoid daisy-chaining grounds to other components like amplifiers or lighting; instead, run a dedicated 8-gauge black wire from the head unit’s ground terminal to the same chassis point, securing it with a star washer for maximum conductivity.
• Apply dielectric grease to all crimps and terminal connections to inhibit oxidation, particularly in regions with high humidity or road salt exposure.

For aftermarket upgrades, verify the head unit’s peak current draw against the vehicle’s alternator output. Most OEM alternators supply 120-150 amps; exceeding 80% of this capacity with additional sound equipment risks voltage drops during high-demand scenarios (e.g., subwoofer bass hits). Install a capacitor (1-2 farads) within 18 inches of the amplifier if voltage fluctuations exceed 0.5V under load.

Dress all leads away from moving components (steering column, pedals) using adhesive-lined spiral wrap. Secure bundles every 10 inches with zip ties to structural beams, avoiding sharp edges or heat sources like exhaust manifolds. Label each wire with heat-shrink tubing markers–use B+ for constant power, ACC for ignition, and GND for ground–to simplify future diagnostics or upgrades.

Resolving Common Infotainment System Electrical Problems in Heavy-Duty Pickups

Check the fuse for the audio head unit first–locate slot #14 in the under-dash panel (10A, pink stripe) and slot #23 in the engine bay box (20A, yellow). A blown fuse often mimics total failure but requires only a direct one-to-one replacement; never upsize.

Inspect the ISO harness connectors behind the dash cluster. Pin A8 (constant 12V), A4 (switched ignition), and A6 (illumination) must show battery voltage when probed with a multimeter. If missing, trace the red/orange, dark blue/white, and light blue/orange wires back to the main 18-pin block near the firewall–chafing often occurs where the loom exits the cabin.

Verify ground wire integrity by scratching the bare metal at eyelet G500 (behind the driver’s kick panel) and retightening the 10 mm bolt. A weak ground causes static, intermittent power, or complete dropout; corrosion here spreads to adjacent pins B3 and B7.

Pin	Wire Color	Function	Expected Voltage
A3	Brown/Yellow	Left Front Speaker (+)	4-8V AC (signal)
A10	Brown/White	Right Front Speaker (-)	0V (ground reference)
B2	Violet/Black	Right Rear Speaker (+)	4-8V AC
B9	Violet/White	Left Rear Speaker (-)	0V

Test speaker outputs with a 1 kHz sine wave from a signal generator; a dead channel usually points to a shorted voice coil. Strip ½ inch of insulation from the suspect wire, shake it in free air while playing audio–audible popping confirms a partially shorted coil rather than wiring fault.

If the amplifier relay clicks but no power reaches the rear speakers, remove the spare tire carrier and probe the blue/white wire at the inline connector (under the bed floor). Factory splice splices often fail; solder and heat-shrink a new joint rather than crimping.

For CD player motor failure, rotate the disc tray by hand ¼ turn clockwise to release the internal lockout; clean the laser lens with a single swipe of isopropyl alcohol on lint-free cloth. Do not remove the ribbon cable–static discharge destroys the controller chip.

When replacing the factory head unit, keep the climate control memory module intact; it shares CAN bus data on pin B15 (green/black) and deletion causes HVAC actuators to default to recirculate mode. Use dielectric grease on all pin seals to prevent future moisture ingress.

For no-start conditions after sound system work, check the yellow/black wire at the ignition switch–it carries the accessory feed and accidental grounding here locks the ECM in anti-theft mode.
