Ford Explorer 2004 Stereo Wiring Guide Color Coded Factory Amp Connections
The OEM sound system integration in mid-2000s SUVs relies on a precise electrical schematic for stable performance. Begin by securing a 16-pin connector diagram–most models from this era use a four-channel configuration with color-coded leads: yellow/tan for front-left, gray/red for front-right, brown/white for rear-left, and dark green/orange for rear-right outputs. Trace these wires from the head unit to the amplifier’s harness, verifying continuity with a multimeter set to 200 ohms. Resistance readings above 2 ohms indicate corrosion or partial breaks; bypass such sections with 18-gauge copper wire rated for 20 amperes.
Power distribution follows a distinct pattern–constant 12V (red), switched ignition (yellow), and ground (black). Locate the fuse block beneath the dashboard; a 30-amp fuse protects the amplifier circuit–replace any blown fuse with an identical rating. For signal grounding, use a star configuration: connect all grounds to a single point on the chassis, avoiding painted surfaces. If audio cuts out under load, check for voltage drop between the battery and amplifier–acceptable range is 0.5V or less.
Upgrade compatibility requires matching impedance: stock systems use 2-ohm speakers, aftermarket units often default to 4 ohms. Verify speaker wiring polarities–reversed connections cause phase cancellation, muffling high frequencies. When retrofitting a higher-output unit, splice in a line-level converter between the head unit and amplifier to prevent clipping distortions. Always disconnect the negative battery terminal before probing circuits to avoid shorting sensitive modules.
Schematics for this model specify a CAN bus interface linking the amplifier to the instrument cluster–interruptions trigger “No Audio” warnings. For diagnostics, use a scan tool capable of reading U-codes; C1448 indicates amplifier communication failure. Reflash the module via OBD-II if errors persist, ensuring battery voltage remains above 12.4V during the process. For persistent issues, inspect the harness for rodent damage–chewed wires near the firewall are common failure points.
Audio Integration Guide for Mid-2000s SUV Sound Systems
Identify the harness connector behind the stereo unit–pinout includes 12-pin and 18-pin plugs. The 12-pin carries speaker-level signals from the head unit; the 18-pin handles amplified outputs. Verify connections with a multimeter: speaker wires register 4 ohms, power leads 12V DC.
Color codes for primary lines: LB/VT (left front +), DB/YL (right rear -), BN/WH (constant power), GY/RD (ignition-switched). Cross-reference with aftermarket adapters like Metra 70-1776; avoid solderless taps on factory harnesses–they degrade signal integrity.
OEM amplifier location: behind the rear passenger-side trim panel, secured with seven Torx-20 bolts. Disconnect battery before servicing; capacitors retain charge for up to 30 minutes. Label all connectors with painter’s tape–integrated modules control chimes and door locks via the same bus.
For bypassing the built-in signal processor, splice RCA adapters into the pre-amp outputs at the head unit. Use 22-gauge shielded cables for front channels, 18-gauge for subwoofer feeds. Ground loops occur if shielding isn’t terminated to chassis ground at a single point near the amplifier mount.
Troubleshooting Common Issues
No sound on rear channels? Check the 20-amp fuse in the under-dash fuse box (slot 29). If blown, inspect door speaker harnesses for frayed BK/YL wires–rodents target these under seats. Static during bass hits indicates a failing amplifier; replace with T harness 137507 if keeping stock speakers.

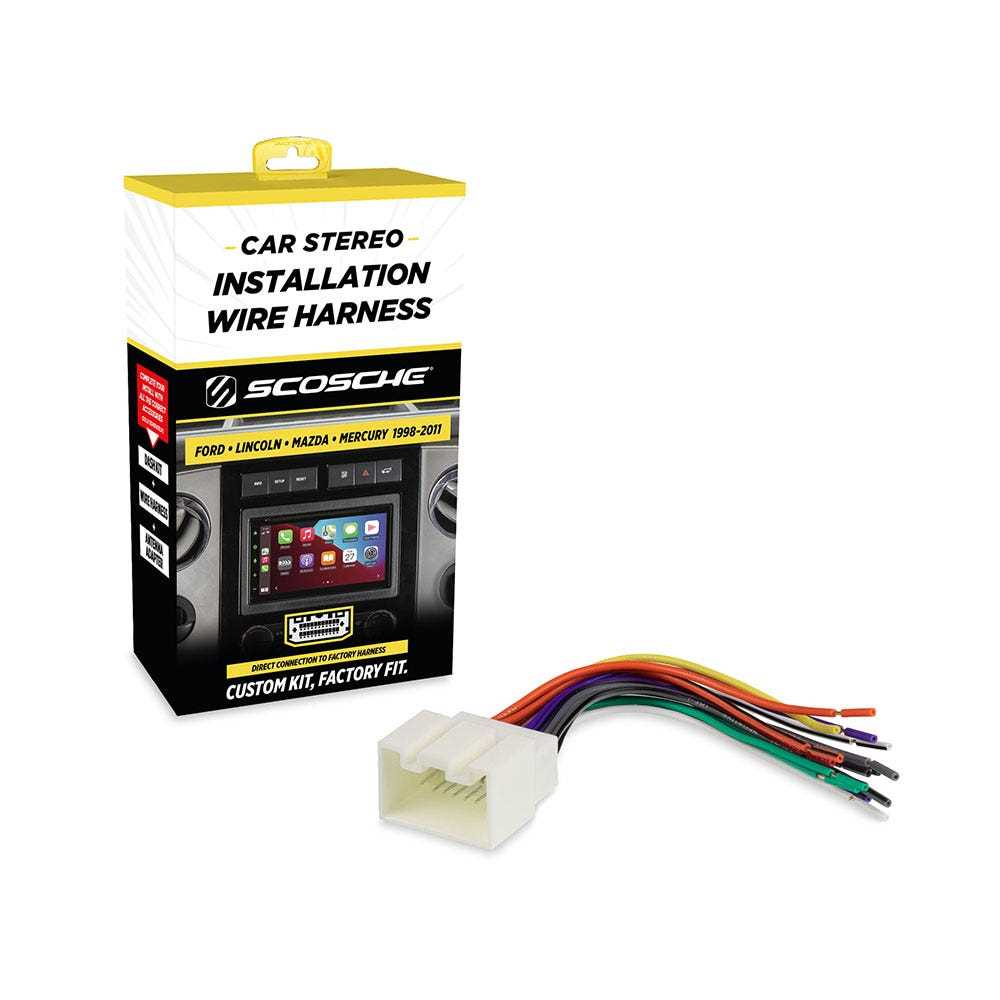

Bluetooth or auxiliary input dead? The stock radio disables external inputs when parking brake isn’t engaged. Override via EEPROM edit or install a bypass module like Scosche FDSBT1. Retain steering wheel controls by splicing the OEM data bus into the aftermarket harness using interface CR3.
Equalizer presets reset after battery disconnect? The amplifier stores settings in volatile memory. Reprogram bass/treble settings via the stereo’s hidden menu: hold SEEK and SCAN while turning ignition to ACC. Factory defaults are 0dB front, -2dB rear, +4dB subwoofer.
Retrofitting a subwoofer requires tapping the PUR/OR wire from the 18-pin harness–this triggers the amplifier’s low-pass filter. Use a relay to handle current; the circuit isn’t rated for direct amplifier draws over 30A. Mount the subwoofer amplifier in the spare tire well to prevent moisture intrusion; route RCA cables along existing harness channels to avoid wire loom interference.
Locating the Preinstalled Sound Booster in a 2003-2005 Sport Utility Model
Check behind the rear passenger-side trim panel first. The stock sound booster is typically mounted near the wheel well, secured with two 10 mm bolts and a single electrical connector. Remove the plastic trim by unsnapping five retaining clips–three along the bottom edge and two on the sides–then lift the panel straight out to avoid damaging the clips.
For vehicles equipped with the premium audio package, an alternative booster position exists beneath the right rear seat. Fold the seat forward, then detach the carpeted floor panel by removing four Torx T-25 screws. The unit will be visible, attached to the chassis with a metal bracket and three 8 mm fasteners.
Identify the booster by its rectangular aluminum housing, measuring approximately 8 × 12 × 3 inches, with a black plastic connector port on the right side. A label on the top should display the part number: XL2F-18K856-AA (standard) or XL2F-18K856-BB (premium).
If the booster is absent in the usual locations, inspect the cargo area under the spare tire well. Some variants relocate the component to this space to free up cabin room. The well cover lifts after removing five 12 mm bolts–use a socket extension to reach the recessed fasteners.
| Location | Mounting Method | Connector Type | Fastener Size |
|---|---|---|---|
| Rear quarter panel | Bracket + bolts | 12-pin rectangular | 10 mm (2) |
| Under rear seat | Chassis bracket | 16-pin rectangular | 8 mm (3) |
| Spare tire well | Direct chassis mount | 14-pin oval | 12 mm (5) |
Trace the main harness from the head unit to confirm booster placement. The wiring loom runs along the passenger-side sill plate, entering the rear quarter panel through a grommet near the rear door striker. If the loom splits–one branch heading upward and the other downward–the downward path leads to the cargo area installation.
On models with a subwoofer, the booster may be paired with it inside a sealed enclosure. The enclosure is bolted to the cargo floor behind the right rear wheel arch. Unclip the subwoofer’s plastic grille, then remove six 14 mm bolts to access the dual components.
Verify the booster’s presence by probing the harness connector. Use a multimeter to check for 12V on pin 4 (constant) and pin 8 (switched). If readings confirm voltage but the booster is missing, search within 18 inches of the connector for a detached unit–it may have vibrated loose during off-road use.
Step-by-Step Guide to Accessing the Original Audio System Harness
Locate the rear cargo panel trim by removing the two 7mm screws at the base of the storage compartment. Pull the panel outward gently–clips secure it along the upper edge, so work from the bottom to avoid breaking them.
Disconnect the subwoofer wiring connector by pressing the release tab (gray plastic latch) and pulling straight out. Label this connection if reusing components, as polarity matters for proper phase alignment.
Next, remove the left-side sill plate by prying up the front edge with a trim tool–no fasteners exist here. The harness bundle runs beneath this cover; trace the loom toward the B-pillar grommet to identify the main bundle.
Cut through the sound-deadening material (if present) around the grommet using a utility knife–make a single, controlled incision to avoid damaging hidden wires. The harness exits here and splits into two branches: one to the door speakers, another to the amplifier location.
Identify the amplifier’s main feed wires by their gauge: power (10-12 AWG, typically red), ground (black, often braided), and turn-on lead (thin blue with white stripe). These terminate in a dedicated multi-pin plug–do not force removal; squeeze the locking tabs simultaneously.
Modification Precautions
Use a multimeter to verify signal paths before cutting or splicing. Test for voltage at the turn-on lead (should read ~12V when the ignition is on) and continuity on speaker wires (no resistance beyond the expected ~4 ohms). Shorts here can damage the head unit’s internal circuitry.
For aftermarket integration, bypass the amplifier entirely by tapping into the harness before the amplifier connector. Use quick-disconnect crimps or solder joints–twist-and-tape methods risk signal degradation. Secure all splices with heat-shrink tubing and route new wiring away from moving parts (seat tracks, trunk hinges) to prevent chafing.
Color Coding and Pin Configuration for the Original Audio Interface Connector
Locate the 12-pin connector near the rear of the sound processor enclosure, typically fastened behind the left-side cargo panel trim. Verify orientation by identifying the single locking tab at the top center; mismatching insertion risks short circuits.
The plug carries these standardized color assignments and pin functions (numbering follows the cavity sequence, left to right, tab-up view):
- Pin 1 (White/Pink): +12 V switched ignition feed–confirmed with a multi-meter showing battery voltage only when key is in RUN or ACC.
- Pin 2 (Gray/Red): Front left speaker positive, rated 4 Ω–measure continuity to door tweeter wire loom.
- Pin 3 (Dark Green/Orange): Front right speaker positive, same impedance–verify polarity reversal causes phase cancellation.
- Pin 4 (Tan/Light Blue): Rear left speaker positive–trace routing beneath rear seat bracket.
- Pin 5 (Brown/Yellow): Rear right speaker positive–color repeat differs from door harness.
- Pin 6 (Black/White): Ground reference–star-point termination at chassis stud behind amplifier bracket; resistance below 0.5 Ω mandatory.
- Pin 7 (Orange/Red): Illumination dimmer input–voltage zero to +12 V mirrors instrument cluster brightness.
- Pin 8 (Light Blue/Black): Front left speaker negative–pair with Pin 2.
- Pin 9 (Dark Blue): Front right speaker negative–pair with Pin 3.
- Pin 10 (Tan/Black): Rear left speaker negative–pair with Pin 4.
- Pin 11 (Brown/White): Rear right speaker negative–pair with Pin 5.
- Pin 12 (Yellow/Light Blue): Antenna power trigger–supplies +6 V continuous for motorized mast height.
Remove the connector housing retainer clip with a slim flat tool, then release each terminal using a de-pinning probe tool AWG 0.8 mm or equivalent; excessive force damages retention barbs. Inspect crimps for nicked insulation; reseal frayed strands with polyimide tape.
Critical Integration Notes
Aftermarket interface modules often neglect the illumination dimmer (Pin 7) circuit; omit it only if dash integration is unnecessary. Antenna power (Pin 12) must route through a 1 A fuse or risk shorting the radio memory circuit during extend cycles–measured draw peaks at 550 mA at full extension.
Use a harness adapter pigtail matching radial (non-twisted) 18-gauge automotive primary wire for patching; twisted pairs introduce crosstalk above 1 kHz. Verify pin-to-pin continuity with no voltage present before energizing–reverse polarity on battery feed (Pin 1) destroys amplifier input stage instantly.
