GMC Sierra 2004 Bose Stereo Wiring Colors and Connection Guide
For owners of this heavy-duty pickup, the first step in modifying or troubleshooting the sound system is securing the correct electrical schematic. The factory audio setup includes six speakers, an amplifier integrated into the head unit, and a dedicated wiring harness linking the receiver to the door panels, dash tweeters, and rear cabin drivers. Identify the gray 18-pin connector behind the radio–this carries power, ground, and speaker signals.
Trace the color-coded wires from the harness to the vehicle’s main fuse box. Key conductors include:
- Yellow – constant 12V for memory retention (linked to fuse #29, 10A)
- Red – accessory 12V (switched via ignition, fuse #32, 15A)
- Black – chassis ground (bolted to driver-side kick panel mounting stud)
Measure voltage at these points with a multimeter–readings should match the fuse ratings above.
Speaker outputs follow a right/left polarity pattern:
| Location | Positive (+) | Negative (–) |
|---|---|---|
| Front left door | White/Orange stripe | White |
| Front right door | Dark Green/Orange stripe | Dark Green |
| Rear left panel | Gray/Blue stripe | Gray |
| Rear right panel | Purple/Blue stripe | Purple |
Resistance across these pairs should measure 4 ohms; deviations indicate damaged voice coils.
Before splicing or replacing components, disconnect the ground lead to avoid short circuits. Use crimp connectors or solder joints rated for 22–18 AWG wiring–avoid twist-and-tape solutions as they degrade inside 12 months under hood vibrations. Replace blown fuses only with identical amperage ratings (never jump with copper wire).
Understanding the Factory Audio System Harness in Your Pickup
Locate the factory harness behind the dashboard’s lower panel on the driver’s side–specifically near the kick panel where the OEM amplifier connects. The main power wire is yellow (12V constant), while the ignition-switched lead appears as red. Ground wires are black or brown, often bundled with speaker negatives. Verify each connection with a multimeter before splicing to avoid shorting the system’s built-in fuses.
Speaker outputs follow this pattern: front left (+) light blue, front right (+) dark green, rear left (+) gray, rear right (+) purple. Negative wires mirror these colors with striped markings (e.g., light blue with black stripe). The OEM amplifier requires 18-gauge wiring for signal integrity–downgrading to thinner wire may cause distortion at higher volumes.

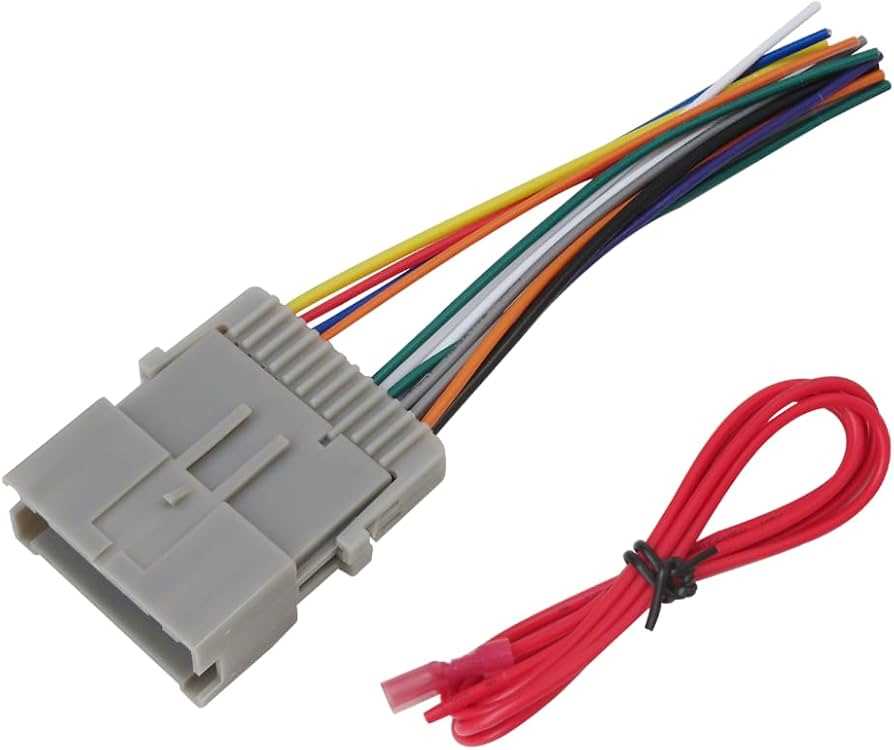

If retrofitting an aftermarket head unit, use a Metra 70-2221 or similar harness adapter to avoid cutting factory wires. This adapter maps the pickup’s plug directly to standard ISO connectors. For vehicles with steering wheel controls, retain functionality by adding a Pac SWI-X or Axxess ASWC-1 interface–these modules translate resistive signals from the OEM buttons to the new radio’s protocol.
Factory amplification stages rely on a 6-disc CD changer input (if equipped) wired via a 12-pin rectangular connector beneath the glovebox. To preserve this feature, wire the new stereo’s auxiliary input to the matching pins: pin 5 (left audio), pin 6 (right audio), and pin 12 (ground). Failure to reconnect this properly silences the changer entirely.
Check for fused circuits in the under-hood fuse box–look for 10A or 15A fuses labeled “Radio” or “Audio.” If the system exhibits noise after installation, add a ground loop isolator between the radio’s RCA outputs and the amplifier inputs. This filtration step resolves alternator whine or popping sounds caused by shared ground paths.
For models with premium sound packages, the rear seat entertainment system shares power rails with the main audio harness. The rear screen’s power lead is orange with a white stripe–tapping into this wire provides stable voltage for aftermarket video screens without taxing the stereo’s fuse.
Document every connection with label maker tags or color-coded flags. Store the original harness in a labeled plastic bag beneath the seat to facilitate future diagnostics or OEM restorations. Misplaced wires lead to erratic behavior, such as dome light flickering or random system resets.
Finding the Original Audio System Cable Bundles Behind the Head Unit

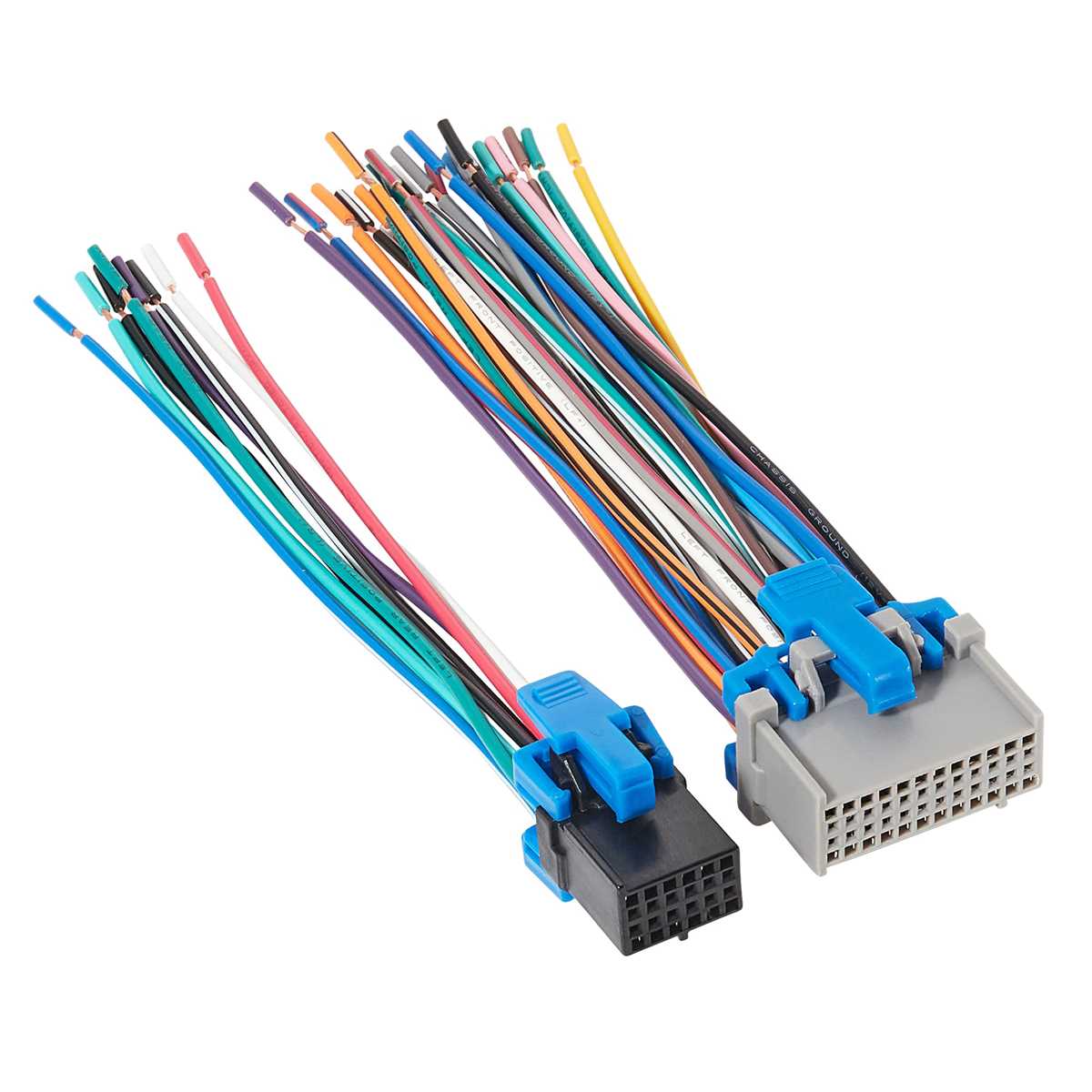

Start by removing the center dash trim panel, which typically snaps off with minimal force–use a plastic pry tool to avoid scratching surfaces. Behind this panel, you’ll find the factory radio bracket secured with four 10mm bolts; remove these to slide the bracket outward. The main connectors are positioned directly behind the bracket, clustered near the climate control vents on the right. Look for two primary plugs: a 24-pin rectangular harness (usually black) and a smaller 4-pin amplifier feed (often gray or white), both critical for signal and power distribution.
The 24-pin connector carries speaker outputs, ground, illumination, and accessory power–trace the wires by color if labels are absent. For instance, solid green and green/black wires correspond to rear right speaker signals, while solid gray and gray/black handle front left. The 4-pin plug typically includes a constant 12V feed (yellow), ignition-switched power (red), ground (black), and a Bose-specific amplifier trigger (blue/white). Confirm connections with a multimeter: 12V on yellow even with the key off, and voltage on red only when ignition is active.
If rear seat entertainment or auxiliary inputs exist, an additional 8-pin plug may be present–this often sits adjacent to the main bundles, bundled separately with pink, purple, or orange wires. Avoid pulling wires forcibly; some harnesses are clipped to metal brackets behind the unit. Gently depress the plastic tabs on the connector housings to release them–pulling straight back prevents pin damage. For models with navigation, a third connector (blue or brown) handles GPS and display data; this requires extra care as the pins are smaller and more fragile.
Before disconnecting anything, photograph the setup from multiple angles to document wire routing, especially if retaining steering wheel controls or OnStar functionality. The retaining clips on these connectors vary: some use a side latch, others a top-mounted release lever. Misalignment during reconnection can cause audio cutouts or electrical shorts–align the connectors carefully until they click audibly. If modifying the setup, label each wire with masking tape and its purpose (e.g., “rear left speaker +”) to simplify future repairs or upgrades.
For rare aftermarket integrations, third-party adapters may require splicing into these bundles–always strip wires partially to preserve insulation and use heat-shrink tubing if soldering. The factory loom includes excess slack in some segments, so reroute wires neatly to avoid interference with HVAC ducts or CD changers, if equipped. Double-check all connections before reassembling the dash; a loose harness can trigger error codes or intermittent faults in the audio or climate systems.
Identifying Power, Ground, and Speaker Wire Colors and Functions
Start by locating the constant power wire–typically solid yellow in most factory-installed audio systems. This wire maintains memory settings and should supply 12 volts at all times, even when the vehicle is off. Connecting this incorrectly risks draining the battery or corrupting amplifier presets. Use a multimeter to verify voltage before finalizing connections, ensuring no parasitic draws are present.
The ignition-switched power wire, often red or red with a stripe, activates only when the key is in the “on” or “accessory” position. This wire powers the head unit’s primary functions without depleting the battery. If the system fails to power on, check this wire first for breaks or poor crimping, especially near fuse boxes where vibrations may loosen connections over time.
Ground wires–usually black or brown–must terminate directly to the chassis using a clean, unpainted metal surface. Avoid daisy-chaining grounds to other components, as this introduces noise and potential signal degradation. For optimal performance, crimp a ring terminal to the wire and secure it with a self-tapping screw, ensuring minimal resistance (under 0.2 ohms). Poor grounding manifests as static, distortion, or intermittent operation.
Speaker wires follow a consistent polarity scheme but vary by manufacturer. Front left speakers often use gray for the positive (+) and gray/black for negative (-), while rear speakers may employ green (+) and green/black (-). Refer to the table below for common factory color codes and their corresponding channels:
| Channel | Positive (+) | Negative (-) |
|---|---|---|
| Front Left | Gray | Gray/Black |
| Front Right | White | White/Black |
| Rear Left | Green | Green/Black |
| Rear Right | Purple | Purple/Black |
| Subwoofer | Dark Blue | Dark Blue/Black |
Swapping positive and negative wires reverses phase, causing weak bass and a “hollow” sound. Test speaker outputs by briefly touching the wires to a 1.5V battery; a proper connection produces a clear “pop,” while an inverted connection yields a faint or nonexistent response.
Amplifier remote turn-on wires, frequently blue or blue/white, activate external amplifiers when the head unit powers on. This wire carries a low-voltage signal (typically 2-5 volts) and should not be confused with high-current power wires. If amplifiers fail to initialize, check this wire for continuity and verify the head unit outputs the correct trigger voltage.
Illumination wires, often orange or orange/white, dim the head unit’s display in sync with the vehicle’s dashboard lights. These wires tap into the dimmer circuit and require proper integration to avoid flickering or overly bright displays at night. For aftermarket upgrades, connect this wire to the vehicle’s dash dimmer switch; omitting it may violate local lighting regulations.
Auxiliary inputs, USB power, and accessory wires (e.g., pink or light blue) serve niche functions but are critical for modern audio integration. USB power wires must deliver 5 volts consistently to avoid damaging connected devices. For diagnostic purposes, trace these wires back to their origin–often a harness behind the glovebox or under the dash–to isolate faults like short circuits or voltage drops.
Always disconnect the battery before handling any wiring to prevent shorts or damage to sensitive electronics. Label wires immediately during disassembly using masking tape and a marker to avoid confusion during reassembly. For complex systems, document each wire’s function and termination point with photographs or sketches, as relying solely on memory leads to misconnections and troubleshooting headaches.
