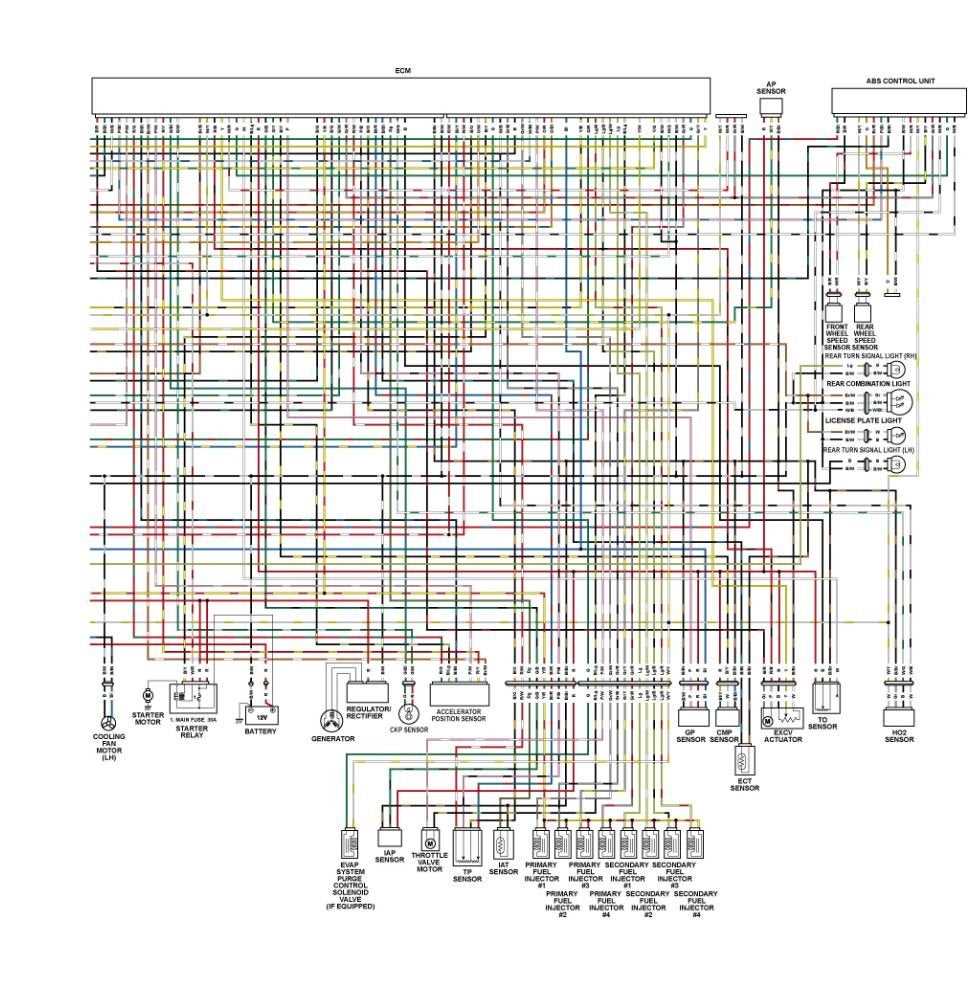

Complete Electrical Wiring Guide for 2004 Suzuki GSXR 1000 Schematics
Locate the main harness connections at the ignition switch first–pins 1 (red/black), 2 (black/white), and 3 (yellow) handle primary power distribution. Verify continuity between the turn signal relay (part #37100-47G00) and the front left running light (white/blue) before proceeding, as corrosion in these joints causes intermittent failures.
Trace the ECU ground (black/white) from the left frame rail to connector C46–resistance above 0.5 ohms here leads to erratic fuel injection pulses. The alternator output (yellow/red) should measure 13.8–14.4 volts at 5,000 RPM; deviations indicate stator or regulator issues.
Check the sidestand switch circuit (pink/white) for shorts–if the starter engages with the kickstand down, the diode at the switch assembly requires replacement. The cooling fan relay (part #37500-36G00) draws power from the pink/blue wire; if the fan runs continuously, inspect the thermo-switch for 90°C activation.
Use a 10-amp fuse tester on the accessory plug (brown/white) before connecting heated grips–overloading this circuit trips the 30-amp main fuse. The tachometer input (gray/white) originates from the ignition coil; ensure the signal reaches 12V at idle for accurate readings.
Color-coded wires differ slightly near the instrument cluster: the neutral light (green) shares a splice with the rear brake switch (gray/blue), while the speed sensor (orange/black) feeds directly into the meter’s circuit board–verify solder joints for cold connections.
Suzuki K4 Electrical Schema: Hands-On Repair Tips
Locate the ECM under the rider’s seat–it’s encased in a black plastic box fastened with two 10 mm bolts. Disconnect the battery negative terminal first, then unplug the 48-pin white connector by releasing the locking tab with a flathead screwdriver. Avoid yanking the harness; wiggle the connector free to prevent pin bend.
Inspect the stator pickup coils next. The three yellow wires should read 0.1-0.3 ohms between any pair when the engine is cold. If resistance exceeds 0.5 ohms, replace the stator assembly. Trace the yellow leads to the rectifier-regulator; corrosion here creates intermittent failures visible as white powder on the pins.
Check ignition coils individually by removing spark plugs and grounding them to the engine block with jump leads. Crank the motor while observing spark quality. Blue-white arcs confirm functioning coils; orange sparks indicate weak current that demands coil replacement. Each coil shares a 12V feed from the main fuse box–verify voltage at the red/white wire terminal before condemning a coil.
Fuel pump priming offers quick diagnostics. Turn the ignition switch to “ON” without starting; listen for a 3-second hum from behind the right fairing. Silence points to a dead pump, relay, or line breaker. Bypass the relay by jumpering terminals 30 and 87 on the relay socket; if the pump runs, replace the relay.
Headlight circuit troubleshoot begins by disconnecting both bulbs. Measure voltage at the headlight harness connector: 12V across high beam (blue/white wire) and low beam (brown/white) when switched on. No voltage suggests a burnt HI/LO connector or faulty lighting switch. Replace the switch if the dashboard indicator lights but the headlight stays dark.
Turn signal flasher module sits behind the left fairing panel. Its relay clicks audibly when activated; absence of sound means a dead module or open circuit. Probe both orange wires–normal voltage fluctuates 0-12V during flashing. Stabilized 12V signals a stuck relay; drop below 9V points to corroded bulb sockets or wiring chafed at the fork legs.
Sidestand switch wiring harness routes through the subframe; inspect the two-pin grey connector near the kickstand pivot for moisture ingress. Clean contacts with contact cleaner, then verify continuity: closed switch reads 0 ohms, open reads infinite. Short-circuit the switch leads temporarily to isolate starting issues caused by faulty switch logic.
Throttle position sensor calibration often requires only unplugging the 3-pin white connector while the ignition is off. Reconnect while holding the throttle fully open; this resets the ECM idle baseline. Voltage at the yellow wire should read 0.5-1.0V at idle, rising linearly to 4.5-4.9V at wide open throttle. Readings outside this range mandate sensor replacement.
How to Locate and Interpret Key Components in the Electrical Schematic
Identify the main power distribution block near the battery–typically marked as “Main Fuse” or “Ignition Switch Input.” Trace the thick red cable from the positive terminal to this point, noting branch lines feeding critical systems like the starter relay, fuel pump, and ECU. Each branch should align with color-coded labels (e.g., R/Y for red/yellow) matching the harness connectors. Cross-reference these with the connector pinout tables in the service manual to confirm correct routing and avoid misdiagnosis of short circuits or voltage drops.
Decoding Sensor and Actuator Circuits
| Component | Wire Color | Voltage Range | Connector Pin |
|---|---|---|---|
| Throttle Position Sensor | Black/White (ground), Gray/Red (signal) | 0.5–4.5V | C33-1, C33-2 |
| Coolant Temperature Sensor | Black/Yellow (ground), Pink (signal) | 0.1–4.9V | C24-1, C24-2 |
| Fuel Injector | Green/White (trigger) | 12V pulsed | C1-1 to C1-4 |
Verify sensor signals by probing the corresponding pins with a multimeter while cycling the ignition. For injectors, use a noid light to check for pulsing voltage. Discrepancies between expected and measured values (e.g., 0V at the TPS) indicate either a faulty sensor, broken wire, or corroded connector. Replace damaged terminals rather than splicing, as repairs often introduce resistance issues.
For ignition coils, focus on the primary and secondary circuits. The primary side receives 12V via a black/red wire, switched by the ECU through a violet/white line. The secondary side–typically orange–connects to the spark plug via a high-voltage cable. Test continuity between the coil terminal and plug cap; resistance should read 5–15 kΩ. If readings exceed 20 kΩ, inspect the cap, boot, and internal coil windings for carbon tracking or moisture damage.
Step-by-Step Guide to Tracing the Ignition and Starter Circuit
Locate the ignition switch connector on the right-hand frame rail near the steering stem. Pin 1 (red/white wire) is the primary power feed from the main fuse–verify 12V with the key in the “ON” position using a multimeter. Pin 3 (black/white) connects to the engine kill switch and should drop to 0V when activated. Trace the black/white wire to the starter relay, a 30mm square component mounted behind the left side panel. Probe the relay’s terminals: 85 (yellow/red) receives ground from the ECM, 86 (black/white) carries the ignition signal, 30 (red) is constant battery power, and 87 (black/red) outputs to the starter motor.
Test the starter circuit: Disconnect the battery, then remove the spark plugs to reduce compression. Jumper the starter relay’s 30 and 87 terminals with a screwdriver handle–if the starter engages, the issue lies upstream (relay, ignition switch, or ECM). If not, inspect the starter solenoid and motor brushes. For ECM-controlled circuits, back-probe pin 40 (gray/red) on the ECM’s 60-pin connector while cranking–voltage should fluctuate between 0V and 5V. No signal indicates a faulty sidestand switch, clutch switch, or ECM ground (check the black wire at pin 11).
Common Electrical Issues and Their Schematic-Based Solutions
Start by checking the stator output if the battery fails to charge. Locate terminals A, B, and C on the alternator connector–measure AC voltage between each pair (minimum 50V at 5,000 RPM). If readings drop below 30V, replace the stator. Corroded connectors often mimic stator failure; clean terminals with electrical contact cleaner and re-crimp wires using 16-18 AWG heat-shrink butt connectors. Verify continuity between the regulator/rectifier and stator–resistance above 1.0 ohm signals a shorted diode.
Flickering headlights or intermittent spark points to ignition coil resistance values outside 0.5–1.5 ohms primary and 10–20k ohms secondary. Test with a multimeter; replace coils if readings drift. For no-start conditions, probe the ECU’s 12-pin connector: pin 1 (black/white) should carry 12V with ignition on, pin 3 (red/black) must show 5V reference. Absence indicates a blown main fuse (30A) or corroded ground at the frame under the seat. Use dielectric grease on all ground connections.
Stalling during rides often traces to the bank angle sensor. Locate the sensor near the fuel pump–disconnect the 3-pin plug and measure resistance between pins 1 and 2: 4.5–5.5k ohms is normal. Values below 3.0k suggest internal failure; clean the sensor’s magnetic pickups with isopropyl alcohol. If the issue persists, swap the sensor. For fuel pump priming issues, check the 5V pulse at the pump’s 2-pin connector (pink/green and black/white wires) during ignition-on–no signal means a faulty relay or open circuit in the pink/green wire.
Diagnose erratic tachometer behavior by probing the instrument cluster’s 22-pin connector: pin 22 (grey/white) carries the RPM signal from the ECM. Ensure continuity to the ECM’s 17-pin connector (pin 10). No signal requires tracing the grey/white wire through the main harness–common break points are near the steering head and under the tank. For turn signal failures, test the flasher relay’s 4-pin connector (lilac, grey, orange/white): verify 12V on lilac with ignition on. If voltage is absent, inspect the 15A signal fuse and lilac wire continuity to the handlebar switch–corrosion at the left switch cluster is a frequent culprit.
