Step-by-Step Guide to Wiring a Breaker Panel with Clear Diagrams

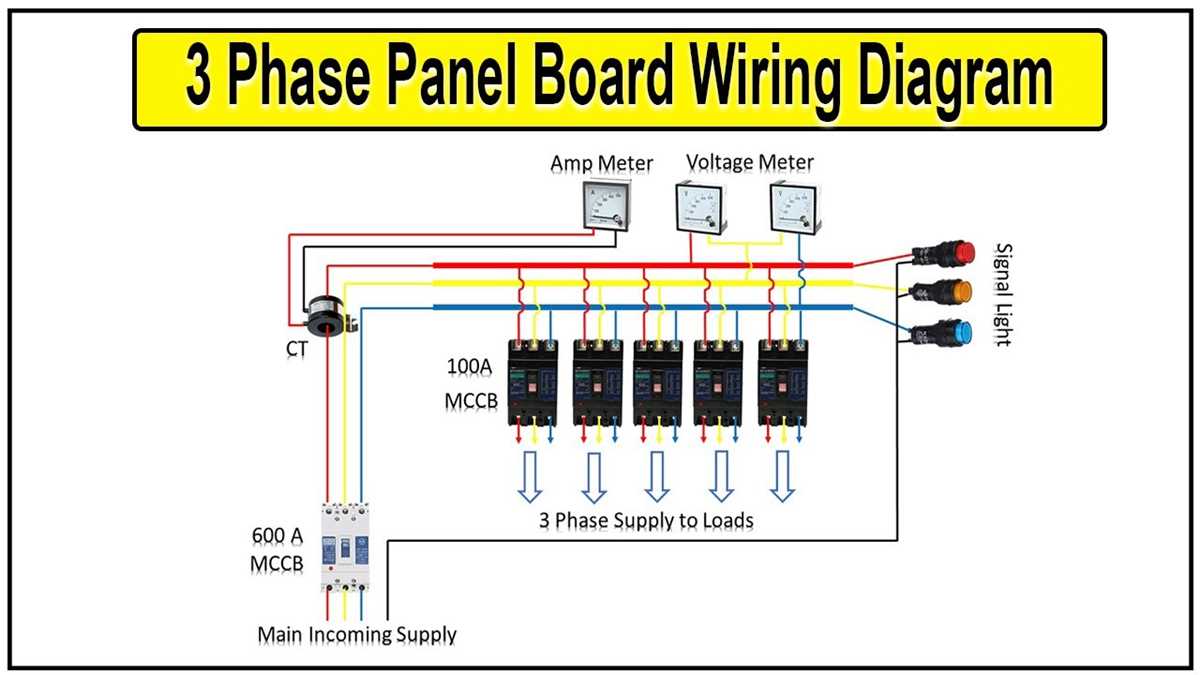

Start by identifying the main power source entry on the schematic–typically a thick line at the top labeled L1, L2, L3 (for three-phase) or Line, Neutral, Ground (for single-phase). Verify the voltage rating: 120/240V for residential, 208/277V or 480V for commercial setups. Mark these lines before proceeding to avoid miswiring high-amperage circuits.
Trace each branch circuit from its overcurrent device to the terminal block. Label conductors by gauge: 14 AWG for 15A, 12 AWG for 20A, 10 AWG for 30A. Use color-coding: black/red for hot, white for neutral, green or bare for ground. Cross-reference with local codes–NEC requires 6 AWG minimum for 60A feeders, 4 AWG for 100A.
Check the busbar configuration: split-phase systems split the neutral bus, while three-phase may use a separate grounded conductor. For subpanels, isolate the neutral bar from the enclosure–bonding is only permitted in the main service. Label each disconnect device with its load type: motor, lighting, appliance. Note trip ratings–15-20A for general circuits, 30-50A for dedicated equipment.
Verify torque settings for lugs: 10-20 lb-in for 14-12 AWG, 25-30 lb-in for 10-8 AWG. Use a calibrated screwdriver–loose connections cause overheating. For arc-fault or GFCI devices, ensure the schematic shows dedicated neutral returns; shared neutrals violate safety standards. Test continuity with a multimeter before energizing.
Document unused slots with blank covers or labeled paper inserts. For future expansion, reserve space near the main bus for higher-capacity circuits. Double-check polarity on all receptacles–reverse polarity risks damage to electronics and violates UL 489 standards. If modifying an existing layout, de-energize the system and confirmzero voltage with a non-contact tester.
Understanding Electrical Distribution Blueprint Layouts
Label each circuit in the main load center with permanent, legible tags matching the corresponding circuit identification numbers. Use 12-gauge copper conductors for 20-amp circuits and 14-gauge for 15-amp branch circuits; verify insulation ratings of 90°C for THHN/THWN-2 conductors in conduit installations. Ensure neutral and ground bars remain isolated in sub-distribution units while bonding the primary service disconnect neutral bar to the enclosure. Follow NEC Article 408.36 for proper spacing: maintain minimum 1-inch clearance for 100-amp and 1.5-inch for 200-amp busbars to adjacent surfaces.
Connect double-pole switches for 240-volt appliances using a dedicated neutral conductor when required; mark unbalanced loads exceeding 50% of single-pole rating. Test continuity between bonded components with a multimeter set to ohms–resistance should read below 1 ohm. Install arc-fault circuit interrupters (AFCIs) on bedroom and living area circuits per NEC 210.12; ground-fault circuit interrupters (GFCIs) must protect bathroom, kitchen, and outdoor receptacles. Document phase balancing by grouping high-draw appliances across separate buses to prevent overload; residential systems typically tolerate a 10% variance between phases.
How to Spot Key Elements in Electrical Circuit Schematics
Locate the primary disconnect first–typically depicted as a thick horizontal line at the top or side of the layout, representing the service entrance conductors. Verify its amperage rating (e.g., 100A, 200A) marked adjacent to the line; this dictates the maximum current the system can handle. Next, trace the feeder lines branching downward–these should split into two main vertical runs: hot buses (colored red or black) and the neutral bus (usually white or gray). Confirm the buses’ material (copper or aluminum) and slot spacing (e.g., 1-inch centers for standard residential setups).
Secondary but Critical Details
- Grounding electrode conductor: Identify the green or bare wire connecting to a ground rod or water pipe symbol–this path diverts faults.
- Lug connections: Check for torque values (e.g., 40–50 lb-in for aluminum) stamped near terminals to prevent loose connections.
- Arc fault (AFCI) and ground fault (GFCI) indicators: Symbols like a half-circle arrow or “AFCI” denote protected circuits; ensure they align with NEC section 210.12 for bedrooms and living areas.
- Load calculations: Note any handwritten notes specifying total wattage (e.g., “Sum: 8,500W”) to cross-reference with the main disconnect rating.
- Sub-feed labels: Circuits marked “Range,” “Dryer,” or “HVAC” should correlate with dedicated 30–50A double-pole devices lower on the schematic.
Examine the lower section for tandem devices–smaller switches sharing a single slot–common in older setups; modern layouts prefer full-width devices for reliability. Double-check legend boxes: symbols like “⚡” for 240V circuits or “R” for reverse-threaded screws avert installation errors. For commercial layouts, spot step-down transformers (depicted as concentric circles) and their kVA ratings (e.g., 7.5 kVA) to ensure compatibility with motor loads.

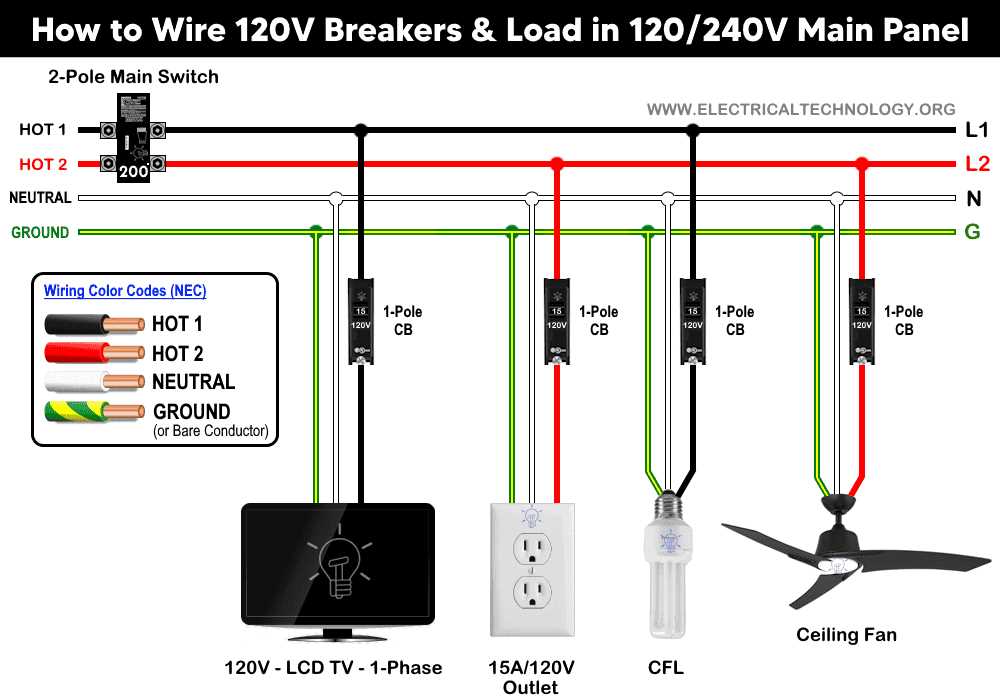

Step-by-Step Guide to Interpreting a 120/240V Load Center Schematic

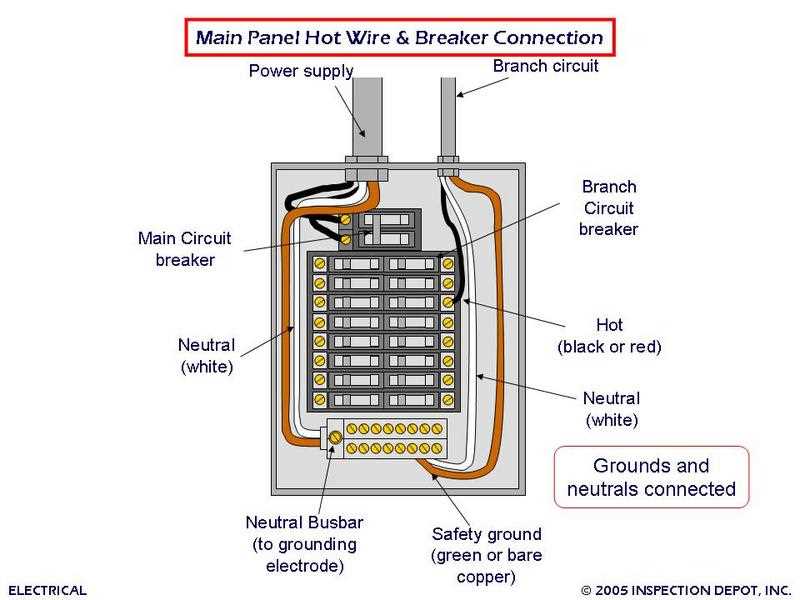

Begin by locating the main disconnect at the top of the electrical layout–typically a double-pole switch labeled “MAIN” or rated for 100–200A. Trace the two ungrounded conductors (hot legs) downward; they should split into parallel busbars, each marked L1 and L2 in alternating brass terminals. Note the voltage between these legs: 240V for high-demand appliances like dryers or ranges, while single-pole circuits (120V) tap one leg and the neutral busbar. Verify polarity by checking the color-coding–black or red for L1/L2, white for neutral, bare or green for grounding–against the schematic’s legend. Mismatches indicate errors in installation or outdated documentation.
Critical Symbols and Their Meanings
| Symbol | Description | Voltage Path |
|---|---|---|
| L1 → N | Single-pole circuit | 120V |
| L1 ↔ L2 | Double-pole circuit | 240V |
| N → G | Neutral-to-ground bond (main service only) | 0V (bonded) |
| GFCI | Ground-fault protection (typically kitchen/bath) | 120V with reset mechanism |
Identify tandem devices–these combine two 120V circuits within a single slot, marked by narrower handles. Cross-reference amperage ratings adjacent to each circuit identifier; residential setups typically use 15A (14 AWG) or 20A (12 AWG) conductors, while dedicated circuits (e.g., HVAC) may require 30A or higher. For subpanels, confirm the feeder wires include an isolated neutral bar–ground and neutral must never share a busbar outside the main service disconnect. Document each circuit’s purpose directly on the layout using a label maker; avoid handwritten notes that fade over time.
Common Errors in Reading Electrical Distribution Board Labeling
Assuming identical terminals share the same circuit function is a frequent error–neutral bars often group multiple branch returns, but dedicated slots for double-pole switches split phases. Verify voltage between adjacent screws before connecting; an unlabeled 240-volt circuit could appear as two 120s.
Misidentifying tandem switches leads to overloading. Labels like “T1” and “T2” indicate shared bus stabs, not independent protection. Check depth: full-size devices occupy one slot, while half-width ones require adjacent space–ignore this and risk violating NEC 408.36.
Overlooking color codification misleads interpretation. Black and red mark phase conductors, but white with tape signifies a switched leg or return, not a neutral. Bare copper or green wires must ground, yet some novice labels omit this distinction, causing cross-connections.
Skipping voltage markings disrupts balancing. A label reading “L1” and “L2” implies split-phase; mismatching loads between them unbalances the service, tripping main disconnects. Calculate ampacity ratios–30% imbalance triggers excessive neutral current per NEC 220.61.
Relying on handwritten labels without verifying conduit runs invites confusion. Ink fades, tape peels, and arrows point to junctions hidden behind drywall. Trace every wire with a non-contact tester–incorrect routing can backfeed unexpected circuits.
Disregarding ampere ratings on low-voltage tags causes code violations. A 20A label on a 15A terminal limits wire gauge selection; 14AWG wire must not exceed 15A, yet many incorrectly upsize to match the label, creating fire hazards.
Grouping unrelated circuits under one identifier clutters organization. Labels like “Basement lights” may cover three separate switches with distinct neutrals. Document each conductor path individually on a schematic–shared neutrals require derating per NEC 310.15(B)(2).
Ignoring manufacturer default settings triggers nuisance trips. GFCI and AFCI devices reset differently; default labels omit this, forcing repeated lockouts. Test every function using the reset button–miswired devices remain energized while displaying an “open” status.
Mapping Electrical Paths with Load Center Schematics for Issue Isolation
Start by verifying the schematic’s accuracy against physical connections–label each fuse box slot with its corresponding room or device. Use a non-contact voltage detector to confirm live circuits, matching readings to the illustrated paths. Note discrepancies immediately: mislabeled or crossed lines often point to hidden faults. For large installations, divide the system into zones (e.g., lighting, outlets, fixed appliances) and trace each zone independently to avoid overwhelm.
Grab a multimeter and set it to continuity mode. Probe between the neutral bus and individual circuit conductors while the system is de-energized. Audible confirmation indicates an intact path; silence reveals opens or shorts. Compare findings to the schematic’s expected path–deviations suggest hidden splices, damaged conductors, or incorrect branch connections. For persistent issues, disconnect downstream devices one by one, starting with high-draw equipment, to isolate the problem source.
Mark all tested connections on the schematic with a highlighter or digital overlay. Record voltage drops at key points–excessive drops (over 3%) signal undersized conductors, loose terminals, or corroded junctions. For three-phase systems, measure phase balance; unbalanced loads (differences exceeding 10%) indicate faulty distribution or uneven usage. Update the schematic with real-world measurements to serve as a future reference for recurring faults.
Use an infrared thermometer to scan terminals and conductors after 15 minutes of operation. Hotspots (above 140°F/60°C) identify overloaded circuits or poor contacts. Cross-reference these findings with the schematic’s rated capacities–overloaded branches may require redistributing loads or upgrading conductors. For arc fault detection, employ a dedicated tester on suspect circuits; carbon tracks or pitted contacts are visible signs of past arcing, requiring immediate conductor replacement.
