Complete 2004 Vehicle Radio Wiring Diagram Guide with Color Codes
For precise electrical hookups in auto infotainment modules, reference the color-coded cabling guide matching your make and trim. Factory configurations often pair yellow (constant 12V), red (switched 12V), black (ground), and blue/white (amplifier remote) as core connections. Verify wire gauges–typically 18-20 AWG–to prevent voltage drop.
Aftermarket adapters like Metra 70-1721 or Scosche GM02B simplify integration by bridging OEM harnesses without splices. Check resistance between ground and power leads (data bus wires (pink/orange in GM models) carrying amplifier control signals.
Use a multimeter to test continuity before finalizing connections. Polarity-sensitive components (subwoofers, displays) demand strict adherence to pinouts–swap leads risks permanent damage. Retain original connectors where possible; crimping or soldering alternatives compromise waterproofing and signal integrity.
Schematics for luxury segments include steering wheel control interfaces (green/purple wires in Ford/Lincoln). Isolate CAN bus lines to prevent false DTCs. For vehicles with navigation, separate purple (speed signal) and gray (reverse sensor) lines to maintain subsystem synchronization.
Automotive Sound System Connection Blueprint: Key Steps and Precise Color Codes
Locate the factory harness behind the vehicle’s audio unit–most models feature a 10-to-16-pin plug with wires organized by function. Verify connections using a multimeter: yellow delivers constant 12V power, red handles accessory power triggered by ignition, and black grounds the circuit. Improper grounding causes intermittent shutdowns or static distortion, so scrape paint from the chassis contact point for a bare-metal bond.
Aftermarket integration requires matching speaker outputs: front left typically pairs white (positive) and white/black (negative), while rear right uses gray and gray/black. Swap polarity on one set if imaging sounds muffled or phantom centers disappear. For amplified systems, tap the blue/white remote turn-on wire to activate external processors without draining the battery; falsely pairing it to yellow fries fuses or shortens amplifier lifespan.
Steering wheel controls interface via a separate harness–usually light blue/white for data, violet for serial communication. Incorrect mapping here disables hands-free calls or volume adjustments; consult OEM service manuals for resistance values between pins. Avoid twisting wires–use soldered joins or crimp connectors coated with dielectric grease to prevent oxidation, especially in high-humidity climates.
For vehicles pre-wired with premium audio, bypass coupling capacitors on rear-channel outputs to eliminate roll-off below 80Hz. Measure speaker impedance before upgrading tweeters–most stock units run 4 ohms, while aftermarket components demand stable 2-ohm loads. Install inline fuses (20A for power, 7.5A for accessories) within 7 inches of the battery terminal if retaining original cables.
Loss of station memory after disconnecting the battery occurs if the yellow memory wire lacks a backup capacitor–add a 0.1μF ceramic unit across it to sustain presets for roughly 10 minutes during swaps. Test each channel individually with a 1kHz sine wave at 0.5W before final reassembly; distorted output often traces back to reversed polarity or a short between signal and ground.
Finding the Right Electrical Schematic for Your Specific Make and Year
Begin by accessing the official manufacturer’s repair manual for your car’s exact variant. Toyota, Ford, and GM provide digital copies through their service portals–Toyota’s TIS, Ford’s Motorcraft, or GM’s Service Information (SI)–which include precise pinouts, color codes, and connector layouts tailored to each trim. Third-party databases like Mitchell1 or AlldataDIY often mirror these schematics but may omit late-model revisions.
Identify the fuse block mapping before disassembling any panels. On most vehicles from this period, the infotainment harness branches from fuse positions 12, 27, or 34–consult the owner’s manual for numbered slots. Mitsubishi and Nissan models frequently integrate the power antenna relay into the same circuit, requiring an additional search for relay R15 or R17 in the under-dash panel.
Cross-reference the harness connector with a multimeter set to continuity mode. Pin 1 typically carries ground (black or brown), while pins 4-6 handle constant 12V (yellow or red stripe). Toyota Camry and Honda Accord harnesses often include a sub-woofer output on pin 15 (purple), absent in base trims. Dodge and Chrysler systems may require a bypass of the Vehicle Theft Security Module (VTSM) if the ignition feed (pink) shows no voltage.
Locate a trim-specific guide for luxury models–Lexus ES330 and Acura TL often include fiber-optic MOST bus circuits (orange/white stripe), while Ford Crown Victoria retains an analog clock line (green/violet) even on premium audio setups. Mazda and Subaru frequently bundle steering wheel controls into the main harness, identifiable by a dual-circuit connector (gray/red and gray/black).
Check for factory service bulletins (FSBs) addressing harness revisions. Honda issued FSB 04-080 for the 2003-2005 Accord addressing intermittent Bose amplifier failures caused by corroded pin 12 connectors–this applies retroactively. Hyundai and Kia models from the same era share a common harness layout, but the Santa Fe’s monsoon system uses a unique ground splice (black/blue) separate from the Elantra’s.
For aftermarket installations, purchase a harness adapter matching your vehicle’s OEM connector–the Metra AX-HON8 or Scosche CR04B includes T-harnesses for Honda’s 8-pin and 20-pin interfaces. Avoid universal kits unless they specify compatibility with dual-mode amplifiers (e.g., JBL’s 4-speaker + 4-tweeter setup in the Toyota Avalon). Crutchfield’s vehicle selector tool filters schematics by sub-model, accounting for optional navigation wiring (blue/white).

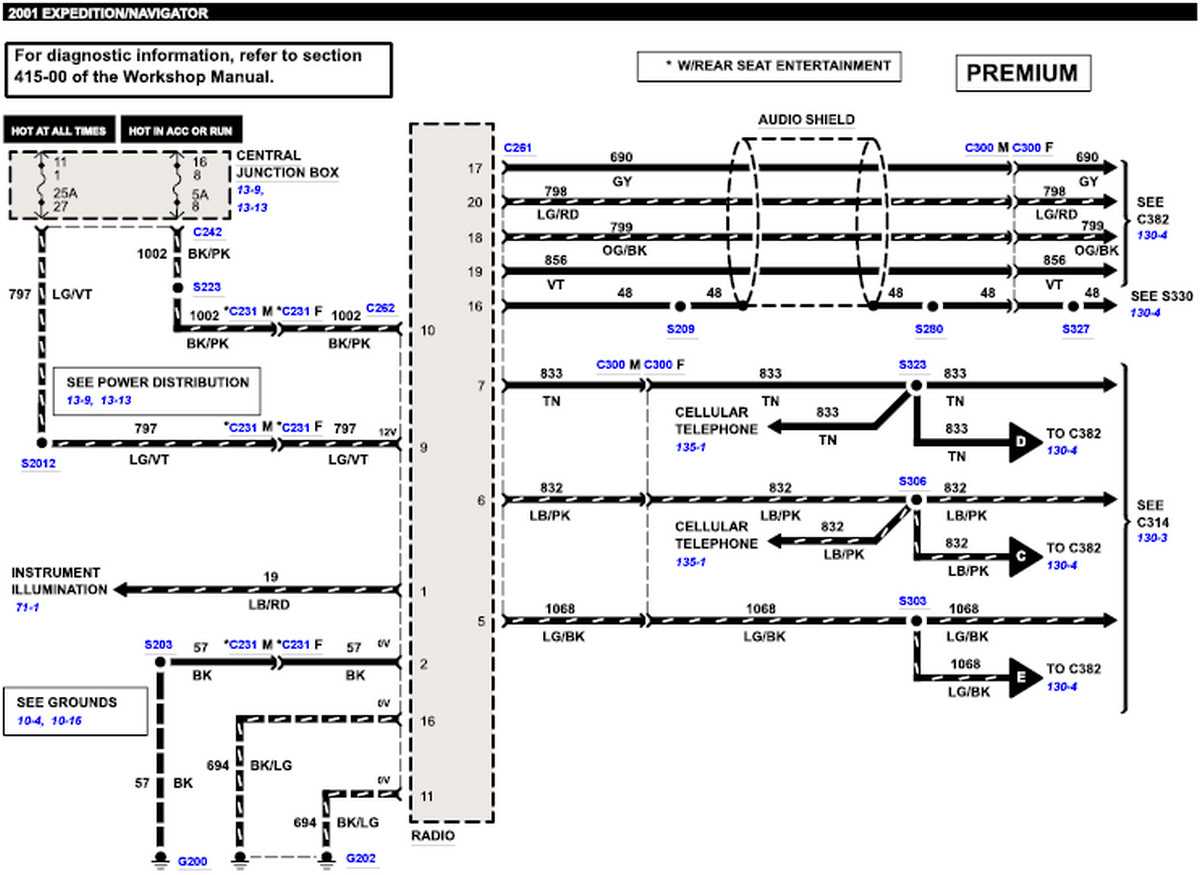

Document splice points before cutting any wires. Ford Expedition and Lincoln Navigator systems frequently hide the amplifier turn-on lead (blue/white) behind the glovebox–trace it back to the factory amp module (mounted behind the driver’s kick panel). Forgetting to bypass the factory EQ on GM’s XM-ready models (silver/gray wire) results in distorted bass. Always secure connections with solder and heat-shrink tubing to prevent oxidation on high-current leads.
Guide to Aftermarket Sound System Wire Color Standards
Begin by disconnecting the vehicle’s battery to prevent short circuits during installation. Identify the existing harness connector behind the factory stereo–it typically contains 12-16 wires, though configurations vary by trim. Use a multimeter to verify wire functions if labels are absent or faded.

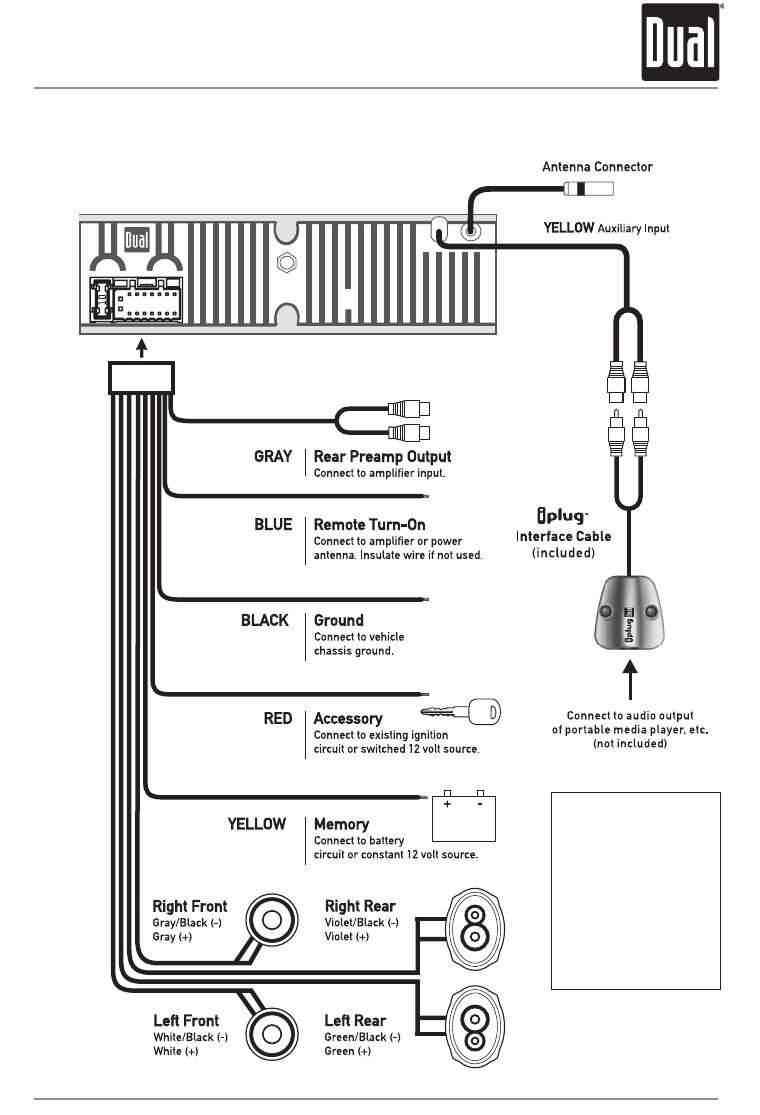

Match aftermarket unit harness pins to the following color codes for a seamless connection:
| Function | Standard Wire Color | Alternative Colors (if present) |
|---|---|---|
| Constant 12V | Yellow | Orange with stripe |
| Accessory (ignition-switched) | Red | Pink, Light Green |
| Ground | Black | Brown, Gray |
| Front Left Speaker (+) | White | Gray, Tan |
| Front Left Speaker (-) | White/Black stripe | Gray/Black stripe |
| Front Right Speaker (+) | Gray | Light Blue |
| Front Right Speaker (-) | Gray/Black stripe | Light Blue/Black stripe |
| Rear Left Speaker (+) | Green | Purple |
| Rear Left Speaker (-) | Green/Black stripe | Purple/Black stripe |
| Rear Right Speaker (+) | Violet | Dark Blue |
| Rear Right Speaker (-) | Violet/Black stripe | Dark Blue/Black stripe |
| Power Antenna | Blue | Blue/White stripe |
| Amplifier Remote Turn-On | Blue/White stripe | Brown, Pink |
For vehicles with amplified systems, locate the factory amp–often positioned behind the glovebox or under a seat–and bypass it by connecting speaker wires directly to the head unit. If retaining the amp, splice its harness into the new system using the same color logic, but confirm signal flow with a test tone to avoid phase issues.
Troubleshooting Incorrect Connections
If audio cuts out or distorts, recheck wire pairing: reversed-positive leads cause weak output, while misrouted accessory wires drain the battery. Probe each connection with the multimeter set to DC voltage–constant power wires should read 12V, ground should register 0V, and speaker wires must fluctuate when audio plays.
Secure all splices with solder and heat-shrink tubing or butt connectors crimped tightly. Route wires away from sharp edges, moving components, and hot surfaces like exhaust manifolds. Reconnect the battery last, then test all functions–seek presets, tone controls, and steering wheel controls if retained.

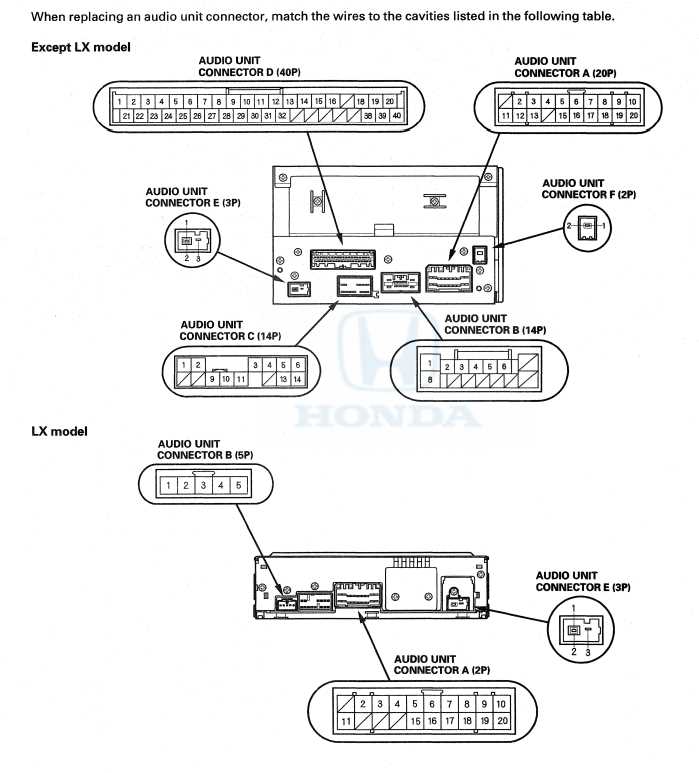

Pinpointing Stock Audio System Connector Layouts for Early 2000s Models
Begin by locating the vehicle’s original sound unit connector–typically a 10–24-pin harness bundled behind the dashboard. Most early 2000s sedans and SUVs use a standard AXX-### or MET-### format, where the last digits denote the specific variant. Check the vehicle service manual or a manufacturer-specific pinout chart for exact numbering. Pin 1 almost always carries constant 12V power (red or yellow wire), while Pin 2 or 3 handles switched ignition (orange or purple). Ground is usually a solid black or brown wire on Pin 4 or 5.
For precise identification, strip back 3–5 mm of insulation on each wire and use a multimeter set to DC voltage. Probe each terminal with the ignition on: constant power pins read 12V, switched pins drop to near zero when the key turns off, and ground reads zero ohms to chassis. Label each lead with masking tape immediately–mislabeling a single terminal risks blowing fuses or damaging the sound processor.
- Dodge/Chrysler: 12-pin square connector (C1 harness) – Pins 1–3: power; 4: ground; 5–8: front/rear speakers; 9–12: antenna or amplifier triggers.
- Ford: 16-pin rectangular plug – Pins 1–4: front/rear left; 5–8: front/rear right; 9–12: power/ground; 13–16: illumination or mute.
- GM: 24-pin block (GM LAN) – Even numbers: power/ground; odd: speaker outputs; Pins 17–24: data bus or amp controls.
- Toyota/Honda: 10–14-pin harness – Pins 1–2: power; 3: ground; 4–6: front left/right/rear; 7–10: illumination or speed-sensor inputs.
If the original connector is missing or damaged, purchase an exact replacement from the OEM parts supplier–aftermarket adapters often omit critical pins for steering-wheel controls or amplified outputs. For vehicles with Bose or JBL premium setups, an additional 4–8 pin plug handles amplifier leads; verify these with a test light before splicing to prevent short-circuiting the voltage regulator.
Document every pin assignment with a photo before disconnecting anything. If integrating an aftermarket head unit, match each color-coded lead to the corresponding aftermarket harness using a solder joint or crimp connector–not electrical tape. Double-check polarity on speaker wires; reversing the positive and negative causes phase cancellation, drastically reducing bass response.
