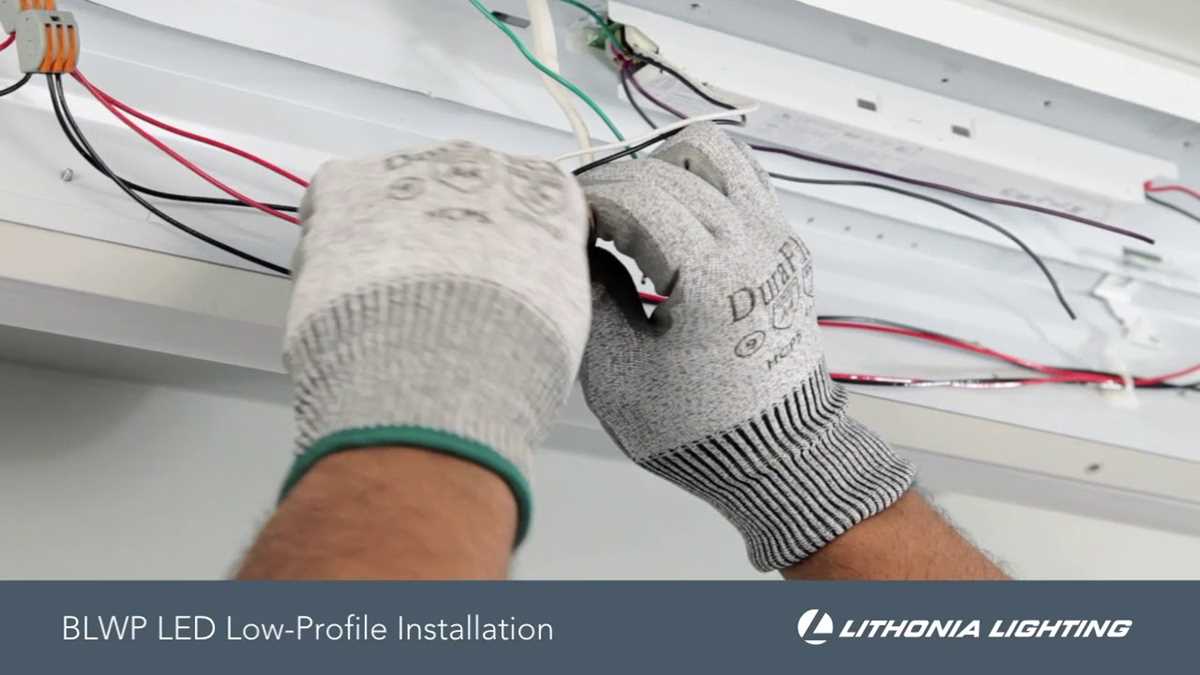

Begin by identifying the central driver unit–most fixture models integrate a 120V-277V input range, tolerating fluctuations within ±10%. Connect the live wire (typically black or red) directly to the terminal labeled “LINE,” ensuring a secure splice with a UL-listed wire nut or lever connector rated for at least 20A. The neutral (white) wire attaches to the “NEUTRAL” terminal, while the ground (green or bare copper) must terminate in the dedicated grounding screw or terminal block. Failure to properly terminate the ground risks intermittent flickering or premature driver failure.

For installations involving multiple units, employ a daisy-chain configuration by linking the output terminals of one driver to the input of the next. Verify compatibility with low-voltage wiring–some assemblies allow 12V or 24V DC connections between drivers and secondary modules. Use stranded copper wire (minimum 18 AWG) for flexibility, and avoid solid core in high-vibration environments. When routing cables, maintain a minimum 6-inch separation from high-voltage lines to prevent electromagnetic interference, which can disrupt dimming functions or cause audible buzzing in sensitive ballasts.

Critical safety checks: Before energizing, measure continuity between the neutral and ground terminals using a multimeter. A reading above 10 ohms indicates a faulty ground–re-examine connections or replace the driver if necessary. Confirm voltage at the input terminals matches the expected supply (e.g., 240V systems require jumpers set to “240V” mode). Overlooking this step risks damaging the internal electronics, voiding warranties, and creating fire hazards.

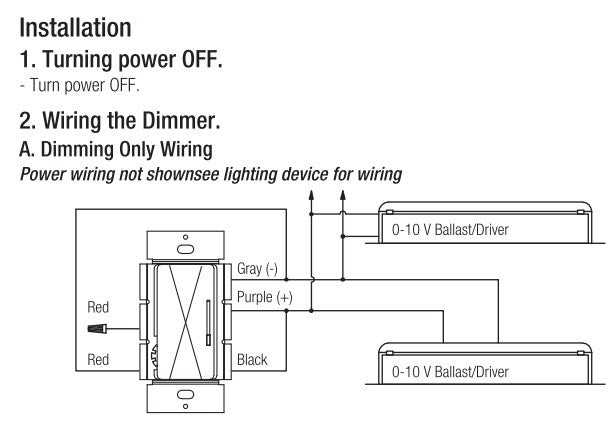

For dimmable setups, ensure the dimmer switch supports low-voltage loads (check for “ELV” or “0-10V” compatibility). Wire the dimming control lines (often purple and gray) to the corresponding terminals, polarity-sensitive in some cases. If dimming behaves erratically, test with a non-dimmable driver–persistent issues suggest a mismatched dimmer or faulty control wiring. In outdoor applications, seal all splices with heat-shrink tubing or gel-filled connectors to prevent moisture ingress, which leads to corrosion and intermittent failures.

Final validation involves cycling the power three times to confirm consistent startup behavior. Persistent delays or failure to illuminate point to incorrect voltage settings, reversed polarity, or a defective driver. Replace non-functional units immediately–attempting repairs voids certifications and introduces liability risks. Document all connections in a schematic for future maintenance, noting wire gauges, terminal designations, and voltage readings for reference.

Step-by-Step Electrical Layout for Energy-Efficient Fixtures

Start by identifying the junction box location–this determines the entire circuit configuration. Most commercial-grade luminaires require a dedicated 120V or 277V power source, depending on the model’s specifications. Verify the voltage rating on the product label before connecting wires to avoid overheating or premature failure. Always use a multimeter to confirm the circuit is de-energized prior to handling conductors.

Neutral and live wires must match the fixture’s color-coding: white for neutral, black or red for hot, and green or bare copper for grounding. For dimmable units, connect the dimmer’s output to the hot wire, ensuring compatibility with the specified driver type (0-10V, DALI, or phase-cut). Miswiring dimmable setups can cause flickering, humming, or unresponsive controls; consult the manufacturer’s technical sheet for exact pairing requirements.

Grounding and Safety Protocols

Grounding is non-negotiable–omit it, and risk electrical shocks or fire. Secure the green or bare wire to the metal housing of the junction box using a listed grounding screw or pigtail connection. In outdoor installations, use corrosion-resistant terminals and silicone-filled wire nuts to prevent moisture ingress. For fixtures rated IP65 or higher, seal all entry points with waterproof gland connectors.

Low-voltage alternatives (e.g., 12V or 24V) demand a transformer or driver with sufficient wattage–calculate total load by summing the wattage of all connected fixtures plus a 20% buffer for driver efficiency losses. Overloading the driver shortens its lifespan; underloading causes inconsistent illumination. For modular systems with multiple drivers, daisy-chain the neutral and ground but home-run the hot wires to prevent voltage drop.

Troubleshooting Common Installation Errors

If the fixture fails to illuminate, first check for tripped breakers or blown fuses–these often result from short circuits caused by pinched wires or improperly secured connections. Inspect wire nuts for loose strands; rewire if necessary using new connectors. Flickering may indicate a loose neutral or incompatible dimmer; swap the dimmer for a non-dimming switch as a diagnostic step. For persistent issues, measure voltage at the fixture’s input terminals–readings below 108V (for 120V systems) suggest line losses requiring thicker gauge wire.

Retrofit projects in older buildings frequently encounter incompatible ballasts–remove all legacy components entirely before installing direct-wire drivers. Mixed wiring (e.g., aluminum and copper) necessitates approved splice connectors to prevent galvanic corrosion. In EMI-sensitive environments, route low-voltage control wires separately from power lines to avoid signal interference. Always reference the product’s UL listing and follow local electrical codes for conduit fill ratios, box volume calculations, and permitted wire types (e.g., THHN vs. THWN).

Key Elements in Industrial Luminaire Circuit Blueprints

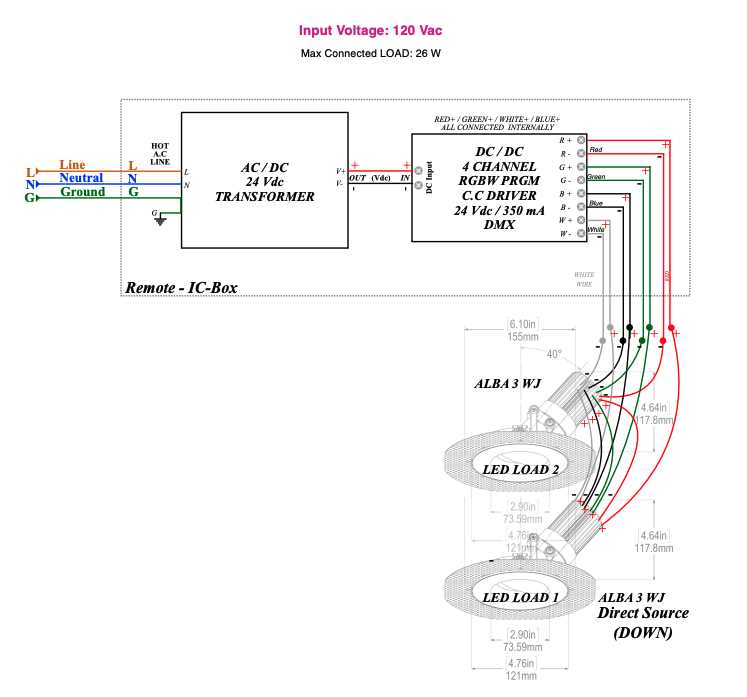

Start by locating the driver unit–typically a rectangular module labeled with input/output specifications (e.g., 120-277V AC, 24V DC). Verify its pin configuration: most current-limiting counterparts use two primary terminals for power input and secondary pairs for output to the emitter array. Cross-check voltage ratings against the source; mismatches often cause premature failure or flickering.

Critical Connection Points

• Main harness terminals: Identify screw-type or push-in connectors marked L (line), N (neutral), and G (ground). Larger gauge wires (14-16 AWG) usually denote power feeds.
• Auxiliary circuits: Look for optional ports (e.g., dimming controls, motion sensors) labeled DIM+, DIM-, or SENSOR. These often require low-voltage interfaces (0-10V, PWM).
• Emergency backup: Dual-mode setups may include a battery pack interface–trace red/black wires to a separate PCB marked EB or EM.

Trace the solid-state emitter pathways–parallel or series chains determine voltage drop per segment. Single-row arrangements (e.g., 3V per chip) contrast with multi-string layouts that require balancing resistors. Check for current-setting components: SMD resistors labeled R1, R2 near the driver output often regulate 350mA-1A per channel.

1. Isolate the thermal management subcircuit–fetches sensor wires (NTC thermistor) leading to the heatsink interface. Confirm resistance values (typically 10kΩ at 25°C) to prevent overheating shutdowns.
2. Examine fault detection nodes–diodes or transistors near the driver output may indicate overvoltage (OV) or open-circuit (OC) protection. Look for Zener diodes or ICs marked U1 with thresholds matching the system’s maximum rating (e.g., 30V for 24V setups).
3. Validate grounding integrity–measure continuity from the fixture’s chassis to the driver’s GND terminal. Poor bonding increases susceptibility to EMI, causing intermittent dimming or failure.

Decode dimming protocols by inspecting the color-coded wires: purple/white for 0-10V, gray for DALI, and orange for phase-cut dimming. Verify compatibility by cross-referencing the schematics with the control unit’s datasheet–mismatched protocols often manifest as incompatibility errors (e.g., flicker at 30% intensity).

Step-by-Step Installation Guide for Single-Switch Low-Voltage Luminaires

Turn off the circuit breaker supplying power to the installation area before handling any electrical connections. Use a non-contact voltage tester to confirm all wires are dead–probe both the live and neutral conductors to eliminate false negatives. For fixtures with a built-in driver, ensure the input voltage matches the local supply (±10% tolerance). Mismatches will cause immediate flickering or permanent damage to the internal components.

Preparing the Junction Box

Remove the fixture’s mounting bracket and align it with the junction box knockouts. If the box lacks threaded entries, secure a standard metal or plastic conduit connector using locknuts on both sides. Feed the supply cable through the connector, leaving 6–8 inches of slack inside the box for termination. Strip the cable jacket back 1.5 inches to expose the insulated conductors; trim any excess sheathing to prevent stray strands from contacting the enclosure.

For armored cable installations, score the steel jacket with wire cutters and snap it along the groove to avoid nicking the inner wires. Peel the jacket back 6 inches, then use lineman’s pliers to crimp a bonding bushing onto the jacket’s cut edge–this bonds the equipment ground to the box without relying on a separate green wire. Secure the armored cable to the junction box with a clamp connector rated for the cable’s diameter.

Identify the hot (typically black or red), neutral (white), and ground (bare or green) conductors. If the fixture includes a quick-connect terminal block, insert each wire fully until it clicks–no stripping required. For traditional twist-on connectors, strip 0.5 inches of insulation, twist the exposed strands clockwise, and screw on a UL-listed wire nut, applying firm pressure while rotating. Tug each connection to verify mechanical strength; loose splices create intermittent failures.

Mounting and Final Checks

Attach the fixture to its bracket using the provided screws, aligning the lens or diffuser according to the manufacturer’s alignment marks. Re-energize the circuit and toggle the switch–if the unit fails to illuminate, immediately cut power and inspect the splice connections for reversed polarity or improperly seated wires. Measure voltage at the fixture’s input terminals with a multimeter; expect 120V AC (or 277V AC for commercial feeds). Deviations indicate a wiring error upstream.

Seal unused knockouts in the junction box with blank grommets to prevent moisture ingress. For outdoor or damp-rated models, apply silicone sealant around the cable entry point and secure the fixture’s gasket against the mounting surface. Reattach the lens cover only after confirming steady operation–trapped heat from an initial short can melt plastic diffusers within minutes.
