Complete Wiring Diagram Guide for 2004 Chevrolet Trailblazer Electrical Systems

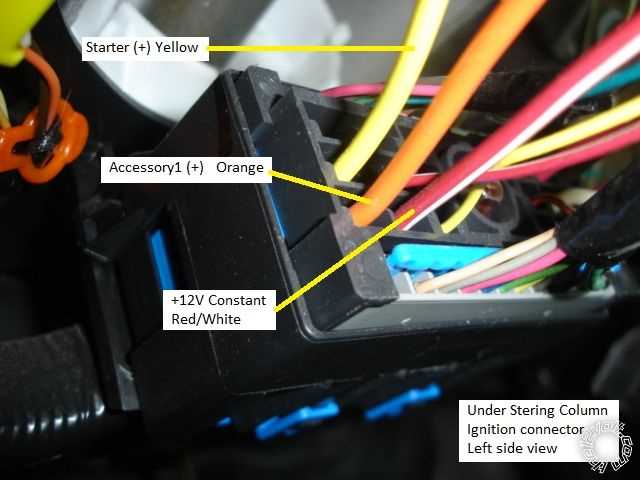

Begin troubleshooting by locating the main fuse block under the driver-side dashboard–this houses critical relays for the ignition, headlights, and fuel pump. Use a multimeter set to 20V DC to verify voltage at terminal 30 of the ignition relay socket (pinout: 30 = constant 12V, 85 = ground, 86 = ignition switch, 87 = output). If readings deviate, inspect the red/white wire running from the relay to the PCM for chafing near the steering column.
For HVAC blower motor failures, trace the dark blue/white wire from the motor connector to the climate control module (CCM). A common failure point is the 20-amp fuse labeled “BCM 2” in the underhood fuse box–replace it with a OEM-equivalent fuse if blown (spec: mini-blade, slow-blow). Check the CCM’s 12-pin connector for corrosion, particularly terminal 5 (power) and terminal 8 (ground).
To diagnose power window issues, test the master switch connector’s yellow (driver window) and purple (passenger window) wires for 12V when the switch is activated. If voltage is absent, probe the orange (constant power) and black/white (ground) wires at the fuse panel. The rear window circuit utilizes a separate gray wire–inspect the door jamb harness for pinched wires if intermittent.
For anti-lock brake system (ABS) faults, start with the wheel speed sensor connectors. Each sensor uses a shielded twisted pair (gray/pink for front left, gray/orange for front right). Measure resistance between the sensor terminals (spec: 800–1400 ohms at 20°C). If readings are out of range, replace the sensor not the wiring–insulation damage is rare but verify continuity to the EBCM (pins A6, A8, A10, A12).
When replacing the instrument cluster, disconnect the battery first. The cluster’s 24-pin connector has a light green/black wire (tachometer input)–if the RPM gauge is erratic, test this wire at the PCM’s C1 connector (pin 19). For check engine light diagnostics, monitor OBD-II pin 16 (battery voltage) and pin 4 (ground)–a missing ground here will prevent communication.
For trailer wiring, the 7-way connector’s brown (tail lights) and yellow (left turn/brake) wires corrode frequently. Upgrade to marine-grade tinned copper wire (18 AWG) and use dielectric grease on all connections. The factory trailer module (labelled “TVS”) under the dash often fails–bypass it if lights work without the module.
Electrical Layout for GM Mid-Size SUVs: Hands-On Troubleshooting
Start by locating the under-hood fuse box–positioned near the driver’s side strut tower–where critical circuits converge. Use a multimeter set to 20V DC to verify power at terminal 30 of the ignition relay socket, which should register 12.6V with the key OFF. If readings drop below 11.8V, inspect the battery terminals for corrosion or loose connections before proceeding.
Trace the instrument cluster harness (16-pin white connector) by removing the dash lower trim panel. Pin 5 supplies ground; probe it against chassis ground to confirm continuity under 0.5Ω. A higher resistance indicates a broken ground strap–often hidden behind the kick panel–or frayed wire at the splice near the steering column. Replace the entire harness segment if insulation damage is visible.
The PCM power distribution relies on two fused circuits: 80A main (red wire) and 30A ignition (pink/black stripe). Check both fuses visually, then use a test light to verify output at the relay sockets. If the relay clicks but output voltage is absent, swap the relay with a known-good unit (such as the A/C relay) to isolate failures. For intermittent issues, wiggle the harness near the firewall grommet while monitoring voltage.
Common Failure Points and Fixes
Focus on the trailer wiring connector (7-way round) where wires frequently chafe against the frame. Strip back insulation at points of entry/exit and solder new 12-gauge wire if copper strands appear brittle. Apply heat-shrink tubing over splices to prevent moisture ingress, which causes voltage drop errors in brake and turn signal circuits.
For blower motor malfunctions, remove the glove box to access the resistor block. Measure resistance across terminals R1-R5; proper values range from 0.3Ω (high speed) to 3.7Ω (low). If readings deviate, replace the block and inspect the blower motor ground wire, which often corrodes where it bolts to the firewall.
When addressing rear wiper failures, bypass the delay module by connecting the wiper switch directly to the motor. Remove the liftgate panel to access the brown/white wire (pin 2 of the 6-pin connector). Test for 12V during wiper operation; if absent, trace the wire through the hinge grommet to identify breaks caused by repetitive motion.
Advanced Diagnostics: Module Communication
Use a scan tool capable of bidirectional control to ping the BCM via the DLC. If no response, probe pin 2 (yellow wire) at the connector for CAN-H signal–it should fluctuate between 2.5V and 3.5V. Absent signal indicates a short to ground or open circuit in the serial data line, typically near the OBD-II port or under the driver’s seat. Repair requires soldering a new twisted-pair segment directly to the module terminals.
Finding the Right Electrical Guide for Your Chevy SUV Variant
Begin by isolating the specific system needing repair–whether it’s the powertrain, lighting, or entertainment module–then refer to the vehicle’s service manual. The official Chevrolet documentation breaks down schematics by subsystem, marked with clear identifiers like “Chassis Electrical” or “Body Control Module.” Avoid generic online sources; they often mix trims (LS, LT, SS) or engine types (4.2L I6 vs. 5.3L V8), leading to incorrect connections. The manual’s table of contents lists diagrams by page number, eliminating guesswork.
For early production units (January–June), check for mid-year revisions. Post-July builds introduced minor adjustments to the harness routing near the under-dash fuse panel, particularly around the blower motor resistor. These changes aren’t always reflected in aftermarket guides, so cross-reference the VIN’s eighth digit (5 for I6, C/K for V8) against the manual’s appendix. Dealerships and certified repair shops maintain updated microfiche archives, but indie mechanics rarely have access to these subtle variations.
If the printed material is unavailable, extract the data from the OEM software–GM’s Global Electrical Architecture (GEA) database or Mitchell1’s Direct-Hit. Both platforms segment the vehicle’s network by color-coded circuits and pin assignments, though GEA provides superior search functionality. Input the year-code (e.g., “04”) and model designation (“TB”) to pull the exact harness map, including splice points and ground locations.

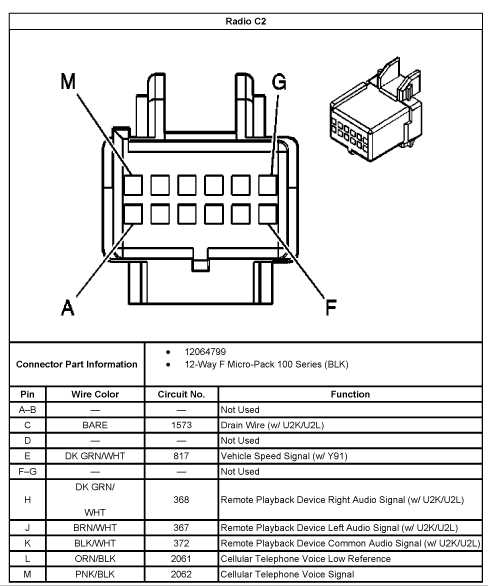

Pay attention to connector types: Metri-Pack 150/280 for engine bay components, Weather-Pack for exterior lighting, and Delphi’s proprietary design under the dashboard. Misidentifying these can fry sensors or trigger false DTCs. The front fog light wiring, for instance, splits from the headlamp circuit only on higher-end trims; base models route this differently. A multimeter set to continuity mode helps trace each wire’s path before disconnecting anything.
Online forums often recommend splicing diagrams from unrelated models, particularly Colorado or Envoy, which share components but differ in critical areas like the trailer harness or rear climate control. Instead, download the Technical Service Bulletins (TSBs) for your build date. TSB 05-06-03-001B details a common misfire issue traced to a faulty ignition coil connector–a fix that only appears in the updated harness layout, not the initial release.
Aftermarket suppliers like Haynes or Chilton simplify diagrams to appeal to beginners but omit resistance values, wire gauges, and transient voltage spikes that affect sensitive modules (e.g., ABS or HVAC actuators). For precision work, the DTC section of the factory manual lists expected readings–ignoring these can result in replacing a functional part due to a single misread signal, especially in the CAN bus network where data packets overlap.
If diagnosing intermittent faults, use a thermal camera to identify hotspots along the harness, particularly near the exhaust manifold or transmission tunnel where insulation deteriorates first. The auxiliary power outlet circuit, often the first to fail, has a unique fuse tap that varies between trims; LS models use a 20A fuse, while LT/SS ups it to 30A. Always verify the harness version against the door jamb sticker’s “Option Codes” (e.g., “UU8” for premium sound wiring).
Step-by-Step Electrical Connector Routing for the Powertrain Bay
Locate the primary engine control module (ECM) harness near the firewall on the passenger side–it’s bundled with a thick black sleeve secured by a single 10mm bolt. Detach the bolt before separating any connectors to avoid strain on the terminals. The ECM plug (16-pin Weather-Pack) requires a slight twist to unlock; pull straight back with steady pressure to avoid bending pins. Verify seal integrity–cracks will cause moisture intrusion and intermittent faults.
Trace the oxygen sensor leads from their threaded bosses on the exhaust manifolds to the harness splice near the radiator support. The upstream sensor (bank 1, sensor 1) uses a four-wire harness with gray insulator; the downstream (bank 1, sensor 2) uses black. Secure both harnesses to the frame rail with 4-inch zip ties every 8 inches–vibration causes chafe, leading to false lean codes. Avoid routing near sharp edges or exhaust components; use silicone-coated heat sleeves where clearance is under 2 inches.
Connect the throttle body actuator cable last. The six-pin connector aligns with a keyed slot–misalignment damages the pins, triggering limp mode. Snap it firmly until the locking tab clicks; tug gently to confirm engagement. Route the harness away from the serpentine belt with a 1-inch offset, securing it to the intake manifold bracket with a reusable nylon clip. If the check engine light persists, backprobe pin 3 (5V reference) and pin 5 (signal return) at the ECM–resistance should read 820-1,000 ohms; deviations indicate frayed conductors or corroded splices.
