Complete 2005 Ford Escape Wiring Schematic Guide and Troubleshooting
For accurate repairs or modifications, locate the power distribution box schematic under the driver-side dashboard. Pinouts for key systems–ignition, fuel pump relay, and PCM–are clustered near fuse positions F23 (10A) and F27 (30A). Verify connections with a multimeter set to 200 Ω; expected readings should align with color-coded terminal specifications (e.g., Y/W for yellow/white stripes).
Critical circuits to inspect first include the IAC valve wiring (pins 2 and 3 on the PCM connector) and the MAF sensor harness (signal wire: RD/LG). Corrosion often develops at the bulkhead connector (firewall pass-through), particularly in vehicles exposed to road salts. Replace any compromised terminals immediately; use heat-shrink crimp connectors rated for 20-22 AWG.
When troubleshooting parasitic drains, isolate the BJB (Battery Junction Box) circuits by disconnecting the negative battery terminal, then probing between the battery post and disconnected terminal with an ammeter. Drains exceeding 50mA warrant tracing the FJB (Front Junction Box) schematic–focus on the instrument cluster and rear wiper motor loops, common failure points in this chassis.
For auxiliary component integration (e.g., trailer wiring or aftermarket audio), refer to the auxiliary fuse block diagram adjacent to the under-hood relay center. Use 14-gauge THHN wire for accessory runs and add inline glass fuses (minimum 15A) within 7 inches of the power source. Avoid tapping into the O2 sensor or transmission solenoid circuits unless monitoring with a load-controlled relay.
Practical Electrical Schematics Guide for the 2004 Hybrid SUV Model
Locate the fuse box under the dashboard on the driver’s side–identify relay R15 labeled “PCM Power” before probing circuits. Voltage at terminal 30 should read 12.6V with ignition off; deviations below 11.8V indicate corroded grounds near the battery tray or a failing alternator diode trio.
Disconnect the negative battery cable when working on the HVAC blower motor resistor pack–it’s mounted behind the glove box. Pin 4 (light blue wire) carries a 5V reference signal from the climate control module; if absent, trace back to connector C2501 on the firewall, checking for chafed insulation near the steering column linkage.
Critical Sensor Circuits
- The throttle position sensor (TPS) shares a 5V feed with the MAF sensor–verify continuity on the purple/white stripe wire between pin 3B at the PCM and pin 2 at the TPS using a digital multimeter set to 200Ω.
- Oxygen sensor heaters draw 8-12 amps; if fuse F43 blows repeatedly, inspect the harness where it routes over the rear axle for exposed copper contacting the frame–zip-tie it every 6 inches.
- ECT sensor resistance should drop from 35,000Ω at 32°F to 1,200Ω at 212°F; outliers suggest air pockets in the coolant jacketing or a cracked sensor housing.
For parasitic drain diagnosis, remove fuse F28 (instrument cluster) first–current draw above 50mA here typically stems from stuck relays K2 or K3 in the central junction box. Probe the dark green wire at connector C114–PWM signal should pulse between 0.5V and 4.5V at 10Hz; flatline readings necessitate replacing the GEM module.
High-Voltage Safety Protocols
- Wait 10 minutes after key-off before touching orange cables–capacitors retain 300V DC.
- Use CAT III 1000V-rated insulated gloves when testing the inverter duty cycle at pin 14 of connector C302–expected waveform: 0-5V square wave at 20kHz.
- If the hybrid battery interlock circuit triggers (DT code P0A0F), bypass the manual service disconnect temporarily to access the rear bay–orange wires terminate at bus bars under bolt heads torqued to 5 Nm.
Power window regulators fail when the motor brushes wear–back-feed current travels through the tan/yellow wire, overheating the switch contacts. Replace the entire harness section if pin 5 at connector C402 shows pitting–Ford’s revised wire gauge increased from 18 to 16 AWG to handle 15A surges.
Keyless entry antennas require a 125kHz signal; weak range often traces to water intrusion at connector C501 behind the rear quarter panel. Dry the cavity with compressed air, then seal with dielectric grease–reapply the foam gasket if it’s compressed below 3mm thickness.
Finding Key Electrical Connection Points in the Compact SUV Model
Begin under the dashboard on the driver’s side. Remove the lower trim panel by unfastening two 7mm bolts near the kick plate and gently prying the clips along the edge. The primary harness bundle runs vertically behind the fuse box–look for a thick, black-sheathed cable with multiple colored leads branching off. Zip ties secure it to the chassis; cut these with wire cutters if removal is necessary, but leave enough slack for reattachment.
The bulkhead connector sits behind the brake pedal assembly. Disconnect the negative battery terminal first to prevent shorts. A white or gray plastic junction block (approximately 12-pin) links cabin electronics to the engine bay. Press the release tabs inward while pulling firmly–avoid yanking individual wires. Label each plug with masking tape if disassembling for repairs.
For engine compartment access, raise the vehicle safely on jack stands. The main harness enters through a grommet on the firewall near the driver’s side strut tower. Slice through the weatherproof sealant with a utility knife to expose the connectors. Two distinct bundles emerge: one heading to the fuse relay center (red/black wires) and another branching toward the transmission control module (blue/white wires). Tag each with a marker pen for quick identification.
Behind the glovebox lies another critical junction. Drop the box by squeezing the sides inward and letting it hang. A rectangular connector (16-pin, white housing) interfaces with the HVAC system and interior lighting. Use a small flathead screwdriver to depress the locking tab before separation. Check for brittle insulation–common at stress points near moving components like the blend door actuator.
For ground points, locate the thick braided strap near the rear passenger footwell. It bolts to the chassis with a 10mm nut and often accumulates corrosion. Clean with a wire brush, apply dielectric grease, and ensure tight torque specs (12-15 ft-lbs). A secondary ground strap attaches to the transmission bellhousing–verify continuity with a multimeter if electrical gremlins persist after repairs.
Decoding Electrical Pathway Markings for Voltage and Earth Lines
Always start by isolating the black or dark green conductors–these typically signify negative connections. In most schematics for mid-size utility vehicles, these colors indicate the return path, essential for tracing faults. Verify continuity with a multimeter before assuming function; oxidation or loose crimps can mimic a break in the circuit, leading to misdiagnosis. When in doubt, cross-reference with the fuse box legend, where ground points are often labeled with “G” or a downward triangle.
Red conductors carry primary voltage, usually 12V direct from the battery or ignition switch. If a red wire splits, expect branches to use lighter shades–pink, orange, or yellow–to denote reduced current in accessory circuits. A red wire with a stripe (commonly white or gray) suggests a fused input, often feeding relays or modules. Measure voltage at both ends to confirm uninterrupted flow; a drop below 11V signals resistance issues, typically due to corroded terminals or undersized gauge.
Blue wires typically handle switched outputs, such as lighting or actuators. Their presence in a harness necessitates checking the associated control unit–failure here often manifests as erratic operation rather than a dead circuit. For high-draw components like electric motors or solenoids, look for thicker blue wires paired with black grounds; these may bypass the fuse box entirely, relying instead on heavy-duty relays. Use a load test to distinguish between a circuit fault and a defective component.
Gray and brown wires frequently serve as sensor signals or low-current triggers. Their small diameter makes them vulnerable to interference, so route them away from high-voltage lines and ignition coils. A brown wire with a stripe often indicates a temperature or pressure sensor; continuity tests won’t suffice–use a scan tool to monitor real-time data streams. Never splice these lines without a solder joint; crimp connectors introduce resistance, corrupting readings.
Purple wires are rare but critical when present, usually tied to safety systems like airbags or anti-lock brakes. Their circuits often run through body control modules, requiring specialized diagnostic sequences. If a purple line activates a warning light, follow the manufacturer’s pinout charts precisely–improvising can trip fault codes or disable system features. Double-check connectors for bent pins; these circuits rarely fail, but compromised connections mimic sensor failures.

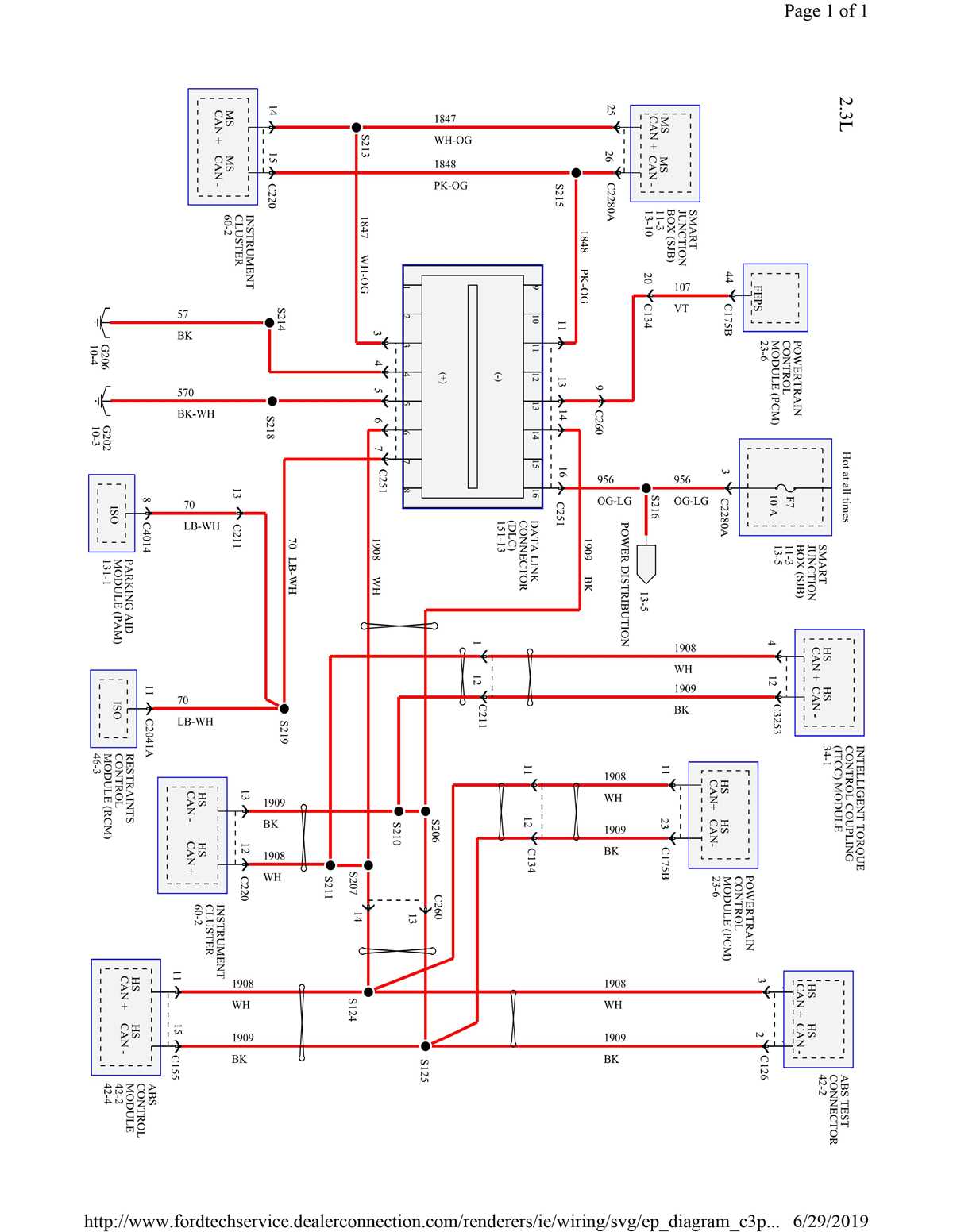

White wires are factory defaults for CAN bus or serial communication. Never modify these–tapping into them disrupts network harmony, causing cascade errors across unrelated systems. If a white wire shows voltage, it’s likely carrying data pulses (5V or lower), not power. Use an oscilloscope for accurate diagnosis; multimeters average the signal, obscuring critical timing issues. When troubleshooting, prioritize software recalibration over physical repairs–corroded terminals are the sole exception.

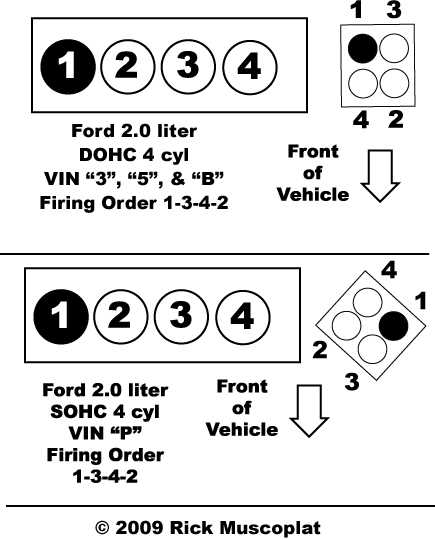

Step-by-Step Troubleshooting of the Ignition System Circuit
Begin by verifying the condition of the ignition coil with a multimeter set to 20 kΩ. Disconnect the coil connector and measure resistance between the primary terminals–values should fall between 0.7 and 1.7 Ω. Any reading outside this range indicates a faulty coil requiring replacement. For secondary resistance, probe the coil tower and a primary terminal; the expected range is 7,500 to 12,500 Ω.
Inspect spark plug wires for cracks, burns, or corrosion at connection points. Use a spark tester to confirm output: clip the tester to a grounded point, insert the spark plug wire, and crank the engine. A consistent blue spark confirms proper operation; no spark or intermittent orange sparks signal a bad wire or failed coil pack. Replace wires in sets if degradation is found.
Check the crankshaft position sensor (CKP) by locating the sensor near the harmonic balancer. Unplug the connector and test resistance with a multimeter–specifications vary by model but typically range from 200 to 1,500 Ω. If resistance deviates or the sensor shows physical damage, replace it. Additionally, scan for trouble codes P0335 (CKP circuit malfunction) or P0340 (camshaft position sensor issues).
Critical Voltage Checks
| Component | Test Point | Expected Voltage | Failure Indication |
|---|---|---|---|
| Ignition Switch | Fused power feed (terminal 30) | 12V (key ON) | Voltage drop >0.5V |
| Coil Pack Power Feed | Pin 2 (ignition coil connector) | 12V (cranking) | No voltage or intermittent drop |
| PCM Relay | Relay output (terminal 87) | 12V (key ON) | Open circuit or |
Examine the powertrain control module (PCM) connections for bent pins or corrosion, particularly at the ignition coil driver circuit pins. Use a wiring schematic to trace the coil trigger wire from the PCM to the coil pack–any breaks or shorts will prevent spark delivery. Back-probe PCM connector pins with a noid light while cranking; illumination confirms the PCM is sending the trigger signal.
Ground Circuit Verification
Ensure all ground points are secure and free of oxidation. The primary engine block ground (G101) and the chassis ground (G103) should measure less than 0.1 Ω when tested with a multimeter. A poor ground can mimic ignition issues by causing voltage drop across components. Clean contact surfaces with a wire brush and apply dielectric grease to prevent future corrosion.
If all preceding steps pass but the issue persists, test the anti-theft system (PATS). Insert the key and turn to the ON position while monitoring the security light–steady illumination for 3 seconds then extinguishing confirms PATS recognition. A flashing light indicates a key programming fault, requiring a scan tool reset. If the light remains on, check the transponder ring around the ignition lock cylinder for damage or misalignment.
