Complete Pontiac Sunfire wiring diagram and electrical schematic for 2005 model
Start with the powertrain control module connector–terminal 15 feeds switched ignition; locate the pink wire in harness C101. Verify continuity to ground at terminal 60 (engine coolant temp sensor); resistance should read 200–700 ohms at 20°C. If values exceed this range, check the ECU pinout sheet for corrosion on the 16-pin grey connector.
Headlight circuits use a three-relay setup: relay location is fuse block cavity #14 (RPO U22). Trace the light blue/black stripe wire from relay terminal 87 to the left low beam bulb socket–terminal B. Any voltage drop above 0.3V indicates a failing headlight ground (G200), located beneath the battery tray.
Instrument cluster illumination draws 12V from fuse #32 (10A) via the orange wire (harness K15). Backlight voltage adjusts through the dimmer switch: test resistance across pins C1 and C2–expect 500–5k ohms; deviations signal a faulty potentiometer. For turn signals, splice wire YE416 (yellow) from the hazard flasher directly to the left front bulb socket if blink rate exceeds 90 flashes per minute.
Radio wiring adheres to the ISO 10487 standard: red/white stripe delivers constant 12V; yellow stripe supplies switched power. Speakers connect as follows–front left (+) grey/black stripe (terminal 2), (-) grey/white stripe (terminal 1); rear left (+) light green/black stripe (terminal 4), (-) light green (terminal 3). Reject aftermarket head units using reverse polarity connections.
Diagnose ABS faults by measuring sensor resistance between wheel speed sensor pins–standard readings fall between 800–1400 ohms. For intermittent CEL errors, probe OBD-II port pin 9 (CAN bus high) with an oscilloscope: waveform amplitude must reach 2.5V peak-to-peak. Missing pulses confirm a severed bus line–inspect behind the glove box for chafed wires near harness retention clips.
Electrical Schematic Reference for Compact Coupe Models
Begin by locating the fuse box under the instrument panel on the driver’s side. Remove the cover by pressing the release tabs to reveal relay labels and pin assignments. Critical circuits–headlamps, ignition, and dashboard illumination–connect through relays numbered 15, 30, and 45. Use a multimeter to verify relay coil resistance between 50-120 ohms; readings outside this range indicate a faulty relay requiring replacement.
Trace the engine control module harness to the firewall bulkhead connector, identified by its 60-pin layout. Pins 18 (battery voltage), 34 (ground), and 56 (fuel pump relay control) demand immediate inspection if intermittent stalling occurs. Probe each pin with the ignition off–voltage above 0.1V suggests parasitic drain or corroded terminals. Clean contacts with electrical cleaner, not sandpaper, to prevent damage to gold-plated finishes.
For climate control diagnostics, focus on the blower motor resistor block beneath the glove compartment. The resistor pack uses a four-wire configuration: one power feed, one ground, and two speed-control outputs. Test continuity between the ground wire and each speed output; infinite resistance confirms an open circuit in the resistor coil. Replace the entire pack rather than attempting repairs, as soldering often compromises heat dissipation.
Audio system schematics highlight a 12-pin amplifier harness behind the rear seat. Pins 7 (left rear speaker +), 8 (right rear speaker +), and 9 (common ground) are most prone to failure due to moisture ingress. Measure speaker impedance–values below 3 ohms or above 5 ohms signal shorted voice coils or broken connections. Re-solder connections using rosin-core solder, not acid-core, to prevent accelerated corrosion.
Check the anti-lock brake module by back-probing the 24-pin connector at the hydraulic unit. Pins 6, 7, and 8 correspond to wheel speed sensors; voltage fluctuations above 2.5V at 1000 RPM indicate sensor degradation. Swap sensors rather than cleaning them, as embedded contaminants cause signal drift over time. Ensure the harness remains routed away from exhaust manifolds to prevent thermal damage.
Examine the automatic transmission control wiring near the valve body connector. Pins 12 (pressure control solenoid) and 14 (torque converter clutch solenoid) require 12V pulses during engagement. Scope these signals–irregular waveforms reveal solenoid hesitation or ECM misfires. Replace solenoids individually if resistance deviates ±5% from the 10-15 ohm specification.
Finding Key Electrical Bundle Links Behind the Instrument Panel
Begin by removing the lower trim panel beneath the steering column–it secures with three 7mm screws and two plastic clips. A thin flathead screwdriver gently pries the clips without breaking tabs. Once detached, the central fuse block becomes visible, encased in a black plastic shroud.

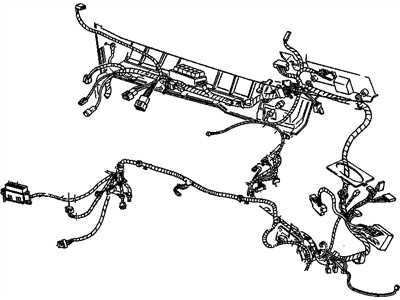

The primary harness splits into three major connectors behind this block: a white 80-pin plug for body controls, a black 48-pin plug for the powertrain module, and a smaller purple 24-pin plug feeding dashboard gauges. Trace the white bundle first; it routes upward along the firewall in corrugated conduit before branching into climate controls and lighting systems.
Follow the corrugated conduit upward until it intersects the main junction near the brake pedal support bracket. Here, two 10mm bolts secure a steel bracket clamping the harness–remove these bolts to free the bundle for inspection. The black powertrain connector lies tucked behind this bracket, partially obstructed by a wiring loom clip.
Gently rotate the steering column downward for additional clearance–no disassembly needed. Locate the dashboard feed harness (purple) by identifying the single red-striped wire among its 24 pins; this wire carries ignition voltage and leads directly to the back of the instrument cluster. Pulling the cluster’s mounting screws exposes the connection point.
Inspect each harness plug for corrosion or bent pins before reconnecting–use dielectric grease sparingly on terminals. The white and black connectors snap into place with an audible click; the purple cluster plug requires slight pressure while aligning the tab. Reinstall the bracket loosely before fully tightening bolts to avoid pinching wires.
Test each system progressively: turn the key to accessory mode and verify dashboard illumination, then engage the starter to check fuel pump relay activation (listen for a two-second hum beneath the rear seat). Faulty connections often present as intermittent gauge flickering or accessory delay.
Reattach the lower trim panel by aligning clips first, then driving screws in a cross pattern to prevent warping. A flashlight confirms no stray wires snag during reassembly–common areas include the pedal assembly and hood release cable.
Identifying Power Window and Door Lock Circuit Conductor Hues
Locate the central module under the driver-side dashboard–pinout labels will guide you to the correct strands. For window actuators, trace:
- Orange (B+)–constant 12V supply from the fuse panel
- Light blue/black stripe–window motor up/down command
- Pink–ground return for passenger-side circuits
- Dark green/white stripe–driver-door lock/unlock signal
Interrupt the orange feed at a 20A fuse (label #34) to disable all window functions for troubleshooting.
Door lock relays rely on these:
- Purple/white stripe–unlock pulse, triggered by the body control ECU
- Yellow/black stripe–lock pulse, polarity reverses for door actuators
- Tan–shared chassis ground for all lock mechanisms
Probe these at the 6-pin door harness connector (T-class terminals); lock pulses last 0.8 seconds–verify with a multimeter set to DC voltage.
ECM Circuit Route Mapping and Terminal Identification
Locate the powertrain control harness beneath the driver-side dashboard–follow the bundled harness along the firewall until you reach the 80-pin ECM connector. Pin assignments start at A1 (battery voltage, red wire) and progress sequentially to D20 (CAN high, yellow/white stripe). Probe A9 (5V reference) with a multimeter set to 20V DC; expect 4.8–5.2V–any deviation signals a faulty sensor or shorted circuit upstream. Ground connections cluster at B10 (engine block) and B19 (chassis); verify continuity with an ohmmeter–resistance should read below 0.5 ohms. For signal wires like C6 (crankshaft position, tan/black), use an oscilloscope to confirm a 0.5–4.5V square wave at 58X reference during cranking.
Common Failure Points and Diagnostic Steps
Inspect the ECM connector for corrosion on pins A5 (ignition feed) and C12 (throttle position)–clean with electrical contact cleaner if oxidation is visible. If MIL codes P0335 or P0500 appear, trace the tan/black (C6) and gray/black (D14) wires to their respective sensors, checking for frayed insulation near the exhaust manifold. Disconnect the battery before probing 12V circuits to avoid fusing the ECM’s internal traces. Replace damaged wires with 18-gauge TXL wire, matching the original color coding–never substitute solid-core wire, as it risks fatigue under vibration.
Interpreting the Circuit Protection Hub and Switching Module Configuration

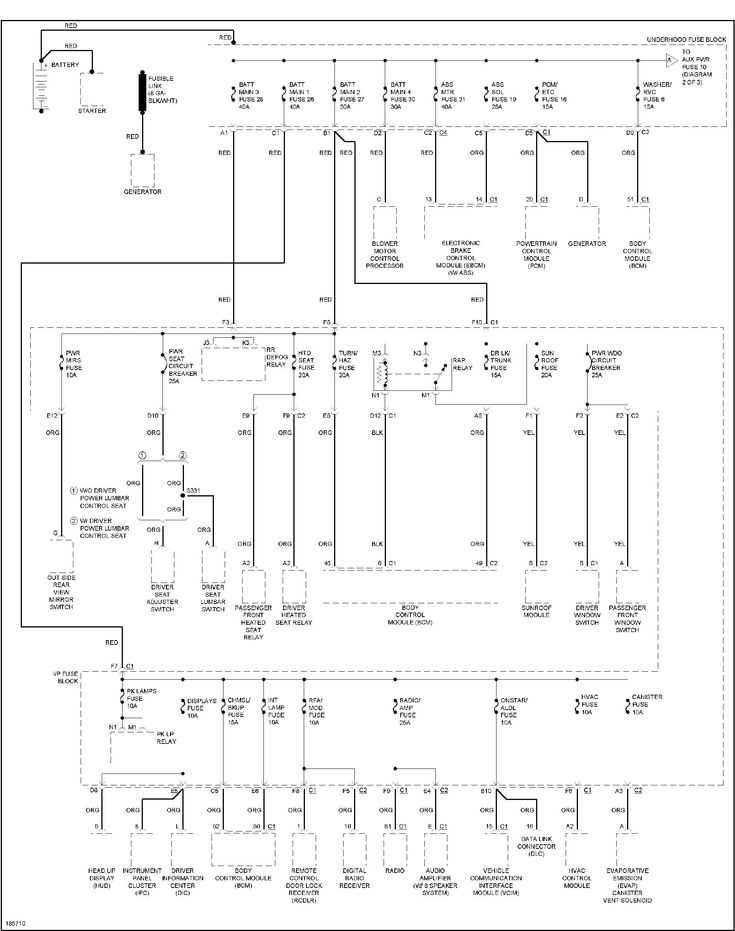

Locate the power distribution center beneath the instrument panel on the driver’s side–remove the protective cover by releasing the retaining clips. The central hub houses both standard blade fuses and miniature relays arranged in numbered slots; refer to the decal on the underside of the lid for slot assignments.
Identify critical circuits using the following reference–slot 15 manages the engine control module, while slot 18 governs the cooling fan. Use a multimeter set to continuity mode to verify each fuse’s integrity before proceeding; a reading exceeding 0.5 ohms signals degradation. Swap suspect components with a matched spare rated for identical amperage–never exceed the specified value listed on the fuse body.
| Slot | Circuit Function | Amp Rating | Relay Type (if applicable) |
|---|---|---|---|
| 1 | Airbag Diagnostic | 10 A | None |
| 7 | Fuel Pump | 15 A | Micro ISO |
| 14 | Anti-lock Brake Module | 10 A | None |
| 20 | Headlamp High Beam | 15 A | Mini ISO |
Trace relay sockets using a wiring probe–pin 85 connects to ground, pin 86 to switched ignition, while pins 30 and 87 interface with power and load terminals respectively. Confirm relay functionality by substituting with a known-good unit; failure to click upon ignition activation indicates coil or internal contact failure. Check corrosion at relay terminals–clean with electrical contact spray if resistance exceeds 1 ohm.
Inspect the wiring harness entering the hub for chafing or brittle insulation. Damage often occurs where the harness bends near the firewall grommet; repair with heat-shrink tubing rated for 125°C continuous use. Avoid twisting conductors during reconnection to prevent induced voltage spikes that may degrade solid-state modules.
Test the integrity of secondary fuses using a test light–illumination at the fuse input terminal with no output confirms an open circuit. Replace faulty fuses with the exact type: ATO for standard applications, mini-blade only if specified. Never bypass a fuse with conductive foil or jumper wires–doing so risks fire from unregulated current draw.
Reset any tripped breakers by depressing the reset button flush with the housing–do not force it. If persistent tripping occurs, disconnect bulbs or accessories in sequence to isolate the fault. Measure parasitic draw after system shutdown; readings above 50 milliamps suggest a stuck relay or faulty diode in an accessory circuit.
Verify ground connections at G103 behind the left kick panel–scrape corrosion from the chassis stud with a wire brush. Reinstall the ground terminal with dielectric grease to prevent oxidation. Ensure the battery negative cable clamps securely to the engine block; loose connections cause intermittent module faults and erratic gauge behavior.
