Quick Guide to Wiring 240 Volt Plug Diagrams for Home Appliances

Start with a 4-wire configuration for modern installations–this ensures grounding and reduces fire hazards. Use 10 AWG copper cable for circuits up to 30 amps and 6 AWG for 50-amp setups. Verify the cable is rated for 600 volts or higher. Terminate wires directly to the outlet or breaker panel without splicing; exceptions require listed junction boxes with proper torque specifications.

Label wires before connecting: red and black for hot legs, white for neutral, and green or bare for ground. Match voltage requirements–208V or 240V–by checking the appliance’s data plate. For dual-voltage devices, adjust internal jumpers or terminal blocks first. Avoid backstab connections; secure all terminals with a torque screwdriver (Newton-meter values are on device labels).

Test continuity with a multimeter after installation: hot legs should show 208/240V relative to ground, and neutral should read near zero. If readings fluctuate, inspect for loose connections or damaged insulation. Install a dedicated breaker–double-pole for 240V–with amperage matching the circuit’s conductor size. Older homes with 3-wire setups require neutral bonding checks; retrofit with a 4-wire system if grounding is unreliable.

Use UL-listed parts only: NEMA 6-15 for 15-amp, NEMA 14-30 for 30-amp, or NEMA 14-50 for 50-amp connections. Check local codes for conduit fill ratios if running wires through metal or PVC tubing. Secure cables within 12 inches of outlets and every 4.5 feet in uncovered spans. For unfinished areas, use armored cable or conduit to prevent physical damage.

If adapting European or Asian appliances, use a matching transformer with isolated windings–auto-transformers create grounding conflicts. Prioritize copper over aluminum for termination points; if aluminum is used, apply antioxidant paste and use dual-rated connectors. Document all changes with photos or sketches for future reference or inspections.

How to Correctly Connect a High-Voltage Power Connector

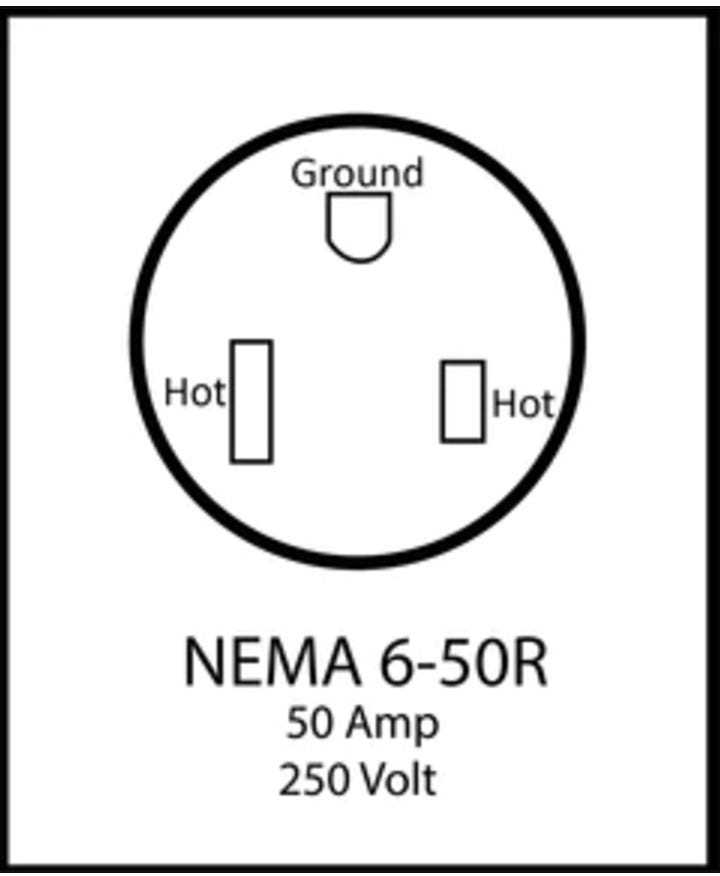

Begin by identifying the terminal configuration: NEMA 6-15, 6-20, 6-30, 6-50, and 14-30 designs follow distinct layouts. Match the appliance’s amperage rating to the cable gauge–10 AWG for 30A circuits, 8 AWG for 40–50A–to prevent overheating. Verify the breaker panel supports dual-pole 20A, 30A, or 50A switches, depending on the connected device’s load requirements. Label each conductor–black and red for live, white for neutral (if present), green or bare for ground–to avoid misconnections.

Use a tension tester to confirm the circuit is dead before handling terminals. Strip ¾” of insulation from each wire, then loop clockwise around the screws for secure contact. Torque specifications matter: 12 in-lb for NEMA 6-15/6-20, 20 in-lb for 6-30/6-50, and 14-30 connectors. Over-tightening damages threads; under-tightening risks arcing. For twist-lock variants (L6-20/L6-30), align the pins at 2 o’clock before rotating clockwise until locked.

Connector Type	Max Amperage	Wire Gauge (Copper)	Breaker Size	Common Uses
NEMA 6-15	15A	14 AWG	15A dual-pole	Compressors, small welders
NEMA 6-20	20A	12 AWG	20A dual-pole	Window AC units, power tools
NEMA 14-30	30A	10 AWG	30A dual-pole	Electric dryers, EV chargers

For split-phase setups (NEMA 14-30/14-50), neutral connects to the center terminal, live wires to the outer brass screws, and ground to the green screw. Test continuity with a multimeter–no resistance between live and ground, proper voltage (220–240V) across live terminals. If the appliance has a metal chassis, bond it to ground; failure risks shock. Replace damaged cords immediately–frayed insulation or burnt connectors create fire hazards.

Secure the strain relief clamp to prevent tension on the wires. For outdoor installations, use weather-resistant enclosures rated IP67 or higher. Check local codes: NEC Article 210.19 mandates minimum conductor sizes, while 250.118 specifies grounding methods. After finalizing, energize the circuit and monitor for 10 minutes–abnormal heat or humming indicates a fault requiring immediate disconnection.

How to Match Conductors for High-Voltage Outlet Setup

Check the appliance’s manual first. Most heavy-duty devices list the required conductor colors and terminal assignments. Match these specs exactly–neutral (white or gray), live (black, red, blue, or brown), and ground (green or bare copper). Ignoring this risks tripping breakers or damaging the unit.

Use a multimeter to verify each conductor’s voltage before connecting. Set it to AC mode and test between each pair: live-to-live should read ~230V, live-to-neutral ~115V, and neutral-to-ground near 0V. If readings deviate, trace the circuit back to the panel for miswired breakers or faulty connections.

Label conductors immediately after testing. Wrap colored electrical tape around both ends–red for the second live, blue for neutral if needed–to prevent swapping during installation. Never assume standard colors are correct; older wiring or regional codes (e.g., UK vs. US) can reverse conventions.

Ground must connect to the outlet’s U-shaped slot first. This conductor carries fault current directly to the panel’s grounding bus. Secure it tightly; a loose ground increases shock risk even if the device powers on. For older metal enclosures, bond the ground screw to the box with a pigtail.

Key tools needed: wire strippers with correct gauge slots (10-12 AWG for most setups), crimping pliers for ring terminals on heavy-gauge conductors, and a torque screwdriver. Undersized or overtightened terminals cause overheating. Follow manufacturer torque specs–usually 12-18 in-lbs for outlets.

For four-wire setups (two lives + neutral + ground), neutral must remain isolated from ground at the outlet. Mixing them creates parallel paths, which can energize device housings or trip GFCI breakers. Test continuity between neutral and ground with the multimeter–readings above 0.1 ohms indicate a problem.

Handling Non-Standard Configurations

Adapters or custom pigtails may be needed for mismatched connectors (e.g., NEMA 14-30 to 6-20). Use approved junction boxes if splicing–never tape or twist conductors together. For 30-50A circuits, upgrade to thicker conductors (8 AWG minimum) and match the breaker amperage precisely; undersizing causes nuisance trips.

Final Checks Before Energizing

Re-verify all connections with the device unplugged. Check for stray strands or nicked insulation–expose only the conductor length specified by the terminal design (typically ½ inch). Misaligned strands can short or arc. After securing, enclose everything in the outlet cover to shield live parts from contact.

Step-by-Step Guide to Connecting a NEMA 6-20 Receptacle

Shut off power at the circuit breaker before beginning any installation. Verify absence of voltage using a multimeter–test both hot terminals and the grounding conductor. A NEMA 6-20 outlet requires a two-pole, 20-ampere breaker, supplying 250 volts to handle dedicated appliances like welders or compressors. Confirm the cable run uses 12 AWG copper conductors, consisting of two phase wires (red and black) and a bare or green ground wire.

Preparing the Cable and Receptacle

• Strip ¾ inch of insulation from the phase conductors (black and red), exposing the copper strands.
• Trim excess ground wire to 6 inches, leaving enough slack for connection.
• Remove the outlet’s cover plate, set screws aside–most NEMA 6-20 models use #10-32 screws for terminal connections.
• Loosen the terminal screws on the outlet: brass for phase wires, green for ground.

Attach the stripped phase wires to the brass terminals: black to the upper slot, red to the lower. Tighten screws to 15-20 in-lbs of torque–over-tightening risks damaging the threads. Bend the ground wire into a hook and secure it under the green screw, ensuring direct metal-to-metal contact. Fold conductors neatly into the electrical box, avoiding sharp edges that could nick insulation.

Final Checks and Testing

1. Align the outlet flush against the wall plate, secure with mounting screws–use the provided ears to prevent rotation.
2. Reattach the cover plate, ensuring no gaps expose live parts.
3. Restore power at the breaker, then verify outlet functionality with a receptacle tester–both slots should register 250V between hot terminals and 125V from each to ground.
4. Label the circuit breaker clearly to avoid accidental energization during future work.

Color Coding Standards for High-Voltage Conductors in the US and EU

Always verify conductor identification using a multimeter before beginning any installation or maintenance work. In the United States, the National Electrical Code (NEC) mandates the following color schemes for 208–240V AC circuits:

• Ungrounded conductors: Black, red, blue, or other colors (with exception of white, gray, or green).
• Neutral conductor: White or gray.
• Grounding conductor: Bare, green, or green with yellow stripe.

For circuits exceeding 120V, the NEC permits identification via colored tape or markers, though permanent labeling at terminals is preferred. Avoid relying on color alone–label all conductors at termination points, especially in mixed-voltage systems where ambiguity can create safety risks.

European standards, governed by IEC 60446, differ significantly. Key distinctions include:

• Phase conductors (L1, L2, L3): Brown, black, or gray.
• Neutral (N): Light blue.
• Protective earth (PE): Green/yellow striped (mandatory in all installations).

Unlike the US, the EU strictly prohibits the use of green/yellow for any purpose other than protective earth. For fixed installations, conductors must also comply with local amendments–Germany’s VDE, for example, enforces additional labeling requirements for conductors in industrial setups. When working with multi-phase systems, verify phase rotation and labeling to prevent equipment damage or hazardous conditions.

Cross-border projects demand extra caution. A US brown conductor (typically a phase line) could be misidentified as a neutral in the EU, while a European light blue wire would violate NEC rules if used as a phase conductor. Always reference the governing standard–NEC for North America, IEC for most of Europe–and document deviations. For temporary setups, use transparent heat-shrink tubing with printed identifiers to maintain compliance.
