Complete Wiring Guide for 2005 Toyota Corolla Stereo System Installation
If your factory audio setup lacks power or connectivity, replacing it requires exact wiring matches to avoid damage. Connect the aftermarket head unit’s yellow lead to the car’s constant 12V line (usually a thick wire with red or white insulation), ensuring uninterrupted memory for presets. The red accessory wire must link to the ignition-switched circuit–locate this via a multimeter test (should register 12V only when the key is in the “on” position). Ground the black wire securely to bare metal, avoiding painted surfaces; a loose connection will introduce static or full failure.
The speaker outputs demand careful pairing: front left (+) and (-) to their corresponding door terminals, typically gray/white for positive and gray/black for negative. Rear channels follow green/white (positive) and green/black (negative). Verify each connection with a 9V battery test–speakers should emit a sharp click. For amp integration, tap the blue/white remote turn-on wire to the head unit’s matching output; incorrect splicing risks draining the battery.
Steer clear of splicing into the factory amplifier wires (violet, orange, or pink variants)–these carry low-level signals incompatible with direct speaker hookups. Use a harness adapter (METRA 70-8113 or equivalent) for plug-and-play reliability. If retaining steering wheel controls, add a dedicated interface (AX-SWC) wired to the data bus line–consult the vehicle’s OEM pinout for the light blue/yellow or blue/black terminal.
For troubleshooting, an in-line fuse (10A) on the constant power wire prevents shorts from frying the unit. Double-check polarities before powering on–reversed wires will blow tweeters. If static persists, inspect the antenna lead (brown or pink); ensure it’s fully seated in the FM converter jack.
OEM Audio System Color Codes and Connector Pinout for the 2004-2006 E120 Model
Before cutting wires, verify voltage at each harness pin with a multimeter. The factory harness uses 12 distinct color combinations for power, ground, and speaker feeds–mismatches risk blown fuses or damaged amplifiers.
Pin 1 (rear right speaker +) carries violet/green stripe, while Pin 2 (rear right -) is violet/blue. Swap these and the channel reverses polarity, canceling midrange. Front speakers follow the same logic: grey/red for left +, grey/black for left -, white/red for right +, white/black for right -.
Constant 12V (memory keep-alive) appears at yellow/red (Pin 6), rated for 10A fuse protection. Do not splice into this line for aftermarket amplifiers unless replacing the fuse with a higher-rated equivalent.
Ground (black, Pin 9) must terminate to bare metal with a 10mm ring terminal–paint or corrosion on the chassis contact point reduces sound clarity and causes static. Scrape the mounting surface clean with sandpaper before securing the bolt.
Illumination control (green/white, Pin 10) dims the head unit display when headlights activate. Connecting this wire to aftermarket systems lacking light-sensor integration will keep displays permanently bright.
Subwoofer pre-outs (if equipped) appear at purple (Pin 12) and purple/white (Pin 13), delivering a clean 2V signal. Verify voltage with the engine running–some models attenuate output below 0.5V at idle.
Antenna trigger (blue, Pin 14) activates when the radio powers on. Splice this to power motorized antennas or line-output converters requiring switched 12V. Use a 2A inline fuse to prevent shorts from melting the harness.
Adapter harnesses labeled “Metra 70-8112” or “Scosche TC05” map these color codes to industry-standard ISO connectors. Cutting corners with butt connectors invites intermittent faults–crimp, solder, and heat-shrink every joint. Check continuity with the ignition off to catch shorts before energizing the circuit.
Finding the OEM Audio Interface Plug
Begin by removing the lower dashboard panel beneath the climate controls–it’s secured with three 10mm screws and two plastic clips near the driver’s side kick panel. Once detached, the factory harness will be visible behind the central trim plate, identifiable by its 12-pin white or gray connector with locking tabs on either side. Match the pinout labels on the harness (e.g., “ILL,” “BATT,” “ACC”) to your aftermarket unit’s manual to confirm compatibility before disconnecting anything.
- Trace the bundled wires from the back of the head unit enclosure–usually a cluster of 14–16 wires exiting the metal cage in a corrugated sleeve. The harness itself terminates in a male plug with one recessed corner; this orientation marker ensures correct alignment when pairing with a replacement adapter.
- Check for a secondary harness near the fusebox labeled “Amp” if the vehicle includes premium audio–this adapter sits adjacent to the main connector and handles amplified signals.
- Use a multimeter to verify constant 12V on the yellow wire, switched power on the red wire, and ground on the black before powering any new installation.

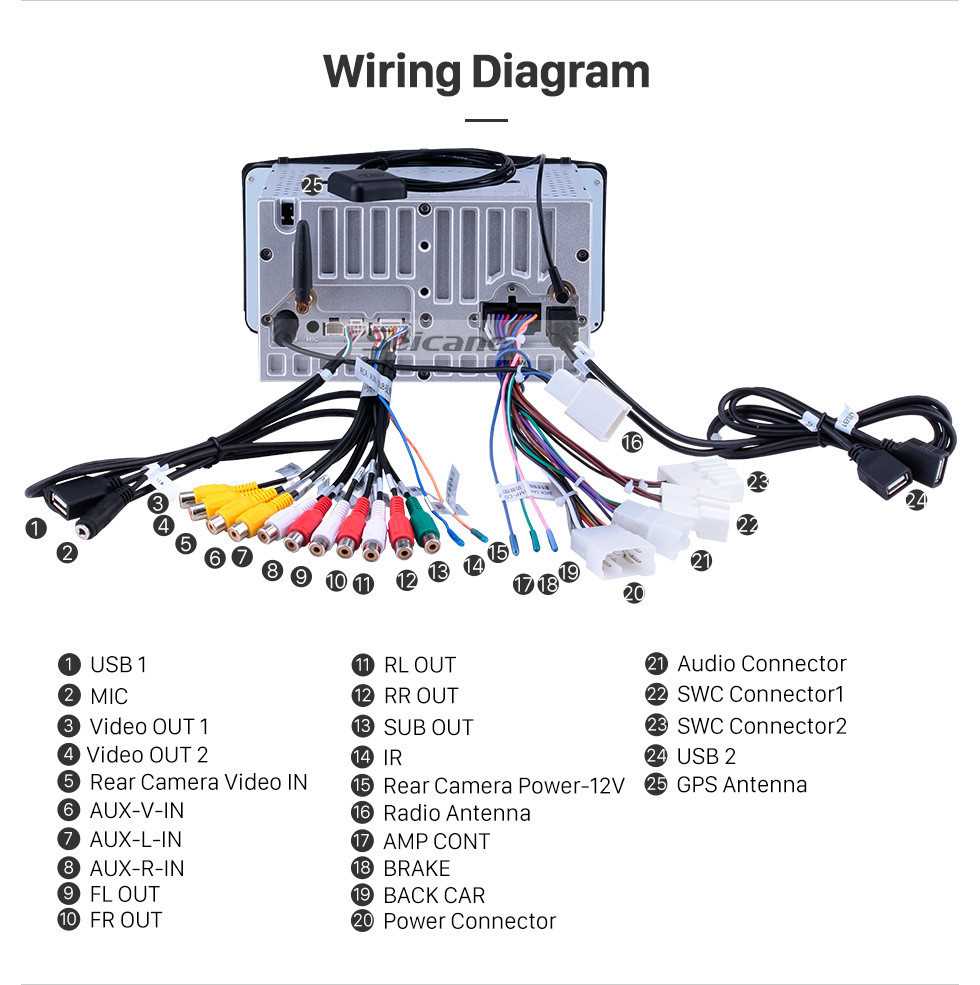

Color-Coded Connection Reference for Aftermarket Head Unit Fitting
Connect the constant 12V power wire (yellow, 18-20 AWG) directly to the vehicle’s fused ignition circuit–never splice into the battery terminal without an inline fuse (10A minimum). Verify voltage stability with a multimeter before finalizing; fluctuations above 14.5V indicate alternator issues demanding resolution prior to installation.
Locate the ground cable (black, bare copper) on the factory harness–avoid common mistakes like attaching to painted metal or nearby fasteners. Sand the chassis contact point to bare metal, apply dielectric grease, and secure with a ring terminal tightened to 8-10 lb-ft. Loose grounds cause whining noises, display glitches, or intermittent power loss.
Match the speaker outputs precisely:
- Front left (+): gray, 16-18 AWG
- Front left (-): gray/black stripe
- Front right (+): white, 16-18 AWG
- Front right (-): white/black stripe
- Rear left (+): green, 16-18 AWG
- Rear left (-): green/black stripe
- Rear right (+): purple, 16-18 AWG
- Rear right (-): purple/black stripe
Impedance mismatches (below 4Ω) risk amplifier overheating–ensure aftermarket speakers meet factory ratings.
Critical Wiring Exceptions and Modifications
Identify the illumination wire (pink or orange, often 14-16 AWG) linking to dashboard dimmer controls. Solder a 150Ω resistor inline if the aftermarket unit lacks dimming compatibility; failure causes display washout or erratic brightness.
For vehicles equipped with steering wheel controls, tap the data bus (blue/white stripe, 22-24 AWG) using a compatible interface module–never splice directly. Confirm protocol compatibility (CAN, LIN, or resistive) via the unit’s documentation. Improper connections disable cruise or vehicle diagnostics.
Secure all splices with heat-shrink tubing (3:1 ratio) or crimp connectors; electrical tape degrades within 12-18 months. Route cables away from moving parts, sharp edges, and heat sources (exhaust manifolds, catalytic converters). Label each connection with masking tape–future troubleshooting becomes exponentially faster when wires are clearly marked.
Locating Permanent and Ignition-Controlled 12V Lines
Begin by probing the harness with a multimeter set to DC voltage. The constant power line will display 12V regardless of the ignition state–test with the key in the “off” position. For most factory setups, this is a yellow wire, though aftermarket adapters sometimes repurpose it as red. Confirm by toggling the key; voltage should remain stable. Avoid relying on color codes alone–verify with measurements.
Switched accessory wires activate only when the ignition is turned to “ACC” or “ON.” These typically measure 12V when the key is engaged but drop to 0V when turned off. Common colors include red/white or pink, though variations exist. If a wire shows intermittent voltage, it may be linked to a delayed accessory feed–recheck with the key cycled multiple times.
Critical Testing Steps
Attach the multimeter’s negative lead to a known chassis ground (bare metal or the black ground wire). For safety, disconnect the harness from the head unit before probing. If voltage fluctuates erratically, inspect for loose connections or tapped wires feeding multiple devices. Some vehicles share accessory lines with other systems–ensure no parasitic draws are present.
Mark identified wires with labeled tape to avoid confusion during installation. If no switched line is found, the fuse box often contains unlabeled spares tied to the ignition circuit. Use a fuse puller and test probe to check these inputs. For vehicles with factory amplifiers, the accessory line may be thinner–account for lower current capacity.
Double-check all findings by reconnecting the harness and powering the device. If the unit fails to turn on, reverify ground integrity and fuse ratings. False positives occur when testing wires bundled in harnesses–separate them before probing. Keep a wiring reference specific to the model year on hand, as revisions occur even within the same trim line.
Ground Wire Connection: Best Practices and Common Pitfalls
Always connect the ground wire to a bare metal surface on the vehicle’s chassis, ensuring it is free of paint, corrosion, or rust. Use a dedicated bolt or screw–never rely on factory welds or thin panels, as these may introduce resistance. A 10-gauge or thicker wire paired with a serrated or star washer will bite into the metal, maintaining a stable low-resistance path. Verify the connection with a multimeter (
Avoid daisy-chaining grounds or attaching them to components like exhaust pipes or suspension mounts. These surfaces can shift, corrode, or conduct vibration, leading to intermittent signal noise, power loss, or even system failure. For aftermarket audio systems, ground wires should be no longer than 18 inches–excess length increases resistance and susceptibility to interference. Below is a comparison of acceptable and problematic ground points:
| Acceptable Ground Points | Problematic Ground Points |
|---|---|
| Chassis bolt near mounting location | Painted or coated surfaces |
| Strut tower brace (if bare metal) | Exhaust manifold or catalytic converter |
| Engine block (clean, unpainted) | Plastic or composite panels |
| Body seam with factory weld | Thin sheet metal (e.g., door hinges) |
When troubleshooting, disconnect the ground and clean both the wire terminal and mounting surface with a wire brush or sandpaper. Apply dielectric grease to prevent future oxidation. If static or alternator whine persists, trace the ground path back to the battery–loose or corroded battery terminals are a frequent culprit. In high-power setups, consider running a separate ground cable directly to the battery’s negative terminal to bypass potential voltage drops in the factory harness.
