Complete Wiring Diagram and Electrical Schematic for 2005 Yamaha V Star 650
For owners restoring a mid-2000s twin-cylinder cruiser, start by securing a high-resolution color schematic showing battery, ignition, lighting, and charging circuits. Factory wiring manuals split the system into three primary sections: main harness, handlebar controls, and engine sensors. Each harness plug carries a distinct color code–yellow stripes for high beam, green for neutral sensor, solid brown for ground–verify every terminal before energizing the system.
Begin troubleshooting with the 40-amp main fuse; if voltage drops below 12.4V at the battery terminals, inspect the stator coils (resistance range 0.2–0.6 ohms) and rectifier diodes (forward voltage
Handlebar switch clusters require meticulous attention: the turn signal cancel cam can misalign, causing intermittent signal dropouts. Check continuity between the gray/black wire (front brake switch) and chassis ground–resistance should never exceed 0.5 ohms. For ignition wiring, the black/white wire at the ECU must show 5V during cranking; a zero reading indicates a failed ignition pick-up coil.
Aftermarket accessories frequently overload factory wiring. The auxiliary circuit fuse rating maxes at 10 amps; exceed this and risk melting the pink/red accessory wire. Label every splice with heat-shrink tubing–never use electrical tape on exposed conductors. Store a laminated copy of the schematic inside the left side cover for quick reference during roadside repairs.
Electrical Schematic for Classic 650cc Cruiser Models
Begin troubleshooting by examining the main fuse block located under the seat. This cruiser’s 30-amp ignition fuse protects critical circuits, and corrosion on its contacts often mimics ignition failures. Probe both terminals with a multimeter while the key is in the “ON” position–voltage below 12.2V signals a compromised supply line.
Trace the color-coded harness from the battery to the solenoid, noting melted insulation near the engine block. Black/white striped leads route to the starter relay, while solid green wires ground the frame. A continuity test across these grounds should read below 0.5 ohms; readings above 2 ohms indicate hidden corrosion where the harness exits the swingarm.
Key Connection Points
Check the dual-pin ignition switch connector for intermittent breaks. Red/yellow wires deliver power to accessories, yet loose terminals here disrupt fuel pump priming cycles. Crimp spade terminals with 18-gauge heat-shrink connectors, avoiding solder alone–vibration fractures it within months.
Inspect the voltage regulator’s output at the alternator plug. Yellow wires carry AC current from stator coils; diode failures drop voltage below 13.8V under load. Swap with a known-good unit if readings fluctuate more than 0.3V between 3,000 and 5,000 RPM. Ignore “average” specifications–spot anomalies at precise engine speeds.
Verify lighting circuits independently. Blue/white wires power the high beam; resistance exceeding 1.2 ohms dims output noticeably. Replace corroded bulb sockets rather than cleaning them–oxide layers reform within weeks. Tail light circuits (brown wires) share grounds with the rear turn signals; isolate shorts here first before condemning the flashers.
Locate the ECU beneath the fuel tank. A ten-pin connector interfaces with engine sensors; false lean codes often stem from degraded connection boxes. Clean contacts with DeoxIT, then secure with dielectric grease. Shops misdiagnose oxygen sensor faults–actual failures generate raw fuel smells, not merely reduced mileage.
Document all harness routing before disassembly. Zip ties placed at 4-inch intervals prevent chafing against the exhaust headers, yet avoid cinching wires–compression distorts insulation. Route alternator cables away from frame rails to prevent grounding, using split loom tubing where bends exceed 90 degrees. Reassemble with torque specs: 8 Nm for fuse block screws, 12 Nm for battery terminal bolts.
Locating the Primary Electrical Bundle Interfaces on the Classic Cruiser
Begin by removing the rider’s seat–retained by a single bolt near the rear fender. Directly beneath, two forty-pin connectors form the backbone of the bike’s electrical flow: one feeds the ignition and charging circuits, the other branches to lighting and instrumentation. Mark each with colored tape before separation; factory labels are sparse and often worn from heat cycles.
Left-Side Connector Cluster
Trace the harness forward along the frame downtube until reaching the junction box mounted beside the airbox. Here, a twelve-pin rectangular plug handles fuel injection signals, while a smaller six-pin oval connector routes turn and brake lamp feeds. Release retaining clips with a flat-bladed screwdriver; pulling at an angle risks snapping brittle plastic locking tabs.
Avoid forcing connections–verify terminal alignment with a flashlight. Corrosion on male pins signals a prior short; clean with contact cleaner and a fiberglass brush. Reattach in reverse sequence, ensuring each latch clicks audibly before reinstalling the seat.
Step-by-Step Guide to Decoding Color Codes in the Classic 650cc Cruiser Electrical Schematic
Begin by isolating the main harness connector near the ignition switch–this hub houses the primary color references for the entire system. Locate the solid black wire (B) first, as it typically serves as the ground reference for all circuits. Trace it from the battery negative terminal through the frame to the ignition module, noting any splices or fusible links marked with heat-shrink tubing. Ground paths often terminate at bolted connections to the engine or chassis; verify continuity with a multimeter before assuming integrity.
Next, identify the red wire (R) with a white tracer (R/W), which delivers unregulated power directly from the battery’s positive terminal. This feed bypasses the ignition switch and powers critical components like the fuel pump relay and neutral light. Cross-reference this line with the color code table below–observe how tracers (thin stripes) differentiate similarly colored wires, particularly in high-current circuits where misconnection risks damage.
| Base Color | Tracer Color | Function | Connector Pin |
|---|---|---|---|
| Red (R) | White (W) | Battery +12V | Main harness (A-1) |
| Black (B) | Yellow (Y) | Ignition coil ground | ECU (B-3) |
| Blue (Bu) | White (W) | Clutch switch signal | Handlebar plug (C-2) |
| Green (G) | Red (R) | Stator AC output | Regulator (D-4) |
Focus on the lighting cluster’s three-wire connector: brown (Br) for tail light ground, orange (O) for running lights, and yellow (Y) for brake light input. Note the brake light circuit uses a diode near the rear master cylinder to prevent backfeed–test this component if signals behave erratically. For turn signals, locate the gray (Gr) wires with blue or orange tracers; these lead to the flasher relay and handlebar switch, where oxidation commonly disrupts functionality.
Examine the charging system by tracing green wires (G) from the stator to the voltage regulator–these carry raw AC output before rectification. Expect three identical green leads; label each with tape during disassembly, as swapping them causes regulator failure. The regulator’s DC output (red/white again) returns to the battery via the main fuse–inspect this path for voltage drop if the battery fails to charge, especially after extended idling.
Diagnose sensor circuits last. The sidestand safety switch uses a purple (Pu) wire that opens the starter circuit when the stand is down–bypass this temporarily when troubleshooting a no-start condition. The ECM receives inputs via thin pink (P) and gray (Gr) wires for throttle position and engine temperature, respectively; these low-current signals are vulnerable to EMI from damaged spark plug wires. Shield them with foil tape if replacing high-tension leads.
Use a highlighter to mark each verified circuit on a printed copy of the schematic. Prioritize circuits with thermal fuses or PTC resistors (often found in heated grips or accessories) by checking resistance values against factory specs–deviation here indicates degradation, not just open/short conditions. Always disconnect the battery before probing live circuits to avoid triggering the ECU’s self-diagnostic trouble codes.
Diagnosing Electrical Problems with Schematics

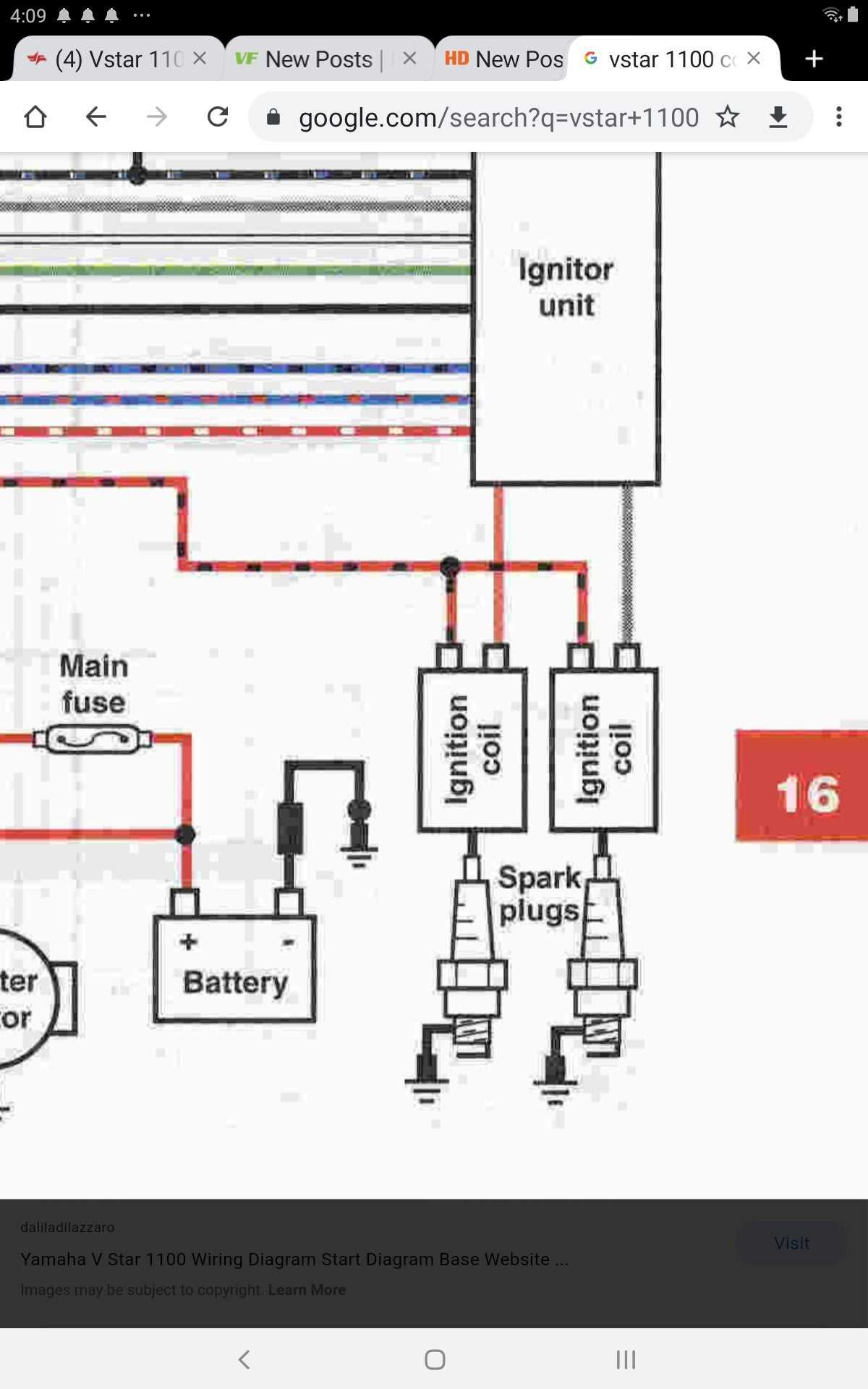

Begin by locating the ignition circuit on the reference sheet. Trace the red wire from the battery terminal to the main fuse, then to the ignition switch. Use a multimeter set to 12V DC to verify voltage at each connection point. If voltage drops below 11.5V at any junction, inspect the terminal for corrosion or loose connections. Clean contacts with electrical cleaner and tighten fasteners to 3-4Nm torque.
Check signal lights by activating the left and right turn functions. If one side fails, follow the circuit path from the flasher relay to the corresponding bulb. The yellow/black wire feeds the front marker, while the orange/black supplies the rear. Test for continuity between the relay output and bulb socket–absence indicates a broken wire or failed socket. Replace sockets showing melted plastic or discoloration.
Stator failure often mimics battery drain. Measure AC voltage at the regulator/rectifier’s white leads while cranking the engine at 3,000 RPM. Readings should stabilize between 18-22V AC per phase. Values below 16V suggest stator wear or magnet demagnetization. Confirm by disconnecting the stator leads and testing resistance across each coil pair–readings should match factory specs (±10%).
- No spark? Pull the spark plug cap and ground the plug against the cylinder head. Reconnect the cap and crank the engine–look for a blue spark jumping a 4mm gap.
- If no spark appears, backtrack to the CDI unit’s blue/white input wire. Verify pulse signal with an oscilloscope or LED test light while cranking.
- No LED flash means a faulty pickup coil or damaged wiring harness–inspect the black/red wire at the alternator cover connector.
Common ground issues manifest as erratic instrument readings or intermittent power loss. The brown wire cluster serves as the primary earth path. Scrape paint beneath the mounting bolts to expose bare metal, then retighten to 5-7Nm. Test ground continuity from battery negative to the engine block–resistance should read under 0.5 ohms. For clusters showing incorrect readings, focus on the gray wire link between the speedometer and fuse block.
