Complete Chevrolet HHR 2006 Radio Wiring Color Code Guide

Locate the C200 connector behind the instrument panel–this 22-pin harness interfaces directly with the head unit. Pin assignments follow the standard GM color code: orange (B+), gray (illumination), light green (left front speaker +), dark green (left front speaker –), and yellow (constant 12V). Verify continuity between the harness side and the radio’s rear plug using a multimeter set to 200Ω. Resistance should read below 0.5Ω; anything higher indicates corroded terminals or a broken wire inside the sheath.

For aftermarket upgrades, bypass the factory RPO code UQK amplifier by splicing into the pink/black (right rear speaker +) and dark blue/white (right rear speaker –) wires before they enter the vehicle’s dash loom. Use 18-gauge tinned copper wire for all extensions–aluminum or cheaper copper-clad alternatives degrade signal integrity within 18 months under daily temperature cycles.

Grounding remains critical: scrape paint from the mounting stud behind the climate control module down to bare metal, then secure the black wire with a star washer and 10-12 Nm torque. Loose or painted grounds introduce radio-frequency interference, manifesting as a high-pitched whine on FM bands that scales with engine RPM.

Retain the data bus wire (brown/white) if integrating steering wheel controls–cutting this line disables OnStar and automatic climate synchronization. When routing new cables, avoid the HVAC blend door actuator motor (located above the glove box); pinch points here can shear insulation and trigger intermittent shorts that mimic amplifier failures.

Understanding the Electrical Connections for Your Vintage Compact Utility Vehicle’s Audio System

Begin by locating the factory harness behind the stereo unit–it’s a 12-pin connector (white or gray) with labeled terminals. Pin A (pink) carries constant power from the battery, while Pin B (yellow) delivers switched 12V from the ignition. Avoid splicing these directly; use a pigtail adapter for clean integration with aftermarket receivers.

Ground wires (black) cluster at Pin C and Pin D; verify continuity with the chassis using a multimeter. Poor grounding causes static or intermittent function. For speaker outputs, front left (gray) and front right (light blue) occupy Pins E and F, while rear channels (violet and green) use G and H. Impedance should match 4-ohm stock units.

Color-Coded Wires and Their Functions

Signal illumination (orange, Pin I) dims dashboard lights in sync with headlights–test with the parking brake engaged. Auxiliary inputs or steering wheel controls (if equipped) route through Pins J and K (brown/white), requiring a specialized interface like PAC RP4-GM11. Data bus wires (tan/black, Pin L) handle OnStar or Bose amplifier signals–severing these may trigger error codes.

For vehicles with premium sound systems, check for an inline amplifier beneath the driver’s seat. It uses a purple/white wire (Pin M) for remote turn-on. If upgrading, bypass the amp entirely by running new speaker wires from the head unit, but expect reduced bass response without equalizer adjustments.

Troubleshooting Common Issues

Humming or whining often stems from shared ground paths with the alternator–route ground wires to a dedicated bolt near the fuse box. If the display flickers, inspect the orange wire for voltage drops; replace the fuse link if corroded. For CD players jammed by extreme temperatures, eject the disc using a paperclip in the emergency slot–avoid force to prevent motor damage.

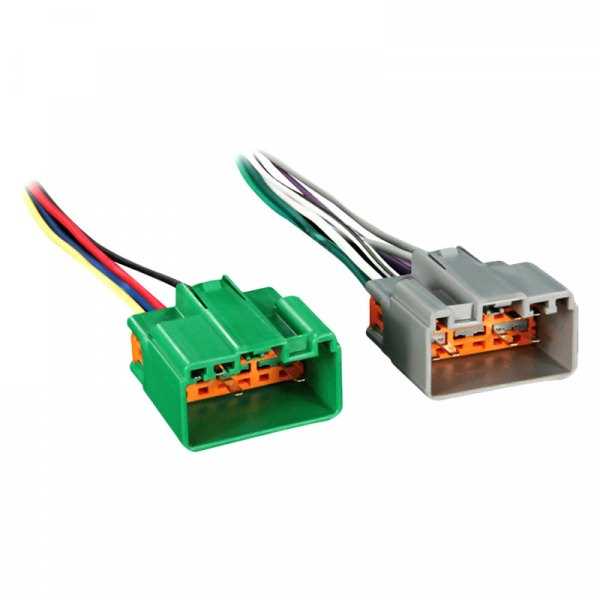

When retrofitting a modern unit, prioritize harness adapters (Metra 70-2003) over cutting factory wires. Retain the antenna lead (Pin N, dark blue) for AM/FM capability; splicing into the OnStar harness risks GPS interference. Always disconnect the battery before probing live circuits–shorts to the starter circuit can fry the ECU.

Finding the Audio System Connector Points in Your Compact Vehicle

Start by removing the lower dashboard trim panel located beneath the climate controls. Use a flat plastic pry tool to carefully release the clips–five on the driver side and three near the center console. Avoid metal tools to prevent scratching interior surfaces.

The harness connectors sit directly behind this panel, secured to a metal bracket. Identify them by their shape: a 12-pin rectangular plug (gray) for primary audio signals, a smaller 4-pin square (black) for amplifier output if equipped, and two single-pin leads (orange and green) for lighting and mute functions.

• Gray 12-pin: Main power, speaker outputs, and antenna feed
• Black 4-pin: Rear speakers and subwoofer if applicable
• Orange: Illumination dimmer circuit
• Green: Speed-sensitive volume control

Disconnect the battery’s negative terminal before handling any connectors to prevent short circuits. Release the connector locks by pressing the tabs on each side–gray and black plugs require firm pressure, while single-pin leads pull straight out with gentle twisting.

For factory-installed navigation or premium sound systems, an additional 8-pin connector (white) may appear behind the glove compartment. Remove the glove box by squeezing the sides to release the stops, then sliding it downward to access this harness.

Trace the wiring back from the connectors to locate the splice points for aftermarket upgrades. The main harness exits through a rubber grommet behind the center stack, leading to the vehicle’s firewall. Cutting into this area voids warranties but provides direct access to power and ground for custom installations.

Label each connector and wire before modification using masking tape or heat-shrink labels. Note the following color codes for critical circuits:

1. Yellow: Constant 12V power
2. Red: Switched power (ignition)
3. Black: Ground
4. Pink: Fused power (amp trigger)
5. Gray/Brown stripe: Front left speaker (+)
6. Gray/Dark blue stripe: Front left speaker (-)

Reassembly requires aligning the trim panel clips precisely–misalignment causes rattles. Test all functions before finalizing installation: power on/off, speaker balance, and illumination adjustment should respond immediately. If the display remains dark, verify the orange dimmer wire connection to the vehicle’s lighting circuit.

Matching Aftermarket Audio System Cables to Vehicle Factory Harness

Locate the 12-volt constant power lead–typically a thick yellow wire–embedded in the main plug from the original sound system harness. Verify it using a multimeter showing battery voltage whether ignition is on or off; this leg powers memory functions like radio presets. The purple cable with a thin white stripe is the switched 12-volt source keyed to the ignition; splice it directly to the aftermarket head unit’s red wire to prevent battery drain. Ground is a solid black or black-with-tan-stripe conductor terminating at chassis metal; secure this connection last using a dedicated screw rather than relying on existing factory bolts to avoid intermittent signal loss.

Left front speaker output travels on a light green wire paired with gray, while right front routes through light blue alongside dark blue. Rear channels split into solid gray (left) and orange with white stripe (right); confirm polarity by tapping each speaker briefly with a 9-volt battery–positive response ensures correct channel assignment. Dimmer-controlled illumination is usually a solid gray or gray-with-red-stripe lead; connect it to the orange-with-white stripe on the new receiver to maintain dash light synchronization. Solder all joints and insulate with heat-shrink tubing rated for automotive voltage spikes, avoiding electrical tape that degrades under heat cycles.

Step-by-Step Guide to Safely Extracting Your Vehicle’s Audio Unit

Disconnect the negative battery terminal first. This prevents accidental short circuits when handling electrical connectors. Use a 10mm wrench to loosen the clamp, then set the cable aside. Wait at least 10 minutes for residual power to dissipate fully.

Remove the center trim panel surrounding the audio system. Gently pry off the edges using a plastic trim removal tool, starting from the bottom. Work slowly to avoid snapping the clips–there are six retaining clips on the top edge and four on the sides. Store the panel face-down on a clean surface to prevent scratches.

Locate the four mounting screws securing the audio unit. Two are positioned above the climate controls, and two below the display. Use a T20 Torx screwdriver, applying firm but controlled pressure to avoid stripping the screws. Place them in a magnetic tray to prevent loss.

Slide the audio unit forward once screws are removed. Pull it out just enough to access the rear connectors. Avoid forcing it–if resistance is felt, check for hidden screws or partially unclipped retaining tabs. The unit should slide out smoothly with a slight tug.

Identify the main harness and antenna cable at the back. The harness is typically a white rectangular plug, while the antenna cable is a thinner coaxial connector. Press the release tab on the harness using a small flathead screwdriver–do not pull the wires directly. The antenna cable unscrews counterclockwise by hand.

Disconnect the climate control harness if present. Some models integrate this into the audio system’s rear housing. It resembles the main harness but may be a different color, often blue or black. Release it the same way, ensuring no pins are bent during removal.

Inspect the mounting brackets and wiring before reinstallation or upgrade. Look for frayed wires, loose connections, or corrosion on the terminals. Clean contacts with electrical contact cleaner if needed, and apply dielectric grease to prevent future oxidation.

Reverse the steps to reinstall. Align the mounting tabs first, then secure screws finger-tight before final tightening. Reconnect the battery last, ensuring all connections are fully seated. Test all functions–audio, climate, and auxiliary inputs–before reassembling the trim panel.
