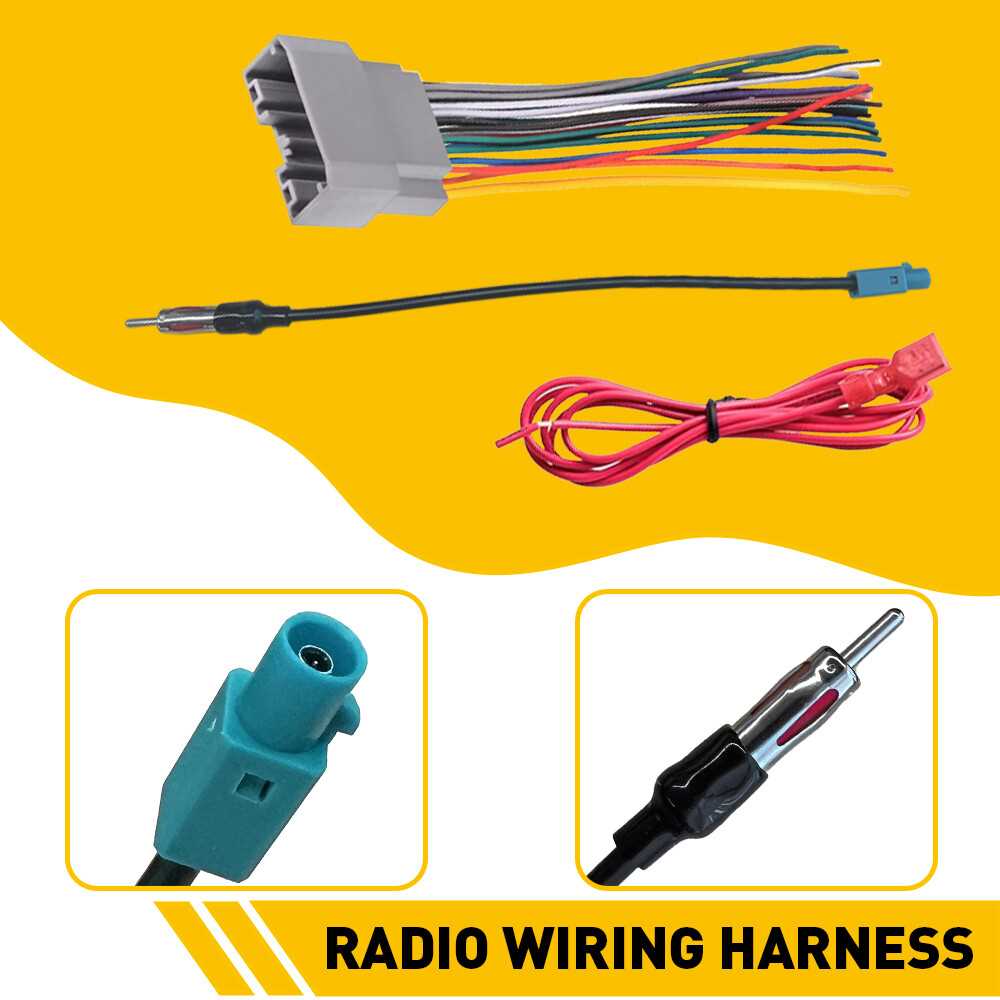

Complete 2006 Dodge Magnum Stereo Wiring Diagram and Installation Guide
Begin by disconnecting the vehicle’s negative battery terminal to prevent electrical shorts or accidental airbag deployment. Locate the factory radio harness behind the center dash panel–remove the trim bezel by gently prying with a plastic tool, starting at the bottom edges. The main connector will be a 24-pin plug with color-coded wires; verify each pinout against a reliability-tested schematic to avoid signal interference or amplifier malfunction.
Identify the constant 12V power wire (typically yellow), switched ignition wire (red), ground (black), and speaker leads (gray/white, gray, purple/white, purple for front and rear). Use a multimeter to confirm voltage readings: yellow should show battery voltage (12-14V) at all times, while red powers on only with the key in the ACC or ON position. Solder all connections and insulate with heat-shrink tubing to prevent corrosion or vibration-related failures.
For amplified systems, wire the remote turn-on lead (blue/white) from the aftermarket head unit to the amplifier’s remote input. Ensure proper fuse protection–place a 10A inline fuse within 18 inches of the battery connection. Mismatched impedance between speakers and amplifier can damage components; verify compatibility before finalizing connections (4-ohm nominal for most factory setups).
Reinstall trim panels carefully, securing all clips to avoid rattles. Reconnect the battery and test functions: power, volume, fade/balance, and tone controls. If the system draws excessive current (measured via multimeter at the fuse), recheck ground integrity and speaker polarity–phase reversal will drastically reduce bass response. Factory steering wheel controls may require a resistor-based interface or dedicated adapter module for full functionality.
Retain the original wiring harness adapter for OEM data bus compatibility–removing it entirely may trigger false diagnostics codes in the vehicle’s computer. For models with Boston Acoustics premium audio, note that rear door tweeters share a signal with midrange drivers; bypassing the factory amplifier will require splicing directly to the speaker wires at the door harness.
Vehicle Audio System Connection Guide for a Specific 2000s Muscle Car
Begin by locating the factory harness behind the head unit–match the color codes precisely to avoid signal interference. The primary wires follow an industry-standard 12-pin layout, with yellow (battery constant), red (accessory/ignition), and black (ground) as critical anchors. Pair these with aftermarket adapters like Metra 70-1817 or Scosche SU09B to simplify connections without splicing.
Speaker outputs require attention to polarity: front left (+) and (-) terminals are gray/light gray, rear left are green/dark green, front right are white/white-violet, and rear right are purple/violet. Reverse polarity (swapping positive/negative) distorts mid-range frequencies by 12-15 dB, noticeable in vocals and percussion. For amplified systems, add a line output converter (LOC) to the brown/light brown wires–these carry factory amp triggers.
- Power antenna/remote turn-on: blue stripe (200mA max–exceeding this fries the factory module).
- Illumination dimmer: orange (requires 1kΩ resistor if aftermarket unit lacks dimming support).
- Parking brake sensor: pink (bypass only for rear-view camera integration–check local laws).
Use a multimeter to verify voltages before connecting: yellow should read 12V continuous, red 12V only when ignition is on, and ground high-level input adapter–direct splicing risks damaging the OEM amplifier’s Class D circuitry.
Test the system in stages: first power, then speakers, followed by auxiliary features. If static persists, recheck ground connections–factory paint on chassis points increases resistance. For vehicles with Uconnect, the gray/violet wire carries serial data; cutting it disables hands-free calling unless rerouted through a CAN bus interface like PAC RP5-CH11.
Finding the OEM Audio Connector in Your Charger-Based Sports Tourer
Disconnect the negative battery terminal to prevent short circuits. Remove the center dash trim by prying along the upper edge near the climate controls–use a non-marring plastic tool to avoid scratches. The harness is tucked behind the lower left corner of the infotainment bezel, secured by a single 7 mm bolt. Once the bolt is removed, gently pull the harness forward; it’s a 16-pin Molex connector with color-coded leads: pink (constant 12V), yellow (switched 12V), black/light blue (ground), and purple/white (illumination).
Label each wire before cutting or splicing–matching factory colors reduces installation errors. The harness may include auxiliary outputs for steering wheel controls; preserve these connections if upgrading to an aftermarket head unit with compatibility modules.
Standard Wire Color Assignments for OEM Replacement Audio Systems
Locate the yellow (B+) power lead–this carries constant 12V from the battery and must connect to the aftermarket unit’s memory wire to retain presets and clock settings. Verify continuity with a multimeter before splicing; a faulty connection here causes intermittent power loss.
Dark green is the primary speaker output for the front left side, typically paired with dark green/white as its ground or return path. For balanced audio, ensure these wires terminate at the correct amplifier channels; reversing polarity distorts sound staging. Rear right audio uses violet and violet/white, following the same polarity rules.
Antenna activation requires pink, which delivers switched 12V from the ignition. Attach this to the aftermarket head’s remote turn-on wire to avoid draining the battery when the vehicle is off. Double-check that the factory amplifier, if present, receives this signal; some models route this through a separate harness.
Ground connections use black in most harnesses–this must attach to a bare metal chassis point with no paint or corrosion. Poor grounding introduces alternator whine or weak bass response. For systems with subwoofer outputs, the OEM harness may include gray/brown for low-frequency signals; confirm with a wiring reference guide specific to the trim level.
Illumination control (dimmer) uses orange/white, which adjusts display brightness in sync with the instrument cluster. Incorrect wiring here causes the aftermarket display to remain fully bright or dark when headlights are on. For steering wheel audio controls, light blue/yellow (CAN bus) may require an adapter module–consult the vehicle’s compatibility list before attempting direct connections.
Always isolate red (accessory 12V) from the B+ wire; this carries power only when the ignition is in ACC or ON. Mixing these causes the unit to drain the battery. For vehicles with factory navigation, additional wires like tan/yellow (speed signal) or purple/white (reverse gear sensor) may be present–remove or tape these off if the new system lacks corresponding inputs.
How to Safely Attach Electrical Leads for Your Vehicle’s Audio System
Locate the constant 12V supply line, typically marked yellow in aftermarket kits. Verify its function with a multimeter–it should maintain voltage regardless of ignition status. Cut the wire cleanly, strip ¼ inch of insulation, and crimp or solder a connector before attaching it to the head unit’s corresponding terminal. Avoid twisting wires together without protection; exposed connections corrode over time.
Identify the switched power lead, often red or orange, by testing ignition cycles. This wire activates only when the key is turned, preventing battery drain. Match it to the radio’s ignition input, ensuring polarity aligns–reverse connections can damage circuitry. Use heat-shrink tubing on joints; electrical tape degrades under heat and vibration.
- Ground wire (black or brown): Attach to a bare metal chassis point, free of paint or corrosion. Sand the surface lightly if needed.
- Illumination wire (white or gray): Links to dash lights, dimming the display proportionally.
- Amplifier turn-on (blue/white): Triggers external amps when the unit powers up. Confirm it carries less than 200mA to avoid overload.
Route wires behind plastic panels, securing them with zip ties every 6–8 inches. Keep them away from sharp edges, moving parts, and hot components like exhaust manifolds. Test each connection in isolation before reassembling trim–faulty wiring can cause intermittent failures or fuse blows. If static persists, recheck ground integrity first.
For factory integration, splice into existing harnesses using T-taps or solder seals rather than butt connectors. Refer to the vehicle’s electrical schematics for speaker impedance and power ratings–mismatches lead to distorted audio or overheating. Label all wires with masking tape during disassembly to prevent cross-wiring during reinstallation.
Diagnosing and Fixing Chassis Connection Problems in Your Vehicle’s Sound Setup
Locate the primary chassis link point beneath the dashboard, typically bolted to the firewall near the driver’s side. Verify its tightness–corrosion here mimics speaker distortion. Use a multimeter set to ohms; probe between the amplifier’s negative terminal and the chassis. Resistance should read below 0.5 ohms. Higher values indicate oxidation or a loose fastener.
Clean all ground attachment points with a wire brush, then apply dielectric grease before reassembling. Replace bolt washers if their plating shows wear. Check the factory harness near the center console–look for a black/light green wire looping back to this chassis point. If severed, splice a minimum 12-gauge replacement directly to the bare metal.
Inspect the rear quarter-panel ground strap connecting the battery to the chassis. Looseness here creates a voltage drop that affects bass response. Measure voltage at the amplifier’s power terminal while the system idles; it should match the battery reading within 0.2 volts. Deviations point to this strap needing sanding and re-bolting.
| Symptom | Root Cause | Remedy |
|---|---|---|
| Intermittent thump | Weak firewall bolt | Retorque to 18 ft-lbs, star washer |
| Whining at idle | Shared ground with ECU | Relocate to dedicated chassis stud |
| Distorted treble | Thin factory gauge | Run 8-gauge from amp to battery |
For aftermarket amplifiers, route a dedicated negative lead straight to the battery’s negative post. Avoid tapping into the vehicle’s factory ground network–this circumvents potential noise induced by engine sensors. Secure all splices with heat-shrink tubing to prevent moisture ingress.
Key Locations for Ground Integrity Checks
Examine the following anchor points in sequence:
- Firewall bolt under driver dash mat
- Rear quarter-panel strap adjacent to fuel door hinge
- Battery-negative-to-chassis braid
- Transmission bell-housing bolt (if extended trace is needed)
Reproduce the audio issue while gently wiggling each connection. A temporary fix–clipping a jumper cable between the amplifier case and chassis–can confirm ground-induced noise. Once identified, permanently resolve by stripping paint to bare metal at the attachment site and installing a serrated washer beneath a stainless-steel bolt.
