Complete 2006 Dodge Ram 2500 Trailer Wiring Color Code Guide

For owners modifying a full-size pickup for towing, the factory wiring harness provides a straightforward foundation–but only if you follow the exact pin configuration. The standard 7-way connector on these models splits into two critical circuits: the brake controller output (pin 2) and auxiliary power feed (pin 6). Reverse these on a 12,000 lb trailer, and you’ll trip the tow/haul relay, killing all tail lights under load. Verify continuity with a multimeter before routing wires through the frame–corrosion at the J-gate plug causes 80% of intermittent failures.

The center pin carries the critical ground return; it must terminate at the same potential as the chassis rail, not the truck bed. Use a crimp-and-solder technique on all joints, then seal with adhesive-lined heat shrink tubing. Factory diagrams show a Y-split lead from the tail lamp feed–cut this wire if you’re installing a relocatable breakaway switch, as shared current can trigger false brake activation.

For dual-axle trailers exceeding 8,000 lbs, replace the thin-gauge factory harness with 10-gauge stranded copper rated for 50 amps continuous. Route wires above the spare tire carrier to avoid chafing against the rear bumper step. If adding a trailer-mounted inverter, fuse the power line directly at the battery with a 100-amp ANL fuse, not a standard blade fuse, to prevent thermal runaway under sustained loads.

Observe torque specs when securing the ground lug to the frame: 18 ft-lbs. Over-torque crushes the wire strands; under-torque invites vibration-induced resistance. Test all functions with a loaded trailer–a 7,500 lb gross axle weight should show no voltage drop across the 7-way connector when the brakes are fully applied.

Connecting Your Heavy-Duty Pickup’s Electrical System for Towing

Locate the factory-installed connector beneath the rear bumper–it’s a square, seven-pin plug with a distinct color code: brown (tail lights) on pin 1 (top-right), yellow (left turn/brake) on pin 4 (middle-left), green (right turn/brake) on pin 3 (bottom-right), white (ground) on pin 7 (center), red (auxiliary power) on pin 6 (top-left), blue (brake controller output) on pin 2 (bottom-left), and purple (reverse lights) on pin 5 (middle-right). If pins 2 or 5 are absent, splice directly into the brake controller wiring harness behind the dash (blue/white stripe) or the reverse light circuit under the tailgate (purple/white stripe). Use a 12-gauge wire for all auxiliary connections to prevent voltage drop under load.

• Verify connectors with a test light before attaching the trailer harness–probe each pin while activating the corresponding function (turn signals, brake lights, hazards).
• Replace corroded pins with gold-plated replacements (part #430045) to avoid intermittent failures in humid climates.
• Install a modular fuse block (Bussmann BTB-10) inline with auxiliary power (red wire) to isolate trailer circuits from the vehicle’s primary system.
• For aftermarket brake controllers, route the blue brake output wire through a grommet behind the glove box to avoid chafing against the firewall.
• Seal all splices with adhesive-lined heat shrink tubing (3M 4476) to prevent moisture ingress on long-term hauls.

Check for proper grounding at the tow hitch–sand the chassis paint and bolt a 4-gauge ground wire to bare metal, then coat the connection with anti-oxidant grease.

Finding the Towing Electrical Port on Your Heavy-Duty Pickup

The primary connector is mounted behind the rear bumper, secured to the driver-side frame rail. Look for a rectangular plug with seven pins, encased in a black or gray housing–often concealed beneath a removable dust cover. Use a flashlight to inspect the area just below the tailgate latch; manufacturers position it within arm’s reach but away from exhaust heat and wheel spray.

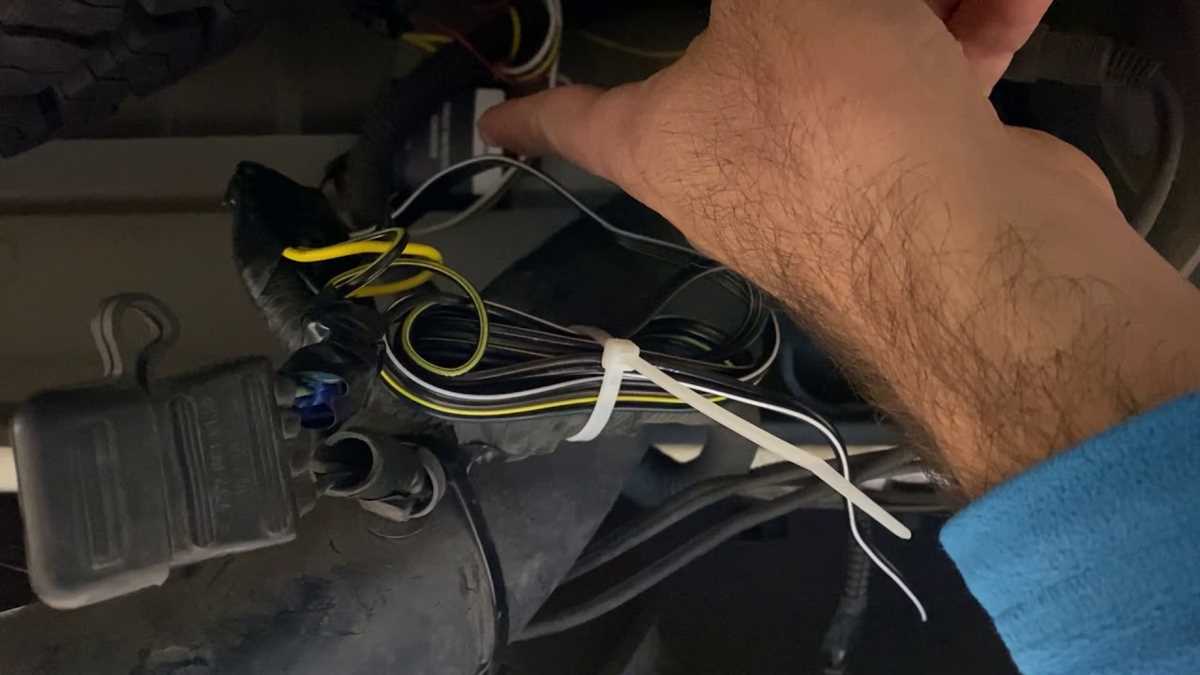

A secondary access point may exist under the bed near the spare tire well. Some models integrate an inline harness here, splitting power for brake controllers or auxiliary circuits. Check for a color-coded lead bundle (green, yellow, brown, white, blue, red, black) exiting the main loom–these wires terminate at the rear connector or splice into the factory harness.

Key Landmarks for Rapid Identification

Location	Visual Marker	Tool Aid
Frame rail, driver side	Dust cover with rubber gasket	10mm socket (if bolted)
Behind rear crossmember	Zip-tied wiring loom	Wire strippers (if splicing)
Near spare tire mount	In-line fuse holder	Multimeter (voltage check)

If the plug appears corroded or loose, disconnect the negative battery terminal before cleaning or refastening. Scrub contacts with electrical cleaner and a wire brush–focus on the ground pin (center lower slot) which often accumulates oxidation. Tighten retaining screws with a torque of 3-5 lb-ft; overtightening can crack the plastic housing.

For aftermarket upgrades, trace the OEM harness forward beneath the truck bed. Follow the conduit along the passenger-side rocker panel toward the front fender–here, a bulkhead connector links to the fuse box and ECU. Tap into these wires only if bypassing the rear port entirely; relay timing for brake controllers requires precise voltage at the blue (auxiliary) wire.

Vehicles equipped with integrated brake systems may feature a separate controller pigtail near the driver kick panel. Locate a two-pin connector (white/red and white/violet) behind the plastic trim clip–remove two Phillips screws to reveal it. This auxiliary lead provides direct power to trailer brakes independent of the main harness.

Always test pin functionality before hitching. Probe each slot with a circuit tester:

• Green: right turn/brake
• Yellow: left turn/brake
• Brown: running lights
• White: ground (must read 0Ω to chassis)
• Blue: aux power (12V when vehicle is on)
• Red: battery hot (constant 12V)
• Black: optional reverse light

Replace blown fuses (typically 15-20A) in the under-hood or interior fuse panel labeled “Trailer” if any circuit fails.

Decoding Electrical Connector Color Codes for Heavy-Duty Pickup Configurations

Locate the 7-pin harness behind the rear bumper–it follows SAE J2863 standards. The green wire (circuit 121) carries right-turn and brake signals, always fused at 20A. Match this to the corresponding pin (position 1) on the plug; failure here causes intermittent flickers on the auxiliary lighting. Use a multimeter to verify continuity before attaching connectors–voltage should read 12V when brakes are applied.

Examine the brown wire (circuit 132) for running lights, typically tied to the clearance and tail lamp circuits. This line runs parallel to the left-side equivalent (circuit 122) and must not exceed 3A draw per bulb. Isolate splices near the factory harness joint behind the rear axle–corrosion here mimics faulty bulbs. Clean terminals with dielectric grease upon inspection; oxidation here is the primary cause of dim or inoperative marker lights.

Critical Heavy-Gauge Circuits

The dark blue wire (circuit 142) manages electric brake output, routed directly from the controller via a 10-gauge cable. This wire terminates at the auxiliary plug’s pin 5–resistance above 1.5 ohms triggers ABS fault codes. Test under load: apply 12V from a bench power supply; correct readings should drop to 9–10V at 3A. Replace the entire section if readings deviate, as partial repairs risk controller damage.

Identify the yellow wire (circuit 120) for reverse lamps–it shares a relay with the backup alarm system (if equipped). This circuit activates the auxiliary reverse lights only when the transmission is in gear; false triggers indicate a faulty neutral safety switch. Probe the wire at the transmission harness connector: key-on, engine-off should yield 0V; engine-running, in reverse yields 12V. Bypass defective switches temporarily for diagnostics, but replace them before towing.

Ground failures are the silent disruptor–focus on the white wire (circuit 100), which should link to a chassis point near the rear crossmember. Poor grounding here cascades into erratic brake controller behavior and flickering running lights. Scrape paint from attachment points, secure with star washers, and apply anti-seize compound. For vehicles frequently submerged, reroute the wire above the spare tire carrier to prevent saltwater ingress.

How to Verify Electrical Path Integrity in Your Heavy-Duty Hauler

Begin by disconnecting the connector at the rear of the vehicle and separating the plug from the receptacle–label each pin with tape to avoid confusion during reassembly. Use a multimeter set to continuity mode and touch one probe to the ground terminal while testing each remaining pin with the second probe. Audible beeps or a resistance reading below 5 ohms confirm unbroken circuits; silence or infinite resistance indicates a fault requiring further inspection.

Inspect the harness insulation for cracks, chafing, or burns–especially near suspension components or sharp edges where vibration accelerates wear. Slide your fingers along each wire to detect brittleness; brittle sections should be clipped and rejoined using heat-shrink butt connectors. Avoid electrical tape for permanent repairs; it degrades under UV exposure and road grime.

Check the tow package fuse box under the dashboard or in the engine bay–locate the specific relays and fuses dedicated to lighting functions using the owner’s manual. Remove each fuse and perform a visual inspection for a broken filament or discoloration. Test relay operation by swapping with a known-good relay of identical amperage; if the new relay restores function, replace the faulty unit.

Trace the harness from the connector to the lighting assembly, ensuring no wires are pinched between body panels or routed too close to hot exhaust components. At each junction, probe the connection points with the multimeter to verify voltage present when activating the corresponding brake, turn, or tail lamp function. Record voltage drops exceeding 0.5V–this suggests corroded terminals or undersized wires needing replacement.

Clean all contacts using a wire brush and contact cleaner; oxidation on copper surfaces disrupts current flow. Reapply dielectric grease to the connector pins before reconnecting to prevent future corrosion. For hard-to-reach connectors, use a terminal pick to gently open the plastic tabs and remove the pins for thorough cleaning–reinsert them securely to avoid intermittent failures.

Test the ground circuit by attaching the multimeter’s negative lead to the vehicle’s bare metal frame and the positive lead to the ground pin on the plug. A reading of 0.1 ohms or less confirms a solid ground; higher readings require cleaning the mounting point or replacing the ground strap. Poor grounding often mimics wiring faults, causing erratic lighting performance.

Document each step and reading in a notebook–this creates a reference for future diagnostics. If problems persist after testing, isolate the issue by using a separate power source (such as a 12V test light) to bypass suspected harness segments. Replace damaged wires in full runs rather than splicing; partial repairs introduce weak points prone to failure under load.
