Complete 2006 GMC Envoy Radio Wiring Color Code and Connection Guide

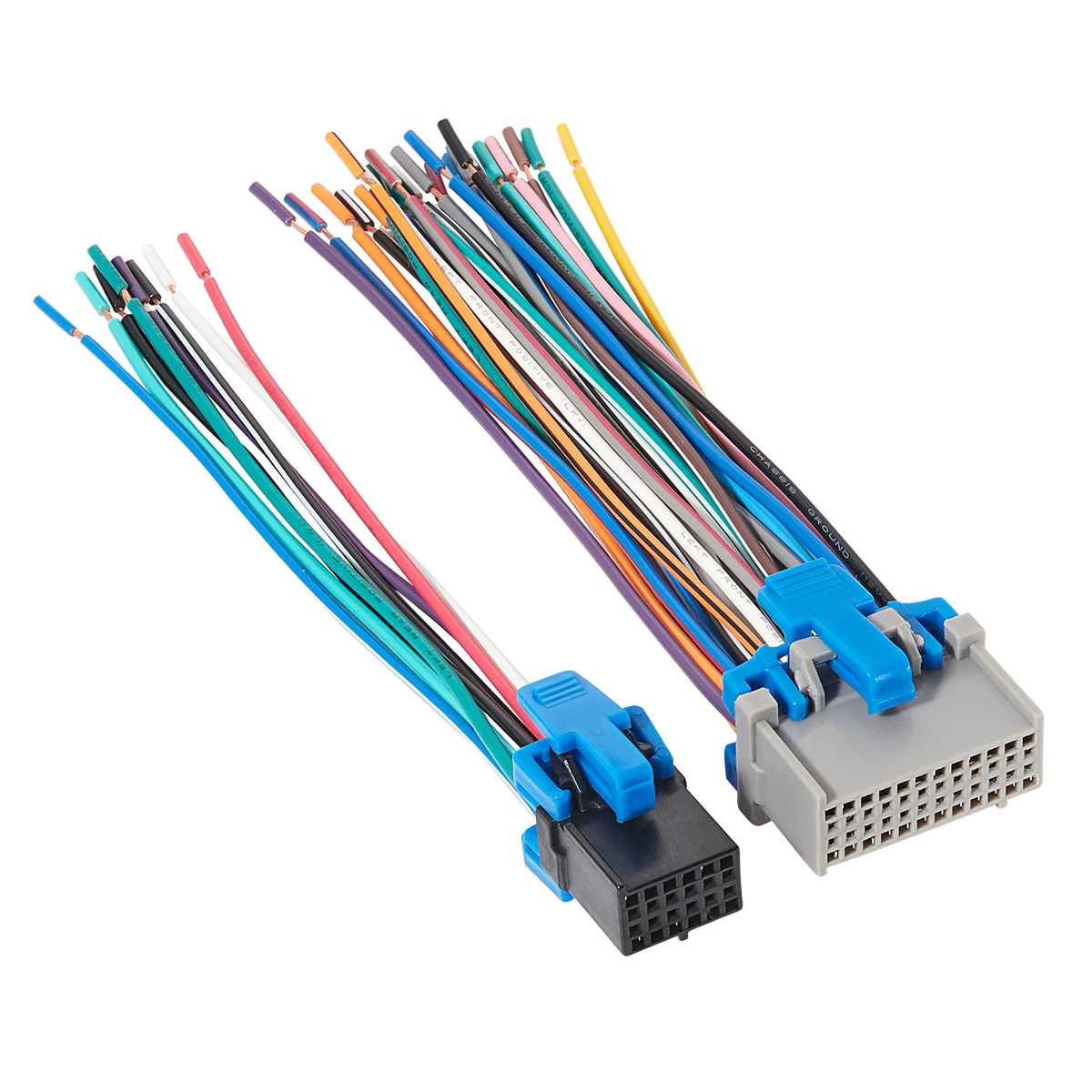

For precise head unit integration in this vehicle series, locate the two main harness connectors behind the dashboard–one 12-pin (A) and one 8-pin (B). The A-connector handles power, ground, illumination, and speaker outputs, while the B-connector manages antenna control and data signals. Use a voltmeter to verify constant 12V (yellow wire) at pin 1 of the A-harness before proceeding; failure here indicates a blown fuse (typically F15, 10A, under the instrument panel).
Speaker wires follow a standard white/green (front-left positive), white/black (front-left negative), gray/light blue (front-right positive), gray/violet (front-right negative) color scheme. For rear channels, green/orange (rear-left positive), green/black (rear-left negative), purple/light green (rear-right positive), purple/black (rear-right negative) apply. Avoid splicing into factory harnesses–use a T-tap connector or solder joints wrapped in adhesive-lined shrink tubing for corrosion-resistant connections.
If retaining the steering wheel audio controls, tap the pink/white (data bus) and pink/black (ground) wires from the B-connector and route them to an aftermarket interface module (e.g., Metra ASWC-1). For vehicles equipped with OnStar, preserve the blue/white (antenna activate) wire; splicing here incorrectly will disable satellite services. Ground the new unit to the chassis mounting point near the original radio cavity–never attach to painted surfaces to prevent interference.
Before finalizing installation, test each channel with a 100Hz sine wave signal to confirm proper phase alignment. Reverse polarity on any speaker pair will result in audible cancellation and diminished bass response. If static persists, verify the amber/black (antenna power) connection; a loose fit here causes weak FM reception. For amplified systems, use 18-gauge oxygen-free copper wire for signal paths to minimize voltage drop.
Electrical Hookup Guide for Mid-Size SUV Audio System
Begin by locating the harness behind the factory-installed sound unit–pinout follows a standardized GM color scheme. The 12-pin connector splits into power, speaker, and ground lines. Match each wire precisely: solid yellow (constant 12V), red (accessory), black (ground), and paired colors (front/rear outputs). Testing with a multimeter avoids short circuits.
For aftermarket upgrades, splice the adapter harness directly to these wires. Avoid twisting bare ends–use crimp connectors or solder joints sealed with heat shrink. The steering wheel controls rely on a separate data bus; disconnecting it may trigger dashboard errors. Verify compatibility with the vehicle’s BCM before modifying.
Pin Configuration Reference
| Position | Function | Color Code | Notes |
|---|---|---|---|
| C1 | Battery (+) | Solid Yellow | Fused at 10A |
| C2 | Ignition Switched | Red | Hot in RUN/ACC |
| A4 | Ground | Black | Chassis connection |
| B5/B6 | Front Left +/- | Gray/Light Gray | 4-ohm impedance |
Speaker outputs carry low-amperage signals; never connect them to power sources. The antenna lead (dark blue/white) requires a dedicated mast amplifier–bypassing it weakens reception. When installing a navigation module, ensure the GPS antenna aligns unobstructed.
Label all connections before disconnecting the OEM unit–factory clips are fragile and difficult to source. For vehicles with OnStar, retain the telematics module or reroute the microphone input to the new system. Double-check fuses in the instrument panel: 15A for the sound unit, 25A for accessory circuits.
Matching the Right Connector for Your SUV Audio System Upgrade
Begin by locating the vehicle’s existing harness behind the factory stereo. The OEM plug on 2004–2007 midsize trucks and sport utilities follows a 12-pin ATO layout–pins labeled A through L. Pin A delivers constant 12V, B supplies illumination, C provides ground, and D carries switched power. Verify these voltages with a multimeter before purchasing an aftermarket adapter; incorrect connections can fry the head unit or trigger airbag faults.

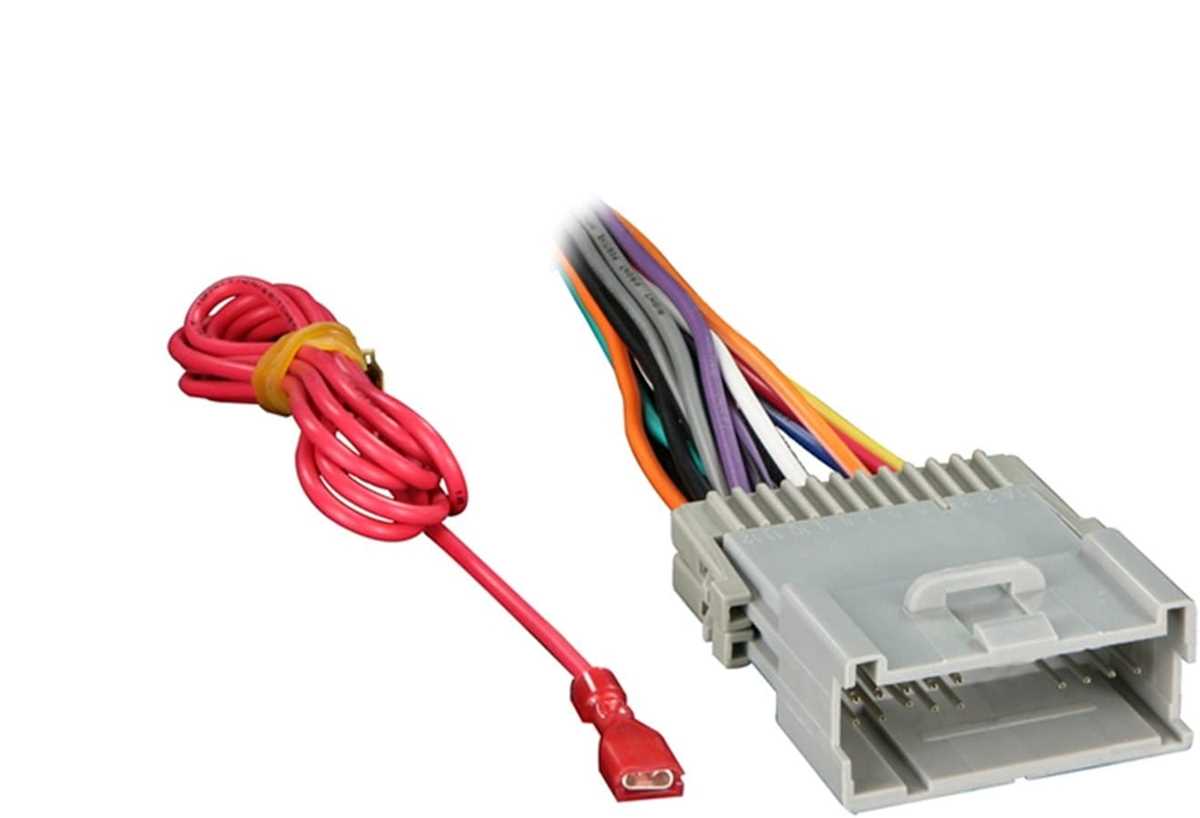

Select an iso-to-metra adapter that lists compatibility with the 4.2L inline-six model lineup. Confirm the adapter includes a separate antenna lead–some cheaper harnesses omit this, requiring manual splicing. For Bose premium systems, an additional amplifier bypass plug is mandatory; neglecting this causes silent or distorted audio. Check the adapter’s color codes against the factory harness: yellow/black should match the factory yellow, red/white must align with red, and brown corresponds to the antenna trigger.
If integrating a modern multimedia receiver, acquire an adapter with built-in CAN bus or OnStar retention circuitry. Without this, the instrument cluster may display warning lights or disable voice control functions. Measure the depth behind the dash–some double-DIN units need a shallow-mount cage to avoid interference with climate controls. For vehicles equipped with rear-seat entertainment, an additional power wire run along the driver-side kick panel is necessary to preserve rear audio output.
Inspect the harness for heat damage or corrosion before installation. Replace any frayed wires with high-temperature 18-gauge copper-core cables, soldering each splice and insulating with adhesive-lined heat shrink tubing. For auxiliary inputs or USB integration, use a dedicated wiring kit that supports the factory auxiliary jack without voiding the vehicle’s electrical warranty. Test audio fade and balance functions post-installation; improper grounds often manifest as bass distortion or speaker pop during ignition cycles.
Keep the factory harness intact if selling the vehicle later. Many buyers expect seamless factory resale value, and customized wiring complicates dealer diagnostics. Document each connection with photos and retain original parts for potential reinstallation. If the adapter lacks a specific lead–such as the OnStar microphone input–add it manually using a secondary eight-pin mini connector, ensuring proper shielding to prevent engine noise bleed-through.
How to Find the Audio System Connection Blueprint Behind the Control Panel
Disconnect the negative terminal of the vehicle’s battery to prevent short circuits before starting. Locate the fuse box cover beneath the instrument cluster–it snaps off with minimal force using a flathead screwdriver. Behind this cover, a 10mm bolt secures the lower dashboard trim; remove it carefully to avoid damaging plastic clips.
Gently pry the center console trim panel away from the dash using a trim removal tool, starting at the bottom edge near the emergency brake. Work upward slowly to release the hidden clips without cracking the plastic. The audio unit’s harness connector will now be visible–press the release tab on the white or gray plug to detach it from the back of the head unit.
Identifying the Correct Wiring Schematic
Inspect the released harness for color-coded wires: yellow (constant 12V), red (switched 12V), black (ground), blue/white (amplifier turn-on), gray (+ speaker front right), purple (+ speaker rear right), green (+ speaker front left), and tan (+ speaker rear left). Cross-reference these with a vehicle-specific electrical manual–aftermarket brands like Pioneer or Alpine often include pinout charts that match these configurations.
If the schematic isn’t printed on the harness, use a multimeter set to DC voltage. Probe each wire while a helper turns the ignition to accessory mode–constant voltage indicates the yellow wire, while voltage disappearing when the key is off identifies the red wire. Ground connections can be verified by measuring resistance to the chassis (should read near 0 ohms).
Reattach the harness only after confirming all circuits match the intended aftermarket system’s requirements. Miswiring risks fuses or unit failure–double-check polarity before finalizing connections. Reinstall panels in reverse order, ensuring all clips snap securely to avoid rattles.
For vehicles with steering wheel controls, separate adapters (e.g., Metra ASWC-1) may be required–consult the adapter’s manual for compatibility with the factory wiring pinout. These adapters typically splice into the existing harness without cutting wires, preserving resale integrity.
Aftermarket Audio System Wire Harness Color Guide
Connect the constant power lead to the vehicle’s yellow wire (typically 12V), ensuring it runs directly to the battery with an inline fuse no farther than 18 inches from the terminal. This prevents voltage drop and protects against shorts. Match the ground (black) to a bare metal chassis point, sanded clean of paint or corrosion–avoid factory harness grounds, as they may carry residual current noise.
For speaker outputs, use the following standardized color pairs on the aftermarket harness:
- Front Left (+): Gray
- Front Left (-): Gray/black stripe
- Front Right (+): White
- Front Right (-): White/black stripe
- Rear Left (+): Green
- Rear Left (-): Green/black stripe
- Rear Right (+): Purple
- Rear Right (-): Purple/black stripe
Verify each channel’s polarity with a 9V battery test before finalizing connections; reversed polarity causes phase cancellation and muffled output.
The ignition-switched power (red) should link to a fuse tap on the vehicle’s accessory circuit, not the radio memory wire. Use a multimeter to confirm 12V+ only when the key is turned–not in accessory or off modes. For steering wheel control adapters, splice the data bus wire (light blue on most setups) into the factory harness’s pink or orange/white lead; this retains original button functionality without signal interference.
Antenna triggers (blue/white) must connect to the factory amplifier turn-on lead if the vehicle includes a premium sound system. Skipping this step results in no audio output after installation. For vehicles with Bose or similar systems, add a load resistor (62 ohms) in parallel to the speaker wires to prevent error codes–failure activates theft-deterrent warnings.
Adapter plugs simplify integration but may not cover all cases. For instance, some luxury trim packages use a single purple wire for rear-seat entertainment mute functions. Identify these variants in the factory service manual’s electrical section under “infotainment interface.” If no documentation exists, probe the harness with a continuity tester while pressing control buttons to isolate the correct wire.
Label all harness branches with numbered flags before splicing. Post-installation, tuck unused cables behind the dash bulkhead, avoiding routes near moving parts or heat sources like the climate control housing. Secure bundles with nylon ties every 6 inches; loose wires vibrate against metal, causing intermittent shorts. Test volume, balance, fade, and bass controls across all sources (AM/FM, auxiliary input, Bluetooth) before reassembling trim panels.
