Complete Guide to Standard and Custom Truck Trailer Wiring Connections
Begin by locating the main power distribution block beneath the hauler’s frame–typically mounted near the coupling mechanism. Standard configurations include a 7-way round connector (SAE J560) or a 13-pin European variant, each serving distinct electrical functions. The 7-way model separates circuits for brake lights (pin D), turn signals (pins L/R), tail/marker lamps (pin C), electric brakes (pin E), and auxiliary power (pin G). Verify the pinout with a multimeter before attempting modifications; incorrect wiring risks short circuits or functional failure.

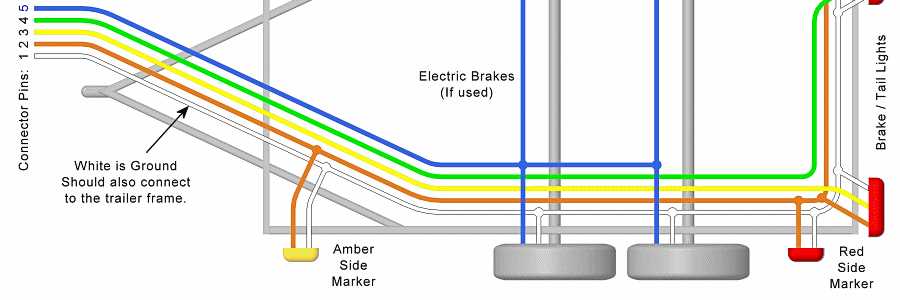

Identify the color-coded wire standards for North American setups: white (ground), black (12V constant), yellow (left turn/brake), green (right turn/brake), brown (tail/running lights), blue (electric brake output), and red (auxiliary power). European systems differ–check ISO 11446 for grey (reverse lights), purple (fridge +12V), and green/yellow (ground) assignments. Use heat-shrink tubing on splices to prevent corrosion; standard electrical tape degrades under vibration.
For towed units exceeding 3,000 kg, incorporate a breakway battery system with a dedicated switch and minimum 8 AWG cable. Test the breakaway circuit by pulling the pin; the brakes should engage within 0.5 seconds. If interfacing with ABS, ensure the black/white striped wire connects to the modulator–failure disrupts antilock functionality. Voltage drop checks are critical: measure at the rear lamp cluster; a drop above 0.5V indicates corroded terminals or undersized wiring.
Document every connection in a schematic using diode-isolated splitters for bidirectional signals (e.g., turn/brake separation). Replace factory connectors with waterproof Deutsch DT series if exposure to moisture is expected–standard blade terminals oxidize rapidly in road-salt conditions. For diagnostics, use a pinout tester instead of incandescent bulbs; modern LEDs require precise voltage ranges (11.5–14.5V) to avoid flickering.
Electrical Connections for Heavy Vehicle Hauling Units

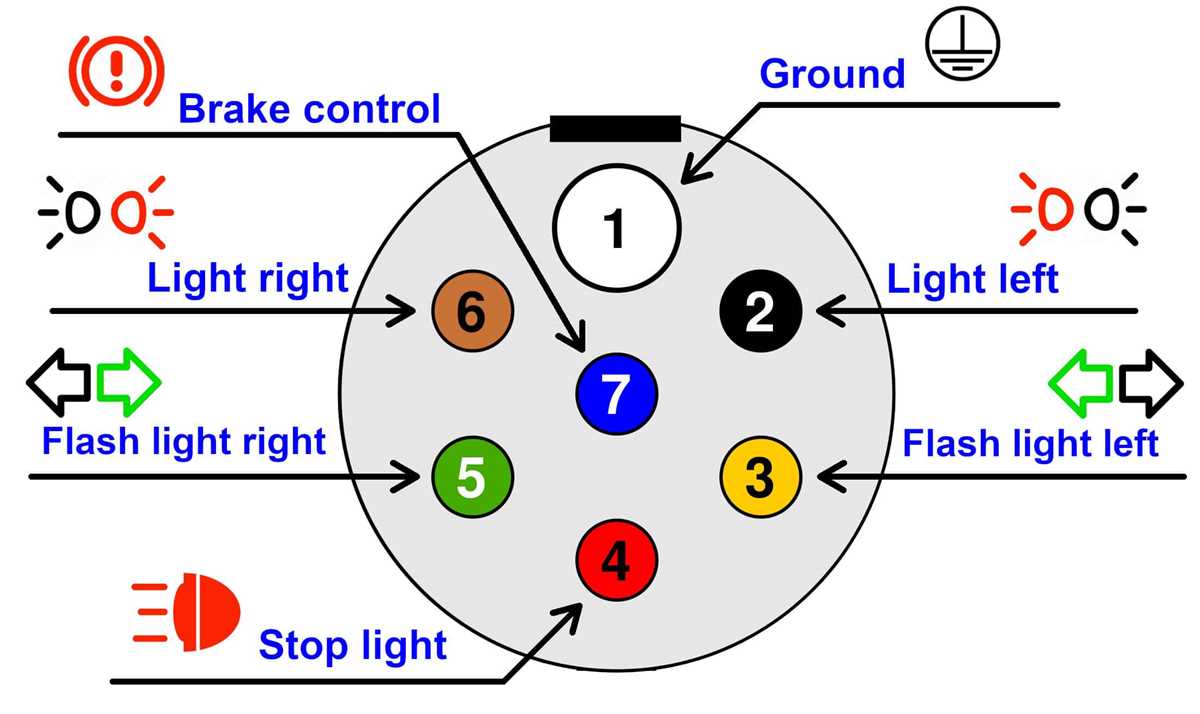

Begin by verifying the pinout configuration matches the standard used by the towing vehicle. Most commercial haulers utilize a 7-way connector with the following assignments:
| Pin | Function | Wire Color (SAE) |
|---|---|---|
| 1 | Electric Brakes | Blue |
| 2 | Tail/Marker Lights | Brown |
| 3 | Ground | White |
| 4 | Left Turn/Stop | Yellow |
| 5 | Right Turn/Stop | Green |
| 6 | Auxiliary Power | Red |
| 7 | Reverse Lights | Purple |

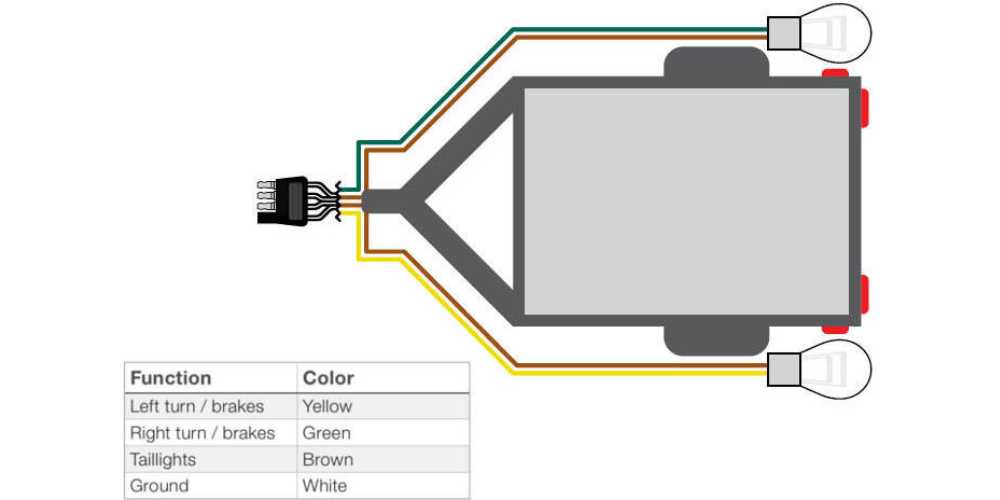

For vehicles manufactured before 2008, check for a 4-way or 5-way flat connector–older transports often lack auxiliary circuits. If retrofitting, use a converter module designed for mixed systems; avoid splicing into the main harness without proper load testing. A digital multimeter set to DC voltage (20V range) should read between 12.0V and 14.5V at the connector when the engine runs. Readings outside this range indicate alternator malfunction or excessive voltage drop.
Inspect the ground connection first if electrical issues arise–corrosion at the chassis mount is a frequent failure point. Clean contact surfaces with a wire brush, apply dielectric grease, and secure with a stainless-steel fastener. For trailers exceeding 15 meters, supplemental grounding may be required to prevent interference with braking systems. Use a minimum of 6AWG copper wire for these circuits; smaller gauges risk overheating under sustained load.
Isolate turn signal circuits from running lights using a dedicated relay if feedback occurs–this prevents bulb flicker when combined stop/turn circuits share a ground. European models often use a 13-pin Euro-style socket; adapt using a branded converter (avoid generic adapters with insufficient current ratings). Label all connections at both ends of the harness with heat-shrink tubing marked with the circuit function to simplify future diagnostics.
Fuses and circuit breakers should match the wire gauge: 20A for 12AWG (brake/turn signals), 30A for 10AWG (auxiliary power). Replace all fuses with identical amperage ratings; never substitute with higher values. Waterproof connections using shrink tubing or adhesive-lined butt connectors–exposed joints cause short circuits during wet conditions.
Test the brake controller output by connecting a trailer-rated load resistor (or a 22Ω/50W resistor) between the blue and white wires. Voltage should modulate between 2V and 12V when adjusting gain settings. If output remains constant, inspect the controller’s power feed and ground; loose connections here often mimic unit failure.
For long-haul units, consider an LED upgrade–incandescent bulbs draw 2.1A each, while LEDs draw 0.2A, reducing parasitic load on the charging system. Retain original bulb sockets if local regulations require DOT-approved lighting; bypassing OEM resistors may trigger diagnostic trouble codes.
Key Elements of a 7-Pin Heavy-Duty Connector Assembly
Install a direct-connect modular plug at the vehicle’s rear to ensure corrosion-resistant signal transfer. Choose gold-plated contacts for pins 1–7 to prevent oxidation in wet or salty environments; standard copper corrodes within 18–24 months, while gold maintains conductivity for 8+ years.
Route the cable harness through a flexible nylon conduit rated for 90 °C continuous duty. Avoid vinyl tubing–it cracks under UV exposure after 3–4 years, exposing wires to abrasion against the chassis rail. Secure every 12 inches with double-wound stainless locks to prevent vibration-induced chafing.
Integrate a relay-controlled brake output (pin 2) with a 30-amp fuse on the vehicle side. Factory brake lines often carry only 12–15 amps; upgrading to 25-amp relays prevents overheating during prolonged descents. Mount the relay within 18 inches of the tow hitch to minimize voltage drop.
Use color-coded 16-gauge dual-rated wire (SAE J1128/XLPE insulation) for all circuits except the brake feed, which demands 12-gauge to handle 20 amps safely. Match wire colors to SAE standards: red for stop illumination, brown for running lights, yellow for left turn/stop, green for right turn/stop.
Critical Fuse and Ground Locations
Place the main fuse block under the dash near the OEM harness tap, not behind the rear tailgate–moisture collects there, causing intermittent shorts. Each circuit should have a dedicated blade fuse: 10 amps for lighting, 25 amps for electric brakes, 30 amps for auxiliary power. Ground wires must terminate at a dedicated bare steel bolt welded to the frame, not painted metal; paint increases resistance by 2–3 ohms.
Verify ground continuity with a multimeter set to ohms: readings above 0.5 Ω indicate corrosion. Apply dielectric grease to all ground connections after cleaning with a wire brush; grease repels water for 5+ years, whereas untreated grounds fail within 18 months in humid climates.
Test the harness under load before finalizing installation. Activate all lighting functions simultaneously for 10 minutes–LED arrays should draw 300–400 mA per bulb, incandescent 2–3 amps per bulb. Voltage at the furthest connector (typically the auxiliary socket) should not drop below 11.5 volts; anything lower signals excessive length or undersized wire gauge.
Sealants and Strain Relief
Encase all exposed joints in marine-grade heat-shrink tubing with adhesive lining. Standard shrink tube cracks after 1–2 years; adhesive-filled tubing swells to block moisture permanently. Apply to every splice, including the main 7-pin connector–factory crimps corrode from the inside out, invisible until failure.
Step-by-Step Guide to Testing Haulage Lighting with a Multimeter
Set the multimeter to the DC voltage range (typically 20V for automotive systems). Probe the ground pin on the connector–it should read 0V relative to the vehicle chassis. If voltage is present, inspect the grounding path for corrosion or loose connections, as these introduce resistance and cause faulty signals.
Test each power pin individually by connecting the multimeter’s red lead to the pin and the black lead to a solid chassis ground. A reading of 12-14V confirms proper voltage supply. If voltage drops below 11V, trace the circuit back to the fuse panel–check for blown fuses, damaged relay contacts, or frayed conductor insulation causing short circuits.
- For turn signals, activate the switch and verify alternating voltage between 0V and 12V at 1-2Hz frequency. Absence of oscillation indicates a failed flasher module or switch.
- For brake lights, depress the pedal and ensure steady 12V output. A flickering signal points to a loose connection or worn pedal switch.
- For running lights, secure 12V when the headlights are on. Dimmer values suggest excessive resistance in the circuit.
If voltage checks pass but lamps remain dark, set the multimeter to continuity mode. Probe the lamp socket contacts–absence of beep signals an open circuit. Examine bulb filaments for breaks, and socket terminals for oxidation (clean with electrical contact cleaner). Replace bulbs with correct wattage (usually 21W for stop/turn, 5W for markers).
Inspect the connector for bent or pushed-back pins. Use dielectric grease on contacts to prevent moisture ingress–this is critical for preventing intermittent failures in wet conditions. For 7-way connectors, verify the aux pin (typically purple) carries 12V when the ignition is on; this powers charging circuits for secondary systems.
- Test each circuit three times–before replacement, after repairs, and after reassembly–to catch intermittent faults.
- Log readings for future reference; note voltage drops under load versus open-circuit values.
- Store connectors in a sealed bag between tests to prevent contamination.
