Complete 2006 Toyota Solara Radio Wiring Diagram and Color Codes Guide

For owners of the 2006 Camry-based coupe, the factory sound system connections follow a standardized layout that simplifies installation. The color-coded harness behind the head unit uses a 16-pin connector, with yellow (constant power, 12V), red (switched power, 12V IGN), and black (ground) as critical wires for basic operation. The remaining wires–gray, gray/black, green, green/black, purple, and purple/black–handle speaker outputs, paired front-to-rear for left and right channels.

Before splicing or replacing components, disconnect the negative battery terminal to prevent shorts. Use a multimeter to verify wire functions: set it to DC voltage (20V range) and probe each pin while the ignition is on (except ground). If values deviate from 12V for power wires or 4-8 ohms for speaker lines, inspect for corrosion or damaged insulation. Replace any wires showing resistance discrepancies to avoid audio distortion or electrical failures.

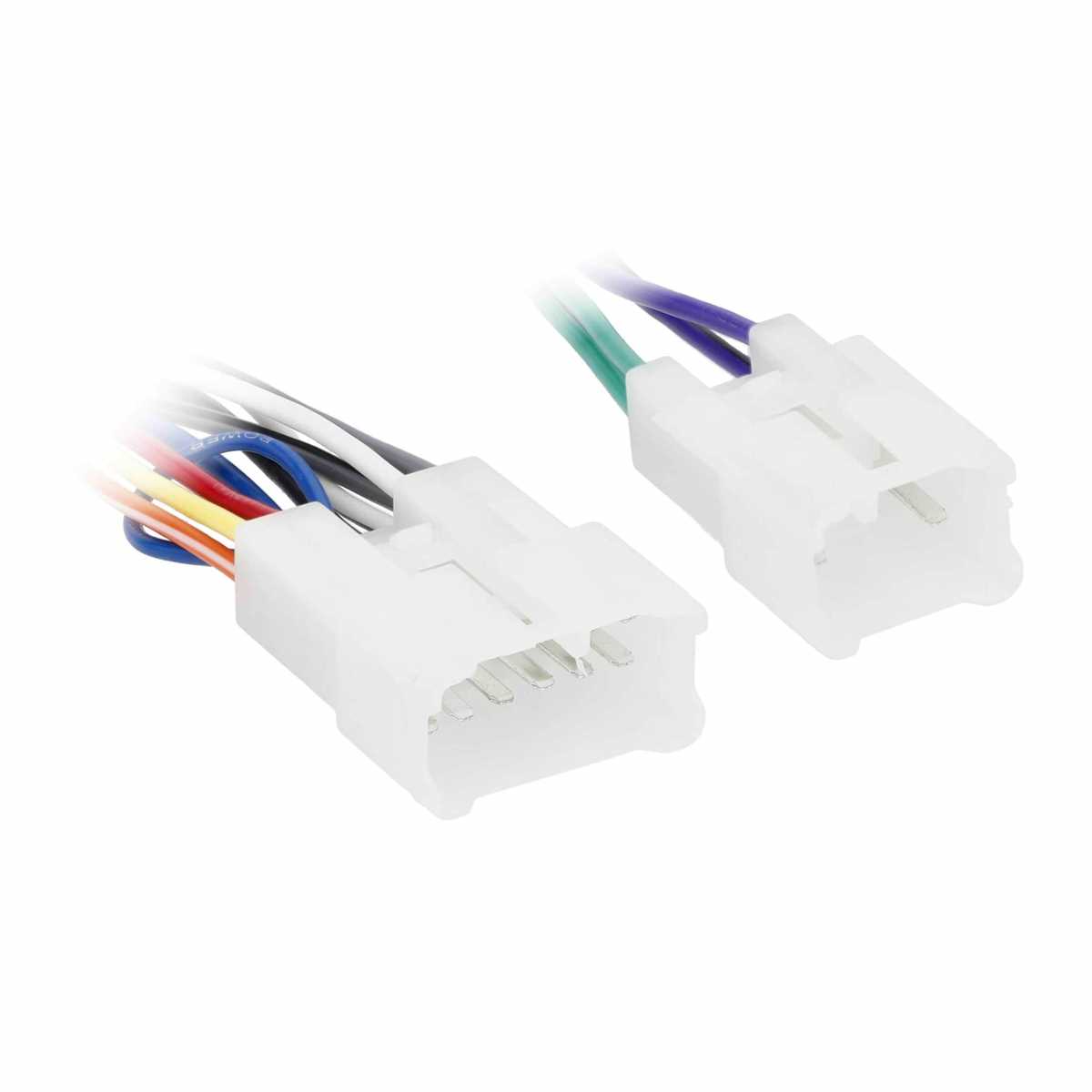

Aftermarket adapters for the ISO-style plug eliminate guesswork. Brands like Metra or Scosche offer vehicle-specific harnesses that mate directly with Pioneer, Alpine, or Sony units. For manual connections, solder joints (not crimp connectors) ensure longevity–cover each splice with heat-shrink tubing to seal out moisture. Route wires away from moving parts and heat sources, securing them with zip ties every 6 inches.

For troubleshooting, check fuses first–located in the driver’s side kick panel (10A for audio). If the display powers on but produces no sound, test the amplifier (under the passenger seat) by bridging the blue/white remote wire to a 12V source. No response indicates a faulty amp or corroded wiring; corrosion often appears as white or green deposits on connectors. Clean with contact cleaner and fine-grit sandpaper if necessary.

Guide to Electrical Connections for a 2006 Solara Audio System

Locate harness C behind the factory head unit–it contains the power, speaker, and ground leads. Cut the existing connector off, leaving 6 inches of wire for soldering. Pin A (red) delivers constant 12V from the fuse box; splice it directly to the aftermarket harness pin labelled “Battery.” Pin B (yellow) provides switched power; connect it to the “Ignition” lead to preserve memory settings during idle. Verify polarity with a multimeter before crimping.

Front left speaker wires (pins H and I) carry white and blue stripes. Match these to the replacement unit’s RCA adapter or amplifier terminals, ensuring positive (white solid) aligns with the tweeter. Rear right outputs (pins L and M) use solid green and green/black; use heat-shrink tubing after soldering to prevent shorts near the rear deck. Avoid twisting wires together under the dash–poor grounding risks alternator whine.

Color Codes and Configuration

Factory harness pinouts follow this sequence: A (red) – battery, B (yellow) – ignition, C (black) – chassis ground, D–G (reserved for ampli-lock), H–M – speaker pairs. Aftermarket adapters often reverse-engineer these assignments, so confirm pin labels against the vehicle’s service manual. If installing a navigation system, reroute the pink illumination wire (pin N) to the dimmer circuit to synchronize display brightness.

Short the yellow antenna lead (pin O) to constant power if using a non-powered antenna. Without this step, the signal drops when the key turns off. For amplified setups, extend the pink wire to a separate 18-gauge fused line tapped at the cigar lighter’s input. Keep speaker wires untwisted beyond 18 inches to minimize capacitance distortion.

Troubleshooting Common Issues

Humming at high volumes usually means poor grounding–move the black wire to an unpainted metal point behind the stereo cavity. If bass cuts out, check rear speaker connections; common corrosion in the quarter panel harness causes intermittent failures. Replace factory fuses with identical amperage (10A for red, 15A for yellow) to prevent overheating the harness.

When splicing, use solder and adhesive-lined heat-shrink tubing instead of crimp connectors. Test each connection with a 9V battery before reassembling the dash–this reveals reversed polarity faster than rechecking work later. For integrated satellite interfaces, retain the black/orange data bus (pin S) to maintain steering-wheel control compatibility.

Remove the climate control panel first to gain clear access–it secures with two screws and one clip. Label each wire bundle with masking tape before disconnecting the harness; factory tape degrades and flakes onto circuits. After reassembly, ensure no wires bind behind the unit when sliding it back into the dash cavity.

For vehicles equipped with a premium amplifier, bridge the blue/white remote turn-on wire (pin P) to the aftermarket unit’s trigger output. Without this link, amplified speakers remain inactive. Verify all connections with an ohmmeter–resistance between ground and any speaker lead should exceed 4 ohms.

Finding the Original Audio System Plug Interface

Start by removing the center dashboard panel using a trim removal tool. Insert the tool into the seam near the climate controls and gently pry outward to release the clips. Work methodically around the perimeter to avoid breaking plastic retainers–they snap back into place once reinstalled.

Behind the lower trim, you’ll see the factory harness adapter bundled with four distinct connector blocks. The largest one, typically gray or black, supplies power, ground, and speaker outputs. Smaller plugs handle illumination, antenna triggers, and steering-wheel controls if equipped. Note their positions before disconnecting.

Identifying Key Connector Pins

Label each connector immediately after separation. Use masking tape and a marker to denote: “Main 12V,” “Right Rear Speaker,” “Dimmer,” and “Amp Turn-On.” Pin layouts vary slightly between sedan and coupe models; refer to service manual illustrations for exact wire colors–usually pink, yellow, purple, and light green stripes.

Ground wires are often grouped in a single solid black or brown lead, but don’t assume–test continuity with a multimeter if corrosion is visible. Corroded contacts on the harness can cause intermittent audio dropouts or static, so clean them with emery paper if needed.

Accessing Hidden Mounts

A second harness might be tucked behind the climate control unit, requiring removal of the HVAC bezels. Pull the knobs straight off, then unscrew the faceplate screws (usually Torx T20). Disconnect the wiring harness from the back of the unit to fully expose the lower connection points.

Reassembly requires precise alignment. Ensure all clips snap securely, especially around the shift lever area–misaligned panels can rattle or interfere with gear selection. Double-check speaker wire connections if adding an aftermarket head unit; reversed polarity causes phase cancellation, reducing bass response.

Power, Ground, and Speaker Wire Color Standards

Match the yellow cable to a 12V constant power source–it retains memory settings. The red wire demands ignition-switched voltage; connecting both yellow and red to constant power drains the battery. Ground the black wire to a bare metal chassis point with a 10-gauge ring terminal for solid contact–avoid paint or corrosion.

Speaker Output Identification

Front-left positive: grey; front-left negative: grey with black stripe–polarity matters for phase accuracy. Rear-right positive: violet; rear-right negative: violet with black stripe. Front-right positive: white; front-right negative: white with black stripe. Rear-left positive: green; rear-left negative: green with black stripe–twist each pair to minimize interference.

Verify all connections with a multimeter: 4-8 ohms between speaker positives and negatives, infinite resistance between each positive and chassis ground. Secure wire harnesses with dielectric grease and heat-shrink tubing to prevent oxidation; bundle unused wires with electrical tape, not zip ties alone. Failure to isolate power from speaker wires risks amplifier damage.

Step-by-Step Guide to Disconnecting the Factory Audio Unit

First, disconnect the negative terminal of the vehicle’s battery to prevent electrical shorts or damage to the system components. Locate the terminal under the hood–typically a black cable attached to the battery–and loosen the bolt using a 10mm wrench. Slide the cable off and secure it away from the battery post to ensure it doesn’t reconnect accidentally.

Remove the trim panel surrounding the audio head unit. Use a plastic trim removal tool to carefully pry around the dashboard cover, starting from the bottom or sides. Work slowly to avoid cracking the plastic clips–these fragile retainers hold the panel in place. Once detached, set the trim aside in a safe location to prevent scratches or misplacement.

Next, unscrew the mounting brackets securing the stereo in the dash. Most models use 4-6 screws, commonly 7mm or 8mm bolts, depending on the installation. A magnetic screwdriver will help retrieve any dropped fasteners. After removing the screws, gently pull the unit outward to expose the wiring harness and antenna connector at the rear.

• Press the clips on the wiring harness connector to release it from the unit–do not pull the wires directly.
• Detach the antenna cable by pressing the release tab or unscrewing it if threaded.
• For vehicles with additional modules (e.g., amplifier, climate controls), label each connector with masking tape to simplify reinstallation.

Store the removed stereo and its components in a clean, dry area. If replacing it with a new system, verify compatibility with the existing wiring harness or adapter before proceeding. Reattach the battery terminal only after ensuring all connections are secure and properly insulated to avoid electrical issues.
