2006 Toyota Tacoma Factory Stereo Wiring Colors and Pinout Guide
Locate the factory harness behind the dash cluster–pinout color codes follow white (left front +), white/black (left front –), grey (right front +), grey/black (right front –), and solid green (rear +) paired with green/black (rear –). These wires handle amplified signals; ignore the thinner violet and brown wires–they carry speed-sensitive volume control data and should not be spliced.
Ground the new unit directly to the vehicle’s chassis near the fuse box. Avoid daisy-chaining grounds through existing screws–use a dedicated 10-gauge wire bolted to bare metal, secured with star washers to prevent signal noise under load.
If retaining the stock amplifier (mounted behind the driver’s seat kick panel), ensure continuity through the light blue/white remote turn-on wire. Splice it with the aftermarket harness’s remote lead; failure here cuts power to all speakers.
For models equipped with JBL premium audio, an additional 20-pin Metra 70-8112 adapter is mandatory. Bypass it only if replacing the amplifier–otherwise, expect factory speaker impedance mismatch and potential damage to aftermarket receivers.
Test connections with a multimeter before powering up. Measure 12V DC at the red ignition wire and 4-6V AC across speaker wires with audible tones. No voltage at the yellow memory wire indicates a blown 10A fuse under the hood (labeled “ECU-B”).
Secure wires away from steering-column components and HVAC ducting–loose connections here generate buzzing at idle, often misdiagnosed as amplifier noise. Use nylon tie-downs and split-loom tubing rated for automotive applications.
Guide to Aftermarket Radio Installation for Your Pickup

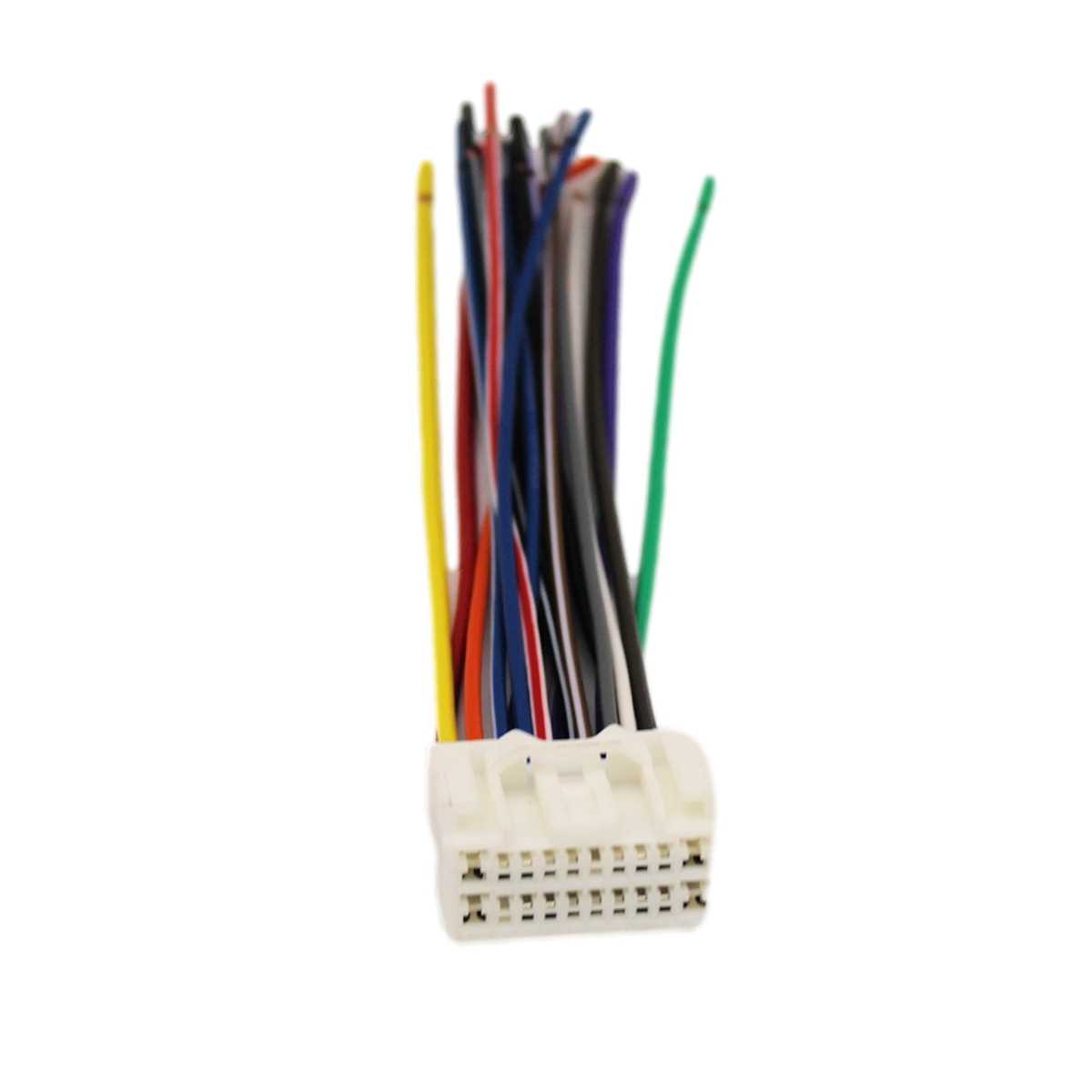

Locate the factory harness behind the dash on the driver’s side – it’s a 20-pin rectangular plug (Metra 70-1761 matches this). Pin assignments: white/black (front left +), white/blue (front left -), gray/black (front right +), gray/blue (front right -), green/black (rear left +), green/blue (rear left -), violet/black (rear right +), violet/blue (rear right -). Constant power (yellow) sits on pin 4, switched ignition (red) on pin 5, ground (black) on pin 2 – confirm with a multimeter showing 12V steady and 12V on acc.
Adapters and Common Pitfalls
Use Metra ASWC-1 if retaining steering-wheel controls; pair it with the factory 12-pin button harness. Avoid tapping into the pink/white wire (pin 18) for amplifier turn-on–it’s 6V signal only. Instead, splice the blue/white (pin 1) remote-out from your head-unit. Beware of the brown/white wire (pin 7): it carries CAN data; cutting it kills vehicle settings. For subwoofer outputs, RCA pre-outs from the head-unit require a line-level converter on pins 3 (rear speaker +) and 17 (rear speaker -) if bypassing the factory amp.
Test every connection before securing the dash: wrap splices with solder and adhesive-lined heat-shrink, not electrical tape. Factory antenna lead (pin 10, blue) needs Metra 40-LX10 adapter for digital-ready signals. If bass distorts, verify all ground points (chassis and harness) measure
Label every wire before disconnecting the battery; reconnect negative terminal last. Program the radio clock with UTC offset +9 hours to sync factory display settings. If door chimes mute erratically, check pin 9 (light green) – it carries the chime signal; isolating it requires a 1 kΩ resistor in-line.
Finding the OEM Audio Connector in Your Pickup
Begin by removing the lower dash trim panel on the driver’s side. This panel is secured by two 10mm bolts near the pedals and three plastic clips along the top edge. Once detached, you’ll expose the back of the factory head unit enclosure and the main wiring bundle.
The primary harness is a rectangular 16-pin plug labeled “A” on the vehicle’s schematic. It sits directly behind the radio chassis, connected via a short pigtail. Trace the bundle downward–it merges into a larger loom that routes along the firewall. Look for a smaller 8-pin auxiliary connector, often black or gray, which carries amplified signals and illumination feed.
Use a multimeter to verify pin assignments if documentation is unclear. Below are the confirmed color codes and functions for the 16-pin connector (pin numbering starts at the top-left when facing the plug):
| Pin | Wire Color | Function |
|---|---|---|
| 1 | White with black stripe | Left front speaker (+) |
| 2 | Gray | Right front speaker (+) |
| 3 | Pink | Ignition (+12V) |
| 4 | Light blue | Antenna trigger |
| 5 | Black | Ground |
| 6 | Green | Illumination (+12V) |
| 7 | Yellow | Battery (+12V) |
| 8 | Brown with white stripe | Left rear speaker (+) |
| 9 | Purple | Right rear speaker (+) |
| 10–16 | Various | Speaker grounds or unused |
For vehicles equipped with the JBL premium system, an additional harness is present–typically a 20-pin connector with thicker gauge wires. This harness handles amplified signals and includes a separate ground for the amplifier. Locate it behind the glove box; it’s secured by a single 10mm bolt and routes downward toward the passenger kick panel.
If the dash removal feels cumbersome, an alternative access point is the passenger-side kick panel. Remove the plastic cover beneath the door sill, then unscrew the 8mm bolt securing the carpet. Pull back the carpet to reveal a wiring tunnel where the main harness branches off. This approach avoids dash disassembly but may require additional cutting of zip ties for better visibility.
Troubleshooting Hidden Connections
Some installations hide a secondary connector behind the air conditioning controls. If the main harness doesn’t match expected pinouts, remove the HVAC bezel–it’s held by four screws behind the center vents. Behind it, a small 6-pin white plug may be present, which interfaces with the climate control system and shares illumination duties. Verify its purpose with a circuit tester before splicing.
Always secure disconnected plugs to prevent tangling. Use nylon wire ties or painter’s tape to bundle loose wires to nearby harnesses. Before reassembling, confirm all connections by turning the key to “ACC” and testing dashboard illumination and audio output through each channel. If static or no sound occurs, recheck speaker grounds–corrosion on chassis ground points is a common culprit.
Color Codes for Each Cable in the Pickup’s Audio Install
Begin by identifying the aftermarket harness adapter matched to the vehicle’s factory connectors–common models include Metra 70-8111 or Scosche SU03B. The power feed (constant 12V) uses yellow insulation; connect this first to maintain preset memory. Switched 12V (accessory) carries red; splice it to ignition-controlled circuits only to prevent battery drain. Ground (black) must terminate at bare chassis metal, preferably near the original mounting point; avoid daisy-chaining or sharing paths with other devices.
Speaker outputs follow this wire color convention:
- Front left (+): gray stripe
- Front left (-): gray solid
- Front right (+): white stripe
- Front right (-): white solid
- Rear left (+): green stripe
- Rear left (-): green solid
- Rear right (+): purple stripe
- Rear right (-): purple solid
Test polarity with a 9V battery before finalizing connections–reverse phase manifests as weak bass and poor stereo separation. Isolate all speaker wires using electrical tape or heat-shrink tubing to prevent shorts, especially near sharp edges behind the dash. Antenna trigger (blue/white stripe) requires 12V output only when the radio powers on; extend it to power motorized antenna masts or signal amplifiers.
Connector Pinouts for OEM Harness
Factory harnesses split into two plugs. Plug A handles power and controls:
- Pin 1: yellow – battery constant
- Pin 2: red – ignition switched
- Pin 3: black – ground
- Pin 4: blue/white – antenna/amp remote
- Pin 5: orange – illumination fade
- Pin 6: brown – speed-sensor input (used for automatic volume adjustments)
Plug B routes audio signals:
- Pin 7: gray stripe – front left positive
- Pin 8: gray solid – front left negative
- Pin 9: white stripe – front right positive
- Pin 10: white solid – front right negative
- Pin 11: green stripe – rear left positive
- Pin 12: green solid – rear left negative
- Pin 13: purple stripe – rear right positive
- Pin 14: purple solid – rear right negative
Aftermarket adapters mirror these pinouts; verify continuity with a multimeter before soldering or crimping to prevent misrouting that can damage amplifiers or head units.
Steer clear of pink–it often denotes airbag circuits and carries fatal current levels. If retrofitting navigation or satellite tuners, splice into orange (illumination) for dimming synced to dash lights and brown (speed signal) for GPS speed-lock release where required. Secure all splices with solder and marine-grade heat shrink, then bundle harnesses with spiral wrap to suppress radio frequency interference near engine compartments or alternator leads.
Step-by-Step Guide to Removing the Factory Audio Unit Safely
Begin by disconnecting the vehicle’s battery to prevent short circuits. Use a 10mm wrench to loosen the negative terminal–this step eliminates accidental electrical surges while working near the dash components. Wait at least five minutes before proceeding to ensure residual power dissipates from the system’s capacitors.
Locate the trim panels surrounding the head unit. Two vertical bezels on either side of the climate controls must be pried off first. Insert a plastic trim removal tool into the narrow gap at the bottom of the left panel–apply steady upward pressure while sliding the tool along the edge to release hidden clips. Repeat on the right side, then gently pull the upper dash trim away from the mounting tabs beneath the steering column.
Behind the removed panels, you’ll find four 10mm bolts securing the audio chassis–two at the top corners and two recessed near the bottom. Remove these with a socket wrench, tilting the socket at a slight angle to clear the dash structure. Once loose, slide the unit forward carefully; tugging too hard risks damaging the attached harnesses.
Disconnect the wiring harness and antenna cable from the rear of the unit. Press the small release tabs on each connector–some models use a white plastic clip that must be squeezed, while others require sliding a metal latch sideways. Avoid pulling wires directly; wiggle the connectors gently to break suction before separation. For the antenna, rotate the collar counterclockwise to unlock it before pulling straight back.
If the factory bracket remains, detach it by removing the two Phillips screws securing it to the chassis–these are often overlooked but critical to reusing the space for an aftermarket install. Store all bolts, clips, and screws in a labeled container to avoid misplacement during reassembly. Check for hidden grounding straps or secondary harnesses before fully removing the unit from the vehicle.
Never force components apart. If resistance is met, re-examine the area for missed screws, clips, or wiring connections. Forcibly prying can snap brittle plastic or stretch copper leads, leading to electrical malfunctions later. If adhesive residue remains on the mounting surface, clean it with isopropyl alcohol on a microfiber cloth to ensure a secure fit for the new equipment.
