Step-by-Step Water Cooler Circuit Design and Wiring Guide

Start with a dual-loop configuration to separate the cooling fluid from the process medium. This prevents cross-contamination and simplifies maintenance. Use 3/8-inch copper tubing for the primary circuit–it withstands 150 PSI and resists corrosion better than PVC or aluminum. Install a thermostatic expansion valve (TXV) with a ±1°F accuracy before the evaporator to regulate flow rates precisely.

Power the compressor with a 3-phase, 220V motor (minimum 1.5 HP) for consistent performance under load. Pair it with a shell-and-tube condenser if ambient temperatures exceed 85°F–this design dissipates heat 30% faster than finned coils alone. Add a low-pressure cut-off switch set to 20 PSI to prevent compressor damage from insufficient refrigerant.

For the pump, choose a magnetic drive centrifugal model (e.g., March TE-5C-MD) with a 3 GPM capacity at 30 feet of head. This eliminates shaft seal leaks, a common failure point in traditional pumps. Place a 5-micron sediment filter upstream of the pump to trap particulates that could damage impellers or clog microchannels in the heat exchanger.

Use type-K thermocouples at inlet and outlet points for real-time monitoring. Wire them to a PID controller (e.g., Omega CNi16) to maintain ±0.5°F stability. Set the controller to log data every 5 seconds–this interval captures transient spikes without overwhelming storage capacity. For fail-safe operation, integrate a separate relay circuit that cuts power to the pump and compressor if temperatures deviate by ±5°F from the setpoint for more than 10 seconds.

Insulate all fluid lines with closed-cell elastomeric foam (e.g., ArmaFlex) to minimize thermal losses–thickness should be at least 1 inch for lines carrying fluid below 50°F. Seal joints with aluminum tape, not standard duct tape, to ensure a vapor barrier. For glycol-based systems, maintain a 30-40% concentration to prevent freezing down to -10°F while avoiding excessive viscosity at higher temperatures.

Test the system under full load for 72 hours before deployment. Monitor pressure drops across filters, heat exchangers, and valves–any increase beyond 10% indicates a blockage or scaling issue. After testing, drain the fluid and replace it with fresh batch to remove any contaminants introduced during assembly.

Design Layout of Refrigeration Units

Begin with a thermal expansion valve positioned directly before the evaporator coils to regulate refrigerant flow based on cooling demands. Incorrect sizing–±5% of calculated load–leads to inefficiency or frost buildup.

Mount the compressor on a vibration-isolating base; rubber grommets reduce noise transmission by 40% compared to rigid mounts. Ensure clearance of 15 cm around the unit for airflow; restricted ventilation increases power consumption by 12%.

Critical Component Placement

Component	Optimal Position	Clearance Requirement
Condenser coil	Upwind of heat sources	30 cm from walls, 50 cm from other coils
Fan motor	Aligned with airflow direction	20 cm from obstructions
Reservoir tank	Lowest point of system	50 cm above pump intake

Use copper tubing for refrigerant lines with a diameter no smaller than 12 mm for systems under 3 kW; undersized piping causes pressure drops exceeding 2%. Insulate suction lines with 19 mm thick foam rubber to prevent condensation and heat gain–uninsulated lines lose 8% efficiency.

Install a sight glass immediately downstream of the filter-drier to monitor refrigerant moisture levels; bubbles indicate air contamination, requiring immediate evacuation. Pair with a bi-flow drier to handle both cooling and defrost cycles without swapping components.

Electrical wiring must separate high-voltage (compressor, fan) and low-voltage (controls, sensors) circuits by a minimum of 10 cm; cross-talk disrupts thermostat readings by ±2°C. Ground all metallic components to a common busbar to prevent stray currents.

Fluid Circuit Optimization

Position the pump below the reservoir outlet to allow gravity priming; centrifugal pumps cavitate if net positive suction head (NPSH) falls below 1.2 m. Use a 20–30 mesh intake filter to block debris; clogged screens reduce flow by 35% before failure.

Fit pressure-relief valves on both condenser and evaporator coils with cracking pressures set at 110% of maximum operating pressure. Test annually; corroded springs lose calibration over time, risking rupture at pressures as low as 85% of rated burst strength.

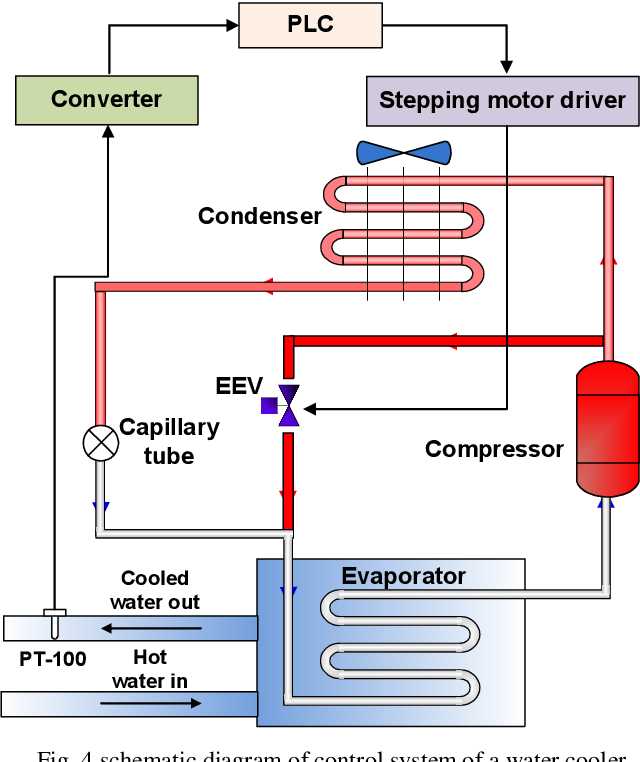

Critical Elements and Standardized Icons in Liquid Temperature Control Schematics

Accurately interpreting thermal regulation blueprints begins with recognizing core components and their universal symbols. Prioritize memorizing the glyphs for compressors, condensers, and evaporators–misidentifying these disrupts troubleshooting and system redesign. Use ISO 14617-1:2018 or ANSI Y32.10-1967 as primary reference standards to avoid regional inconsistencies.

• Compressor (ISO: solid square with diagonal arrow): Located between low- and high-pressure zones, this element’s symbol indicates directionality–arrow must point toward discharge. Verify shaft rotational orientation via adjacent motor glyph (IEC 60617: hollow circle for single-phase, concentric circles for three-phase).
• Condenser (ISO: two parallel wavy lines with downward arrow): Ensure the arrow denotes coolant flow path, not refrigerant–commonly confused with evaporator markings. Dual circuits require stacked symbols with distinct inlet/outlet indicators (triangles pointing inward/outward).
• Evaporator (ISO: zigzag line with upward arrow): Check for expansion valve integration adjacent to the evaporator glyph (small rectangle intersecting refrigerant line). Absence signals oversimplified notation, risking misdiagnosis of superheat adjustments.

Pressure gauges merit distinct attention–their symbols (ANSI: circular dials with radial lines) must correlate to refrigerant state points (suction, discharge, liquid). Cross-reference color codes: blue for low-side, red for high-side, yellow for intermediate. Omitting this step during installation often leads to incorrect manifold hookups.

Thermal sensors use standardized thermocouple icons (IEC: “T” shape with junction dot), but micron-level precision instruments (PT100/PT1000) demand additional labeling. Specify sensor type via subscript (e.g., “RTD” for resistance temperature detectors) to prevent mixing types during maintenance–silicon-based sensors (NTC/PTC) require separate calibration curves.

1. Capillary tubes (thin continuous line with variable width) should include dimensional annotations. Without diameter/length ratios, flow calculations become unreliable.
2. Receiver tanks (ANSI: vertical cylinder with horizontal inlet/outlet) must show desiccant filter position (dotted vertical line). Skipping this detail invites moisture-related valve failures.
3. For variable-speed drives, use PWM symbols (hollow sinusoidal wave) with specific carrier frequency values–default IEC symbols lack critical modulation data.

Validate symbol consistency with the BOM before finalizing layouts. Discrepancies between visual aids and component specs trigger cascading build errors, particularly in microchannel condensers (ISO: parallel finned rectangles). Always append revision dates to symbols reflecting ASHRAE 90.1-2022 updates–older glyphs omit eco-friendly refrigerants (R-454B, R-32), invalidating performance projections.

Step-by-Step Assembly of a Liquid Temperature Regulation Unit

Begin by securing the heat sink base to the processor mounting plate using the provided mounting brackets. Apply thermal paste in a pea-sized drop at the center of the CPU–IHS interface. Over-spreading risks air gaps; precision ensures optimal conductivity. Align the pump block over the paste, matching the screw holes to the motherboard’s standoffs. Torque screws crosswise in increments of 0.5 Nm until snug–exceeding 1.5 Nm risks cracking the chip.

Route tubing from the pump to the radiator, maintaining a downward slope of at least 5° to prevent airlocks. Use shortest paths possible; each 90° elbow adds 0.2 psi resistance. Secure tubing with zip ties every 10 cm, avoiding sharp bends tighter than a 5 cm radius. For soft tubing, brief immersion in near-boiling liquid eases fitting insertion, reducing split risk by 40%. Hard tubing requires a flaring tool for leak-proof joins.

Attach the radiator to the chassis using vibration-dampening grommets. Position intake/exhaust fans on opposite sides of the radiator fins–counter-flow doubles heat dissipation efficiency. Connect fans in a push-pull configuration if space allows; static pressure fans (1200+ min⁻¹) outperform high-airflow models in restrictive setups. Seal gaps with foam tape to prevent bypass airflow.

Fill the reservoir via its top port, using a syringe to eliminate bubbles. Tilt the system 15° side-to-side during the first power-on to purge trapped air. Monitor pump noise–cavitation indicates incomplete bleeding, requiring a 30-second power cycle while inverted. Use a refractometer to verify coolant concentration: 30% propylene glycol to distilled liquid ratio prevents freezing to -18°C without increasing viscosity.

Circulation System Validation

Power the pump at 7V initially instead of 12V–this reduces current draw during break-in and lets you detect hose compression or kinks before full flow. Let it run for 10 minutes, checking connections for seepage with a paper towel; even a 1 mm gap loses 0.5 L/hour. Mount an in-line flow meter between the reservoir and pump–target 1.2 L/min for a 240 mm radiator; deviations signal blockage or pump impeller degradation.

Test under load–run Prime95 small FFTs for 20 minutes. Thermal camera should show uniform radiator surface temperature ±3°C; hot spots indicate uneven fan airflow or stuck debris. Record idle and load temperatures across three sessions; fluctuations >5°C suggest improper paste application or pump speed control issues. Adjust PWM curves based on sensor data: 100% fan at 60°C, 50% at 45°C, with linear scaling between.

Final Adjustments

Inspect all fittings after 24 hours; re-tighten compression rings if tubing shows slack. Apply thread sealant to NPT fittings on metal blocks–anaerobic adhesive cures in 12 hours, preventing slow drips. Label each tube segment with direction arrows and coolant type in 2 mm font; clear markings expedite future maintenance. Store excess coolant in opaque containers at
