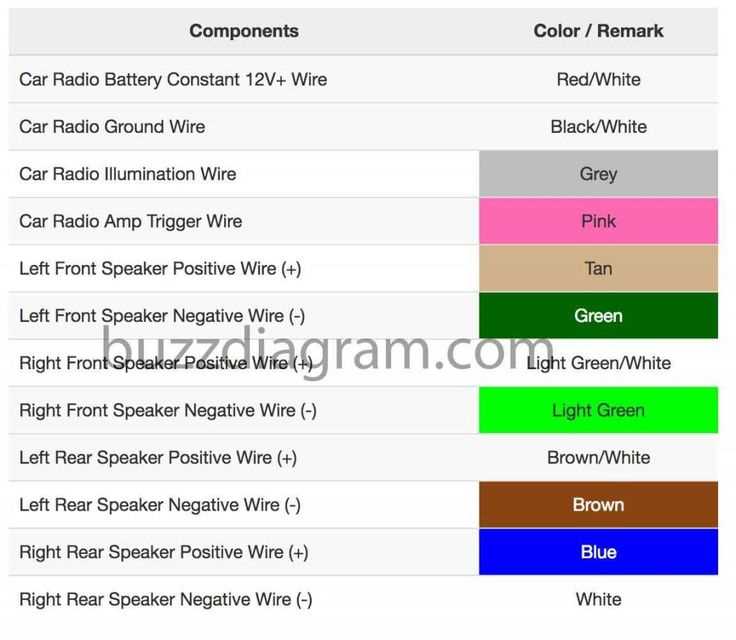

Chevrolet Cobalt 2007 Audio System Wiring Schematic Guide

Locate the fuse box under the dashboard on the driver’s side–remove the cover by pressing the retention clips near the top corners. Check fuse #15 (15A) labeled “AUDIO” with a multimeter on continuity mode; replace if the filament is broken. If power still doesn’t reach the head unit, trace the red wire from the fuse box to the back of the stereo harness–it should measure 12V at the C2 connector pin 4.

Ground issues are common in this model’s setup. The brown wire (pin 5, C2) must be securely fastened to the metal chassis behind the glove compartment; clean the contact point with 120-grit sandpaper before reattaching. If static persists during AM/FM playback, inspect the antenna cable for corrosion where it connects to the mast–apply dielectric grease to the threaded collar before tightening.

For speaker faults, test each wire pair at the amp connector (if equipped) or directly at the head unit pins using a 9V battery–positive lead to the front-left red/white wire (pin 1, C2) should produce a click from the driver’s door tweeter. Rear speakers use the gray/black pair (pins 13-14); if one channel is dead, strip ¼ inch of insulation and check for continuity from the stereo plug to the speaker terminal with an ohmmeter.

Aftermarket stereo installations require splicing the factory harness adapter. Match the yellow wire (constant 12V) to the new unit’s memory lead–secure with a solder joint and heat-shrink tubing to prevent voltage drop. Dimmer control (pin 6, C2, purple) must link to the new radio’s illumination wire; failure causes backlighting to stay at full brightness. For steering wheel controls, use a resistor-based interface module–program it by holding the “Volume +” button for 8 seconds until the LED flashes twice.

Chevy HHR Audio Connector Pinout: Hands-On Troubleshooting

Disconnect the negative battery terminal before touching any harness connections to avoid short circuits or accidental airbag deployment. Use a multimeter set to 20V DC to verify power supply wires; pins 1 (orange) and 2 (yellow) should read 12V with the ignition on. Ground pins (3, 4, and 5) are black–test continuity to chassis for solid grounding.

If the amplifier doesn’t activate, check the 12-pin connector’s purple/white wire (pin 6) for a switched 12V signal from the OnStar module. No voltage here means a blown fuse or faulty relay–trace back to the instrument panel fuse box (location F4, 10A).

Speaker outputs follow a consistent color-code: front left (+) gray, (-) gray/black; front right (+) light blue, (-) light blue/black; rear left (+) tan, (-) tan/black; rear right (+) dark green, (-) dark green/black. Verify each pair with a 1kHz sine wave test–correct polarity ensures balanced stereo.

For aftermarket unit compatibility, the factory harness retains separate power feeds: constant 12V (pink) and ignition-switched (yellow). Tap these directly–splicing into accessory circuits risks voltage drops. Avoid soldering near the climate control module; heat can damage climate actuator motors.

Data communication issues often stem from pin 12 (brown/white), carrying serial data for chimes and steering wheel controls. A broken wire here disables audio alerts–inspect near the BCM connector for frayed insulation. Replace the entire harness if corrosion is visible.

Adapter Harness Shortcuts

Metra 70-2002 adapter connects factory plugs to most single-DIN headunits without cutting. If the vehicle has Bose premium sound, confirm the amplifier’s presence (luggage compartment, left side) before purchasing–aftermarket adapters won’t trigger bypass mode correctly.

For retained factory steering wheel controls, iDatalink Maestro RR retains all OEM functions. Program it using the vehicle’s VIN–generic firmware won’t pair properly. Keep a 12V backup power source (e.g., portable jump starter) during flash updates to prevent bricking the interface.

Grounding Refusal Fix

Intermittent audio loss typically traces back to poor grounding. Remove the center console (single Phillips screw under cubby) to access ground point G301. Scrape paint to bare metal, apply dielectric grease to the ring terminal, and torque the screw to 12 lb-ft. Check adjacent grounding points (G300 and G401) while diagnosing.

Finding the OEM Audio Connector in a 2007 Chevy Compact Sedan

Begin by lowering the driver-side knee bolster panel, secured by two 7mm bolts behind the emergency brake lever. The plastic cover snaps off without tools–press inward near the lower edges to release the clips.

Behind the knee bolster, locate the large black multi-pin plug connected to the climate control module. To its left, you’ll see a smaller rectangular connector with 12–16 color-coded wires entering a white or gray plastic casing–this is the stock stereo harness adapter.

Grip the harness adapter’s locking tab with needle-nose pliers and pull firmly while wiggling side-to-side. The connector separates cleanly, revealing male terminals matching the aftermarket wiring loom.

Trace each wire bundle rearward along the HVAC duct toward the center console. The harness travels beneath the shift boot carpet, held by two 10mm bolts securing the transmission tunnel plate–remove these to gain access.

On LS and LT trims, the ignition-switched 12V lead (thin tan/black stripe) sits adjacent to the constant battery feed (thicker orange). LTE models include an additional purple illumination wire that dims with dash lights–verify function before reconnecting.

If factory amplification is present (identified by an extra 18-gauge gray harness), the signal outputs reside in a separate four-pin connector tucked behind the glove box hinge–remove the door striker to expose it.

Before finalizing connections, probe each terminal with a multimeter set to 20V DC. The left-front speaker (light green/white) should pulse 4–6V when the audio system transmits bass-heavy signals at moderate volume.

Color Codes and Pinout Assignments for GM Compact Sedan Audio Interface

Begin by identifying the 12-pin connector on the back of the head unit–black housing with gray or white locking tab. Pin locations are etched on the plastic; verify numbers before probing to prevent shorts. Standard color codes apply but vary slightly depending on trim level (LS vs. LT).

Use this pinout reference for direct connections:

• Pin 1 (Dark Green) – Ground (chassis reference, unshielded)
• Pin 2 (Light Blue/Black) – Front right speaker (+), 4 ohm impedance
• Pin 3 (Yellow/Black) – Rear left speaker (+), shared ground with Pin 4
• Pin 4 (Tan/Black) – Rear right speaker (+), polarity matches Pin 3
• Pin 5 (Gray) – Front left speaker (+), 2.5A fuse inline
• Pin 6 (Light Green/Black) – Front right speaker (–), twisted pair with Pin 2
• Pin 7 (Pink) – Accessory power (switched +12V), max 10A draw
• Pin 8 (Dark Blue/White) – Vehicle speed sensor input (pulse-width signal)
• Pin 9 (White/Black) – Rear left speaker (–), untwisted
• Pin 10 (Orange/Black) – Illumination control (dimmed +12V)
• Pin 11 (Brown/White) – Mute signal (active low, 0–1V range)
• Pin 12 (Black/White) – Battery power (constant +12V, 15A fused)

For speaker wiring, strip 6mm of insulation; crimp spade terminals rated for 20A minimum. Avoid soldering near the harness–vibration causes cold joints. Twisted pairs (Pins 2/6) reduce noise; maintain twists within 25mm of the connector. If replacing the unit, label each wire before disconnecting to prevent miswiring.

Battery (Pin 12) and accessory (Pin 7) lines require 18AWG wire or thicker; use relay for aftermarket amplifiers. Illumination (Pin 10) voltage drops proportional to dash dimmer; ensure compatibility with LED upgrades. Speed sensor input (Pin 8) pulses at 8,000 pulses/mile–verify signal with oscilloscope if cruise control malfunctions.

Mute functionality (Pin 11) grounds momentarily during calls–check continuity if hands-free fails. Ground offsets >0.1V between chassis and Pin 1 degrade audio; clean mounting points with dielectric grease. Always disconnect Pin 12 before servicing to prevent airbag deployment.

Aftermarket adapters often neglect Pin 11 mute signal; restore this function with a 1N4001 diode (cathode to vehicle-side). For ONSTAR integration, retain the gray 6-pin connector (left of main harness) and match DSP settings to factory levels.

Verify all connections with multimeter before powering on–ohm test speakers (4–8Ω expected) and diode check accessory lines. Keep harness away from exhaust manifolds and sharp edges; secure with zip ties every 10cm.

Step-by-Step Wire Splicing for Aftermarket Audio System Installation

Begin by stripping 6–8 mm of insulation from each wire end using a precision stripper set to 18–20 AWG. Avoid nicking the copper strands–damaged conductors reduce signal integrity and increase resistance. Twist exposed strands tightly in a clockwise direction to prevent fraying before joining. For permanent connections, use rosin-core solder rated for automotive applications; apply heat evenly with a 40-watt iron until solder flows smoothly into the joint, avoiding excess that can create cold solder points. Insulate immediately with adhesive-lined heat shrink tubing (minimum 3:1 shrink ratio) or high-quality vinyl electrical tape wrapped in overlapping layers.

Selecting the Right Tools and Materials

Use crimp connectors only for temporary testing–solder joints outlast them by years. Choose connectors with a tin-plated copper core to resist corrosion; gold-plated terminals are unnecessary for most setups. A multimeter with a continuity beeper verifies splices in seconds; set it to 200 ohms for accurate readings. For high-current circuits (e.g., 12V constant or amplifier power), splice with 14 AWG minimum–thinner wires overheat under load. Never splice dissimilar metals (copper to aluminum); galvanic corrosion will degrade the connection within months.

After soldering, pull-test each joint with firm but controlled pressure–10–12 lbs for 18 AWG, 15–18 lbs for 14 AWG. If the splice fails, redo it; weak connections cause voltage drops, intermittent faults, or even fires. For speaker wires, maintain polarity throughout–crossed wires cancel audio output, reducing volume by up to 50%. Label every wire with numbered flags or color-coded sleeves before cutting to avoid misconnections later. Store unused wire in vacuum-sealed bags with silica gel to prevent oxidation.

For ground connections, scrape paint or undercoating off the chassis until bare metal shows; use a star washer to penetrate surface oxidation. Secure grounds with a 10mm bolt–bolts smaller than 8mm can vibrate loose over time. For turn-on leads, splice directly to the ignition circuit’s accessory wire; tapping into dash lights or HVAC controls can drain the battery. Always fuse new circuits within 15 cm of the battery or power distribution block to prevent short circuits from igniting wires.
