Complete 2007 Dodge Ram 1500 Fuel Pump Wiring Schematic Guide
Check the purple wire (TAN with stripe) at pin C2 of the TIPM (Totally Integrated Power Module) first–this is the primary 12V feed for the sender relay coil. If voltage is absent, trace backward to fuse F58 (20A) in the under-hood box; corrosion at this junction mimics a failed component.
Grounds for the in-tank unit cluster at G401, a single stud near the frame rail under the cab. Remove the fastener and clean mating surfaces with a wire brush–oxidation here triggers intermittent cutoff despite uninterrupted upstream power.
For the return signal path, probe the gray wire (GRY) at pin C1 of the TIPM; voltage should hover 0.5–4.5V with tank level. A flatline reading confirms internal sender failure, not harness damage. Split the harness loom behind the driver’s kick panel to isolate the lead before condemning the module.
Follow the white/orange wire from the bed connector to the powertrain control module–this line carries the sensor’s PWM return. At the PCM, verify connectivity at pin 64 (circuit K20). If continuity checks clean but the gauge stalls, suspect a corrupted PCM calibration; reflash using DRB III before replacing components.
Inspect the two-pin connector at the sender body for water ingress–even half a millimeter of moisture disrupts resistance readings. Seal openings with dielectric grease and replace both terminal seals if pins show pitting. Never rely on resistance values alone; cross-reference fuel volume against resistance (e.g., 40 ohms = ~empty, 240 ohms = ~full) while rocking the tank side-to-side to detect sender float binding.

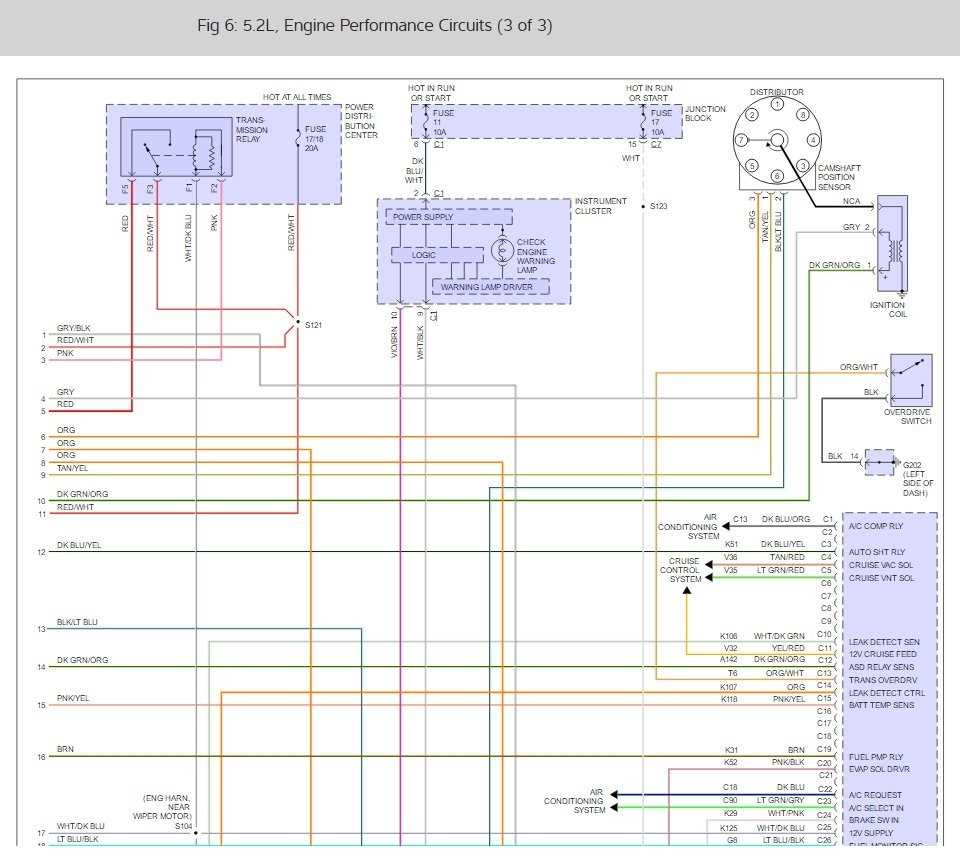

Electrical Layout for the 2007 Chrysler Pickup In-Tank Sender Circuit
Locate the TIPM (Totally Integrated Power Module) under the dashboard on the driver’s side; pin 30 of connector C2 delivers 12 V key-on feed to the sender through a 20 A fuse (slot 19 in the under-hood box).
From the TIPM, the feed travels along a dark green/white tracer wire–verify continuity with a multimeter set to 200 Ω scale; resistance should read below 0.5 Ω end-to-end.
At the tank harness connector, the return path splits into two wires: gray/light blue for level signal (pin B) and black/orange for ground (pin A). The gray/light blue wire must be unbroken from the float arm to PCM input #58 (pin 72 on connector C1), or the gauge will stick at “E”.
Remove the spare tire well cover to reach the sender plug; depress the tab and pull straight–no twisting–to avoid damaging the lock tangs. Use dielectric grease on each pin before reconnecting to prevent corrosion on the off-road susceptible pigtail.
If voltage drops below 11.5 V at the sender plug during cranking, upgrade the power feed with an auxiliary relay coil triggered by the starter solenoid ‘S’ terminal and fused at 30 A, bypassing the factory 20 A fuse box.
Inspect the in-line 10 A fuse near the frame rail for any green oxide buildup; replace with a ceramic fuse rated for 20 % higher than expected load if operating in high-dust environments.
Label each wire with colored tape matching the factory code before disconnecting, and cross-reference against the 04–08 service manual supplement–section 8E, page 53–for pinout color deviations in early builds.
Finding the Power Delivery Control Module and Protection Components in Your Pickup
Start by opening the integrated power module cover under the dashboard on the driver’s side. Remove the two 8 mm bolts securing the plastic lid–do not force the clips; pry gently with a trim tool along the edges. Inside, scan the upper left quadrant of the module for a rectangular relay marked TIPM-78. Verify the label against part number 05074053AA; variations indicate a different vehicle configuration.
- Relay slot TIPM-78 operates at 20A continuous load.
- Neighboring slots TIPM-36 and TIPM-42 share identical pinouts–cross-reference positioning before swapping.
- Replace only with direct OEM equivalents–aftermarket relays lack internal diode protection.
Inspect the fuse block directly beneath the relay array. Locate the mini-blade fuse identified as J16–the third bay from the right in the second row. Pull the fuse using needle-nose pliers; resistance should read 0 ohms–any measurable value confirms internal failure. Keep a multimeter set to continuity mode for quick validation.
Check adjacent fuses J14 and J17 for collateral damage–these protect shared circuits governing injection control and evaporative emissions. Burn marks on the ceramic element indicate transient voltage spikes–replace the cluster if corrosion is visible on connector pins. Avoid touching adjacent terminals when reinstalling–static discharge can corrupt TIPM calibration.
- Disconnect battery negative terminal before handling relay or fuse blocks.
- Clean oxidation from relay sockets using electrical contact cleaner–never sandpaper.
- Reinstall relay with notch aligned to molded guide–incorrect orientation blows internal circuitry instantly.
Trace wiring from relay to in-tank sending unit using a wiring harness map. Probe the dark green/white tracer wire at connector C2-56 under the rear seat–voltage should toggle between 12.4V and 0V during prime cycles. Stabilize readings with a scan tool monitoring PIDs for ECM commands–transient drops confirm temporary relay chatter causing stalling.
Locating the In-Tank Module Circuit Path to the Powertrain Control Unit
Identify the sender assembly’s primary connector beneath the vehicle’s rear quarter panel, adjacent to the fuel filler tube. Pinpoint terminals G (tan/light blue) and H (gray/red)–these carry low-current sensing voltage and critical return signal from the level sensor. Follow the bundled harness upward along the frame rail, securing retaining clips every 18-22 inches to prevent chafing against the exhaust shield. Split occurs at the rear crossmember where the main harness diverges; the smaller leg (black 8-pin connector) routes forward under the driver-side door sill, merging into the under-hood loom near the brake master cylinder.
| Connection Point | Wire Color Code | Function | Voltage (Key ON) | Fault Behavior |
|---|---|---|---|---|
| Frame Rail Junction | Tan/Lt Blue | Sensor Supply | 5.0V ±0.2V | P0463 (Fuel Level Circuit High) |
| Driver-Side Door Sill | Gray/Red | Return Signal | 0.5V–4.5V (varies with level) | False “Empty” reading |
| PCM Connector C2 (Pin 30) | Violet/Dk Blue | Fuel Pump Relay Trigger | 12.0V–14.2V | No-start, crank-no-run |
Trace the violet/dark blue lead from the relay slot in the under-hood fuse block through the firewall grommet into the PCM harness. Probe PCM connector C2, pin 30–voltmeter should read battery voltage during cranking. Absence indicates open circuit; verify continuity with a 10 A fused jumper between pin 30 and chassis ground to confirm relay activation via PCM command.
Decoding Electrical Pathways in the Injection System Relay Network
Start tracing the primary energizing conduit–typically a bold violet stripe paired with a thinner white tracer–leading from the ignition-controlled relay output to the sender unit. This 14-gauge line carries switched voltage (12V nominal) directly to the sending module’s positive terminal, avoiding intermediary splices that could introduce resistance. Verify continuity with a multimeter set to 200Ω; readings above 2Ω indicate corrosion or fraying.
Locate the ground return path–usually a solid black or black-with-yellow-tracer wire–connected to the sender chassis mount or the engine block. This grounding point must exhibit zero resistance to the vehicle’s common ground plane. Use a dedicated star-washer bolt; paint or rust layers create parasitic resistance, causing intermittent sender dropouts.
- Dark green with orange stripe: PCM-switched trigger signal activating the relay coil. Measures 5V when cranking.
- Light blue with red stripe: constant battery voltage feed (12V+ B+) to relay contacts, fused at 20A.
- Brown with white stripe: inertia switch safety override, normally closed.
Inspect the inertia switch harness connector–three pins, two of which (gray with black stripe and tan) carry low-current sensor feedback to the powertrain control module. Disconnect the battery before probing; stray voltages corrupt adaptive fuel trim tables.
Check relay socket cavities for heat distortion. Cavity #87 receives the violet-white line from the ignition switch, cavity #30 feeds the blue-red constant power. Cavity #85 connects to the PCM ground reference, cavity #86 receives the green-orange relay trigger. Corroded terminals here mimic sender failures–clean with CRC QD contact cleaner, then apply dielectric grease.
- Backprobe relay pin #87 with ignition ON–should read 12V.
- Crank engine; pin #85 should drop to 0.5V or below if PCM trigger is functional.
- Pin #30 must maintain battery voltage during cranking cycles.
Sender unit float resistance varies linearly from 230Ω at empty to 45Ω at full. Deviations indicate internal contact wear or incorrect sender part number–compare against vehicle-specific resistor calibration charts. Replace only with OEM-matched component to prevent fuel gauge inaccuracies.
The harness segment crossing the rear axle shield requires abrasion-resistant loom–use nylon spiral wrap secured with tiewraps every 6 inches. Replace any twisted or nicked conductors immediately; chafing here presents as false sender faults after highway miles.
How to Verify Electrical Supply for Auxiliary Fuel Delivery Components
Disconnect the relay controlling the high-pressure circuit before testing. Locate the relay box under the dashboard near the driver’s side; remove the cover and identify the corresponding slot using the label printed inside. Pull the relay straight out to prevent damaging the socket contacts.
Set a multimeter to DC voltage mode, 20V range. Probe the relay socket terminals: pin 87 should show battery voltage (12.6V+ from ignition) when the key is in the RUN position. Pin 85 must register the same voltage if the PCM trigger circuit is intact. If either reading is below 11V, inspect the fuse panel and upstream wiring for corrosion or breaks.
Check ground continuity at the power module housing. Attach one multimeter lead to a clean chassis ground, the other to the module’s mounting bolt. Resistance should be under 0.5 ohms; higher readings indicate poor contact or oxidized threads. Clean the bolt, flange, and chassis surfaces with a wire brush, then apply dielectric grease before reassembling.
Reinstall the relay and activate the key. Listen for a 2-second priming pulse from the assembly–no sound suggests a relay, PCM, or harness fault. Probe the wiring harness connector at the assembly while cycling the key; both power and ground pins should toggle between 0V (off) and 12V (on). Absent voltage on the power pin confirms an open circuit; missing ground requires tracing the return path to the chassis.
For deeper diagnostics, backprobe the OEM connector pins. Insert fine-gauge test needles between the terminal and connector housing, ensuring no contact with adjacent pins. Measure voltage drop across the assembly while cranking: any drop exceeding 0.2V indicates excessive resistance in the supply line or internal brushes.
Test fuse integrity by removing and visually inspecting each fuse linked to the delivery system. Replace any blown fuse with the exact amperage rating; common ratings are 15A (control circuit) and 20A (high-current feed). Use an ohmmeter to confirm continuity before reinstallation.
If voltage and ground readings are correct but performance remains erratic, evaluate the connector pins for heat damage or deformation. Disconnect the harness, flatten bent pins with needle-nose pliers, and apply contact cleaner. Reconnect firmly and cycle the key several times to seat the terminals.
Final validation involves running the engine while monitoring voltage at the assembly connector. Fluctuations beyond 0.5V during idle or load conditions point to inadequate cable gauge, loose connections, or failing alternator. Address each variable methodically–replace undersized wiring with 10 AWG minimum, tighten all terminals to 10 in-lbs, and verify alternator output exceeds 13.8V at 2,000 RPM.
