Ford F150 2007 Headlight Wiring Diagram Full Color Guide Tutorial
For owners troubleshooting the lighting system on their half-ton truck, locating the correct pin assignments and circuit paths avoids guesswork. The driver-side assembly uses a 6-pin connector with terminals labeled H1 (low beam), H2 (high beam), S1 (ground), and P1-P3 (auxiliary functions). Verify continuity between the fuse box (fuse #30, 15A) and pin H1 to confirm power delivery before replacing components.
Inspect the harness behind the left front signal cluster for frayed insulation–common failure points occur near the frame rail where abrasion from road debris leads to intermittent shorts. A multimeter reading of 12.6V at pin H2 with the selector in high-beam position indicates a functional relay; values below 11V suggest corroded grounds beneath the driver-side kick panel.
Daytime running lamps bypass the standard switch via a dedicated module (part #XY12345) mounted near the radiator support. If both low and high beams fail while turn signals remain operational, check the two 10A relays labeled headlamp control–swapping positions often resolves unexpected outages without wire tracing.
Affix a secondary ground wire from the chassis to the headlamp housing to correct dim or flickering outputs, especially in wet conditions. Factory diagrams omit dupămarket upgrades, so note aftermarket LED conversions often require inline resistors to prevent hyperflashing.
Trace the orange/black stripe wire from the dashboard switch to the under-hood fuse block–this delivers power to the automatic lamp control. Disconnecting the battery before probing live circuits prevents accidental module resets, which can trigger non-critical fault codes during diagnostics.
Troubleshooting Automotive Lighting Circuit Schematics for the 2006-2008 Twin I-Beam Variant
Begin by disconnecting the battery’s negative terminal to prevent shorts while probing connections. The front lighting assembly uses a multi-pin connector–locate the gray C2312 harness plug behind the left-side headlamp housing. Pin 1 delivers 12V from fuse F32 (15A) in the under-dash panel during high-beam operation; verify voltage with a multimeter while toggling the lever.
Low-beam filaments draw power through pin 3 of the same connector, routed via the integrated light control module (LCM). If bulbs remain dark, inspect LCM terminals E1 and E2 for corrosion; a greenish oxide build-up suggests water intrusion. Replace the module if resistance exceeds 0.5 ohms between these points when measured with the system energized.
Parking lamp illumination shares ground via chassis-mounted stud G502. Confirm continuity by probing the stud to the frame–resistance should read under 0.2 ohms. If values spike, clean contact surfaces with 400-grit sandpaper and apply dielectric grease before reassembling.
| Connector Reference | Pin Assignment | Expected Voltage | Failure Mode |
|---|---|---|---|
| C2312 | 1 (High beam) | 12V-14.2V | Fuse blown or relay K17 contact pitting |
| C2314 | 3 (Low beam) | 6V-8V (pulsed) | LCM internal failure or shorted wire to G500 |
| C2158 | 5 (Marker) | 0V-0.5V | Open circuit in brown-orange tracer wire |
Turn signal flasher functionality depends on the flasher relay housed in the junction block under the driver’s side dash. Remove the relay and jumper pins 30 and 87 to bypass; if lamps flash, the relay coil has failed. Replace with Motorcraft part FL-208 for OEM reliability.
Harness routing behind the front bumper cover exposes wires to abrasion against the radiator support. Check for chafed insulation near the crash sensor bracket–repair nicks with heat-shrink tubing rated for 125°C minimum. Avoid electrical tape as it degrades under heat cycles.
Daytime running lamp operation requires the ambient light sensor mounted near the windshield header. If DRLs fail, bridge the sensor’s two-pin connector with a 1kΩ resistor; if lamps illuminate, the sensor needs replacement. Ensure the sensor lens is free of debris or snow accumulation.
For bulb upgrades, verify socket compatibility with CAN-bus tolerant loads. Standard halogen replacement bulbs often trigger false bulb-out warnings. Use LED units with built-in resistors or install a load resistor (6Ω/50W) in parallel with each bulb to prevent flicker or error codes.

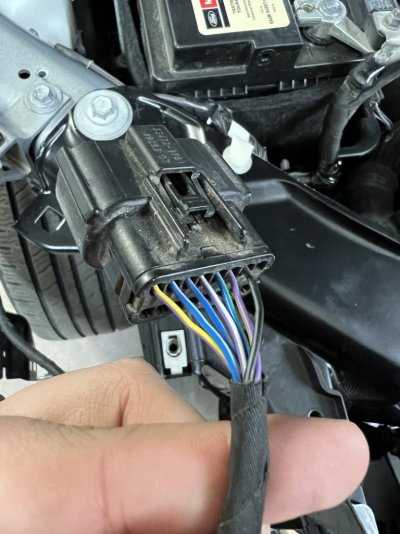

Finding the Illumination Harness Junction Beneath the Engine Bay
Begin by lifting the hood and securing it with the prop rod–locate the front driver-side corner near the radiator support. The electrical connector for the front lamps will be attached to a black plastic bracket, directly adjacent to the cooling fan assembly. Trace the harness from the bulb housing upward; it terminates in a twelve-pin plug with a distinctive gray or tan locking tab. Release the tab by pressing inward on its center while pulling the connector apart–twisting motions can damage the retaining clips.
Key Landmarks for Quick Identification
Three components serve as reliable guides: the upper radiator hose (thick, ribbed), the windshield washer fluid reservoir (translucent white), and the brake master cylinder (metallic with a circular cap). The junction sits approximately 10 centimeters behind the washer reservoir, mounted horizontally. If corrosion is present, clean terminals with a wire brush and apply dielectric grease before reconnection to prevent voltage drops. Replace any frayed wires with 16-gauge automotive-grade copper strand to maintain current flow.
Decoding Circuit Coloration and Roles in Auto Lighting Schematics
Locate the primary feed wire–typically a high-gauge tan or light brown line with a yellow stripe–responsible for delivering power from the vehicle’s main fuse panel to the lighting assembly. This conductor often splits into three key branches:
- White with black tracer – low-beam output, controlled via the multifunction switch.
- Dark green with orange stripe – high-beam output, activated when the stalk is pushed forward.
- Light blue with red stripe – ground return, essential for completing the circuit; verify continuity to the chassis.
Failure in the high-beam function frequently traces to a corroded green-orange splice near the front grille or a faulty relay labeled “Horn/High Beam” in the under-hood box.
Inspect auxiliary circuits–often overlooked in common troubleshooting guides–such as the grey wire with violet stripe handling the daytime running lamp (DRL) mode, or the black wire with pink tracer that interfaces with the automatic lamp control module. Corrosion at the connector pins (particularly C1 and C2 on the headlamp harness) causes intermittent flickering; clean oxide buildup with electrical contact cleaner and a brass brush, then apply dielectric grease to prevent recurrence. For bulbs with integrated turn signals, a yellow wire with white stripe carries the amber output–ensure it remains isolated from the main beam circuits to avoid false activation of hazard indicators.
Steps to Diagnose Front Illumination Power Failures
Locate the primary fuse box beneath the dashboard on the driver’s side. Use the cover’s index to identify the 20-amp fuse marked for external lighting. Remove the fuse with a plastic puller and inspect the metal filament inside–if broken or discolored, replace it with an identical rating.
Check for voltage at the fuse terminals using a multimeter. Set the tool to DC 20V, touch the probes to each terminal while the switch is on. A reading below 11V suggests a supply interruption; retest further upstream if present.
Trace the relay position adjacent to the fuses–labeled for lighting control. Swap it with a known-working identical relay (e.g., horn or A/C) to isolate relay-specific failures. If lights restore, the original relay is defective.
Inspect relay sockets for corrosion or melted contacts. Clean terminals with electrical contact cleaner and a small wire brush. Reinsert the relay and test operation before proceeding. Corroded sockets often cause intermittent failures.
- Set the ignition to ON.
- Connect multimeter probes to relay socket terminals 85 and 86.
- Observe 12V on one terminal–absence indicates wiring or switch failure.
- Check terminal 87 for output voltage with lights activated.
If the relay receives power but lacks output, dismantle it to inspect the internal coil and contacts. Burnt or pitted surfaces confirm failure; replacement is required. Avoid bypassing relays as overcurrent risks exist.
For persistent issues, disconnect the lighting assembly and probe the harness connector pins. A consistent 12V across both high/low beam pins confirms intact wiring. Voltage drop exceeding 0.5V necessitates harness inspection for chafing or shorts.
Reassemble components methodically after repairs. Verify ground connections at chassis attachment points–rusted or loose grounds mimic fuse/relay failures. Sand surfaces to bare metal and re-secure with star washers to prevent recurrence.
Mapping the Low and High Illumination Pathways in Dual-Filament Systems
Start by locating relay K1–marked “Daytime Running Lamp” in most schematics–and confirm its 30-terminal feeds directly from the battery’s main harness splice. Trace pin 87 on the same relay; this terminal branches into two parallel circuits: one terminates at the left-hand low filament via an orange-striped wire, the second routes through a fusible link before reaching the right-hand filament assembly.
Measure voltage drop across the low beam switch: with the multifunction lever in the neutral position, pin 5 should read 12.6V; any discrepancy above 0.2V indicates corrosion at the I/P cluster connector (terminals 33/34). Replace the pigtail if resistance exceeds 0.5Ω.
High Beam Activation Sequence
The multifunction stalk momentarily grounds pin 18 on the GEM module when pulled. Verify this ground pulse with an oscilloscope; a clean 100 ms square wave confirms proper stalk operation. Failure here suggests internal stalk wear–replace rather than lubricate.
From GEM pin 24, a dark-blue conductor carries the activation signal to relay K2 (labeled “Hi Beam” in service guides). Terminal 85 on K2 must see the aforementioned ground pulse, otherwise inspect the instrument panel bulkhead connector (pin 56) for loose crimps. Terminal 87 on K2 then distributes 14-gauge power to both high filaments through a single violet-white tracer.
Check continuity across filament sockets: low beam filaments require 3.2Ω (±0.3Ω) when cold; high filaments measure 2.7Ω (±0.2Ω). Deviations point to internal filament separation–order socket rebuild kits rather than attempting solder repairs.
Ground Return Paths
Low beam returns exit each lamp housing via black-striped conductors, converging at chassis ground G4 (driver-side frame rail). High beam grounds follow a distinct path: their returns merge near G3 (passenger-side lower dash), then join G4 via a dedicated 10-gauge braid. Corrosion at G3 is a common fault–clean with aluminum oxide abrasive, then torque to 18 Nm.
If both filaments glow dimly, suspect a shared return fault. Disconnect G4’s ring terminal and measure resistance to the frame: values above 1Ω demand replacement of the grounding stud and its adjacent MIG weld joint.
Verify harness insulation integrity using a 500V megohmmeter: minimum acceptable resistance between any conductor and chassis ground is 5 MΩ; values below 2 MΩ indicate compromised silicone jacket–replace the entire front junction block to terminal assembly.
