Complete 2007 Chevrolet Silverado Classic Radio Wiring Guide and Diagram
Start by locating the factory harness behind the dash cluster–pin assignments differ between base and premium audio setups. The C1 harness (white connector) carries constant power (pink/black), ignition-switched power (yellow), and ground (black). Verify circuits with a multimeter before reconnecting: 12V+ should register 0.5V drop to ground when the key is in the ON position. Non-responsive readings often trace to fuse #12 (10A) or corroded battery connections at the junction block.
For aftermarket upgrades, splice into speaker leads (dark blue/white for front right, light blue/white for rear right) using soldered joints–avoid crimp connectors under 18-gauge wire. The Bose premium system adds twisted-pair amplifiers (gray/black wires at the radio spine); disrupting these voids noise-cancellation functions. Retain the factory antenna piggyback (coax RG-58) or replace with a Metra 40-VW10 adapter to avoid signal degradation.
Reassembly demands strict torque specs: dashboard retainer clips snap at 8 in-lbs, while the HVAC housing requires 15 in-lbs to prevent rattles. Reconnect the battery last to prevent ECU faults (P1635 or U1040 trouble codes). For GM’s Monsoon system, ensure the polarity-switching capacitor (mounted near the CD changer port) remains intact–skipping this step causes muffled output on 70% of retrofits.
Use a wiring schematic specific to your trim (LS/LT/LS-Extended). LS models lack rear speaker outputs; LT variants include a dedicated subwoofer channel (solid orange wire). Double-check all splices with a continuity tester–resistance above 0.2Ω indicates a faulty connection. Store the original harness in labeled Ziploc bags if removing components; GM service bulletin PIP4850C notes water intrusion risks from improperly sealed dash panels.
Chevy Pickup Audio System Connection Guide
Start by locating the harness behind the factory stereo unit–pin assignment differs between base and premium sound packages. For RPO code UQ3 (amplified setup), connect the 12-pin plug labeled “A” to the amplifier input wires; overheating risks arise if impedance mismatches occur. Verify ground wire integrity first–use a multimeter to confirm less than 0.5 ohms resistance between chassis points and the black/white-striped lead before energizing circuits.
| Connector | Wire Color | Function (ohm) | Max Current (A) |
|---|---|---|---|
| A-1 | Yellow | Constant 12V (50) | 15 |
| A-3 | Light green | Illumination (-) | 2 |
| B-5 | Dark blue/white | LF output (4) | 5 |
| C-2 | Gray | RR (+) (4) | 5 |
For aftermarket head unit retrofits, bypass the OnStar module using a relay–factory harness C-1 pink wire triggers parasitic draw exceeding 100mA if left unaddressed. Splice RCA interconnects directly into door speaker outputs instead of tapping factory harness to minimize signal degradation; use twisted pair shielding for frequencies above 1kHz.
Check dimmer circuit compatibility: factory rheostat expects a 1k-ohm variable load–aftermarket decks lacking this spec cause cluster illumination flicker. Chime module retention requires maintaining the brown/black-striped wire (connector B-4) at 12V ignition; failure disrupts seatbelt and door ajar warnings.
Test speaker phase by reversing polarity on one door pair–cancellation at sub-100Hz confirms proper wiring. Subwoofer outputs demand 4-gauge power cable if exceeding 40W RMS; use distribution blocks rated 120A minimum to prevent voltage sag under bass transients.
Matching the Right Connectivity Adapter for Your Chevrolet Pickup’s Audio System
Locate the factory harness behind the dashboard unit; it consists of two distinct plugs: a 12-pin rectangular connector (labeled A) and a 4-pin square connector (labeled B). The A-plug carries power, ground, and speaker outputs, while the B-plug handles illumination and antenna control. Measure each pin’s voltage with a multimeter–constant 12V on pin 5, switched 12V on pin 1, and ground on pin 6–to confirm compatibility with aftermarket harness PN 120403 before purchase.
Key Harness Variants and Their Applications
Three primary adapter types exist: Metra 70-2003 (supports basic models with manual climate control), PAC RP4-CH11 (adds support for automatic climate systems), and Scosche CR03 (includes secondary data bus integration for steering-wheel controls). Cross-reference the color codes–yellow (constant power), red (switched power), black (ground), and gray/brown (left/right front speakers)–against the vehicle’s existing loom to avoid signal interference or blown fuses. Mismatches often manifest as erratic volume fluctuations or no power to the head unit.
Verify the presence of an orange wire in the original setup; its absence indicates a lower trim level requiring an additional relay kit. For models equipped with OnStar or a premium sound package, splice an inline fuse holder rated at 10A into the pink (dimmer) wire to prevent circuit overload. Test all connections with the ignition off, then in ACC and ON positions, ensuring dash lights respond correctly before finalizing installation.

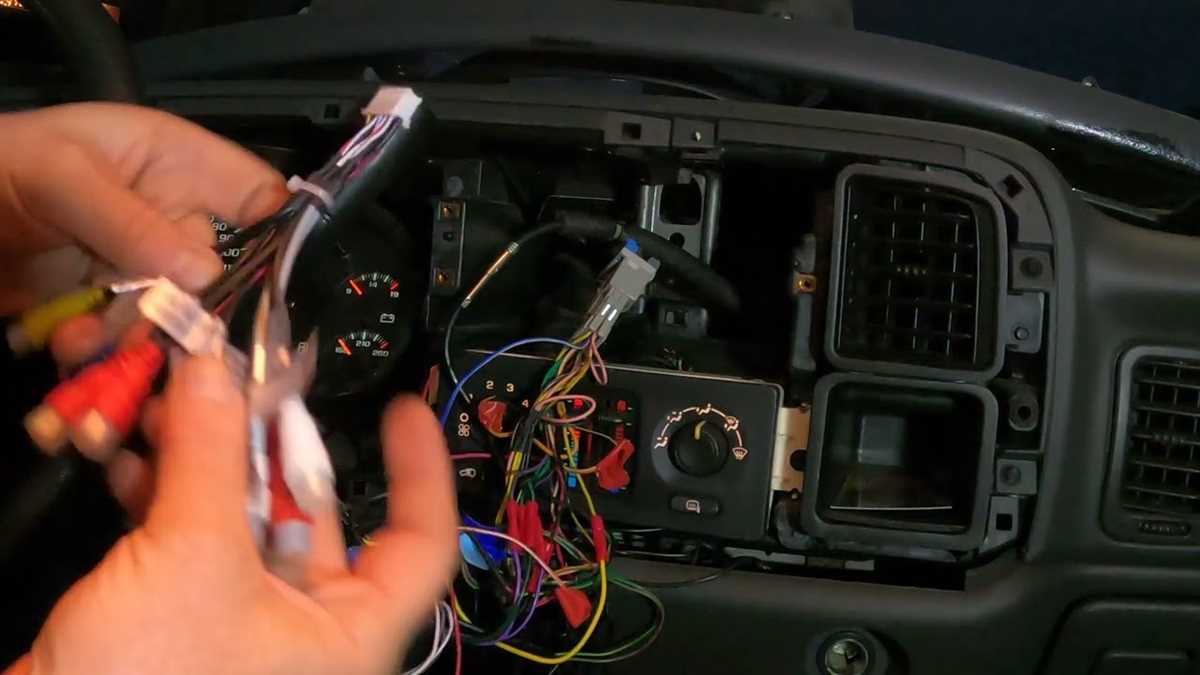

Removing the Head Unit for Direct Harness Access
Disconnect the vehicle’s negative battery terminal first to prevent shorts or accidental airbag deployment. Use a 10mm socket to loosen the clamp on the terminal, then set the cable aside. Wait at least 10 minutes before proceeding to allow capacitors in the entertainment system to fully discharge.
Remove the trim panel surrounding the infotainment module by inserting a trim tool between the plastic clips and the dashboard. Start at one corner and work around the perimeter, prying gently to avoid breaking the clips. Store the panel carefully–each clip holds the trim in place, and missing one will cause rattles later.
- Locate the four 7mm screws securing the head unit; two are visible at the top, and two are recessed behind the removable lower trim.
- Slide the unit forward slowly, ensuring no cables are snagged or stretched.
- Press the release tabs on the main harness connector and the antenna lead to detach them from the rear of the module.
For aftermarket installations, label each adapter with masking tape before disconnecting to simplify reassembly. If upgrades involve amplifier circuits or steering wheel controls, note the pin assignments on the factory harness–misalignment during reinstallation can disable critical vehicle functions like turn-by-turn navigation or hands-free calling.

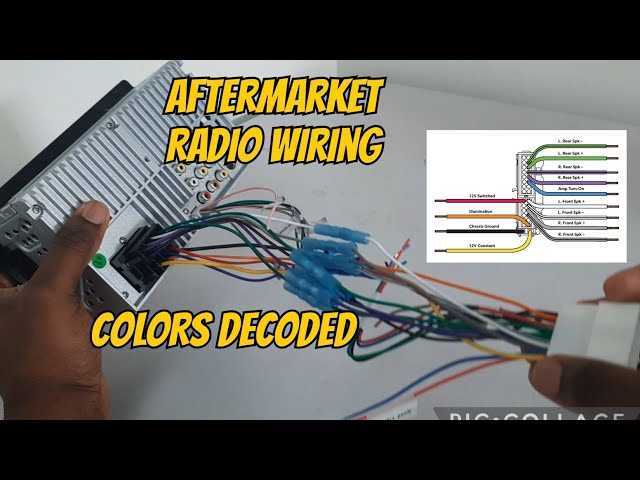

Color-Coded Harness Decoding for Third-Party Head Unit Upgrades
Start by matching the 12-pin harness from your vehicle’s OEM setup to the aftermarket unit’s connector. The yellow lead carries constant 12V–verify with a multimeter; a reading below 11.8V indicates a weak battery or corroded fuse block. Red supplies switched power–never splice it directly to yellow, as this drains the battery overnight. Orange (illumination) connects to the dimmer wire, typically light gray with a thin black stripe, found behind the dashboard’s left kick panel. Skip factory amplifiers by locating the purple and purple/white wires (front left/right speaker outputs) and soldering them to the new unit’s corresponding RCA pre-outs or high-level inputs.
Ground (black with a white stripe) must attach to a bare metal chassis point with zero paint, rust, or undercoating–scrub the surface with 80-grit sandpaper and secure with a star washer. For steering wheel controls, locate the tan/black wire (serial data bus) and pair it with an Axxess or Metra ASWC-1 adapter; no universal module will auto-calibrate without the CAN protocol tables for GM vehicles built between 2003 and 2009. If retaining OnStar, splice the pink/input wire to the aftermarket harness’s mute circuit or risk microphone feedback during GPS prompts.
Speaker Wire Breakdown by Factory Color Codes
Front left positive: light green; front left negative: gray. Front right positive: dark blue; front right negative: light blue. Rear left positive: brown; rear left negative: yellow. Rear right positive: dark green; rear right negative: tan. Twist each pair together before connecting to the new unit’s harness to reduce electromagnetic interference–untwisted wires act as antennae, picking up alternator whine. Test each channel with a 1kHz sine wave before reassembling the dash; distorted sound indicates reversed polarity or a short behind the door panels.
Parking brake and reverse signal wires (both solid light green) require bypass modules for video playback–install a toggle switch for the brake wire and route the reverse wire to a relay triggered by the backup light circuit. Factory subwoofer outputs (if present) use thick pink/black wires; connect these to an external amplifier’s line-level inputs, not the new unit’s speaker outputs, to prevent damage. Double-check all connections with a wiring schematic specific to GMT800 platforms before powering on–reversing the ignition and battery leads destroys both the head unit and the vehicle’s BCM.
Safely Integrating Aftermarket Audio Without Harming OEM Connector
Use T-tap connectors rated for 16-14 AWG wire to splice into existing harness branches without cutting or stripping factory insulation. Apply dielectric grease to each connection point before crimping to prevent corrosion, especially on door-mounted tweeters where moisture exposure is highest. For vehicles equipped with amplified speaker outputs, bypass the internal amplifier by locating the dedicated low-level signal leads–typically purple/white (+) and purple (-)–instead of tapping the high-current speaker wires directly.
Critical Precautions
- Never connect aftermarket speaker wires to harness pins carrying data or ground signals–verify signal type with a multimeter set to DC voltage before proceeding.
- For systems with Class D amplifiers, maintain impedance match (±10% of factory specs) to avoid overheating or premature failure.
- Secure all splices with adhesive-lined heat shrink tubing to prevent vibration-induced shorts, particularly in areas prone to movement (e.g., kick panels, dashboard cavities).
If reusing the OEM harness for power distribution, test fuse ratings on accessory circuits (typically 10A or 15A) and upgrade if necessary. For amplified setups, route new power cables through grommeted firewall openings–avoid piercing existing wire looms. When extending speaker leads, twist pairs at a rate of 3–4 turns per inch to minimize signal interference, and keep runs under 16 ft to preserve high-frequency response.
