Complete 2007 Subaru Forester Electrical System Wiring Diagram Guide

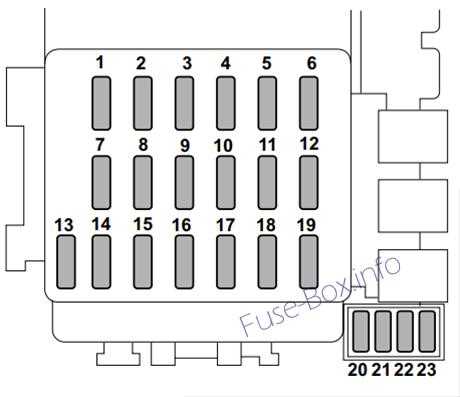

Start by locating the main fuse box under the dashboard on the driver’s side. This unit houses critical relays and circuit breakers–faulty connections here often mimic transmission issues or sensor failures. Label each wire with masking tape before disconnecting anything, noting origin and terminal type (e.g., spade, bullet). Ground points beneath the dashboard (typically black wires) should test at

Trace the instrument cluster harness next–this 16-pin connector (black or gray housing) carries signals from the ECU, speed sensor, and fuel level sender. Pinouts vary slightly between manual and automatic variants; consult pin 15 for illumination voltage (expected 12–14V when headlights are on). Back-probing with a multimeter avoids damaging delicate terminals–insert the probe between the wire and connector housing for accurate readings.

Check the rear defogger grid separately. Each horizontal strip connects to a vertical feed wire; breaks appear as cold lines across the glass. Repair kits include conductive epoxy; apply thin coats and cure with a heat gun for 10 minutes at 150°F. Ignition coils share wiring with the MAF sensor–swap coils A and B to diagnose misfires before assuming control module failure.

Alternator output should stabilize at 13.8–14.4V at 2,000 RPM; fluctuations suggest voltage regulator issues or a loose drive belt. Replace belt tensioners if deflection exceeds 1/2 inch–aftermarket units last 30% longer than OEM parts. Finally, test trailer wiring connectors: yellow (left turn/brake), green (right), brown (running lights), and white (ground) require 10-gauge wire for aftermarket accessories to prevent voltage drop.

Electrical Schematic Guide for the 2006 Turbocharged Crossover: Key Connections

Begin troubleshooting by locating the fusible link box under the driver-side dash panel–label B24 on official schematics. This junction distributes power to the ECM, ignition coils, and fuel pump relay. Use a multimeter set to 20V DC to verify voltage between terminal 1 (red/black wire) and chassis ground; readings below 11.8V indicate corrosion at connector C135 or a failed alternator diode trio.

Critical pin assignments for the automated transmission control module (TCM) appear on sheet 8 of factory schematics. Pins 10 (blue/white) and 11 (blue/red) carry CAN-H and CAN-L signals; miscommunication here triggers “AT TEMP” warnings falsely. Back-probe these terminals while cycling the key–waveforms should mirror each other within 1.5V peak-to-peak. Replace the TCM only after confirming signal integrity with an oscilloscope.

HVAC Blower Motor Resistance Values

Measure resistor pack resistance across the white connector behind the glovebox. Expected values: low speed–3.2Ω, medium-low–2.1Ω, medium-high–1.4Ω, high speed–direct feed (0Ω). Deviations over 0.3Ω suggest internal shorting; bypass testing with a 12V test lead confirms failure before component replacement.

Headlight harness pinch points occur along the driver-side fender liner near the ABS module. Probe the brown/red wire (high beam) and brown/black wire (low beam) at connector F62; voltage should toggle 0-12V when switching modes. Absence of signal demands inspection of the multifunction switch–disassemble and clean contacts with DeoxIT D5, re-lubricate with dielectric grease before reassembly.

Oxygen Sensor Heater Circuit Verification

Pre-cat sensor heaters draw 1.8A per bank; post-cat heaters 0.9A. Use an inductive amp clamp to measure current at the orange/black (Bank 1) and orange/white (Bank 2) wires entering connector E9. If readings drop below 0.7A on Bank 1 or 0.4A on Bank 2, replace the sensor–resistance checks above 15Ω at operating temperature also indicate failure.

Finding Electrical Schematics in Official Repair Guides for the 2007 Model

Begin by acquiring the manufacturer’s service documentation, typically sold as a multi-volume set. The electrical sections are usually grouped in a dedicated volume for system diagnostics, often labeled as “Electrical Systems” or “Wiring and Harness.” Look for the table of contents–this model’s schematics span pages 15-47 in the dedicated volume, though exact numbering varies by edition.

Locate the vehicle’s main fuse box and ground distribution charts first. These appear as labeled rectangles on early pages, detailing connector pinouts and color-coding standards (e.g., B = Black, W = White, R = Red). Cross-reference these with the harness routing diagrams on subsequent pages–each path shows splice points and sensor locations specific to trim levels.

• Harness diagrams: Pages 18-23 cover engine bay connections.
• Body control modules: Pages 34-39 include instrument cluster and lighting circuits.
• Powertrain schematics: Pages 24-33 detail ECM, TCM, and transmission interfaces.

Identify the component index–commonly a grid matching parts (e.g., oxygen sensor, relay) to their corresponding page numbers. For example, the MAF sensor circuit appears on page 26, while the ABS module starts on page 42. Use the legend’s abbreviations (e.g., “LG” for Light Green) to trace wire paths accurately.

Printed manuals often include fold-out inserts for complex systems like airbag or HVAC wiring. These large-format pages show connector views with terminal numbers; verify each pin’s function against the component’s service bulletin if retrofits are involved. Digital versions may offer layered diagrams–toggle visibility to isolate circuits (e.g., disabling entertainment system overlays to focus on ignition wiring).

Check appendix sections for revisions. Late-year production changes (e.g., emissions updates) often append corrected schematics. A March 2008 revision, for instance, modified the alternator’s voltage regulator pinout–confirm your build date against these notices to avoid misdiagnosis.

For hybrid or turbocharged variants, consult separate supplement volumes. These include unique diagrams for boost control solenoids or high-voltage battery management systems. The supplement typically cross-references the base manual’s numbered circuits, ensuring continuity.

If schematics lack clarity, validate against physical inspection. Disconnect the battery, use a multimeter’s continuity mode, and probe connectors following the manual’s color-coded paths. Mark discrepancies with masking tape–label each wire’s origin and destination to build a custom reference sheet for future troubleshooting.

Engine Control Unit Pinout Guide: Connections and Color Standards

Begin with terminal B133-10 (thick green/blue stripe) for constant battery feed–verify fuse 30A in slot 11 remains intact before probing. Corrosion at this junction mimics intermittent cranking failures, so scrape connectors to bare metal and apply dielectric grease. Pair this with brown/white at B133-28 (ignition-switched 12V) to isolate no-start conditions; a missing pulse here disables fuel pump relay triggering at pin B55-19 (yellow/black).

Critical ECU Ground References

Trace black/blue (B134-17) directly to chassis point G101–resistance above 0.2 ohms suggests oxidized threads requiring thread chaser and anti-seize compound. Companion ground black (B134-1) interfaces with knock sensor logic; intermittent misfire codes P0325-P0334 often trace back to this path. Avoid jumper wires at this stage–heat shrink adhesive-lined terminals prevent future moisture ingress.

Throttle position mapping starts at gray/black (B136-1) delivering 0.5V-4.5V ramp; verify against scan tool live data before condemning the sensor–adjust idle air valve purple/white (B135-12) if baseline voltage drifts beyond 0.6V. Inlet air temp readings via pink/blue (B134-26) should rise 0.75V per 20°C–clean MAF thermistor terminals if readings stagnate. Keep sub-threshold signals away from coil packs (minimum 50mm spacing) to prevent false knock detection.

Injector and Sensor Drive Circuits

Peak-and-hold injector drivers span B135-20 (orange/black, cylinder 1) through B135-23 (white/black, cylinder 4); pulse width below 2.3ms at 1500 RPM flags weak ECM power transistor–swap injectors between ports to rule out mechanical clogging. Crankshaft reluctor ring generates 0.7V AC at gray (B136-17), requiring shielded twisted pair to pin B31-31 (orange)–replace harness section if external interference introduces random timing fluctuations. Test continuity with a milli-ohmmeter while wiggling harness for intermittent opens.

Camshaft position dual tracks (B134-31 green/white for intake, B134-32 blue/white for exhaust) deliver 5V square waves–phase drift exceeding 3° triggers code P0016; confirm chain tensioner lock before attempting alignment. O2 sensors share identical black/yellow (B137-21) heater circuits–faulty ground loop elevates warm-up voltage above 0.9V, causing false lean DTCs. Always measure signal return paths (B137-1, white/red) under load; floating grounds manifest as erratic fuel trim corrections.

How to Trace and Test Fuse Block Circuits for Instrument Cluster Problems

Start by disconnecting the vehicle’s battery terminals–negative first–to prevent short circuits. Use a multimeter set to continuity mode or 20V DC to probe pins at the back of the fuse panel. Reference the service manual for pin assignments, as generic schematics often misalign with model-specific layouts. Focus on ignition-switched circuits, typically labeled IGN, ACC, or RUN in documentation; these supply power to gauges, warning lamps, and digital displays.

Inspect each fuse visually for a broken filament or use the multimeter’s resistance setting (ohms) to confirm integrity–readings above 2 ohms indicate a compromised fuse. If fuses test functional, move to relay testing: remove the relay and apply 12V directly to the coil terminals (usually 85 and 86) while listening for a click. If absent, replace the relay. For solid-state relays, verify output voltage at terminal 30 with the ignition on (should match battery voltage).

Common Failure Points and Testing Methods

Component	Test Procedure	Expected Result	Fault Indication
Fuse (5A-20A)	Multimeter set to continuity across terminals	0 ohms; full voltage drop	Infinite resistance;
Relay (Bosch/ISO type)	12V to coil terminals; multimeter on 30/87	Audible click; >11V output	No click;
Printed circuit board (PCB) traces	Multimeter on continuity; probe along trace paths	Steady beep with	Intermittent or no continuity
Ground connection (G101/G305)	Multimeter on 20V DC, black lead to chassis		>0.5V drop or erratic readings

For intermittent issues, use a non-contact voltage tester along the harness routing behind the dash; flex wires gently to replicate failure conditions. Check connectors for corrosion or bent pins–use dielectric grease when reassembling. If the cluster backlight fails, test the dimmer switch by measuring voltage at the bulb sockets (PWM signal should vary between 0-12V). Digital odometers often lose calibration due to corrupted EEPROM; reflash the instrument module using OEM software tools.

Prioritize testing circuits in sequence: power feeds first, then grounds, followed by signal paths. Use a wiring harness repair kit for damaged insulation–avoid electrical tape, which traps moisture. If a circuit passes all tests but remains non-functional, substitute the component with a known-good unit (e.g., swap the speedometer cluster with a donor vehicle’s). Document all readings; unexpected voltage drops (>0.3V) across a single connection often pinpoint corroded terminals or undersized wires.
