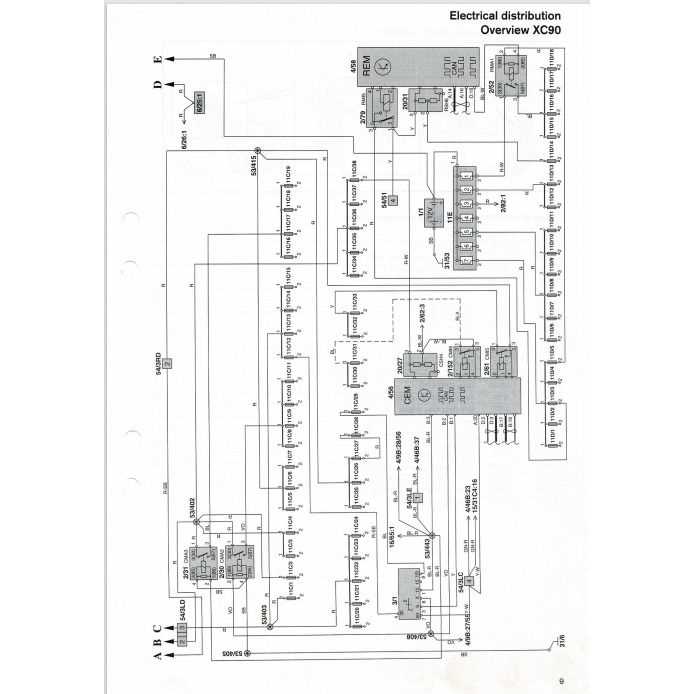

Complete Electrical Wiring Guide for the 2007 Volvo XC90 Full Diagram
For accurate troubleshooting, begin with the main fuse box diagram located under the dashboard on the driver’s side. Pinpoint relay positions R1 (horn), R2 (A/C compressor), and R5 (fuel pump) as primary failure points in common electrical faults. Cross-reference section 31-70 of the official service manual for detailed connector pinouts–ignoring this risks misdiagnosing grounding issues at terminal G301, a frequent cause of intermittent power loss.
Use a multimeter set to 20-volt DC to verify voltage at the ECM connector (C104). Expected readings: pin 24 (12V constant), pin 25 (switched 12V), and pin 44 (ground). Deviations below 11.5V at pin 25 indicate a failing ignition relay or corroded wiring at splice S112, often overlooked during routine inspections. Replace terminal connectors if resistance exceeds 0.5 ohms.
Focus on the CAN bus network for communication errors between the CEM and TCM. Scan for DTCs U0100 (lost communication with ECM) or P0562 (system voltage low) using a OBD-II tool with Volvo-specific protocols. Isolate the fault by disconnecting modules sequentially–start with the SRS unit (connector C402) as it’s the most common disruption source. Wire colors for CAN-H (yellow/green) and CAN-L (yellow/brown) remain consistent across all harness branches.
For rear climate control malfunctions, inspect the auxiliary heater harness (part #31372164) for frayed insulation near the rear seat hinge. The red/white tracer wire supplies 12V from fuse F28 (20A); trace it back to the rear fuse box to confirm continuity. Verify ground integrity at G409–clean with dielectric grease if corrosion is present.
Replace the battery negative cable if voltage drop exceeds 0.2V during cranking. The cable’s resistance should not surpass 0.1 ohms. For absentee taillights, bypass the LCM (Lighting Control Module) temporarily by bridging pins 1 (input) and 2 (output) at connector C204–if lights illuminate, the LCM requires replacement. Always disconnect the battery before working near the airbag clock spring to prevent accidental deployment.
Electrical Schematics for Your SUV: A Hands-On Reference
Locate the fuse box under the dashboard near the driver’s left knee–remove the plastic cover by pressing the retaining clips at the base. Fuse #17 (10A) protects the central electronic module; check for continuity with a multimeter set to 200Ω. Replace blown fuses with identical amperage–deviation causes overheating.
Trace the power window circuit from switch to motor using color-coded wires: yellow/black (power), brown (ground), red/white (signal). Disconnect the battery before probing; the window regulator motor draws 25A inrush current, risking component damage if shorted.
| Circuit | Wire Gauge (AWG) | Max Load (A) | Connector Pin |
|---|---|---|---|
| Headlamp low beam | 14 | 12 | CEM 34 |
| Fuel pump | 12 | 20 | REM 5 |
| Cooling fan | 10 | 30 | FCM 8 |
For anti-lock brake diagnostics, connect OBD-II scanner to port behind the left side dashboard panel. Enter code “C0040″–this retrieves wheel speed sensor data. Clean corrosion from sensor connectors with electrical contact cleaner; oxidation reduces voltage below 0.5V, triggering false faults.
Troubleshooting Common Electrical Faults
Address blinker relay failure by replacing the flasher unit mounted on the fuse box bracket. The stock unit (part #30678192) operates at 120 cycles/min–aftermarket alternatives often deviate by ±15%, causing hyperflash. Verify flasher output with a test light between pins A2 (power) and B1 (ground).
Repair intermittent rear defroster grid failure by applying conductive silver paint along broken traces. Each grid line carries 1.5A–inspect solder joints at the tabs for cold cracks. Apply heat-shrink tubing over repaired sections to prevent moisture ingress, which accelerates corrosion.
Swap malfunctioning A/C clutch relay (relay #3/29) located in the under-hood distribution block. The compressor engages at 12V DC with a 3.8Ω coil resistance–measure across pins 85 (ground) and 86 (trigger) to confirm continuity. Refrigerant pressure must exceed 50 psi before the ECM activates the relay.
Locating the Genuine Electrical Schematic for Your 2007 Volvo SUV
Begin with the manufacturer’s authorized portal, Volvo EWD (Electrical Wiring Diagrams), accessible at https://www.volvotechinfo.com. This platform requires registration but grants verified access to original schematics, including fuse layouts, connector pinouts, and component locations. Use the vehicle’s VIN to filter the correct revision; generic models may lack minor refinements.
Subscription-based services like ALLDATA or Mitchell1 aggregate OEM documentation, bundling diagrams with repair manuals. While these carry a fee, they deliver searchable PDFs with hyperlinked component descriptions, reducing cross-referencing time. Check for bundled discounts if purchasing multiple vehicle years.
Owners of older models often share documents on Volvo Forums–notably, Swedespeed and XC90 Owners Group. These archives, though unofficial, sometimes contain rare revisions. Verify file hashes against known OEM samples to avoid corrupted or edited schematics.
The Volvo Car Corporation’s official repair manuals, sold through dealers or third-party retailers like Haynes and Chilton, frequently include wiring appendices. Physical copies sometimes bundle supplementary diagrams excluded from digital releases, such as complete harness routing overlays.
Specialized auto electrics vendors, such as ERWIN by Volkswagen Group, occasionally host cross-brand schematics. Filter by chassis code (e.g., P28 for this model) to uncover compatible diagrams. Ensure downloaded files are unaltered; some resellers strip metadata or add watermarks.
University engineering repositories, particularly those affiliated with automotive programs, may catalog manufacturer-provided technical papers. Search academic databases by model designation or platform code, as professors sometimes distribute licensed documentation for educational purposes.
Direct contact with Volvo Customer Support yields mixed results–requests for schematics via email often redirect to paid services. Physical dealers, however, can print specific wiring sections if provided with a work order reference, though this incurs labor charges.
Core Electrical Modules and Their Pinout Zones in the SUV’s Network
Locate the central electronic control unit (CEM) behind the dashboard’s lower panel on the driver’s side–its 64-pin connector (A3) handles power distribution, lighting, and sensor inputs. Verify pin assignments A3/14 (15A constant), A3/24 (30A ignition), and A3/32 (ground) for corrosion before diagnosing relay failures. Use a multimeter set to 20V DC; expected readings should align with manufacturer tolerances (±0.3V).
- Front control module integrates with the combo hub under the front passenger seat–its 40-pin block manages seat heating, mirror adjustments, and window regulators. Pins B1 (CAN-H) and B2 (CAN-L) must show resistance below 2Ω; deviations indicate bus faults.
- Transmission control unit resides near the gearbox’s left side, secured by a 22-pin connector–pins 5 (sensor ground) and 12 (12V supply) require annual inspection for wire chafing.
- Rear body module sits above the spare wheel well–its connectors handle tailgate locks, rear lights, and trailer control. Pin C18 (reverse light signal) should toggle between 0V and 12V during gear shifts.
Check the fuse box’s rear section for hidden connectors: three 12-way plugs control HVAC actuators and parking sensors. Label each wire before disconnecting–color codes white/black (power), green/red (signal), and brown/yellow (ground) follow stringent ISO standards but often degrade at splice points. Probe all ground studs (G1-G5) near the firewall; scrape paint to ensure oxide-free contact.
- Disconnect the battery’s negative terminal before handling the SRS unit’s 30-pin connector (X1)–accidental deployment risks injury.
- Inspect the alternator’s B+ terminal (190A fuse) for voltage drop exceeding 0.5V at 2000 RPM.
- Test all door latch switches via pins 3 (door ajar) on each module–faulty readings often stem from broken microswitches rather than wiring issues.
- Replace any connector showing green corrosion or retracted pins; original connectors (AMP Superseal) resist moisture but fail after 15+ years.
Tracing and Testing Electrical Paths in Large SUV Systems
Start by isolating the suspected circuit using the vehicle’s fuse box map–most premium mid-size crossover schematics label fuses with corresponding components like power windows, tail lamps, or the audio module. Remove the relevant fuse and test both terminals with a multimeter set to continuity mode; if voltage persists, the issue lies beyond the fuse, often in corroded connectors or chafed harnesses near door hinges or rear tailgate areas.
Probing Key Connection Points
Focus on high-traffic zones where wires bend or vibrate: behind dashboard clusters, beneath driver seats, and inside roof consoles. Disconnect the battery negative terminal before probing to prevent short circuits. Use a back-probe technique on connectors–insert a fine test lead into the terminal without damaging seals, then reattach the connector to maintain integrity. Check for 12V reference on power wires and ground continuity on earth points, especially those bolted to chassis rails near suspension towers.
For intermittent faults, flex harnesses manually while monitoring live circuit behavior with a scan tool. Pay attention to T-codes (e.g., P06xx for electrical failures) that indicate open circuits in sensors or actuators. If resistance readings fluctuate while wiggling wires, inspect for broken strands within insulation–common in engine bay harnesses exposed to heat cycles. Strip back protective loom 1-2 inches to expose suspect sections, then re-solder joints using 60/40 rosin-core solder for durability.
Ground faults often disguise themselves as minor issues like flickering interior lights. Test chassis grounds by placing one multimeter lead on the negative battery post and the other on bare metal near the suspected ground point–readings above 0.1 ohms indicate corrosion. Clean grounding surfaces with a wire brush and apply dielectric grease before reattaching. For CAN bus errors, verify termination resistors at the OBD-II port and instrument cluster; absent 60-ohm resistance between CAN-H and CAN-L suggests broken data lines near the gearbox or ABS module.
When replacing damaged segments, match wire gauge precisely–SUVs under heavy loads use 18-20 AWG for lighting circuits and 12-14 AWG for high-current paths like starter motors. Crimp new connectors with ratchet-style tools rather than pliers to ensure proper compression, then seal repaired sections with adhesive-lined heat shrink tubing. Always recheck circuit operation with a load test: activate components (e.g., blower motor on high) while monitoring voltage drop–anything above 0.5V indicates resistive faults requiring further tracing.
