Complete Trailer Wiring Diagram for 2008 Ford F350 Step-by-Step Guide

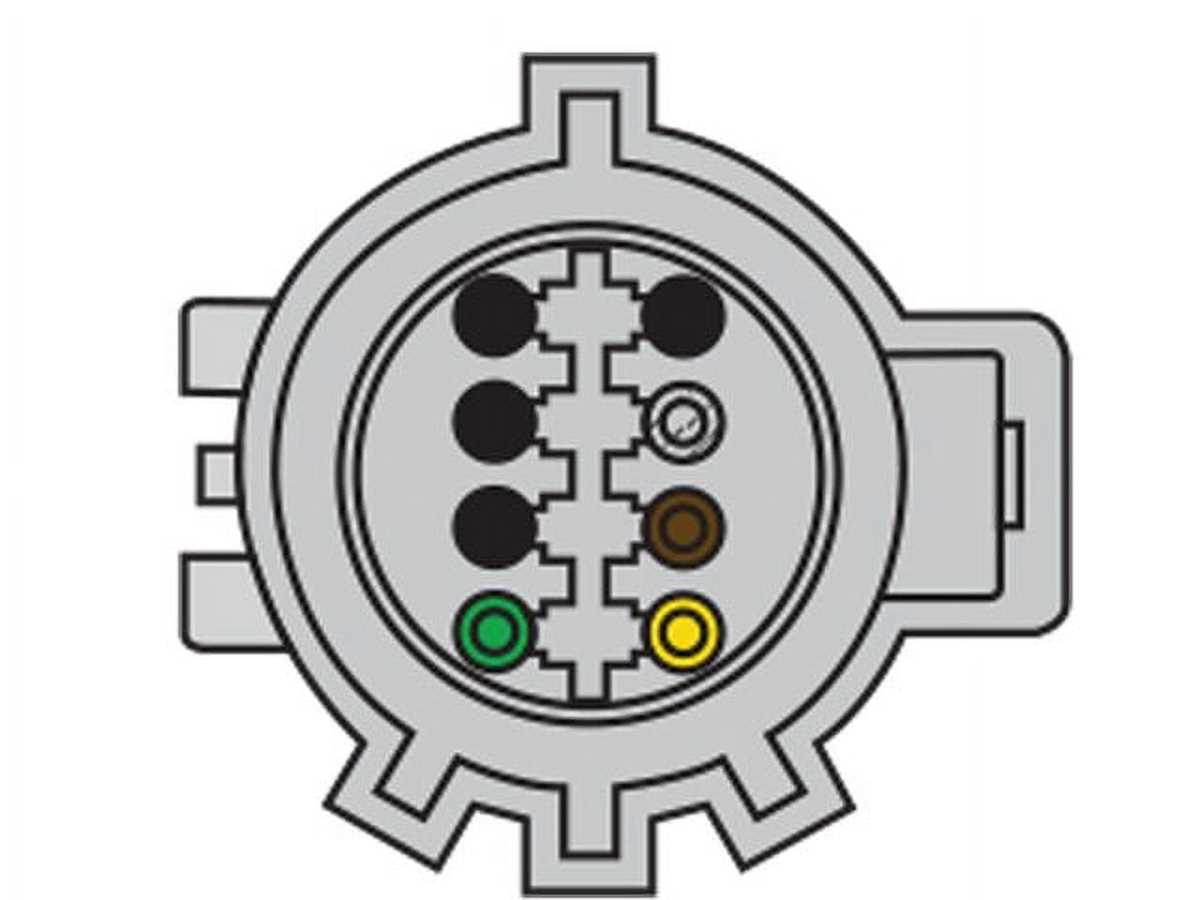

For seamless towing compatibility with your late-model 6.4L turbo-diesel chassis, the seven-pin connector under the rear bumper must match the factory 4/7-way hybrid plug configuration. Verify the central pin (auxiliary power) delivers a consistent 12V output–measured at 13.2V–14.1V–under load to prevent voltage drop during trailer brake activation. Replace the OEM relay (Ford part #BC3Z-14B205-C) if intermittent power cuts persist, as corrosion in the wiring harness (common near the rear axle vent tube) often mimics relay failure.
Trace the green (right turn/brake), yellow (left turn/brake), and brown (tail/running lights) circuits from the bumper plug to the under-hood junction box (JB1). Use a multimeter set to continuity mode to confirm no shorts exist between these wires and the white ground circuit–resistance readings should exceed 100kΩ. If the amber abs module warning illuminates during trailer connection, inspect the blue (electric brake) wire for nicks at the frame rail pass-through; splice repairs here require heat-shrink tubing and dielectric grease to prevent moisture ingress.
Before connecting any aftermarket brake controller, ensure the black (battery hot at all times) wire draws less than 50mA when the ignition is off–higher parasitic loads drain the 850CCA dual-purpose battery within hours. For integrated controllers (e.g., Tekonsha P3), tap the purple (rearward sensing) wire directly into the OEM trailer brake output circuit at the JB1 connector; avoid splicing into the generic brake switch circuit, which lacks sufficient current capacity for heavy loads.
For extended hauling scenarios, bypass the factory 30A maxi-fuse (located in the under-dash fuse panel, slot 27) with a 50A breaker directly fused to the alternator’s B+ terminal. This prevents voltage sag during simultaneous trailer light and accessory loads. Always test the combined draw of LED trailer marker lights (
Understanding Electrical Hookups for Heavy-Duty Pickup Towing

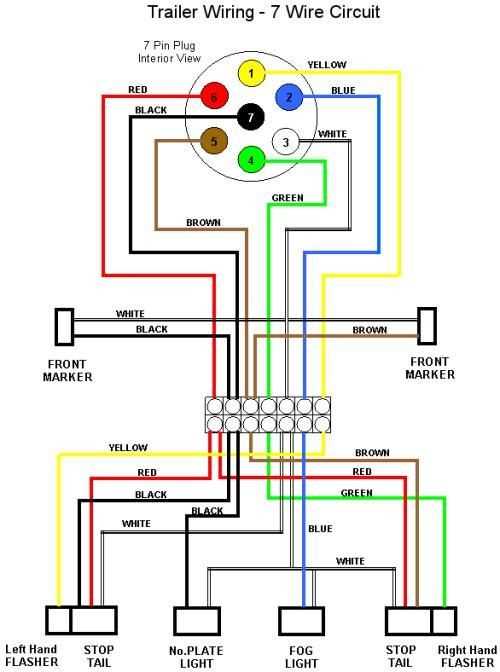

Begin by locating the factory-installed connector beneath the rear bumper near the driver’s side. The seven-pin configuration follows SAE J560 standards: brown (running lights) at the 3 o’clock position, green (right turn/brake) at 5 o’clock, yellow (left turn/brake) at 7, white (ground) at 6, blue (electric brakes) at 11, red (12V auxiliary) at 1, and black (battery charge) at 9. Verify pinout accuracy with a multimeter–mismatched connections risk fusing circuits or damaging towed equipment.
For aftermarket upgrades, select 10-gauge wire for brake and auxiliary feeds; thinner wires overheat under sustained 30-amp loads. Crimp connectors with heat-shrink tubing, then seal splices with dielectric grease. Avoid generic adapters–opt for vehicle-specific harnesses like Bargman 54-67-005, which include built-in circuit protection. If integrating a gooseneck system, reroute the blue brake wire through a breakaway switch rated at 20 amps minimum.
Diagnosing Common Signal Failures
Test light functions sequentially: activate running lights, left/right signals, and brakes. A dim or flickering brown wire indicates corroded grounds–clean the chassis connection at the frame rail with a wire brush. If signals work intermittently, inspect the inline fuse holder (typically 15-amp) behind the driver’s-side kick panel. Replace blown fuses with identical amperage; higher ratings compromise safety.
For LED-compatible towing, bypass the factory flasher relay by installing an electronic flasher module–mechanical relays cause hyper-flashing with low-draw LEDs. Confirm brake controller compatibility: proportional controllers like Tekonsha P3 require calibration via the manual leverage button, while time-delayed units like Curt Echo need smartphone pairing. Route controller wiring away from heat sources to prevent insulation melt.
When splicing into existing circuits, use T-taps sparingly; they weaken wire strands. Instead, solder direct connections or employ insulated butt splices. For rear-view camera integration, tap the red auxiliary wire at the connector’s base–never splice camera power into the brake or signal circuits, as voltage drops cause malfunctions. Document modifications with labeled schematics; this simplifies future troubleshooting.
Heavy-duty hauling demands a battery-isolated setup. Install a relay between the black wire and starter battery to prevent parasitic drain. For campers with power inverters, separate the black wire into two feeds: one for maintenance charge (10-amp) and one for high-demand devices (30-amp). Use a voltage-sensitive relay to cut off auxiliary power below 12.4V, protecting starter battery integrity.
Finding the OEM Towing Electrical Connector on a Heavy-Duty Pickup
Begin underneath the rear bumper, driver-side frame rail. The harness exits the main vehicle loom near the rear axle, secured by plastic clips. Follow the bundle upstream–it passes through a protective grommet in the truck bed’s forward left corner, then angles upward behind the spare tire carrier. Disconnect the under-bed junction box (black 10-pin connector) to access four critical outputs: white (ground), brown (running lights), yellow (left stop/turn), green (right stop/turn). Avoid splicing into factory wires downstream of this box–corrosion risks rise sharply past this point.
Quick-Reference Location Table
| Component | Position | Visual Cue | Connector Type |
|---|---|---|---|
| Main harness exit | Under driver-side frame rail, 18″ behind rear axle | Black corrugated sleeve | – |
| Bed grommet | Forward left bed corner, beneath plastic trim | Rubber plug, visible after dropping spare | – |
| 10-pin junction box | Under bed, 6″ left of centerline | Matched black housing | Male blade connectors |
| Brake control plug | Behind driver kick panel | Blue 4-way socket | Round pin |
Trace the green/red auxiliary circuit behind the driver-side kick panel–this powers electric trailer brakes. The blue 4-pin socket interfaces directly with aftermarket brake controllers; tap here instead of modifying the primary harness to preserve OEM integrity.
Step-by-Step Guide to Connecting a 7-Pin Towing Connector
Locate the vehicle’s tow harness behind the rear bumper–most heavy-duty pickups have a factory-installed plug housing secured by a plastic clip or metal bracket. Disconnect the negative battery terminal before handling any electrical connections to prevent short circuits or fuse damage. Verify the existing harness uses color-coded wires matching the standard: white (ground), brown (tail lights), yellow (left turn/brake), green (right turn/brake), blue (auxiliary power), red (brake controller output), and black (12V battery power).
Strip ½ inch of insulation from each wire on the new plug using wire strippers, then twist the strands tightly to avoid fraying. Match each wire to the corresponding terminal on the towing socket–ground (white) connects to the frame-mounted stud with a ring terminal, while the remaining wires attach via crimp connectors or solder for durability. Use heat-shrink tubing on soldered joints to seal against moisture; electrical tape degrades over time and should only serve as temporary protection.
Test continuity with a multimeter before securing connections. Attach the ground wire first, ensuring a clean metal surface free of paint or corrosion. Corrosion-resistant dielectric grease applied to terminals prevents oxidation and improves conductivity. Connect the 12V power (black) to the vehicle’s battery via a dedicated 30-amp fuse–do not splice into an existing circuit, as this can overload wires not rated for towing demands.
- Tail lights (brown): Verify function by activating the vehicle’s running lights.
- Turn signals (yellow/green): Check with hazard lights–both should flash simultaneously.
- Reverse lights (if applicable): Confirm by shifting into reverse–some setups omit this.
- Brake output (red): Requires a controller for electric brakes; test by manually engaging the lever.
Route wires away from moving parts, exhaust components, and sharp edges–use zip ties every 12 inches to prevent chafing. If the harness includes a blue wire for auxiliary functions (e.g., hydraulic dump pumps), connect it through a separate relay to avoid draining the battery when the vehicle is off. Reconnect the battery and test all functions again with the towed load attached to confirm no voltage drops under load.
Secure the plug housing to the vehicle’s mounting point using stainless-steel screws–plastic clips fail under vibration. Apply silicone sealant around the socket’s rear gasket to block moisture ingress. For severe-duty applications, upgrade to a weatherproof cover that threads onto the plug body, preventing dirt and water intrusion during off-road use or heavy rain.
Document the wire layout with a label inside the truck’s tailgate or glove box–future diagnostics become simpler when the original configuration is recorded. If diagnostics reveal issues, focus first on ground connections; over 90% of towing electrical problems stem from poor grounding or corroded terminals.
Troubleshooting Electrical Connections in Heavy-Duty Towing Setups
Inspect the vehicle’s harness connectors at the rear for corrosion–even minor oxidation disrupts signal flow. Apply dielectric grease after cleaning terminals with a wire brush to prevent recurrence. Corroded grounds (typically bolted near the frame) cause intermittent failures; sand paint off the contact surface and tighten securely.
Replace burnt-out bulbs immediately–dual-filament lamps fail asymmetrically, mimicking wiring faults. Use a multimeter in resistance mode to verify continuity across each filament; readings above 5Ω indicate degradation. Avoid LED upgrades without load resistors; factory circuits measure current, and low-draw LEDs trigger false error codes.
Test the 7-pin plug with a dedicated circuit tester–jump pin #3 to #1 to confirm brake signal path. Broken wires inside the harness flex most at bends; peel back sheathing 6 inches from stress points, splice with solder and adhesive-lined shrink tubing. Factory splices use crimped butt connectors; replace these with soldered joints for longevity.
Intermittent ABS faults often stem from pinched brake circuits–inspect loom routing under the chassis. Secure loose wires with zip ties, spacing them 18 inches apart to prevent chafing. Verify trailer magnet activation by spinning wheels; dragging brakes overheat bearings, masking wiring defects.
Check pin #5 (auxiliary power) for voltage drop under load–a healthy circuit maintains 11.5V with a 20A draw. Upgrade 18-gauge wires to 14-gauge if powering high-demand accessories. Frayed wires near the tow hook surge protector cause short circuits; reroute damaged sections entirely rather than splicing repairs.
Ground loops between tow vehicle and cargo carrier trigger false turn signal indicators. Install an isolated ground wire from the carrier’s frame to the pin #1 terminal, avoiding shared paths. For persistent rear light failures, bypass the factory control module with a direct switch–this isolates faulty relays.
Splicing into the brake controller circuit requires precise calibration–adjust gain until trailer brakes engage evenly with vehicle brakes. Use a valve-core removal tool to release air from brake lines; contaminated fluid exacerbates electrical faults. Replace cracked weatherproof boots on 7-pin connectors every 24 months; UV damage compromises seals.
For vanishing trailer lights, probe each pin with a test light while activating signals–no illumination on pin #4 signals a blown fuse or open circuit. Swap fuses across identical amperage ratings before replacing components. Verify battery voltage at the 7-pin plug during engine idle; readings below 12.4V necessitate alternator inspection.
