Complete 2008 Isuzu NPR Wiring Diagram and Electrical System Guide

Locate the engine control module (ECM) under the driver-side dashboard–its connector (C100 or C200, depending on transmission type) holds the key to critical signal paths. Pin 1 delivers ignition power (12V from fuse #17), while pins 3, 4, and 7 handle CAN bus communications. Verify these first if the engine stalls or fails to crank. Avoid probing with power applied; use a high-impedance multimeter set to DC voltage (20V range) to prevent false readings or component damage.

Trace the chassis ground (G101) near the firewall on the passenger side. Corrosion here mimics starter or fuel pump failures. Clean the bolt and surrounding metal with a wire brush, then apply dielectric grease before reassembling. For intermittent low-voltage issues, inspect the alternator output wire (red, 8-gauge) at the battery terminal–fraying or discoloration indicates internal shorting, requiring a full harness segment replacement (part #8-98140-1140).

Decipher cluster wiring by focusing on the instrument panel connector (IPC, C300). Pin 8 feeds the MIL lamp (12V pull-down), while pins 11 and 12 bridge the gauge sensors (oil pressure, coolant temp). If gauges fluctuate, replace the 6.8k ohm resistor (R301) behind the tachometer; factory specs tolerate ±5% tolerance only. For ABS faults, check pins 5 and 6 (wheel speed sensors)–resistance should read 800–1,200 ohms cold; readings outside this range confirm sensor failure.

Isolate trailer brake circuits by testing the 7-way connector (J560). Pin A (white, ground) and Pin V (blue, brake output) must show continuity with the cab brake switch activated. If trailer brakes engage erratically, inspect the modulator valve solenoid (SV1) at 8–12 ohms; higher values indicate coil burnout. Replace the valve assembly (not just the solenoid) to prevent future leaks.

Prioritize fusible links over fuses–these melting-point connectors (yellow/red wiring) protect major circuits. If a link fails, splice in a new segment of 14-gauge wire with butt connectors (not solder) and heat shrink tubing (minimum 5mm overlap). Never bypass fusible links temporarily; overcurrent risks will melt the main harness, requiring complete rewiring ($1,800+ in labor).

Electrical Blueprint for the 2007-2009 Low Cab Forward Truck: Hands-On Solutions

Locate the fuse block beneath the driver-side dashboard–tap into circuit 15 (10A) for the instrument cluster power feed. Verify continuity between pin 3 on the 16-pin grey connector and ground using a multimeter set to 200 ohms. Readings above 5 ohms indicate corrosion in the harness; strip and resolder the connection at splice point J-42 behind the glovebox.

Trace the A/C clutch relay wires to the ECM’s C2 port–yellow with black stripe carries the control signal. If the compressor fails to engage, probe this wire with a 12V test lamp while cycling the climate controls; no illumination confirms a broken link between the HVAC module and relay socket. Replace the relay with a 30A SPDT model (Omron G8P-1C4) if testing reveals coil resistance exceeding 120 ohms.

The ABS wheel-speed sensors connect via twisted pairs to the EBCM at pins 8 (front left) and 23 (front right). Unplug the 26-pin connector and check for 4.8-5.2V reference voltage on each signal wire with key ON–fluctuations point to a compromised ring gear or air gap wider than 1.2mm. Clean sensor tips with electrical contact cleaner; avoid abrasives that damage the polymer coating.

For auxiliary lighting, splice into the white 14-gauge wire feeding the marker lamps–route through a 20A fusible link before branching to a rocker switch. Ground the return through the chassis frame near the cab mount; scrape paint to bare metal and apply dielectric grease to prevent oxidation. Test load capacity with a 90W halogen bulb–voltage drop exceeding 0.5V suggests undersized conductors or loose terminals.

Download a factory schematic for chassis code NKR75 (edition 06/2007) from the manufacturer’s technical portal–zoom to section 8B-11 for transmission solenoid wiring. Match color codes (e.g., pink=shift solenoid “A”, brown=solenoid “B”) against the 42-pin TCM connector; misrouted wires risk torque converter lockup failure. Double-check crimps with a wire gauge; 18 AWG suffices for signal leads, 12 AWG mandatory for power feeds under 20A continuous draw.

Finding the Primary Powertrain Cable Clusters for Diagnostic Checks

Start at the vehicle’s firewall near the driver’s side. The largest central connector bundle exits here, typically secured with a gray or black rectangular plug. Trace its route downward–this main harness splits into two primary branches: one heading toward the engine block and another disappearing under the dashboard.

Inspect the engine compartment alongside the valve cover. A thick, corrugated sleeve protects the fuel injection and sensor cables. The ignition-related connectors terminate here, often marked with labels like “INJ” or “IGN.” Disconnecting these requires twisting counterclockwise before pulling straight out.

Look beneath the alternator for a smaller, oval-shaped plug with eight pins. This clip links the charging system to the battery relay. Vibration loosens these over time, so check for corrosion or bent pins before assuming internal failure.

Follow the wires leading to the fuse box under the hood. Three clusters feed into this panel: battery-positive cables (red), ground straps (black), and sensor feeds (yellow or green). Label each with masking tape before unplugging; reinstallation mistakes trigger false error codes.

Under the driver’s seat, find the kick panel access panel. Remove the plastic cover to expose the transmission control module’s multi-pin connection. This cluster handles shift solenoids and torque converter engagement–faulty connections here mimic hydraulic failure symptoms.

Check the back of the instrument cluster for a 20-pin rectangular block. This feeds data to the speedometer, tachometer, and warning lights. Gently wiggling this connector while the engine runs helps identify intermittent faults causing gauge fluctuations.

Along the frame rail near the rear axle, locate the antilock brake system connector. It uses a distinctive triangular plug with three round pins. Road salt accelerates corrosion here, so probe each pin’s voltage before replacing the controller.

Behind the passenger-side headlight housing sits the engine control module’s primary harness. Two connectors–one 60-pin and one 32-pin–link here. Use a scan tool to verify live data before unplugging; resetting these requires a 10-minute battery disconnect to avoid memory loss.

Locating Key Electrical Components in Your Medium-Duty Truck

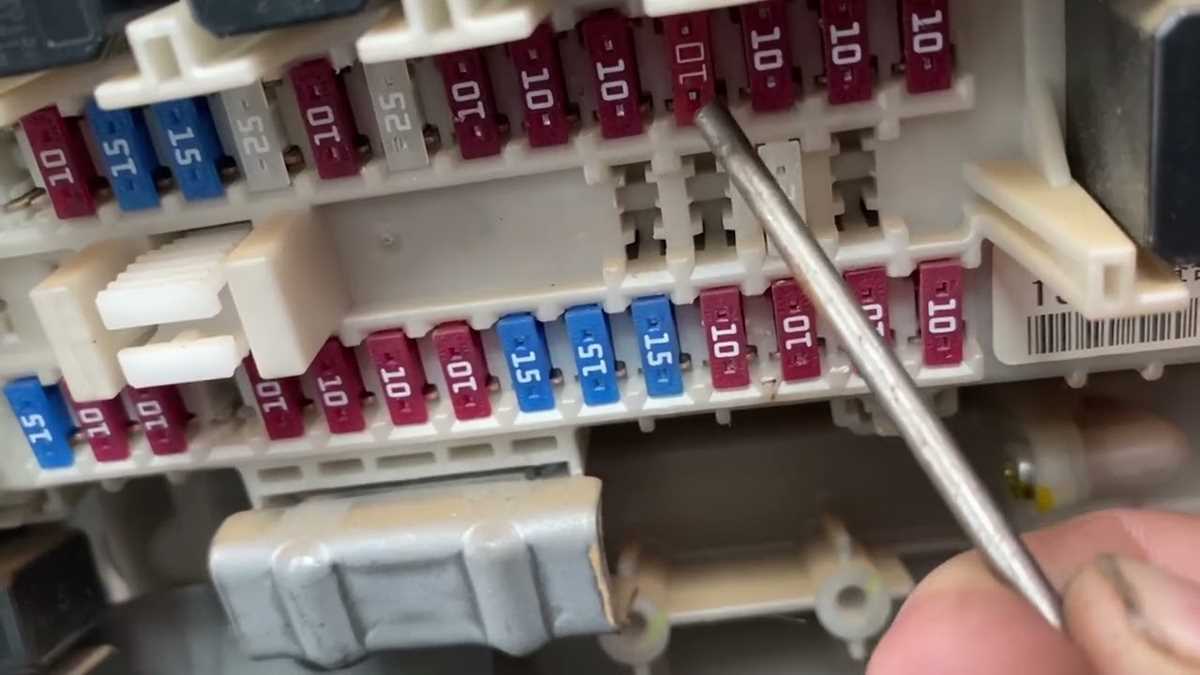

Start by accessing the primary fuse panel beneath the instrument cluster on the driver’s side. Remove the lower dash cover–secured by two 10mm bolts and three push clips–to reveal the layout. The upper row contains mini fuses (2A–30A), labeled F1–F24, while the lower row holds maxi fuses (30A–100A) and relays, marked R1–R8. Use a multimeter set to continuity mode to verify connections before replacing any component.

R1 controls the engine cooling fan; if the vehicle overheats, swap this relay first. R4 manages the fuel pump–listen for a two-second hum during ignition to confirm function. R7, often overlooked, governs the glow plugs in diesel models; a delayed start suggests a failure here. Label each relay with masking tape before removal to avoid misplacement.

The auxiliary fuse box, mounted near the battery tray, handles high-current systems. Fuses A–H protect circuits for the A/C compressor (A), power outlets (B), and trailer brakes (H). Check for melted plastic or discolored terminals–these indicate overheating and require immediate replacement with the identical amperage.

For headlight issues, inspect F12 (10A) for low beams and F14 (15A) for high beams. Turn signals rely on F9 (10A) and F10 (20A) for the hazard flasher. A flickering dash cluster often points to a loose F3 (7.5A), which powers instrument illumination. Replace blown fuses with the same rating–never upgrade amperage as a shortcut.

Ground points are critical. The main chassis ground, G101, is behind the driver’s side kick panel, while G201 serves the engine block under the intake manifold. Corrosion here mimics fuse failures; clean connections with a wire brush and apply dielectric grease to prevent future oxidation. Tighten bolts to 12–15 ft-lbs using a torque wrench.

Relay sockets frequently degrade. If a relay clicks but the component doesn’t activate, pry the socket open and inspect the spring contacts. Bend contacts upward slightly to restore tension. Replace sockets if pins show pitting–generic replacements rarely fit correctly without modification.

Aftermarket alarms or liftgates often splice into existing circuits. Trace wires from the accessory back to the fuse box using a wiring harness map. Common culprits include tapped F5 (ignition) or F18 (ECM), which can create phantom electrical gremlins. Use a fused tap (not a blade-style) for any new connections.

Always carry spare fuses: 3x 7.5A, 2x 10A, 1x 20A, 1x 30A, and two R1 relays. Label spares with their designated positions to speed up roadside repairs. For persistent issues, consult the OEM service manual’s pin-out diagrams–aftermarket charts often omit critical details like diode placement or splice points.

Tracing Ground and Power Circuits for Lighting Systems

Begin by isolating the lighting circuit at the fuse block–locate the relevant fuse using a multimeter in continuity mode to confirm live connections before proceeding. For ground tracing, attach the negative lead of the multimeter to a known chassis ground, then probe the ground-side terminal of the lighting socket. A reading below 0.5V indicates a solid ground; higher readings suggest corrosion, loose connections, or insufficient wire gauge. Replace or re-crimp terminals if resistance exceeds 1Ω, particularly in high-current circuits like headlights or brake lights.

Use a test light or oscilloscope to verify power delivery at each node, starting from the fuse to the switch and finally the bulb. For pulse-width modulated (PWM) systems–common in daytime running lamps–set the oscilloscope to capture frequencies between 100Hz and 1kHz. Voltage drops exceeding 0.3V across connectors or switches mandate terminal cleaning or wire replacement (minimum 16 AWG for low-beam circuits, 14 AWG for high-current loads).

Key Measurement Points

Component	Expected Voltage (Key On)	Max Allowable Drop	Diagnostic Action
Fuse Output	12.6–14.4V	0.1V	Check fuse rating (typically 10–20A for lighting)
Switch Output	12.2–14.0V	0.3V	Bypass switch if voltage absent
Bulb Socket	12.0–13.8V	0.5V	Inspect for burnt contacts or oxidation
Ground Return	0V (reference chassis)	0.5V	Scrape paint for direct metal contact

For intermittent faults, wiggle the harness while monitoring voltage with the test light–flickering indicates a break in the conductor or cold solder joint. Heat-shrink tubing or dielectric grease on repaired connections prevents future corrosion. In CAN bus-integrated lighting, verify communication via OBD-II scanner; error codes U1000 or B1409 signal module faults requiring factory pinout reference.
