Complete Wiring Guide for 2008 Nissan Altima Alternator Replacement

For immediate troubleshooting, locate the B+ terminal connection on the charging unit–typically a red cable bolted to the rear housing. Verify continuity between this point and the positive battery post with a multimeter set to ohms. Readings above 0.5Ω indicate corrosion in the fusible link or damaged cable insulation. Replace the 120A fusible link if resistance exceeds this threshold, as voltage drop under load will trigger the battery warning light even with a functional rotor assembly.

The excitation circuit begins at the ignition-controlled relay (often labeled “IPDM E/R” in the under-hood fuse box). Trace the thin blue/white wire from terminal L of the voltage regulator to pin 30 of connector M37–interruption here causes the rotor to fail magnetizing, resulting in zero output. Test for 12V at this wire with the key in the ON position; absence suggests a blown 10A “IGN” fuse or corroded relay contacts.

Ground integrity is non-negotiable–scrub the bare-metal mounting boss where the charging unit bolts to the engine block. A 3/8″ ring terminal on the negative cable should attach here, not to adjacent bolts sharing paint or oil residue. Use a wire brush to expose fresh metal, then apply dielectric grease to prevent future oxidation. Weak ground manifests as erratic voltage readings during high-load conditions (e.g., headlights + blower motor).

For post-repair validation, connect a clamp-on ammeter around the battery negative cable. Crank the engine to 2,000 RPM with all accessories off; output should stabilize between 50-80A. If readings fluctuate, inspect the stator windings for shorted turns–a failed diode trio will leak AC ripple detectable on the positive lead, causing premature battery sulfation. Replace the rectifier assembly if peak-to-peak ripple exceeds 0.4V.

Electrical Flow in the 2008 Nissan Sedan’s Charging System

Locate pin 4 (white/black wire) on the voltage regulator connector–this carries battery sense feedback directly to the charge unit. If voltage drops below 12.4V at this terminal, the regulator will not engage full field current, causing low output. Measure at the connector with the key on; readings should match battery voltage within 0.2V. Disconnecting this wire during bench testing simulates an open-sense condition, useful for isolating faulty regulators.

Use a 10-gauge jumper to bypass the fusible link (red-colored, 40A) temporarily when diagnosing no-charge symptoms. Connect directly from the positive terminal of the power source to the B+ post on the charging unit, ensuring the engine is off to avoid back-feeding. If current exceeds 5A at idle after the bypass, suspect a shorted diode trio; use an infrared thermometer on the rear housing–abnormal heat (>140°F) confirms failure.

Trace the excitation circuit: the blue wire from the ignition switch splits at the instrument cluster–one leg triggers the charge indicator, the other (blue/red stripe) powers the rotor coil. If the warning lamp stays off with the key on but no engine, probe the cluster-side connector at pin 30; absence of 10-12V indicates a blown 10A fuse or open ignition feed.

Locating the Power Generator Cable Link Points

Start by tracing the main output cable from the charging unit–it’s the thickest wire, usually covered in black or dark grey insulation, leading directly to the battery’s positive terminal. Follow it backward to where it splits near the rear of the engine bay; this junction often conceals a plastic or rubber grommet that protects the entry point into the vehicle’s electrical conduit. Check for a secondary, thinner cable–typically blue or white–attached to the same connector, which feeds voltage signals to the regulator and dashboard warning lights.

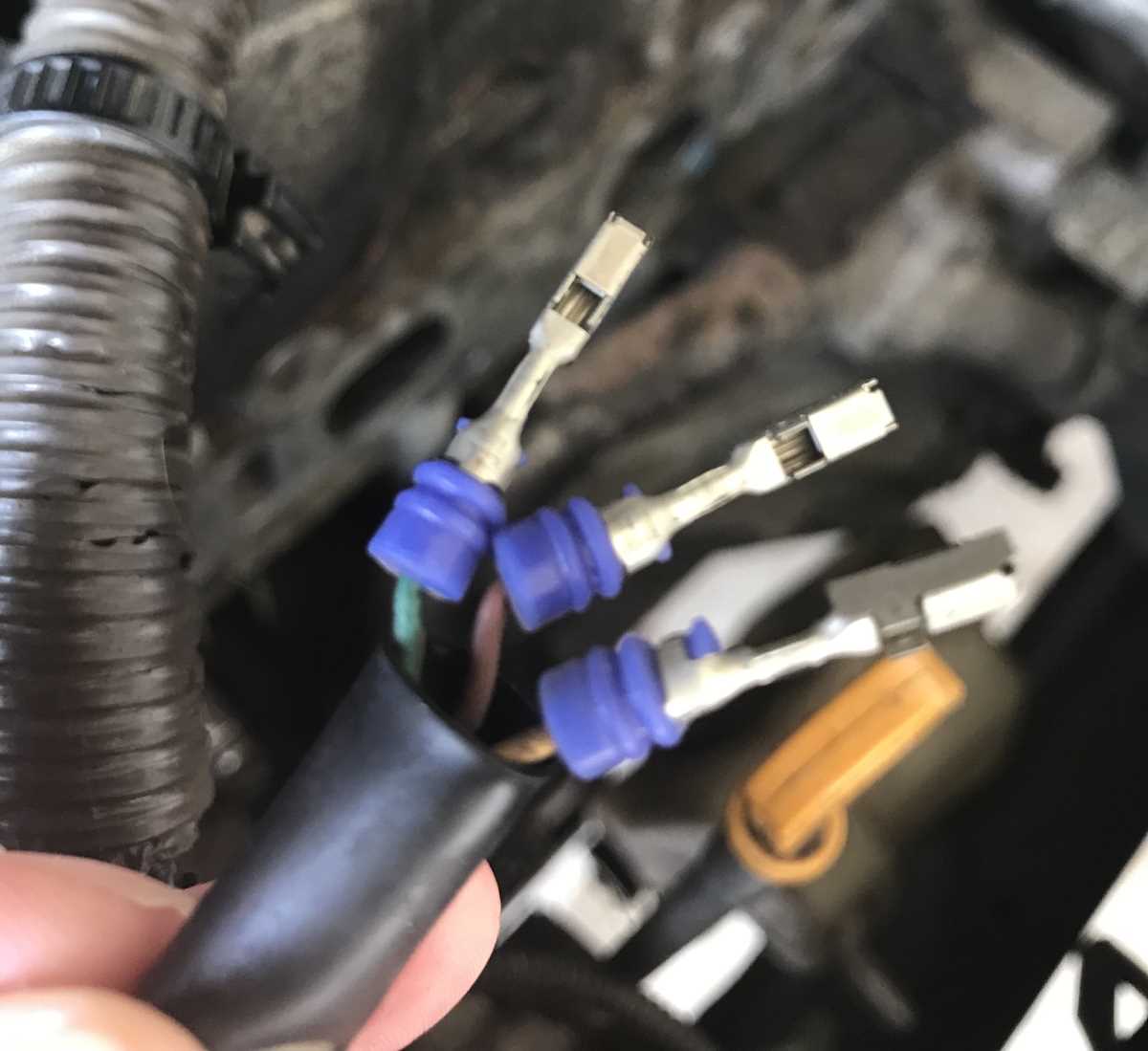

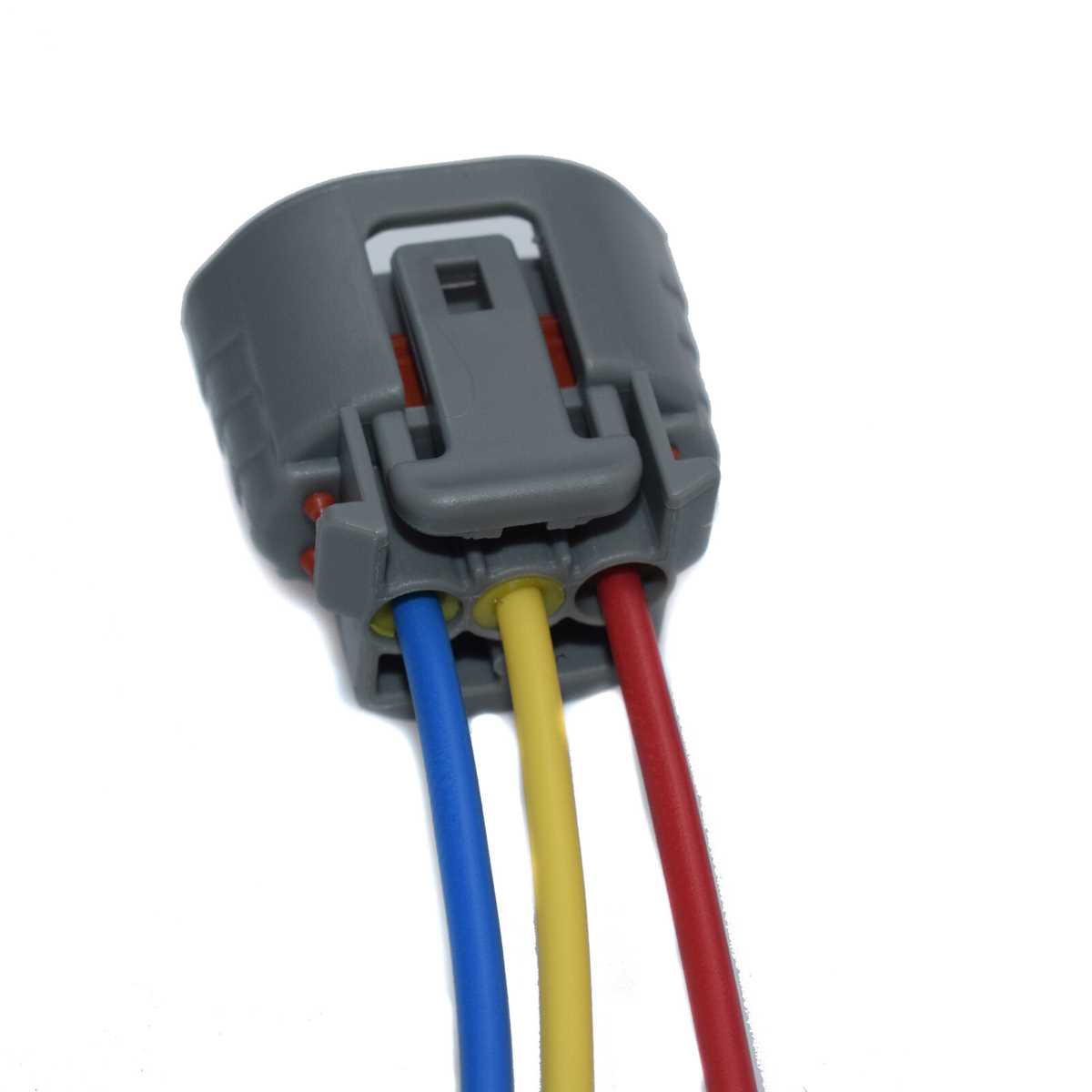

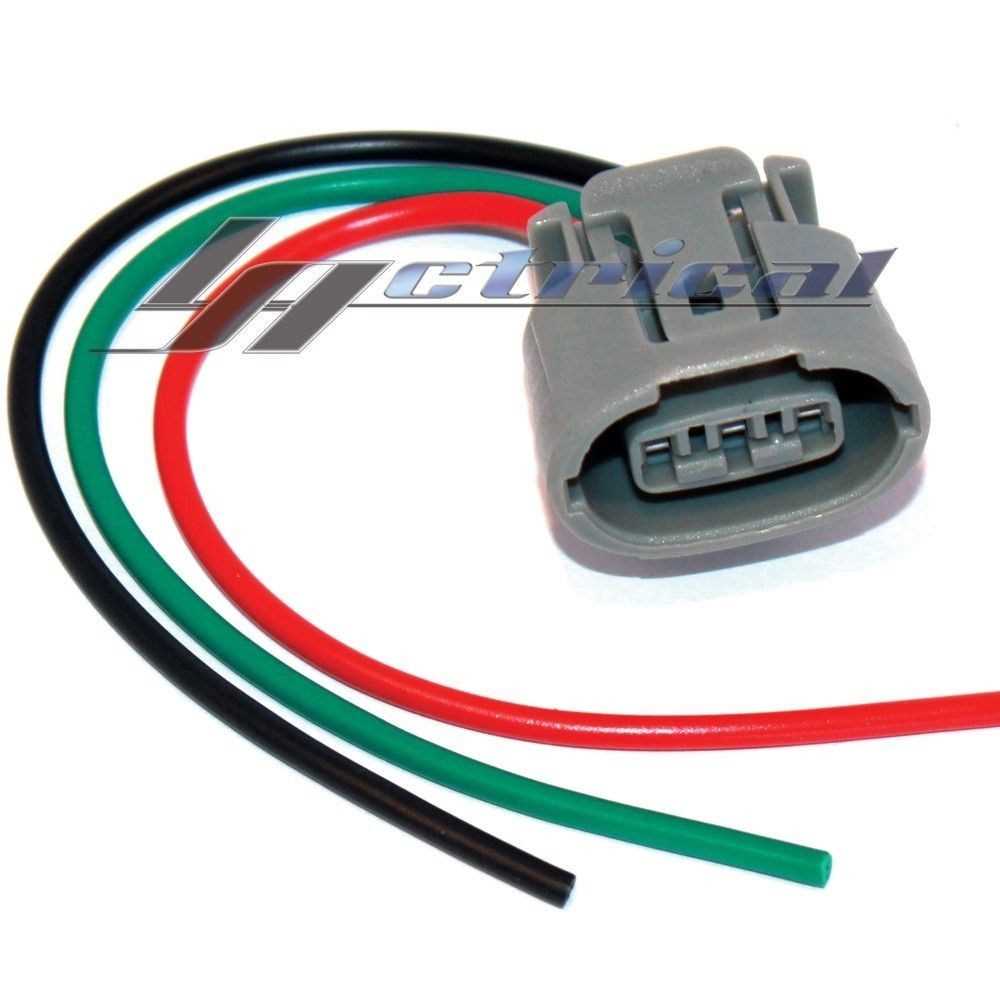

Inspect the upper mounting bolt area for a small plug-in connector with two or three pins. This connector links the internal voltage regulator to the vehicle’s computer, controlling output based on demand. If the car has been modified, look for aftermarket splice points where additional accessories might interfere with factory connections–these are common failure spots and should be bypassed if corrosion or melting is visible.

Key Areas Prone to Corrosion or Loose Fit

Focus on the grounding strap–usually a bare or green-insulated wire–bolted to the engine block or body near the power unit. Poor grounding causes erratic voltage readings and premature failure; clean the contact surface thoroughly before reassembly. Another trouble zone is the pigtail connector on the back of the charging mechanism: tug gently on each wire to ensure none have pulled loose from their crimped terminals–even minor looseness can create voltage drops.

Testing Connections Without Disassembly

Use a multimeter set to 20V DC to probe the main output terminal while the engine runs–expect 13.8 to 14.5 volts. If readings fluctuate, back-probe the thin blue or white signal wire at the plug; a steady 5V indicates the regulator’s feedback circuit is functioning, while 0V suggests a broken connection or faulty control module. Always secure cable ties away from moving belts or hot exhaust manifolds to prevent chafing or heat damage.

Decoding Harness Color Codes and Their Electrical Roles

Locate the brown-striped cable (often labeled “B+” or “30”)–this primary feed delivers battery voltage directly to the charging unit’s output terminal. Confirm continuity with a multimeter set to DC voltage (20V range) while the engine idles; readings should stabilize between 13.8–14.5V. A drop below 13.2V signals internal regulator failure or a corroded connection at the firewall bulkhead connector. Trace the brown wire upstream to the starter solenoid’s “B” post to isolate voltage drops exceeding 0.2V under load.

Map the following conductors to their precise functions:

• Yellow/black tracer (L terminal) – Switches excitation current to the rotor coil when ignition is on. Test for 1–2V with key in ON position; absence indicates fusible link blow or ECM relay malfunction.
• White/blue stripe (S terminal) – Provides field sensing feedback to the voltage regulator. Probe resistance to ground (should read 2.5–5 ohms); infinite resistance confirms open rotor coil.
• Black (ground strap) – Attaches to engine block; clean threads with 120-grit sandpaper and torque to 8–10 ft-lbs to prevent heat buildup.
• Dark green/orange stripe (P terminal) – Supplies pulsed voltage for tachometer signal. Validate waveform with oscilloscope (5–8V peak-to-peak square wave).

Inspect the two 10-gauge fusible links (red/blue and red/white) linking the power distribution module to the battery–melted insulation or ballooning sleeves reveal overcurrent events. Replace damaged links with identical gauge copper wire clad in heat-shrink tubing; solder joints must withstand 150A transient loads. Verify charging system integrity by measuring ripple voltage at the battery posts: anything above 0.5V AC (12V DC scale) requires stator replacement or rectifier bridge servicing.

Step-by-Step Guide to Verifying Power Generator Circuitry with a Measurement Tool

Locate the voltage regulator connector near the back of the power unit. Disconnect the plug and identify the B (battery) terminal–typically a thick wire ending in a ring terminal secured by a bolt. Set the measurement tool to DC voltage (minimum 20V range). Ground the negative probe to the engine block or chassis. Touch the positive probe to the exposed B terminal. A reading below 12.4V signifies insufficient initial charge; above 12.6V confirms proper battery state.

Reconnect the voltage regulator plug. Probe the same B terminal through the insulation using the sharp-tip accessory. A running engine should produce 13.8–14.5V. Deviations outside this window indicate malfunctioning voltage stabilization–check for inconsistent regulation or defective internal components.

Examine the excitation circuit by probing the S (sense) terminal on the regulator harness. Engine off, the meter should display battery voltage (12.2–12.6V). Engine running, readings should match the B terminal output (13.8–14.5V). A constant low (

Circuit Point	Static Voltage (Engine Off)	Dynamic Voltage (Engine On)
B Terminal	12.2–12.6V	13.8–14.5V
S Terminal	12.2–12.6V	13.8–14.5V
Ground Reference	<0.1V	<0.2V

Assess ground integrity by probing between the generator casing and battery negative post while cranking. Acceptable resistance under 0.2 ohms; readings above 0.5 ohms necessitate terminal cleaning or cable replacement. Repeat for the regulator-to-chassis path–corrosion at the mounting points often causes intermittent charging failures.

Inspect auxiliary connectors if equipped with remote voltage sensing. Probe the I (ignition) or L (lamp) terminal while cycling the key. Expected behavior: 0V key-off, 12V key-on before startup, brief pulse during cranking, then near battery voltage during operation. Permanently low voltages isolate faults to the fuse panel, ignition switch, or relay cluster.

Identify short circuits by switching the measurement tool to ohms mode. Disconnect all regulator plugs. Measure between each terminal and ground–readings below 1 megaohm indicate insulation failure. Cross-probe between terminals to detect internal shorting; normal harness should show infinity. Document every abnormal reading to pinpoint exact failure paths before component replacement.

Common Electrical Faults and Circuit Troubleshooting Techniques

Begin by disconnecting the battery’s negative terminal to prevent accidental shorts while probing circuits. Use a multimeter set to continuity mode to verify broken conductors–probe from the fuse box directly to the component’s connector. If no continuity exists, the harness has an open circuit.

Inspect connectors for corrosion or bent pins; even a single oxidized terminal can disrupt current flow. Apply contact cleaner and gently straighten pins with needle-nose pliers if deformation is visible. For stubborn corrosion, use a fiberglass pen to remove buildup without damaging the metal.

Trace short circuits by isolating each branch of the harness–start at the fuse block, disconnecting one terminal at a time while monitoring resistance. A sudden drop to near-zero ohms indicates a short to ground. Mark each segment with painter’s tape before separation to avoid confusion during reassembly.

Examine wiring harnesses for chafed insulation, particularly near sharp edges or moving components. Rubber sleeves called “grommets” often protect wires passing through sheet metal; if these fail, bare conductors can ground against the chassis. Reinforce damaged sections with heat-shrink tubing or loom tape.

Testing Voltage Drop Under Load

Connect the multimeter in parallel across suspected components while the system is active. A reading above 0.5V between the power source and load suggests excessive resistance–likely due to a loose connection or undersized conductor. Check crimp terminals; replace any that fail a pull test.

For intermittent faults, use a thermal camera or infrared thermometer to detect hot spots along the harness. Areas exceeding ambient temperature by 15°C or more may indicate a partial short or corroded splice. Replace the entire affected segment rather than splicing, as hidden damage often extends beyond visible points.

If a fuse blows repeatedly, insert a test lamp (not a meter) inline to confirm excessive current draw. Observe the lamp’s brightness–steady illumination suggests a dead short, while flickering may indicate a failing component. Disconnect loads sequentially until the fault disappears.

Document each step in a notebook, including connector pinouts and meter readings. This record speeds up future diagnostics by eliminating repeated checks. Label every wire with its circuit function to avoid misrouting during repairs–colored electrical tape or shrink labels work well.
