Fardriver E-Bike Controller Wiring Schematic and Connection Guide

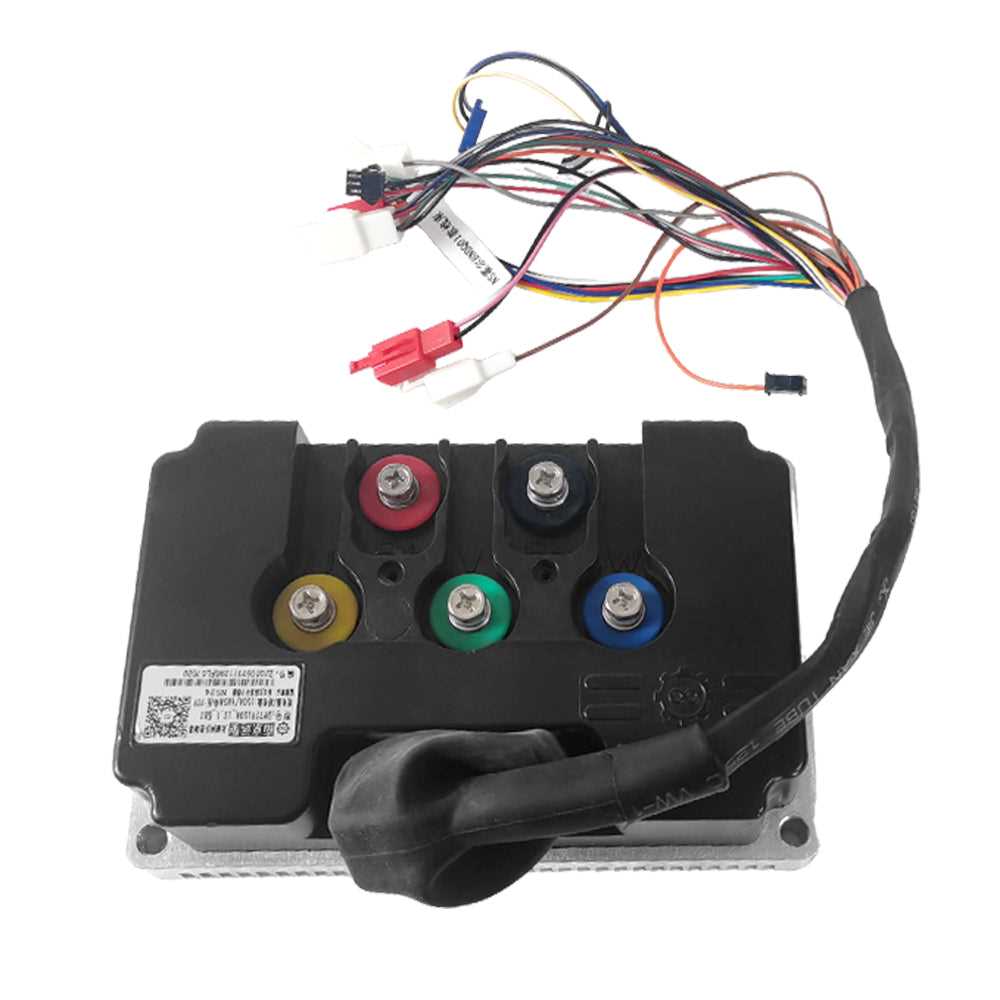

Start by identifying the main power input terminals–marked B+ and B––on the vehicle’s central processing unit before connecting any ancillary components. These primary cables handle currents up to 80A continuous, often requiring 6 AWG wire or thicker to prevent voltage drop under full load. Bypass generic wiring gauges; use tinned copper conductors with silicone insulation rated for 125°C if ambient temperatures exceed 40°C.

Next, isolate throttle and brake signal lines–typically 1–4V analog or PWM digital–from high-current pathways. A common error: routing these near motor phase wires or battery leads, inducing electromagnetic interference. Use shielded twisted pair cables for throttle feedback; terminate the shield exclusively at the processor end to avoid ground loops. Verify signal integrity with an oscilloscope at ≤50 mV ripple before final assembly.

For regenerative braking implementation, prioritize a dedicated braking resistor–10 Ω / 500W minimum–unless the processor includes internal dissipation. Connect this resistor directly between the regen output and negative bus, bypassing the main battery to prevent backflow. Ignore manufacturer defaults; configure regen intensity via firmware–20–30% duty cycle is optimal for 20-inch wheels, while 40–50% suits larger rims over 26 inches.

Phase wiring demands absolute accuracy: swap any two motor leads to reverse direction–never reconfigure software for this. For hall-effect sensors, ensure signals align with 120° electrical spacing; misalignment causes uneven torque delivery or sensorless mode failure. Test sensorless startup ramp parameters–20–30% initial torque for 500W systems, rising to 70% for 2000W+–adjusting in 5% increments until smooth acceleration is achieved.

Grounding strategy separates noise-sensitive components–microprocessor, sensors–from power grounds. Create a star-point ground at the negative battery terminal, routing all low-voltage returns directly to this point. Avoid daisy-chaining grounds; shared paths between the motor and controller induce common-mode noise, triggering erratic behavior. Use 8 AWG for shared returns, downgrading to 16 AWG only for isolated sensor circuits.

Pre-charge circuitry is non-negotiable for high-voltage setups over 60V. Incorporate a 100–200 Ω / 10W resistor in series with the main contactor, parallel to a 10kΩ bleed resistor across the bus capacitors. This limits inrush to , extending capacitor lifespan and preventing relay arcing. Omit this step only if the processor integrates soft-start functionality–verify via datasheet, not assumptions.

Post-assembly, validate every connection under half-load before full-power testing. Monitor phase currents with a hall-effect clamp meter–expect balance between legs for optimal efficiency. Document all adjustments; even minor firmware tweaks require re-testing phase alignment and regenerative braking calibration.

Key Connections for Electric Cycle Power Management Systems

Start by identifying the hall sensor leads–typically five wires: red (VCC), black (GND), and three signal outputs (yellow, green, blue). Connect these directly to the corresponding motor phase lines, ensuring correct sequence to avoid reverse rotation. Mismatched pairing causes erratic behavior or failure to start. Verify sensor continuity with a multimeter before finalizing; resistance should read between 100–500 ohms across signal wires. Incorrect readings indicate damaged sensors, requiring immediate replacement.

• Battery terminals: Use 6 AWG or thicker copper cables for main power inputs to minimize voltage drop. Standard configurations:
  1. 48V systems: Purple (+), Black (−).
  2. 60V/72V systems: Brown (+), Black (−).
• Phase connections: Heavy-gauge wire (4–5 AWG) for U, V, W outputs to motor. Overheating occurs if undersized, leading to melting insulation or controller damage. Match polarity strictly: U (yellow), V (green), W (blue).
• Throttle input: Red (5V), Black (GND), Signal (green/white). Linear potentiometer outputs 0.8–4.2V proportional to twist. Calibrate using manufacturer-defined voltage ranges to prevent overcurrent trips.

Isolate low-voltage (signal) and high-current paths using segregated harnesses. Route hall sensor cables perpendicular to power lines to avoid inductive noise. Twist signal wires at 10–15 turns per foot to cancel EMI. Apply ferrite beads to throttle and brake lines where they pass near motor leads or battery terminals. Ferrite suppression prevents erratic throttle response during acceleration.

For regenerative braking, confirm controller compatibility (typically models supporting “regen” or “energy recovery”). Connect brake levers to dedicated 1–4.5V input; high-level triggers regeneration. Adjust brake switch voltage thresholds via software settings (e.g., 3.3V for mild braking, 4.2V for aggressive energy return). Incorrect voltage causes either ineffective braking or violent deceleration. Test on a standalone battery setup before full integration.

1. Programming interface: Use a USB-to-serial adapter (CH340/CP2102) for firmware adjustments. Pinout:
2. RX (controller TX) → green;
3. TX (controller RX) → white;
4. GND → black.
5. Critical parameters to configure:
   • Current limit (set to 90% of battery’s continuous discharge rating).
   • Low-voltage cutoff (e.g., 3.0V/cell for Li-ion).
   • Motor pole pairs (count via hall sensor feedback during slow rotation).
   • Startup mode (sine wave for smooth torque, trapezoidal for efficiency).
6. After configuration, perform a load test at 30% throttle for 1 minute. Monitor controller heat sink temperature; sustained readings above 60°C indicate inadequate cooling or wiring faults.

Locating Critical Elements in Electric Drive System Harnesses

Begin by isolating the main power input leads–typically two thick cables (red for positive, black/blue for ground)–on the control unit’s terminal block. Verify gauge ratings against system voltage: 10–12 AWG for 48V setups, 8–10 AWG for 72V+. Label these immediately with heat-shrink tubing to prevent misconnections during reassembly. Next, trace the three-phase outputs: yellow, green, and blue wires exiting the module must match the motor’s phase sequence exactly–swap any two during bench testing if rotation direction is incorrect.

• Hall sensor wires (smaller 26–24 AWG, often red/black/yellow/blue/white): Connect these to the corresponding 5-pin header; failure here causes erratic throttle response or complete dropout. Test continuity between pins and ground with a multimeter set to 200Ω range–readings below 1Ω indicate shorted sensors.
• Throttle input (3-wire: +5V, signal, GND): The signal wire (usually green or purple) should yield 0.8–1.2V at rest and 3.8–4.2V at full throttle–values outside this range suggest faulty potentiometer or incompatible voltage divider. Replace if variance exceeds ±0.1V.
• Brake levers (two sets of micro-switches): Verify NC/NO contacts on both mechanical and e-brake switches with a 9V circuit tester–click should produce instant cutoff, otherwise recalibrate pull-up resistors.
• Display connectors: Match pinouts to the manual’s protocol (UART vs CAN) before powering–incorrect pairing bricks communication permanently.

Peel back protective sleeving on the harness to inspect MOSFET clusters–look for bulging capacitors, discolored solder pads, or charred traces around high-side drivers. Replace any 60V/15A N-channel devices showing leakage currents above 2mA. Ensure heat sink compound is sufficient (thermal conductance ≥1.2 W/mK) on TO-220 packages, as inadequate dissipation triggers over-temperature shutdowns within minutes of load.

Step-by-Step Connection Guide for Throttle and Motor

Locate the throttle signal wire–typically a thin, color-coded lead (often green or yellow)–and connect it directly to the corresponding input on the power management unit. Ensure the wire gauge matches the system’s current rating (18-22 AWG for standard e-drives). If the throttle includes a hall sensor, verify the voltage range (0.8-4.2V) aligns with the unit’s specifications; mismatches risk erratic acceleration or dead zones. Secure connections with solder and heat-shrink tubing to prevent oxidation, especially in high-vibration environments.

Attach the motor phase wires to the output terminals in the correct sequence: U (blue), V (green), W (yellow). Cross-referencing the order with the motor’s datasheet avoids reversed polarity, which can cause overheating or failure within minutes of operation. For brushless systems, confirm the phase resistance (0.1-0.5Ω) and inductance (100-500µH) with a multimeter–deviations indicate potential shorts or broken windings. Power on the system and monitor throttle response; a 1-2 second delay suggests insufficient capacitor support (add a 470µF/50V capacitor near the throttle input).

Integrating Hall Effect Sensors for Precise Electric Drive Regulation

Connect Hall sensor outputs directly to the designated signal inputs marked as HU, HV, and HW on the power stage board, ensuring shielded twisted pair cables with less than 50pF/m capacitance to minimize EMI interference. Use a 1kΩ series resistor on each signal line to prevent transient voltage spikes from damaging the sensor ICs, while maintaining signal integrity with a pull-up resistor of 4.7kΩ to 5V. Verify sensor alignment with the motor’s rotor at 120° electrical separation for brushless DC configurations; misalignment beyond ±5° will degrade commutation accuracy and increase torque ripple by up to 23%.

Hall Sensor Type	Supply Voltage (V)	Output Logic Level (V)	Max Response Time (μs)	Recommended Cable Gauge (AWG)
AH331	3.5–24	Open drain (pull-up required)	2	24
SS49E	4.5–10.5	Ratiometric (output scales with VCC)	3	26
DRV5053	2.5–5.5	Push-pull (no pull-up needed)	1.5	22

Ground sensor shields at a single point adjacent to the power stage’s signal ground to avoid ground loops; failure to do so introduces 50Hz–2kHz noise that manifests as inconsistent rotor position feedback. For sensorless fallback operation, map the sensor transitions to back-EMF zero crossing points during initial calibration at 30% rated speed, then validate with a scope–discrepancies exceeding 10µs indicate incorrect wiring polarity or phase misorder. Replace sensors showing hysteresis wider than 5mT under 1A load currents, as degraded performance skews speed regulation by up to 8%.
