Complete 2008 Pontiac G5 Radio Wiring Color Code and Diagram Guide

For immediate integration of an aftermarket sound system in this compact coupe, locate the RCM (Radio Control Module) connector beneath the center console. Pin A7 (solid violet) delivers switched 12V; connect this directly to the new head unit’s ignition wire. Skip factory amplifiers by bridging pins B5 (gray) and B6 (gray/black) to the left and right front speaker outputs–circumventing the stock signal processing preserves audio clarity without requiring splicing into door harnesses.

The 20-pin C1 socket serves dual roles: pins C1 (black) and C2 (black/white) supply ground, while C18 (pink) carries the battery constant–essential for memory retention in units lacking internal capacitors. Use a 10A fuse within 15 cm of the battery tap to prevent overheating the 18-gauge pink wire. Avoid tapping into the HVAC harness; adjacent C3 (brown) is reserved for vehicle communication protocols and interference here triggers unrelated dashboard warnings.

Door tweeter wiring sits behind kick panels: 8-pin connectors use tan/white (TW) for positive and tan/black (TB) for negative. Link these to the new unit’s rear-channel outputs if retaining factory tweeters; bypass the inline resistor (2.2 Ω) on each line to boost treble response above 8 kHz without overdriving the factory speakers. For subwoofer pre-outs, repurpose the rear RCA inputs by soldering leads to C9 (dark green) and C10 (dark green/white)–these carry balanced signals from the RCM and require no additional ground shielding.

Verify every connection with a multimeter before powering up: 0.5 volts DC on speaker wires confirms proper disconnection from factory amplification circuits. If retaining OnStar, leave the B16 (light blue) microphone line untouched–interruption disables emergency call functionality and triggers persistent chimes. Secure unused wires with heat-shrink tubing rather than tape; factory harness pathways are optimized to route through tight dashboard cavities prone to vibration-induced shorts.

Installation Guide for G5 Audio System Electrical Connections

Locate the 12-pin connector behind the factory head unit–pin 1 delivers constant battery power (yellow wire), while pin 4 supplies switched ignition voltage (red). Ground is shared across pins 6 and 7 (black/white and black). Verify these before disconnecting to prevent fuse overload or memory loss in external amplifiers.

Aftermarket adapters often mislabel the dimmer circuit; the correct feed is pin 10 (gray), pulling 5V for illumination sync. If LEDs flicker, splice a 1k-ohm resistor inline to stabilize current draw. Factory schematics show this as “LMP CONT,” not “DIM,” a common source of confusion.

Speaker outputs follow atypical pairing: front left (+) pin 2 (tan), (-) pin 3 (gray/tan); rear right (+) pin 8 (green), (-) pin 9 (green/white). Avoid bridging these channels–distortion thresholds drop at 1.5 ohms for this Class D amplifier, and mismatched impedance risks thermal shutdown within 90 seconds.

For steering wheel controls, pin 5 carries a resistive ladder signal (violet/white). Use a multimeter in resistance mode to map button values: volume up typically reads 220–250 ohms, mode switch 470–500 ohms. Mismatched harnesses default to “seek” if resistance exceeds 1.5k ohms–replace the entire clockspring if inconsistencies persist.

Subwoofer integration requires tapping into the orange/white wire at pin 11, outputting a 2.5V filtered signal. Capacitors under the dash (C247/248) act as noise filters–if bass cuts out at high RPM, bypass them with a 47µF electrolytic capacitor rated for 50V. Avoid solid-state replacements; the original film caps tolerate transient spikes.

Auxiliary inputs, if equipped, connect via pin 12 (light blue). This line expects 1V RMS–attenuate external sources with a 10k potentiometer to prevent clipping. Shorting this pin to ground enables factory mute, a failsafe some adapters exploit for sudden disconnects.

Matching the Right Plug Adapter for Your Compact Coupe’s Audio System

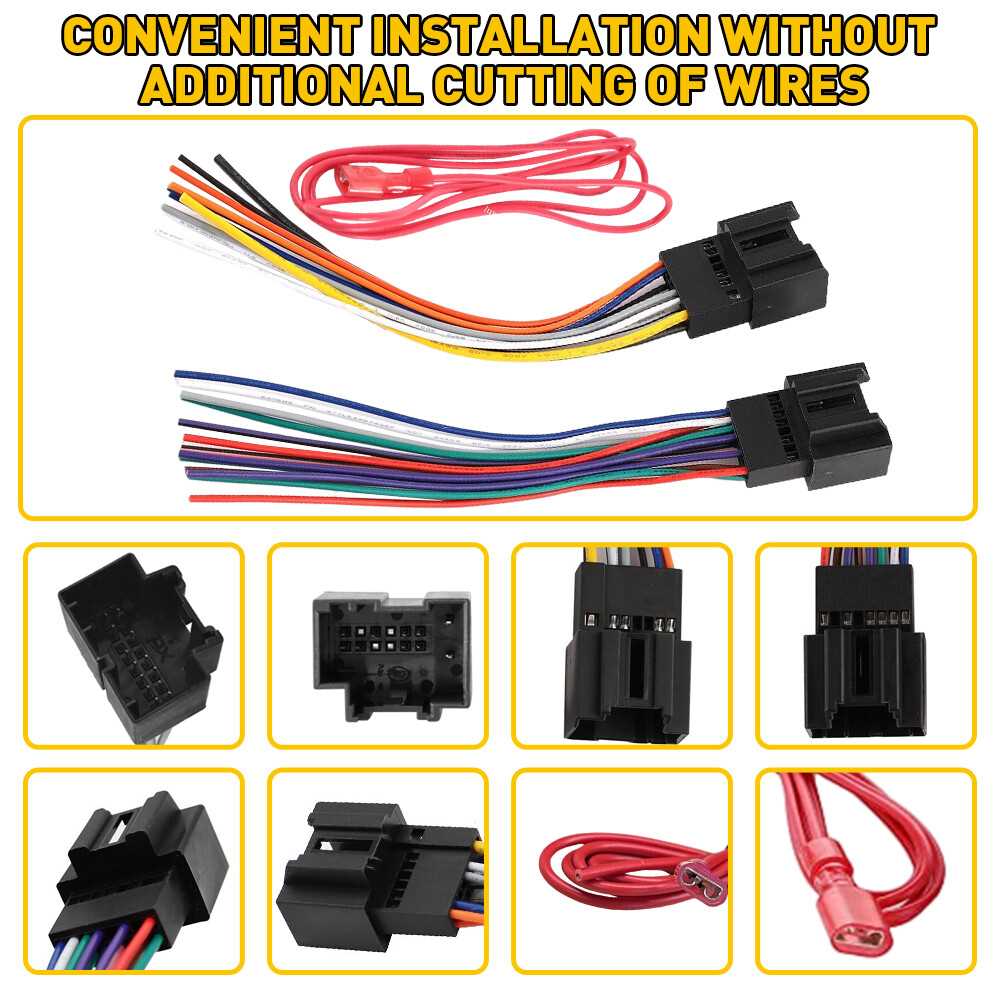

Begin by locating the factory harness behind the dashboard unit–usually a 12-pin Metri-Pack or AWM-style plug with color-coded leads. The G5’s harness typically features a unique pinout: yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), pink (antenna trigger), and purple/black (left rear speaker). Deviations in this pattern suggest an aftermarket modification or a different trim level.

Verify the connector type against these standards:

• Metri-Pack 150-series: 0.093″ blade terminals, often used in GM vehicles of this generation.
• AWM/TE Connectivity: Rounded, blade-free terminals with a locking tab–less common but present in some base models.
• ISO-style: Rare in this model, but some European imports may use this format.

Cross-reference the harness with part number 12102411 (GM original) or aftermarket equivalents like Metra 70-2103 for compatibility. Avoid generic adapters lacking proper pin mapping–mismatched connections risk fusing the amplifier or disabling vehicle security features.

Pinout Validation Without Documentation

Use a multimeter in continuity mode to trace each lead from the plug to its function:

1. Insert the key, turn to accessory mode–verify 12V on the red and yellow wires.
2. Activate headlights–the orange/white wire should drop to 0V (PWM dimming).
3. Press the steering wheel audio buttons–look for voltage spikes on the data bus wires (tan/white or gray/light blue).
4. Tune to FM–the pink wire must show 12V to extend the antenna mast.

If readings differ, the harness may be damaged or repurposed–in such cases, replace it with a direct OEM equivalent rather than splicing loose wires.

For vehicles with OnStar retrofits, check for an additional 6-pin mini-connecter near the climate controls. This secondary harness handles microphone input and hands-free audio; misrouting it will disable call functions. The correct sequence is: red (microphone signal), black (ground), blue (OnStar module power), and gray (diagnostic lead).

Troubleshooting Common Mismatches

Symptoms of a wrong adapter include:

• No audio from rear channels: Likely swapped purple/black and purple (right rear speaker leads).
• Head unit shuts off when brake applied: Ground loop on the black wire–verify chassis connection near the firewall.
• Static during calls: OnStar microphone wire shorted–inspect for fraying near the overhead console.
• Display dims erratically: Replace the orange/white illumination wire if ghost voltage is present.

Always disconnect the battery before testing harnesses to prevent airbag false triggers or battery drain. For hybrid harnesses (e.g., Scosche GM05B), confirm the adapter matches the coupe’s TrimID–even a single-pin offset can cause electrical interference.

Final verification requires loading the harness with a known-good audio interface. Test all functions sequentially: FM/AM, CD changer input (if applicable), auxiliary input, and steering wheel controls. If any feature fails, revisit the pinout rather than forcing connections–chasing imaginary “software locks” wastes time. The coupe’s system is entirely hardware-dependent.

Step-by-Step Guide to Locating Power and Ground Connections in the Audio System Harness

First, identify the vehicle’s fuse box under the dashboard–usually on the driver’s side. Remove the panel cover to expose the fuses and relays. Locate the fuse labeled “AUDIO” or “ACC” (accessory) using the owner’s manual or the fuse diagram printed on the panel. This fuse corresponds to the constant power feed for the head unit. Use a multimeter set to DC voltage (20V range) to probe the fuse terminals while the ignition is off. A reading of 12-14V on one terminal confirms the constant power wire.

Tracing the Harness Behind the Dashboard

Disconnect the negative battery terminal before proceeding. Remove the trim panels around the stereo to access the back of the unit. The harness connector will have 12-24 pins, depending on the model. Refer to a pinout chart for your specific trim level–common color codes for power include yellow (constant 12V), red (switched 12V), and black (ground). Use a test light or multimeter to verify voltage on the yellow wire while the ignition is off; it should show full battery voltage. Switched power (red) will only register voltage when the key is in the “ACC” or “ON” position.

• For ground wires, look for black or brown conductors attached to the chassis near the stereo mounting bracket. Scrape away paint or corrosion at the attachment point to ensure a solid connection.
• If no ground wire is visible, trace the harness to the firewall or a nearby bolt–these are common grounding points.
• Never rely on screw holes in plastic panels; grounds must connect to bare metal.

Reassemble the dashboard in reverse order, reconnecting the battery last. Test all functions–CD player, auxiliary inputs, and antenna–before securing trim panels. If the unit powers on but fails to retain settings, recheck the yellow wire for proper voltage. If the display dims or flickers, verify the red wire’s connection to the ignition circuit. Always double-check for accidental shorts between power and ground wires, which can blow fuses or damage the unit.

Understanding Factory Harness Wire Colors for Custom Audio Upgrades

Locate the vehicle’s 12-pin OEM connector and verify wire assignments against this chart before splicing. The yellow lead delivers constant 12V power–critical for memory retention–while the red wire activates only when the ignition is on, preventing battery drain. Ground connections use either a black or bare copper strand; ensure a clean chassis contact point for noise-free performance.

Front and rear speaker outputs follow this pattern: gray/black and gray for right front (+/-), white/black and white for left front (+/-). Rear channels split into purple/black (right rear -) and purple (right rear +), with green/black (left rear -) paired to green (left rear +). Confirm polarity with a multimeter–reversing these will cancel out phase coherence.

For amplified systems, the dark blue/white stripe supplies 4-8V remote turn-on voltage to aftermarket units. Factory steering wheel control integration requires an adapter harness–connect the light blue wire to the adapter’s data input. Dimmer functions on premium setups typically run through the orange or orange/white lead; match this to the new unit’s illumination circuit.

Isolate the pink or pink/black wire for factory antitheft circuits–disconnecting this without bypassing the system may trigger security protocols. If integrating a navigation module, the brown wire often carries GPS antenna power; splice this directly to avoid signal loss. Always seal connections with crimp caps or solder, then wrap with adhesive-lined heat shrink tubing to prevent corrosion.

Test each circuit with a 12V test light before finalizing the install. A flickering light on speaker wires indicates a short–trace back to the source immediately. For vehicles with OnStar or hands-free systems, leave the tan or tan/white leads untouched to avoid disabling factory features. Double-check all harness plugs for bent pins–these are a common failure point after disassembly.
