Complete Guide to 7 Way Trailer Plug Wiring Connections
Begin by verifying the pinout configuration matches industry standard SAE J560. Identify the ground (typically pin W/Brown) as the base reference–ensure it connects to a clean, corrosion-free chassis point. Avoid using painted surfaces; bare metal contact prevents signal interference.
For the power circuit (pin B/Black), regulate voltage to 12V ±0.5V to prevent damage to brake controllers or lighting systems. Use a fuse rated at 30A, positioned within 18 inches of the battery to comply with safety standards. Measure current draw under load; exceeding 25A suggests a short or incorrectly sized wire.
Test the left-turn/brake (pin Y/Yellow) and right-turn/brake (pin G/Green) circuits separately. Apply a 12V pulse and confirm LED brightness is consistent–flickering indicates loose connections or faulty grounds. Replace any bulb with a draw exceeding 2.1A; standard trailer lights operate at 2.0A ±0.1A.
Check the tail/running lights (pin Br/Brown) with a multimeter set to continuity mode. Voltage should drop no more than 0.3V across the connector under load. If resistance exceeds 1Ω, re-strip connectors and apply dielectric grease to prevent oxidation.
For auxiliary functions–reverse lights (pin R/Red) or electric brakes (pin L/Blue)–use relay-triggered circuits to handle loads above 10A. Route wires away from high-heat sources; maintain a minimum 2-inch clearance from exhaust components. Secure harnesses with zip ties every 12 inches to prevent chafing against the frame.
Document each connection with a labeled diagram. Use heat-shrink tubing with adhesive lining (not electrical tape) for waterproofing–test submersibility in a 5% salt solution for 3 minutes. Failure rates double with improper sealing.
Trailer Electrical Connection: Full Hands-On Reference
Begin by verifying the connector type–SAE J560 (round) or RV blade (flat)–before handling any tools. Mismatched connectors cause immediate faults. Use a multimeter set to continuity mode to test each pin against the standard layout: ground (white), tail lamps (brown), left/right turn signals (yellow/green), electric brakes (blue), 12V auxiliary (black), and reverse lights (purple). Skipping this step risks damaging the vehicle’s computer module.
Strip 6mm of insulation from each wire using a dedicated stripping tool–plier cuts corrupt conductor strands. Crimp terminals must match the wire gauge (typically 14-12 AWG for braking circuits). Apply dielectric grease to the contacts before assembly to prevent oxidation; neglecting this reduces conductivity by 20% within 12 months. Secure connections with heat-shrink tubing, not electrical tape–vibration loosens tape in under 500 miles.
Test the completed harness with a dedicated trailer tester, not just visual inspection. Check voltage at the auxiliary pin (12.5V minimum) while the engine runs; lower readings indicate alternator or battery issues. Activate turn signals, brake lights, and reverse lamps individually–flickering signals point to loose grounds or corroded connectors. If the vehicle has a brake controller, ensure it’s calibrated to the trailer’s brake type (drum vs. disc).
Standard Pin Assignments and Voltage Ranges
| Pin | Function | Wire Color | Voltage (Key On) | Max Current Draw |
|---|---|---|---|---|
| 1 | Ground | White | 0V | 20A |
| 2 | Auxiliary Power | Black | 12.5–14.2V | 30A (fused) |
| 3 | Electric Brakes | Blue | 12V pulsed | 10A |
| 4 | Left Turn Signal | Yellow | 12V (flashing) | 5A |
| 5 | Right Turn Signal | Green | 12V (flashing) | 5A |
| 6 | Tail/Marker Lamps | Brown | 12V (steady) | 5A |
| 7 | Reverse Lamps | Purple | 12V (steady) | 3A |
Route the cable harness away from sharp edges and moving parts–chafing destroys insulation within 2,000 miles. Secure with nylon zip ties every 12 inches; plastic clamps crush wires under vibration. If extending the harness, use soldered joints (not twist-and-tape) and marine-grade shrink tubing for moisture resistance. Avoid merging circuits–for example, don’t combine auxiliary power with brake lights, as this overloads the relay.
For trailers with surge brakes, the blue wire must connect to a brake controller output; in its absence, the wire should terminate in a weatherproof cap to prevent shorts. Double-check the ground path–attach the white wire directly to the trailer frame, not painted surfaces, as paint acts as an insulator. If lights dim when brakes engage, clean the ground connection with a wire brush and reattach; corrosion increases resistance by 300%.
Troubleshooting Faults
If the left turn signal activates the trailer’s right side, swap the yellow and green wires at the vehicle-side connector. Flickering lights often resolve by replacing the brown wire’s connection point on the trailer chassis–but first test for voltage drops along the entire circuit. Brake controllers require a minimum of 8V to engage; if brakes fail, measure voltage at the trailer-side plug’s blue pin while activating the controller.

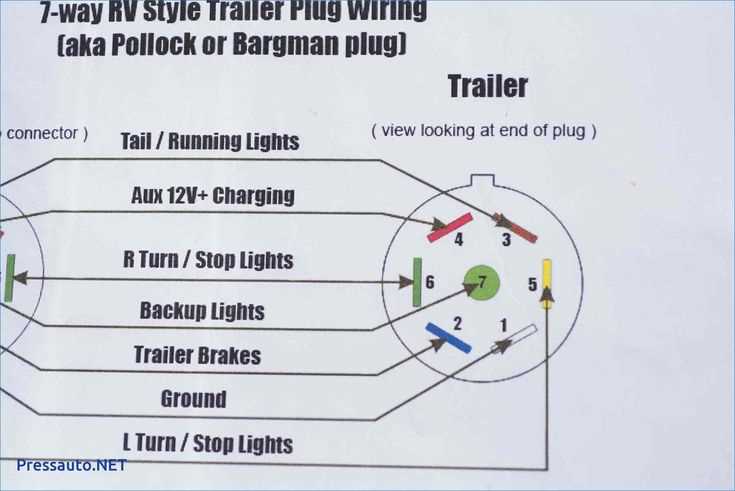

Pin Configuration in a Standard Trailer Connector Explained

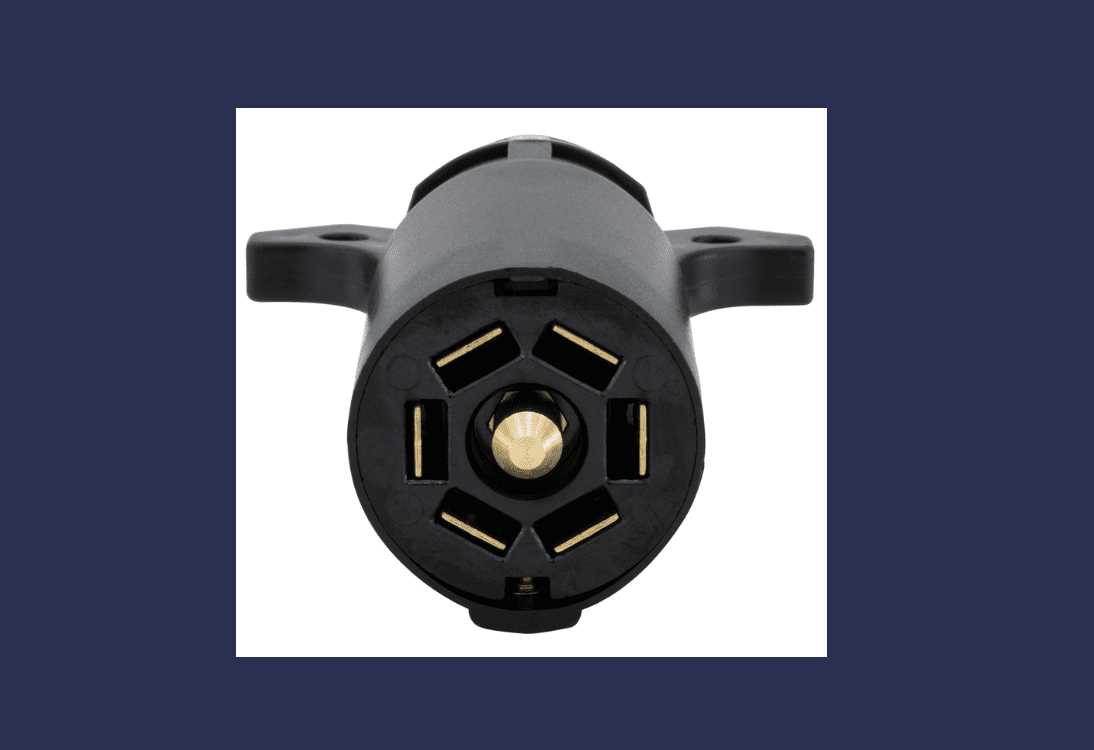

Always verify pin assignments before connecting a trailer plug–miswired circuits risk damaging components or causing safety hazards. The standard 7-pin round connector follows a specific layout: the top center pin (often labeled 1) carries the primary brake signal, while the adjacent pins (2 and 4) handle left and right turn/brake lights, respectively. Ground connects to the bottom center (pin 3), a critical path that prevents electrical faults–corrosion here can disrupt the entire system. Pins 5 (auxiliary power) and 6 (reverse lights) vary by manufacturer; consult the trailer’s manual for exact functions to avoid mismatches.
Troubleshooting Pin-Specific Issues
- Blown fuses on pins 1 or 7 (12V power) often indicate a short–check for exposed wires near the trailer frame.
- Dim lights on pins 2 or 4 suggest a weak ground (pin 3); clean the connection with a wire brush and re-secure.
- Intermittent signals on pin 6 (reverse) may stem from a faulty switch or incorrect relay wiring–test with a multimeter.
- Pin 5 (aux) failures commonly result from underrated cables; upgrade to 12-gauge wire for high-draw accessories.
For aftermarket adapters, match pin functions using this reference: the flat connector’s 5-pin layout doesn’t align directly–pin 1 remains brake, but grounds shift to pin 4, and power splits between two contacts. Use a labeled adapter or create a custom jumper harness if converting between plug types. Label each wire at both ends during installation to simplify future repairs; color codes (SAE J2863) standardize only basic circuits–white (ground), brown (tail/marker), and green/yellow (turn/brake)–but deviations exist in European configurations.
Step-by-Step Connection Guide for Towing Systems
Begin by matching the pinout sequences of the vehicle’s plug to the trailer’s socket. Most 24V and 12V configurations follow either SAE J560 (flat blade) or ISO 1185 (round pin) standards–verify the standard before proceeding. Use a multimeter to confirm voltage at each contact: pin 1 (yellow) carries left turn/brake, pin 2 (blue) is electric brake output, pin 3 (white) serves as ground (critical for signal integrity), pin 4 (brown) powers tail lights, pin 5 (green) handles right turn/brake, pin 6 (red) supplies auxiliary power, and pin 7 (black) is typically reserved for reverse lights or auxiliary circuits. Label each wire at both ends to prevent cross-connections.
Preparation and Safety Checks
- Disconnect the vehicle battery to eliminate short-circuit risks during handling.
- Strip wire ends to 6–8mm of exposed copper; twist strands tightly to avoid fraying.
- Use crimp connectors (butt, ring, or spade) rated for 16–14 AWG–avoid solder-only joints in high-vibration towing environments.
- Secure connections with heat-shrink tubing (minimum 2:1 shrink ratio) to seal against moisture and road debris.
- Test each circuit with a 12V/24V test light before final assembly–start with ground (pin 3), then verify all lighting functions in sequence.
For adapters (e.g., 7-pin to 4-pin), use a relay if converting high-current circuits like electric brakes. Route wires away from sharp edges, exhaust components, and suspension parts–secure with nylon zip ties every 300mm. Apply dielectric grease to plug contacts to prevent corrosion, and wrap the entire assembly with adhesive-lined vinyl tape for UV resistance. Reconnect the battery, then perform a functional test: cycle turn signals, brakes, and lights for 30 seconds each to confirm no voltage drops. Document your configuration with photos for future troubleshooting.
Standard Connector Color Codes and Their Electrical Roles
Always verify color assignments against the manufacturer’s specifications before making connections–industry standards vary by region and vehicle make. White wires typically carry ground signals (return paths) in most configurations, but in some North American designs, they may instead handle reverse lights or auxiliary circuits. Black strands usually denote primary ground connections; however, in heavy-duty trailers or European models, they can act as power feeds for brake controllers or charging lines.
Brown cables consistently deliver running lights–tail, side markers, and license plate illumination–across nearly all configurations. Yellow wires manage left-hand turn and brake functions in standard setups, while green wires control the same functions on the right side. Deviations occur in vehicles with multiplexed systems, where orange or pink strands may replace green for right-hand signals while retaining identical functional roles.
Blue wires activate electric brakes or auxiliary outputs like reverse-locks on trailers equipped with surge actuators. Red strands serve as the main +12V power supply for all lighting and accessory circuits, but in certain import models, they switch roles with purple wires to handle backup lights or alarm feeds. Gray wires, when present, often supply power to fifth-wheel brake controllers or separate charging circuits, particularly in commercial trailers.
Identify hybrid systems by checking for striped or dual-tone wires–red/white often indicates a fused power tap for heated mirrors or stability control modules, while blue/white may denote a dedicated brake controller feed. Purple wires, rarely used in basic layouts, frequently manage backup light circuits or auxiliary battery charging in luxury RVs. Always probe with a multimeter: voltage should read +12V on red, blue, and purple strands when the ignition or specific functions are engaged.
Avoid assuming uniformity–Asian market connectors frequently invert white and black functions, using black for main power and white for ground. European heavy trailers may employ gray for brake signals and black for running lights. Label each strand at both ends during disassembly to prevent miswiring during reattachment, especially if adapting aftermarket controllers or LED upgrades.
For diagnostic purposes, disconnect the power source and test continuity between color-coded strands and their designated pins: ground wires (white/black) should show
