Complete Wiring Guide for 2009 Honda Fit Car Stereo System Installation
Installing or upgrading your vehicle’s entertainment setup begins with precise electrical mappings. For this model lineup, follow the factory-standard 12-pin harness configuration. The aftermarket head unit’s power lead connects to the yellow wire (constant 12V), while the red wire (accessory/switched 12V) handles ignition-controlled power. Ground the black wire to the chassis for stable operation. Verify each connection with a multimeter–12.6V on yellow confirms uninterrupted power, while 0.1 ohms or less on ground prevents signal noise.
Speaker outputs follow a four-wire, dual-polarity layout. Front left (+) taps into the light green/white stripe, front left (-) uses light green/black stripe. Front right (+) pairs with gray/white stripe, while its negative (-) counterpart is gray/black stripe. Rear channels mirror this pattern: left (+) blue/white stripe, left (-) blue/black stripe, right (+) purple/white stripe, and right (-) purple/black stripe. Cross-check resistance–ideal readings fall between 2-8 ohms per speaker. Mismatched impedance risks amplifier damage.
Amplifier integration requires tapping into the blue/white remote turn-on wire (located at pin 8 of the 20-pin harness). For subwoofer setups, splice the purple and green RCA outputs from the head unit’s rear panel into a line-level converter. Ensure all amplifier inputs align with -10dB preamp levels–factory outputs often hover between 2-4V. Secure connections with soldered joints and heat-shrink tubing to prevent oxidation. Test functionality incrementally: power on, verify lights, then audio. Distortion or absence of sound signals a reversed polarity or faulty ground–re-examine immediately.
For steering wheel control retention, locate the white/black data bus wire (pin 3 of the 16-pin connector) and pair it with a compatible interface module. Confirm compatibility with the model’s CAN bus protocol–aftermarket adapters often list iDatalink Maestro or Metra ASWC-1 as validated options. Program functions via the module’s software, mapping preset buttons to volume, track skip, and mode selection. Failure to sync may trigger dashboard error codes–clear these via an OBD-II scanner if persistent.
Wiring Guide for the 2009 Compact Hatchback Audio System
Locate the factory harness behind the dash panel on the driver’s side. The primary connector features 14 pins in two rows: the upper row contains power (yellow, 12V constant), ignition (red, 12V switched), ground (black), and illumination (orange) wires. The lower row includes speaker outputs – front left (gray/white), front right (green/white), rear left (brown/white), and rear right (purple/white). Verify each wire with a multimeter before splicing to avoid damaging the vehicle’s electrical network.
Aftermarket units require an adapter harness like Metra 70-1721. Match the color codes precisely: yellow to yellow, red to red, black to black. Speaker wires follow the same pattern, ensuring polarity remains consistent (positive to positive, negative to negative). Incorrect pairing can result in phase cancellation, distorting sound quality. Use crimp connectors or solder joints instead of twist-and-tape methods for reliable, long-term conductivity.
Anticipate additional wires in the harness. The light blue/white wire controls the power antenna or amplifier trigger, while the pink wire may activate a factory subwoofer if equipped. Consult the owner’s manual or a repair database like Mitchell1 to confirm hidden functions. Isolate unused wires with electrical tape to prevent short circuits rather than cutting them, preserving the vehicle’s original wiring for future diagnostics.
Test the installation without mounting the head unit first. Power on the ignition and check for continuity between the ground and each speaker wire using a 9V battery. A popping sound confirms proper connection. Secure all wiring away from moving components like the steering column and pedals, using zip ties every 15 cm. Route wires along existing cable channels to avoid interference with HVAC ducts or airbag sensors.
Finding the Original Audio System Wiring Links Behind the Dashboard
Begin by removing the center vents to access the screws securing the front panel. Two 10mm bolts hide behind the lower vent assembly–use a magnetic screwdriver to prevent losing them in the dash cavity. Once detached, gently pry the climate control trim away from the mounting tabs using a plastic trim tool, revealing a narrow cavity where the factory connectors reside.
The main harness plugs sit directly behind the climate control unit’s mounting bracket, stacked horizontally. Identify the uppermost 12-pin connector (white in most cases) responsible for power and speaker outputs, followed by a smaller 8-pin black plug housing illumination and accessory feeds. Label each connection with masking tape before disconnecting to avoid cross-wiring during reinstallation.
For models with integrated navigation or premium audio packages, a third 14-pin blue connector may appear below the primary plugs–this carries data signals and amplified outputs. Exercise caution when handling: the locking tabs are fragile and can break if forced. Rotate the release lever downward while applying steady outward pressure to disengage without damaging the housing.
Slide a thin flashlight along the left side of the cavity to locate the secondary ground wire, often secured with a 10mm bolt near the firewall junction. This point is prone to corrosion; inspect the ring terminal and clean with a wire brush if signs of oxidation exist. Reattach using dielectric grease to prevent future buildup.
Reassembly demands precise alignment of the dashboard trim clips before applying final pressure. Misalignment risks breaking the tension snaps or leaving gaps. Confirm all connectors snap audibly back into place, then test all functions–illumination, climate controls, and audio–before tightening screws to manufacturer torque specifications (8-10 in-lbs).

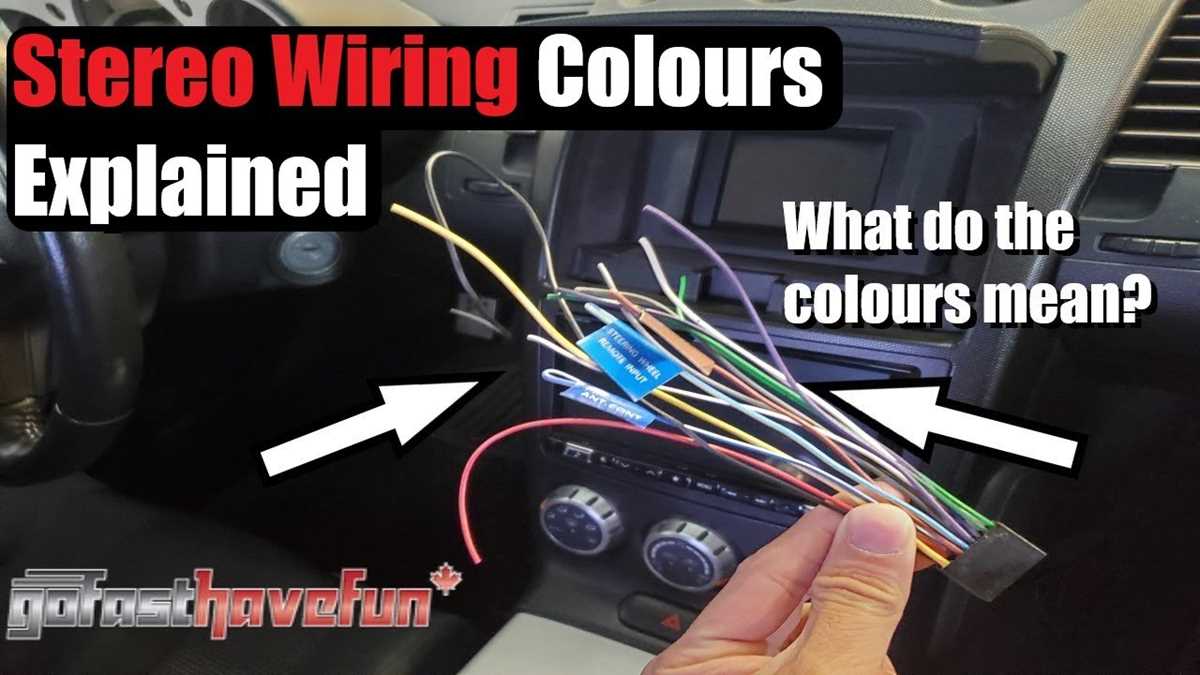

Pinpointing Power, Ground, and Speaker Cable Colors for Custom Audio Setups
Begin by locating the constant 12V (memory) lead, typically a yellow wire in most vehicle harnesses. This provides uninterrupted voltage to the head unit’s memory functions, even when the ignition is off. If the system loses presets after shutdown, verify this connection first–no fuse should interrupt it directly at the battery.
Next, identify the switched power (accessory) wire, usually red in factory configurations. This cable delivers voltage only when the ignition is in the “ACC” or “ON” position. Test with a multimeter: readings should drop to 0V when the key is removed. A common mistake involves confusing this with the constant power line, leading to premature battery drain.
Ground connections demand bare copper or black wires, often thicker than signal cables. Confirm continuity to the chassis using a continuity tester–resistance above 0.5 ohms indicates a poor connection. For vehicles with aluminum or coated panels, scrape paint to expose bare metal before securing the ground bolt.
| Wire Function | Common Color Codes | Verification Method |
|---|---|---|
| Constant Power (Memory) | Yellow, Orange (striped) | Multimeter: 12V with key off |
| Switched Power (Accessory) | Red, Red/Yellow | Multimeter: 12V only with key on |
| Ground | Black, Brown, Black/White | Continuity test to chassis |
| Front Left (+) | Gray, Gray/Black | Audible tone test |
| Front Right (+) | White, White/Black | Audible tone test |
Speaker cables follow a polarity-sensitive pattern: positive leads (solid colors) and negative leads (striped or black-traced). For example, front left speakers often use gray (positive) and gray/black (negative), while rear right speakers may use purple and purple/black. Reversing polarity causes phase cancellation, muting bass frequencies.
Use a test meter with a tone generator or a 9V battery to confirm speaker wires. Connect briefly–speakers should emit a clicking sound. Never splice into amplifier remote turn-on wires (typically blue/white) unless integrating an external amplifier; these carry a low-current signal, not power.
Avoid relying solely on color standards–manufacturers occasionally deviate. Cross-reference with a factory service manual or an online harness decoder tool. For instance, some compact models use light green for rear left positive instead of purple. Label each wire immediately after identification to prevent mix-ups during installation.
Secure all connections with solder and heat shrink tubing for longevity. Crimp connectors introduce resistance over time, degrading signal quality. For aluminum wiring, use oxidation inhibitor paste to prevent corrosion. Route cables away from high-vibration areas and sharp edges to prevent chafing.
Troubleshooting Mismatched Wires
If colors don’t match documented standards, probe the harness with a multimeter while playing audio. Speaker wires will show AC voltage (0.5–10V) when music plays; accessory wires will show DC voltage (12V). Ignore any wires showing less than 0.1V AC–these may be unused data leads or illumination circuits. For modified factory systems, check for aftermarket adapters spliced into the harness, as these often repurpose original colors.
Step-by-Step Guide to Testing Electrical Connections with a Multimeter Before Modification
Set the multimeter to DC voltage (20V range) and probe the harness pins while the ignition is on. Voltage between power sources (constant 12V, ignition-switched 12V, and accessory) and ground should read 11.5–14.5V. A deviation below 10V indicates resistance, corrosion, or a faulty relay–replace the fuse first. If voltage is absent, trace the circuit upstream to the fuse box, testing at each junction. Use the continuity setting to confirm ground integrity; a reading above 0.5 ohms signals a poor connection needing re-crimping or soldering. For speaker outputs, switch the multimeter to AC voltage (2V range) and play a 1kHz test tone–expect 0.5–2V RMS per channel; readings below 0.3V suggest a blown coil or incorrect amplifier settings.
Key Test Points
- Constant power lead: Verify voltage with ignition off.
- Illumination wire: Confirm voltage varies with dimmer control.
- Mute/parking brake wire: Should toggle between 0V and 12V when engaged.
- Data bus: Use a scan tool to check CAN signals–multimeter alone won’t suffice.
Strip 5mm of insulation from the wire, attach the multimeter probe directly to the copper strand to avoid false readings from oxidized terminals. For shielded cables, test the inner conductor and shield separately against chassis ground. Label every wire with heat-shrink tubing or colored tape immediately after testing to prevent confusion during installation. If splicing, use a ratcheting crimper for non-insulated terminals and apply dielectric grease to connectors exposed to moisture.
