Ford F150 2010 Backup Camera Wiring Guide and Installation Steps
For a seamless install, locate the reverse signal wire at the tail light harness–it’s the purple/violet (+12V) cable that activates when shifting into reverse. Splice this directly into the monitor’s power input (typically labeled “REV” or “Trigger”) using a waterproof crimp connector or solder joint. Avoid tapping the brake light circuit; it may cause false triggers or voltage drop.
Next, identify the ground connection at the truck’s chassis–preferably a bare metal point near the license plate bracket. Use an 18-gauge wire with a ring terminal secured under a bolt for maximum conductivity. Connect this to both the camera’s ground and the display’s ground to prevent interference or flickering images.
The video feed wire (usually yellow or composite RCA) carries the signal from the imaging sensor to the screen. Route it away from ignition coils, alternators, or fuel pumps–these components emit electromagnetic noise that distorts the picture. Shielded coaxial cable is ideal, but if unavailable, twist the video wire with its ground return to minimize static.
For the display unit, connect the red (+12V) wire to a fused ignition source (e.g., fuse box or switched accessory circuit) to ensure the screen powers on only with the vehicle. Use a fuse tap rated for 5A or less to prevent electrical fires. Verify polarity with a multimeter before finalizing connections.
Test the setup before sealing any panels. Shift into reverse–if the display shows delayed activation or no image, recheck the reverse signal splice. Flickering often indicates a weak ground; relocate it to a cleaner chassis point. For persistent issues, inject a 12V test signal into the monitor’s trigger wire to isolate whether the problem lies in the camera or vehicle wiring.
How to Connect a Rear Vision System in Your Pickup Truck

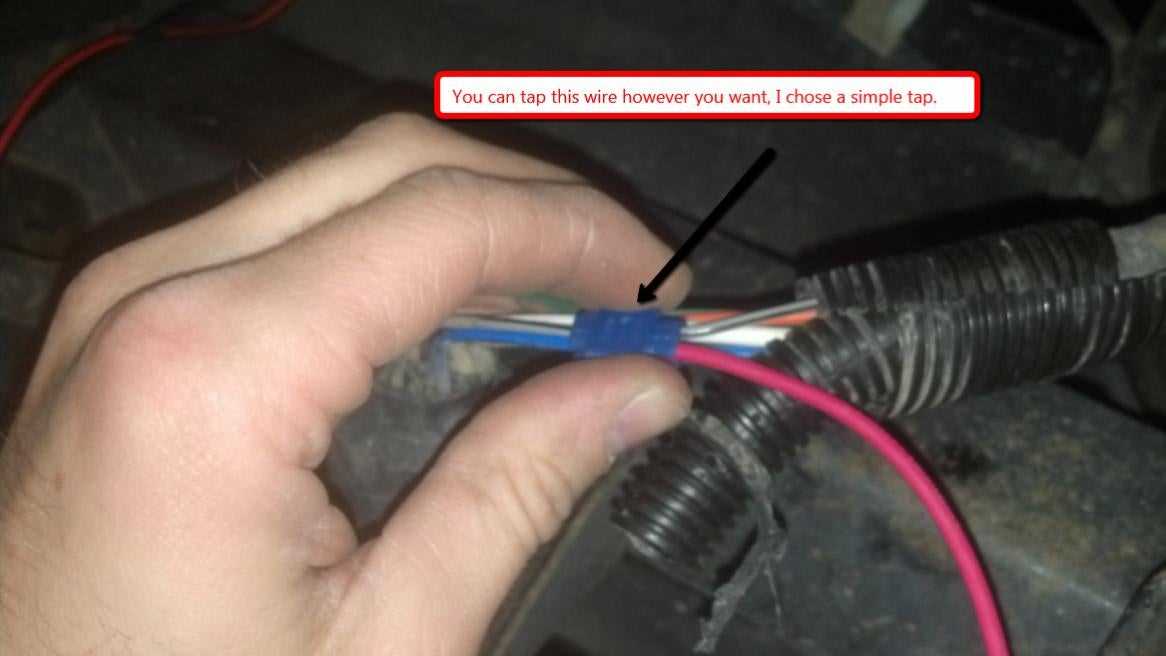

Locate the reverse signal wire behind the tailgate harness–it’s a violet/white tracer wire in the 8-pin connector labeled C1059. Tap this wire with a T-connector to feed power exclusively when the transmission shifts into reverse; solder and seal with adhesive-lined heat shrink to prevent corrosion. The ground reference should terminate at the nearest factory chassis stud, generally within 12 inches of the camera mount.
The coaxial feed from the lens to the display module runs inside a shielded M13 cable loom that snakes alongside the headliner conduit. Cut the factory loom at the roof rail junction and splice in a 1.5-meter RG-59 extension using crimp-free F-connectors; compress connectors with a ratcheting tool calibrated to 25 lb-in torque. Avoid kinking the cable–bends sharper than 90° introduce impedance spikes visible as horizontal banding on the monitor.
Most aftermarket video processors accept composite NTSC signals at 1 Vpp, so confirm the lens delivers within ±0.3 V tolerance. If the image flickers at dusk, bypass the factory dimmer circuit by connecting the camera’s power lead directly to the violet/white wire; insert a 5 A blade fuse inline to protect the 300 mA circuit from overload.
- Tool list: wire strippers (AWG 20-18), crimping tool (non-insulated terminals), digital multimeter (min 0.1 Ω resolution), heat gun.
- Colors: violet/white (reverse signal), black/yellow (chassis ground), yellow (video +), black (video ground), brown (illumination).
- Torque specs: lens mount bolts 8 Nm, chassis studs 15 Nm.
Common Failure Points & Fixes
If the screen displays static during reverse, measure voltage between the yellow center conductor and chassis ground–acceptable range is 0.7-1.2 Vdc. Readings below 0.7 V indicate a fractured coaxial shield; replace the entire RG-59 segment with Belden 9116A to restore signal integrity. For intermittent on-off cycles, inspect the T-connector on the violet/white wire; corrosion here creates a 500 Ω series resistance that trips the display’s auto-sense circuit.
- Disconnect battery negative terminal before probing any circuit.
- Re-seal splices with dielectric grease and adhesive heat shrink rated 90 °C.
- Calibrate the monitor’s brightness on a clear day with the headlights off; factory default is 7 cd/m².
Finding the OEM Electrical Connections for the Rear View Sensor Setup
Trace the main power conduit beneath the truck’s rear fascia–specifically behind the left tail lamp assembly–where the factory multi-pin connector resides. Disconnect the tail lamp’s electrical plug first to expose the bundled harness, which includes a violet-striped lead (signal) and a black ground wire; these terminate at the vehicle’s onboard multi-function module, often secured with a single T-20 Torx screw near the spare tire well. Use a non-contact voltage tester to confirm the violet wire carries a 12V reverse trigger pulse when shifting into parking sensor activation mode.
Key Anchor Points for Access
Remove the rear bulkhead’s trim panel by releasing its hidden clips with a trim removal tool; the primary harness routes adjacent to the vehicle’s chassis control unit, visible once the panel drops. Label each wire with adhesive markers before probing: the violet signal cable typically pairs with a lighter-colored return line (often gray or white) that completes the circuit to the display interface. Avoid force when separating connectors–most OEM plugs release with a lateral squeeze on their integrated locking tabs.
Step-by-Step Guide to Identifying Wire Colors and Connections
Locate the vehicle’s reverse light circuit first–trace the harness from the tail lamp assembly to the primary connector behind the trim panel. Use a multimeter set to DC voltage: probe the suspected feed wire while an assistant engages the transmission in reverse. A reading of 12V confirms the correct circuit; note the color (often a solid purple or purple stripe with white, but verify against manufacturer specs for regional variations). For the ground, follow the metal chassis attachment point near the device’s mounting bracket–test continuity between the suspected ground wire and bare metal.
| Wire Function | Typical Color Codes | Verification Method |
|---|---|---|
| Power Feed | Purple/LT GRN stripe, Purple/WH stripe | 12V when reverse engaged |
| Ground | Black, Black/WH stripe | Continuity to chassis |
| Video Signal | Yellow/RD stripe, Coaxial (outer shield) | Oscilloscope or video tester |
| Illumination | LT BLU/RED stripe, ORG/DK GRN stripe | 12V when parking lights active |
Strip 3mm of insulation from each wire using precision strippers; avoid nicking copper strands. Crimp connectors should match wire gauge (typically 18-22 AWG for signal, 14-16 AWG for power/ground). For coax, trim shield braid evenly and fold back over the jacket–ensure the center conductor extends 2mm past the dielectric. Solder joints must be smooth and free of flux residue; heat-shrink tubing should overlap by at least 5mm. Test each connection before securing harnesses with loom or spiral wrap, avoiding sharp edges or moving components. Label all splices with adhesive markers matching the function and wire color for future reference.
Integrating a Retrofit Rear View System with Factory Harnesses
Locate the reverse light power lead on the vehicle’s tail light assembly–typically a 12V pink or purple wire with a 2-3 amp fuse rating. Verify voltage with a multimeter while shifting into reverse to confirm signal consistency. Interrupt this circuit by splicing a 22-gauge pigtail adapter with waterproof butt connectors; attach the adapter’s male end to the camera’s power input marked “+12V REVERSE.”

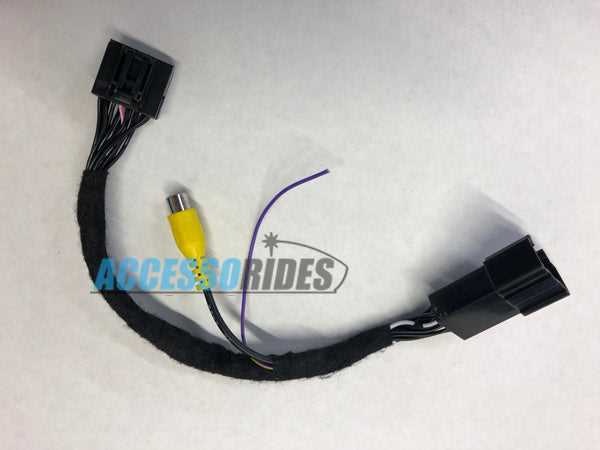

For video transmission, identify the factory radio’s composite cable–usually bundled with the antenna lead, distinguished by a single RCA-style yellow connector. If absent, procure a wiring harness extension (part #822-9611 for most late-model infotainment setups) to avoid cutting OEM cables. Route the camera’s RCA cable through the headliner’s rear edge, securing it with plastic zip ties every 12 inches to prevent sagging near moving components like the liftgate hinge.
Grounding requires a clean, bare-metal point near the camera’s mount. Sand the contact area to remove paint or corrosion, then bolt the camera’s black (-) lead to the chassis using a #10 star washer and zinc-plated screw. Avoid grounding near electromagnetic interference sources (ABS modules, fuel pump housings) to prevent image distortion or flickering lines. Test grounding integrity by measuring resistance–values above 0.5 ohms indicate a poor connection.
- Camera resolution: 720p minimum for license plate readability at 10 feet; avoid “night vision” models below 0.1 lux sensitivity.
- Connector types: Use gold-plated RCA for coastal regions to resist corrosion; tin-plated for dry climates.
- Wire gauge: 18 AWG for runs under 15 feet; upsize to 16 AWG for lengths exceeding 20 feet to maintain signal integrity.
- Fuse protection: Install a 2-amp inline fuse within 7 inches of the power source to prevent shorts from damaging the tail light circuit.
For vehicles equipped with trailer wiring, disconnect the trailer harness’ reverse light feed before installation to prevent voltage drop. Many factory setups split this signal to both rear lights and trailer connectors–use a diode isolator (#DI-5 from Littelfuse) to maintain separate feeds without backfeeding current into the trailer socket.
Calibration must account for camera lens distortion. Measure the horizontal field of view (FOV) from the mount point–most 170° wide-angle lenses have a true effective range of 120-140°. Adjust the display’s “trajectory lines” setting in the radio’s menu to match this FOV, ensuring the on-screen guide arrows align with actual reversing paths. For misalignment, add shims behind the camera bracket or adjust the mount’s angle in 2° increments until the image matches real-world proportions.
Post-installation, seal all exposed splices with heat-shrink tubing containing adhesive liner–standard shrink tubing will fail within 18 months in regions with temperature swings exceeding 80°F. Label each connection with wire gauges and termination types using embossing tape; future diagnostics will require this reference when upgrading components or troubleshooting intermittent signal loss. Verify system operation at dawn and dusk to confirm light sensitivity across varying ambient conditions.
