Complete 2011 Chevrolet Silverado Radio Wiring Diagram Full Color Guide
Locate the factory connector behind the dashboard console–it’s a 24-pin plug labeled C1/C2 on the harness. Pin A7 (light blue/black stripe) carries constant 12V power; connect this directly to the aftermarket unit’s red wire for memory retention. Avoid splicing into C8 (yellow), which only delivers power when the ignition is active–this will drain your head unit’s settings.
Grounding issues cause persistent static. Use the vehicle’s chassis bolt near the driver-side kick panel, ensuring bare metal contact free of paint or rust. For speaker wires, match these color codes: front left (D12 tan, D13 gray), front right (D14 lt. green, D15 dk. green), rear left (C2 purple, C1 dk. blue), rear right (D3 lt. blue, D2 dk. brown). Swap polarity if audio phase reverses.
Amplifier triggers require a separate relay. Tap into A4 (pink), which activates with the ignition. Connect this to the remote turn-on wire (typically blue/white) on your amplifier. If retaining OnStar or steering wheel controls, preserve the C3 (gray/black) data line–cutting it disables voice recognition and hands-free functions.
Use heat-shrink tubing on all splices to prevent corrosion. Test each connection with a multimeter before buttoning up the dash–mixed grounds can fry the head unit’s circuit board. For external GPS antennas, route the lead through the driver-side A-pillar grommet to avoid signal interference near the alternator.
Understanding Your Pickup’s Audio System Electrical Layout
Start by locating the C1 connector behind the factory infotainment unit–it’s the 24-pin plug marked in white. Pin assignments follow this pattern: A1 (yellow) provides constant 12V power, B2 (purple) handles the switched ignition feed, while A6 (light blue) and B10 (dark green) carry front left and right speaker signals. Use a multimeter to verify voltages before connecting aftermarket hardware to avoid damaging the harness or module.
The ground wire (black) terminates at pin B22; ensure it maintains a direct path to chassis metal without relying on paint or fasteners for conductivity. For models equipped with OnStar, pin A12 (gray/black stripe) carries the retained accessory power (RAP) signal, which remains live for up to 10 minutes after key-off to support memory functions. Disconnecting this line prematurely can reset presets and trip error codes.
Speaker Impedance and Wire Gauge
Factory door speakers are typically 4-ohm, while tweeters run at 2-ohm–check your replacement components against these specs to prevent amplifier distortion or overheating. The original wiring uses 18-AWG copper-clad aluminum for signal paths; upgrading to 16-AWG pure copper reduces resistance loss by ~20% over a 15-foot run, particularly for subwoofer installations. Avoid splicing into the rear speaker lines (pins B14 and A20) if bypassing the amplifier, as these carry low-level signals prone to interference.
For vehicles with the BOSE premium system, three additional wires require attention: pin A4 (tan) delivers the amplified turn-on signal (typically 12V when active), B3 (pink) supplies dimmer control, and A8 (brown) handles navigation mute functionality. Replicating these connections precisely maintains functionality of steering wheel controls and voice command integration. Omtting the pink wire, for instance, disables automatic dash illumination sync.
Troubleshooting Common Integration Issues
If the new head unit powers on but produces no sound, probe the speaker wires for DC voltage–a reading above 0.5V indicates a shorted output channel. The factory amplifier, when present, expects a specific load; replacing the unit without an adapter harness often requires adding load resistors (4.7-ohm, 10-watt) across each output to prevent error codes. Static or popping during volume changes suggests poor grounding–reroute the black wire to a bare metal surface near the fuse box for cleaner reference.
For vehicles with the optional rear seat entertainment system, pin A18 (orange) carries the composite video signal, while A16 (light green) provides left/right RCA audio. These lines should never exceed 1V RMS to prevent damaging the input circuits. If integrating a backup camera, use a relay to switch the purple/white reverse trigger wire (B5) only when the vehicle is in gear–constant activation risks overheating the transmission control module.
Aftermarket harness adapters simplify installations but may omit the data bus connection (pin B12, white). Without this link, features like theft-deterrent communication and auxiliary input detection fail. For full functionality, either retain the factory harness or source an adapter that includes the data wire. Always secure connections with solder and heat-shrink tubing rather than crimp connectors, which degrade under vibration and temperature fluctuations typical behind the dash.
Final checks include verifying all fuses (particularly the 10A “INFO” fuse) and testing each function–AM/FM reception, Bluetooth pairing, and USB charging–before buttoning up the dash. A single loose wire can disable multiple systems, so methodical confirmation saves hours of rework.

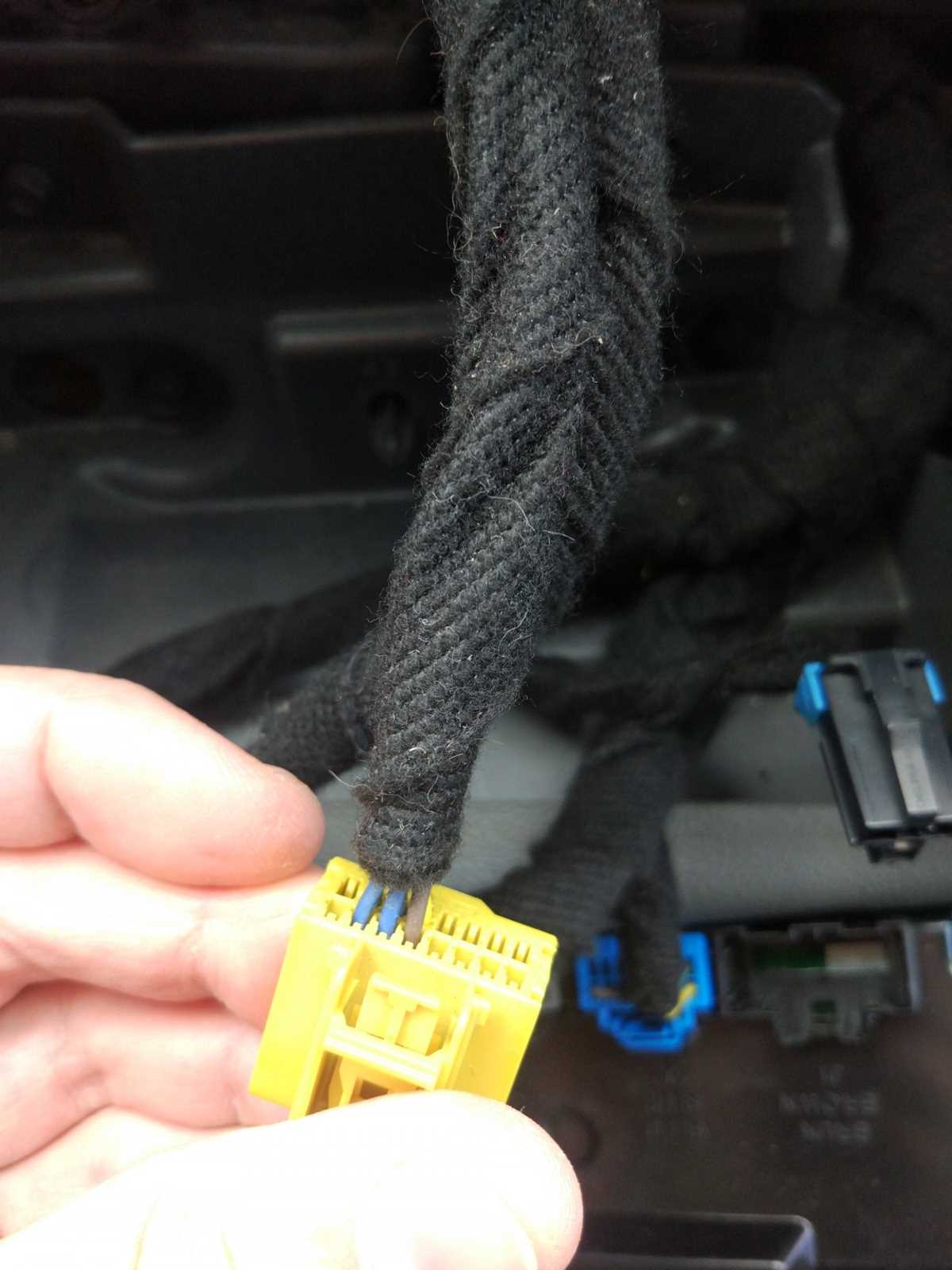

Finding the OEM Audio System Plug Behind the Instrument Panel
Begin by lowering the driver-side knee bolster by removing two 7mm bolts–one near the hood release and another beneath the steering column. The panel snaps off with minimal force, but angle it downward to avoid breaking the brittle plastic tabs. Behind it, a rectangular black connector (16-pin Metri-Pack 280) attaches directly to the back of the head unit; trace its wiring loom upward to confirm you’ve located the correct harness.
On the passenger side, remove the climate control trim by prying along its upper edge with a flat plastic tool–no fasteners hold it in place. Behind this panel, a second smaller connector (12-pin, white or tan) serves the auxiliary functions and feeds into the main loom. Disconnecting this first simplifies access to the primary audio plug, which lies 3-4 inches deeper, secured by a single friction clip.
Key Connector Pinouts
| Pin | Color | Function | Voltage (Idle) |
|---|---|---|---|
| A2 | Dark Green/White | Front Left Speaker (+) | 4.5V |
| A4 | Light Blue/Orange | Rear Right Speaker (-) | 0V |
| A7 | Yellow | Battery Constant (+12V) | 12.6V |
| A10 | Black | Ground | 0V |
| A12 | Gray | Illumination (+12V, switch-controlled) | 0V (off), 12V (on) |
If the main plug isn’t immediately visible, follow the wiring loom from the amplifier module–mounted behind the glove box–to its source. The loom splits into two branches: one for the dashboard connector and another for the amp. Use a non-contact voltage tester on the constant power wire (yellow) to verify correct identification before unplugging; false positives from retained accessory power are common.
For late-model trucks with OnStar, an additional 8-pin mini harness may interfere. Unclip this first–it’s held by a fragile orange tab–and tuck it aside. The main harness will now swing free when released by pressing its central release button upward with a small screwdriver. Avoid yanking by the wires; instead, grasp the connector body firmly to prevent terminal damage.
Troubleshooting Hidden Connections
If resistance persists, check for a secondary retaining bolt (8mm) often overlooked near the evaporator core housing. Some variants include a steel brace securing the behind-dash frame–remove this entirely to expose the full loom path. Label each connector with masking tape before unplugging; factory clips are identical in shape but support different systems (e.g., Bose amplifiers use a distinct 20-pin blue plug).
Reassembly requires routing wires behind the HVAC ducts to prevent pinching. Verify all connections produce a faint click when fully seated, then test functionality with the ignition in ACC mode–speaker pops confirm correct polarity before full reinstallation.

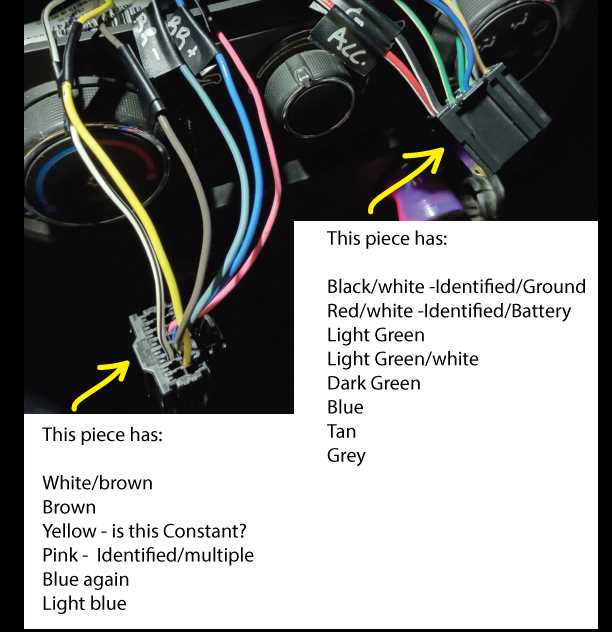

Decoding Wire Hues in Your Truck’s Audio System Circuit
Begin by locating the yellow (B+) feed–this 12V constant power lead connects directly to the battery via a 20A fuse and energizes the memory functions. Verify continuity with a multimeter; a reading below 12V indicates corrosion at the fuse block (typically slot #9) or a compromised inline fuse. Splice repairs demand 18-gauge heat-shrink tubing to prevent shorts–avoid electrical tape for longevity.
Critical paths include:
- Dark green/white (D-GN/W): Mute signal for OnStar, bypass if disabled to prevent audio dropouts
- Light blue/white (LT BLU/W): Amplifier turn-on, shuts off with ignition (accessory mode)
- Pink (PNK): Illumination dimmer sync; voltage varies 0-12V with dash lights
- Gray (GRY): Rear right speaker positive, paired with gray/black (negative)
For aftermarket upgrades, swap factory 4-channel outputs to RCA preamp wires if integrating a subwoofer. Connect these via a line output converter (LOC) to preserve OE speaker impedance (4 ohms).
Grounding Pitfalls
The black (BLK) chassis ground (driver-side kick panel) often corrodes due to road spray. Scrape paint until bare metal for soldered joints–crimp connectors loosen over time. Test resistance: >0.5 ohms suggests a faulty ground. For remote starters, tap into purple (PPL) (ignition-switched power) instead of the accessory wire to avoid parasitic drain.
Speaker polarity reversals manifest as phantom center channel cancelation in dual-coil setups. Use a 9V battery to pulse leads:
- Briefly touch battery terminals to speaker wires
- Observe cone movement: outward = correct (+/-) alignment
- Inward movement requires swapping polarity
For navigation-enabled models, the brown (BRN) CAN bus wire carries serial data–do not cut. Isolate bypass modules (e.g., Pac-Audio RP4-GM11) to this lead to retain steering wheel controls without disrupting OBD-II communications.
