Complete 2011 Chevrolet Silverado Trailer Brake Wiring Guide and Diagram

Install the brake controller output wire to the tow vehicle’s pin 4 (white/red or purple) at the 7-way connector. Match this to the blue auxiliary circuit on the trailer plug–never connect it directly to the battery or fuse panel without a dedicated circuit breaker. A 20-30 amp breaker must be installed within 7 inches of the battery positive terminal to prevent overheating.

Cut-only splices degrade signal integrity over time; use gold-plated butt connectors and heat-shrink tubing with adhesive lining to seal moisture out. Crimp each connection twice–once at the insulation, once at the conductor–to eliminate voltage drop during panic stops.

Test continuity with a digital multimeter set to 200 ohms. Probe the blue wire at the trailer side while activating the manual override on the controller; resistance should drop below 1 ohm. If readings fluctuate, inspect for corroded connectors or loose ground–frame-mounted earth must terminate no farther than 3 feet from the plug.

For integrated controllers, verify the factory harness includes a gray 12-gauge wire (labeled “Vcc”); splice this to the brake output with a 25-watt solder joint reinforced with liquid electrical tape. Avoid twist-and-tape joints–vibration loosens them within 5,000 miles.

Route all wires away from rotating driveline components and exhaust manifolds. Secure every 18 inches with adhesive-backed wiring loom to prevent chafing. Label each circuit at both ends: “Trailer Stop” (blue), “Lights” (brown), “Ground” (white).

Guide to Electrical Connections for 4.8L Vortec Towing Systems

Locate the 7-way round connector under the vehicle’s rear bumper–this houses all critical circuits for auxiliary lighting and supplementary stopping power. The center pin (typically blue) carries the modulated voltage to the electric-over-hydraulic controller; verify continuity with a multimeter set to 200Ω before attaching any loads. A corroded terminal here often mimics controller failure; clean with a brass brush and apply dielectric grease to prevent future oxidation.

• Pinout reference (counter-clockwise from 12 o’clock):
• Lamp ground (white) – common return for clearance and turn lamps
• Left stop/turn (yellow) – PWM (~10.5V) during braking, solid 12V during turn activation
• Right stop/turn (green) – identical to left except voltage timing
• Supplementary backup lamps (brown) – 12V when reverse gear is engaged
• Auxiliary 12V supply (red) – max 30A fused, intended for breakaway battery
• Electric-over-hydraulic output (blue) – factory controller sends 0-12V proportional signal
• Center ground (white underside) – must bond to chassis within 3 inches of connector

When splicing the brake output lead, use a heat-shrink butt connector and tin the wires with rosin flux; solder joints fatigue under 6,000 lbs gross trailer weight. Route the harness through the frame rail grommet aft of the rear axle to avoid pinch points during suspension articulation–secure every 18 inches with spiral wrap or nylon clamps. The factory harness is jacketed with cross-linked polyethylene; substitute 10 AWG THHN for repairs but insulate splices with adhesive-lined shrink tubing rated for -40°C to 125°C.

Test each circuit after installation using this sequence:

1. Engage park lamps–verify all clearance markers illuminate
2. Activate left and right turn signals individually–LED flashers should pulse cleanly without voltage drop below 11.8V
3. Apply manual brake controller–measure blue wire voltage sweep from 0 to 12.6V over 2 seconds
4. Shift into reverse–confirm brown wire jumps to 12V and auxiliary lamps ignite
5. Load test the aux circuit with a 25W bulb–red wire must maintain 12.2V minimum

Avoid daisy-chaining trailer-side circuits; run a dedicated ground strap from the plug housing to the nearest frame point for each lamp cluster. For electric-over-hydraulic controllers, add a transient voltage suppressor (1.5KE33CA) across the blue and white wires to absorb inductive spikes during solenoid release–this prevents random fault codes B1830 and P0615.

Finding the Electrical Link for Your Towing Setup in a Chevrolet Pickup

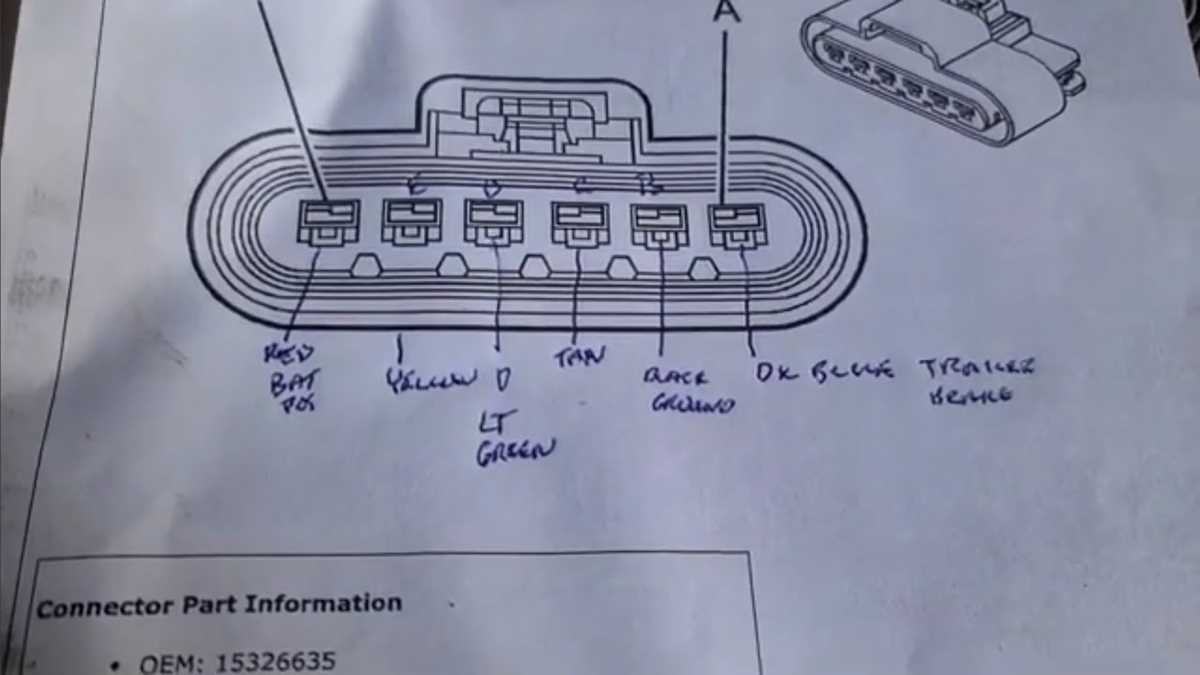

Begin by opening the driver-side dashboard fusebox cover–located beneath the steering column, just above the left knee bolster. The connector you need sits tucked behind the second row of fuses, labeled with a small “AUX” sticker and secured by a single 10mm bolt. Remove the bolt, then gently pry the plastic retainer clips apart to reveal a seven-pin socket encased in black plastic. This port handles both stoplight signals and electric actuator control for heavier loads.

Alternative Access Points Under the Chassis

If the interior connection eludes you, slide under the rear bumper on the passenger side. Follow the main harness bundle alongside the frame rail until you spot a cylindrical black junction box approximately 18 inches forward of the hitch receiver. This box houses a secondary four-pin harness; depress the red locking tab to separate the male and female halves, exposing the blue and white leads that correspond to your auxiliary braking system.

For trucks equipped with factory-installed towing packages, a third option exists behind the tailgate step bumper. Remove the two Torx T25 screws retaining the step panel, then peel back the weatherproof membrane to uncover a molded six-way connector. Match the pin configuration to your aftermarket controller’s manual–ground (white), power (red), left turn (yellow), right turn (green), and brake circuit (blue)–before securing with dielectric grease to prevent corrosion.

Step-by-Step Wire Color Coding for Towing System Electrical Integration

Begin by locating the vehicle’s seven-pin connector near the rear bumper. Identify the 12V power feed–typically a red or orange wire with a 10-gauge thickness. Verify voltage with a multimeter (should read 12-14V when the ignition is on) before proceeding. This line powers auxiliary functions and must be fused within 7.5 inches of the battery to prevent fire hazards. Use a 30-amp fuse for optimal protection.

For the stopping signal, connect to the vehicle’s stop light circuit–usually a purple wire with a white stripe. Trace it from the taillight assembly to ensure correct identification; this wire carries a pulsed signal when brakes are applied. Crimp a blue wire to this circuit, then route it to the corresponding pin on the towing plug (commonly pin 5). Avoid splicing into the turn signal wires (brown or yellow) unless using a dedicated brake controller, as this can cause feedback loops.

Grounding and Controller Connections

Secure a clean, corrosion-free ground point on the vehicle’s frame, preferably near the rear axle. Use a green or bare wire (minimum 12-gauge) and attach it with a ring terminal fastened to unpainted metal. Inadequate grounding is the primary cause of intermittent electrical failures–test continuity with an ohmmeter before finalizing. For brake modules requiring direct power, route a dedicated feed from the battery (orange wire) through a 40-amp breaker or fusible link.

• White wire (pin 1): Main ground–connect to chassis via self-tapping screw.
• Black wire (pin 2): 12V auxiliary–fused at 20 amps, used for charging breakaway batteries.
• Blue wire (pin 5): Brake output–controlled by the module, must match the towing unit’s voltage requirements.
• Green/yellow wires (pins 3/4): Left/right turn signals–verify with a test light before finalizing.

After completing the connections, activate the vehicle’s hazard lights and observe the towing unit’s behavior. The blue wire should deliver modulated voltage (typically 2-12V) when the pedal is depressed. If erratic pulses occur, check for loose grounds or voltage drops across splices. Use dielectric grease on all terminals to prevent oxidation, and secure wires with split loom tubing to avoid chafing against sharp edges. Re-test after 50 miles of towing to confirm reliability.

Essential Gear for Diagnosing and Connecting Tow Vehicle Electrical Circuits

Start with a multimeter capable of measuring both voltage (DC 0-20V) and continuity. Models with auto-ranging simplify readings–avoid analog units for this task. Set the dial to DC voltage for live circuit checks or continuity mode to verify wire integrity. Probe the connector pins directly to confirm 12V output from the controller side and 0-12V variable signals to the output side, ensuring they match manufacturer specifications within a 0.5V tolerance.

For accurate splicing, use heat-shrink tubing with an adhesive lining (polyolefin, 3:1 shrink ratio) in diameters matching the wire gauge–typically 16-12 AWG for auxiliary circuits. Avoid electrical tape; it degrades under vibration and moisture. Pair this with a butane-powered heat gun (120W minimum) set to 135°C (275°F) for consistent shrinkage without damaging insulation. Pre-strip wires to 8-10mm, twist strands tightly, apply rosin-core solder (60/40 alloy, 0.8mm diameter), then shrink tubing over the joint to seal out corrosion.

Specialized Tools for Accurate Diagnosis

Tool	Key Specifications	Critical Use Case
Circuit Tester (LED Probe)	12-24V DC, 200Ω impedance	Identifies live feeds without damaging microcontrollers in proportional signal circuits
Crimping Tool (Ratchet-Type)	Adjustable dies for 22-10 AWG, insulated/non-insulated terminals	Ensures gas-tight connections on spade and butt splices; verify crimp depth with 0.1mm micrometer
Wire Stripper (Precision)	Notch profiles for 16-10 AWG, cutting blade hardness 58-60 HRC	Prevents nicked conductors; calibrate tension every 20 uses

A pinout tester (custom or generic) validates connector integrity by simulating both input and output signals. For OEM-specific harnesses, fabricate a harness using Deutch DT or Metripack 280-series connectors–match terminal sizes to the vehicle’s female receptacles (typically 2.3mm blade width). Verify pin assignments against the service manual; miswiring can trigger false ABS or TPMS faults due to CAN bus interference.

For fused circuits, replace standard ATC blade fuses with miniature circuit breakers (resettable, 15-20A) during testing. These isolate short circuits instantly without destroying fuses–critical for diagnosing intermittent faults in power feeds. When working beneath the dash, use a telescoping inspection mirror (LED-lit, 12mm head) to trace hidden wiring runs without dismantling trim panels. Document all splice points with digital callipers (0.1mm resolution) to confirm wire gauge compliance and prevent voltage drop across extended lengths.
