Understanding Basic Schematic Diagrams for Circuit Design

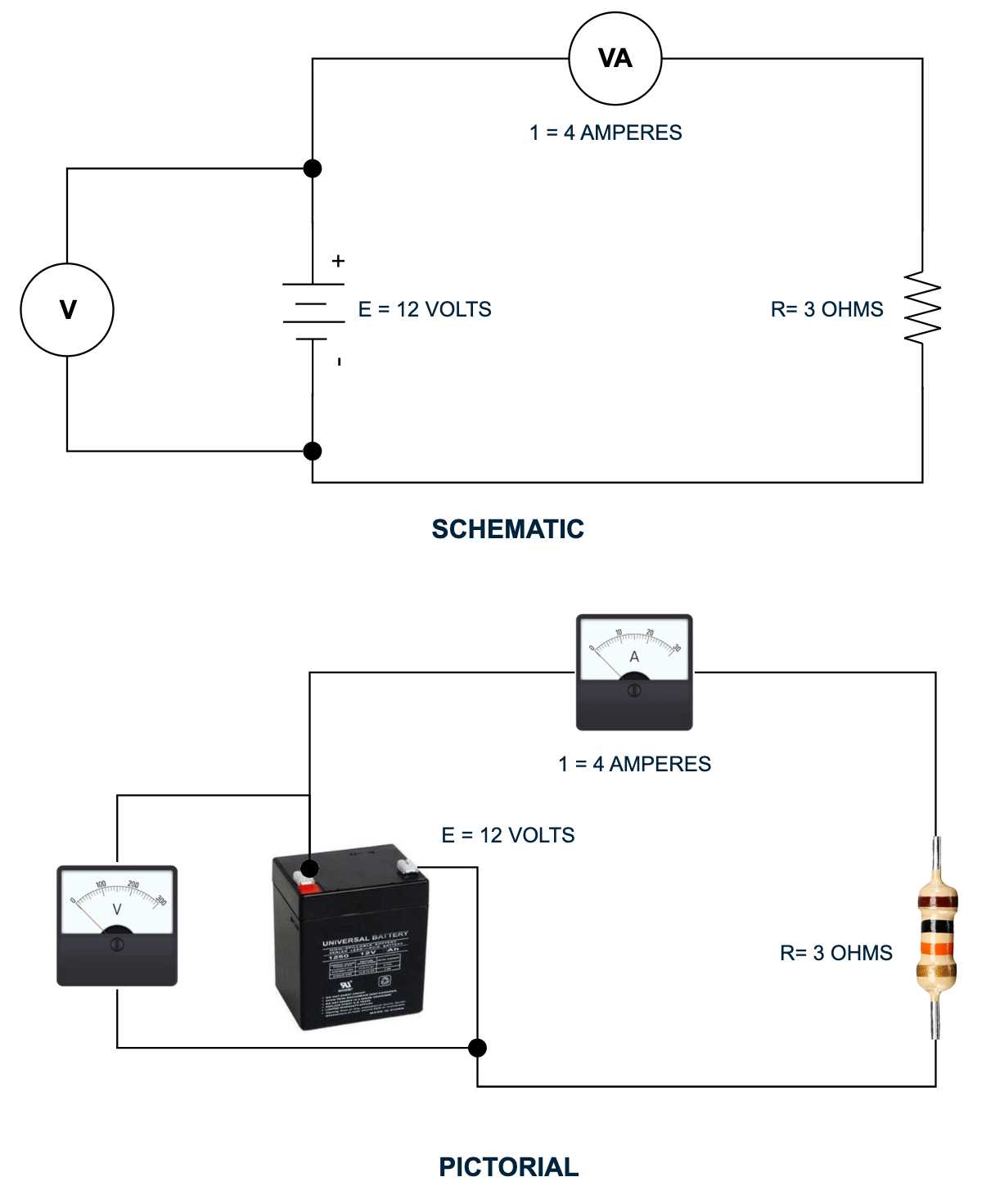

Begin by identifying the power sources–batteries, generators, or AC mains–marked with standardized symbols. Look for voltage ratings next to these components; wrong values here break circuits faster than poor soldering. Use a multimeter to cross-verify these figures before proceeding.

Trace ground paths first. Misplaced grounds cause unpredictable behavior, from noisy audio to fried ICs. Follow the thickest lines in the layout–they’re often power rails. Thin lines connecting components are signal paths; interrupt these with probes at key points to catch faults early.

Master the IEC 60617 symbols for resistors, capacitors, transistors, and logic gates. Deviations exist, especially in legacy equipment, but sticking to these standards saves hours of reverse-engineering. Keep a cheat sheet of common variations: a zener diode might look like a regular diode with an extra twist.

Label every wire and pin with consistent naming conventions. Use prefixes for types–R for resistors, C for caps, VR for variable resistors–and sequential numbers. A chaotic layout looks amateur and invites mistakes during troubleshooting; a systematic one lets you isolate issues in minutes.

Simulate the design in LTspice or KiCad before building. Run DC sweep, AC analysis, and transient tests. If the software flags a short or open circuit, deal with it now–debugging on breadboards wastes components and time. Pay special attention to thermal dissipation in power circuits; undersized traces burn quickly.

Layout density matters. Group related components together–oscillators near ICs, decoupling caps next to power pins. High-frequency circuits demand short traces; every extra millimeter adds parasitic capacitance. Use ground planes on PCB designs to minimize noise, especially for analog signals.

Color-code everything. Use red for power, black for ground, green for signals, and yellow for controls. This rule applies to both digital sketches and real-world wiring. Consistency prevents crossed wires, a leading cause of blown fuses and frustrated engineers.

Understanding Circuit Blueprints

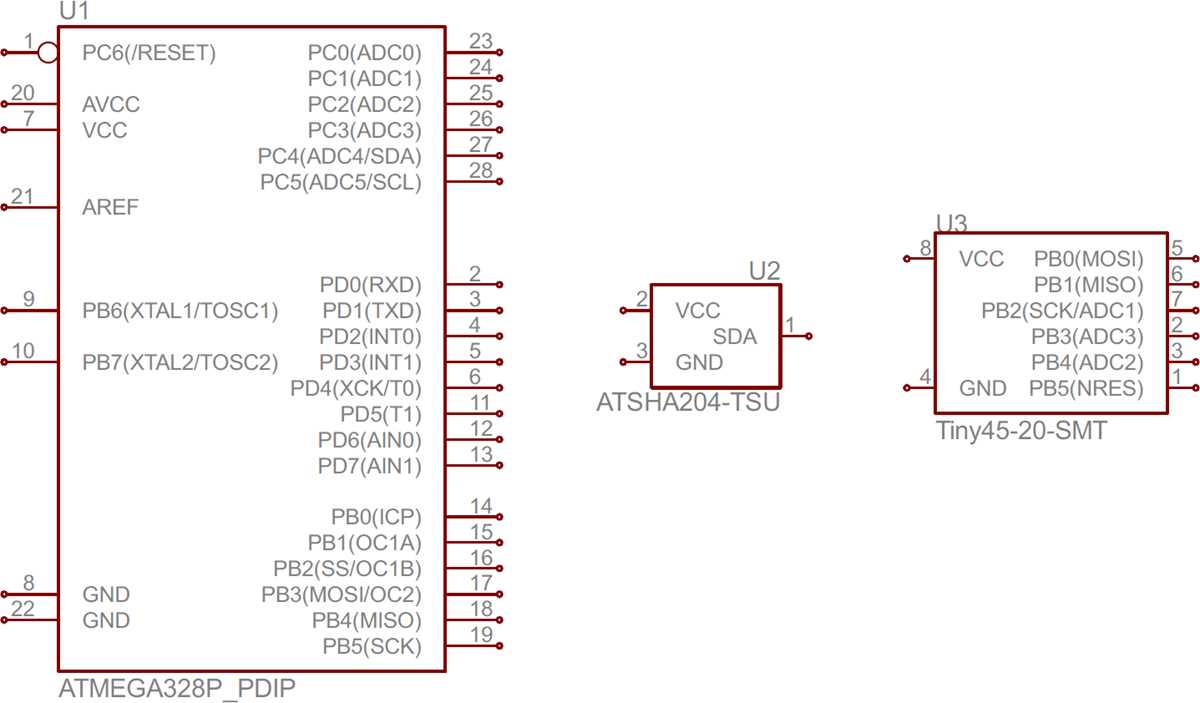

Begin by annotating power rails with voltage levels (e.g., +5V, VCC, GND) adjacent to every component. Use standardized IEEE symbols for resistors (R), capacitors (C), and transistors (Q); label each with sequential identifiers (e.g., R1, C2) to avoid ambiguity. For integrated circuits, include pin numbers and function names directly on the lines–example: U1: ATmega328P (1-VCC, 8-GND). Group related paths (data buses, control signals) into bundles and name them consistently across sheets.

Follow these rules for clarity:

• Avoid diagonal traces; use orthogonal (90°) paths with a minimum 1mm clearance between parallel lines.
• High-current paths (>500mA) should be at least 2mm wide; signal paths can be 0.3mm.
• Place decoupling capacitors (0.1µF) within 10mm of IC power pins, parallel to the rail.
• Mark test points with circular targets and label them TP1, TP2, etc.
• For connectors, specify pinout orientation (e.g., 1-GND, 2-VCC) and mating part numbers.

Signal Flow Optimization

Map signal direction left-to-right or top-to-bottom (consistent per page). Use arrows on clock lines (CLK) and critical control signals (RESET, CS). For busses, prefix bit ranges (e.g., A[0..7]) and suffix them with signal type (_ADDR, _DATA). Separate analog and digital grounds at the power source but connect them at a single point (star topology). Document impedance-controlled paths (50Ω for RF) with trace length matching (±2mm).

Key Graphic Representations and Their Technical Roles in Circuit Blueprints

Start by memorizing resistor symbols–zigzag lines for standard fixed types (IEC/ANSI) and rectangles with labeled values for precision components. Their primary function is current limitation, voltage division, or pull-up/pull-down in logic circuits. For variable resistors, note the diagonal arrow cutting across the zigzag; this distinguishes potentiometers and rheostats. Always cross-check tolerance markings (±5%, ±1%) during component selection to avoid thermal runaway in sensitive analog designs.

Capacitors split into polarized and non-polarized variants. Look for two parallel lines (non-polarized) versus a curved line paired with a straight line (polarized, e.g., electrolytic). Their roles include filtering, coupling, and energy storage. In power circuits, polarized types demand strict voltage rating adherence–reverse polarity destroys them. Ceramic capacitors, despite their small footprint, excel in high-frequency decoupling; position them within 5mm of IC power pins to suppress noise effectively.

Semiconductor Device Icons: Critical Shortcuts

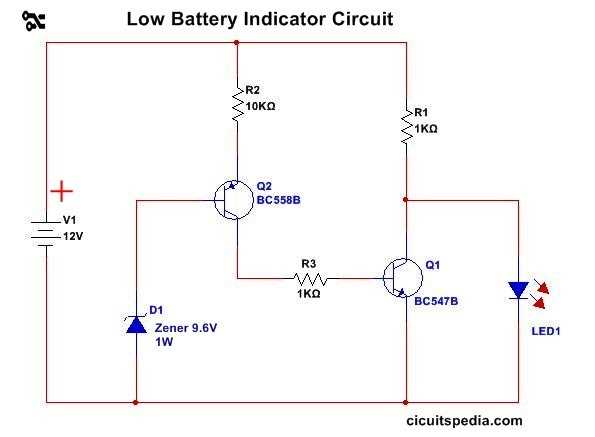

Diodes appear as a triangle pointing toward a line–unidirectional current flow is their defining trait. Zener diodes reverse the triangle orientation for breakdown voltage regulation. Transistors require sharp symbol recognition: bipolar junction (BJT) shows a collector-base-emitter arrow (NPN/PNP differentiation), while field-effect (FET) devices use a narrow channel line with gate-source-drain labeling. MOSFETs add an insulating oxide layer gap (the “O” in CMOS). For troubleshooting circuits, verify BJT base current before concluding failure–incorrect biasing causes silent malfunctions.

• LED: Standard diode symbol plus two outward-facing arrows (emission). Current-limiting resistors are mandatory upstream; calculate using R = (Vs - Vf)/If (Vs=supply, Vf=forward voltage, If=desired current).
• Thyristor/SCR: Diode-like with a triggering gate line. Latch-on behavior demands forced commutation circuits in DC switching.
• Op-Amp: Inverted “V” triangle with input/output markers; the non-inverting (+) input sits opposite the inverting (−) terminal. Always provide dual-supply voltages (±V) unless rail-to-rail models specify single-supply operation.

Inductors use coiled wire lines or straight lines for ferrite beads. Their reactance (X_L = 2πfL) dominates in AC, while DC resistance (DCR) affects transient response. Toroidal cores maximize flux linkage; air-core types minimize saturation but radiate interference. Pair inductors with capacitors to form LC filters, but mind resonant frequency (f_r = 1/(2π√(LC))) to prevent unintended tuning.

Switches and relays break/seal pathways graphically. Momentary pushbuttons add a dotted line extending from the switch for the normally open (NO) or closed (NC) state. Relays depict a coil (rectangle with cross lines) separated from contact pairs. Ensure coil voltage ratings match circuit supply–mismatches either fail activation or burn coils. For signal integrity, place capacitors across relay coils to quench back-EMF spikes; flywheel diodes suit the same role for DC motors.

1. Connectors: Rows of dots or forked lines represent headers multipin sockets. Label pin numbers clearly; mirrored connections (e.g., USB-C) require dual-row symbols. Ground symbols merge lines into a downward triangle–subtypes include chassis ground (three inclined segments) and digital ground (single line).
2. Transformers: Two inductors linked via dotted lines (center-tapped variants show a midpoint tap). Turns ratio determines impedance transformation; use a = N_p/N_s = V_p/V_s = I_s/I_p for calculations. Verify isolation voltage ratings to prevent primary-secondary breakdown.
3. Crystals/Oscillators: Rectangle with two opposed sides, often annotated with frequency (e.g., 8MHz). Load capacitance (pF) dictates stability; match manufacturer specs or risk frequency drift. Decouple power pins directly to the ground plane using 0.1µF capacitors.

Ground symbols demand rigid consistency. Earth ground (three descending parallel lines) marks physical earth connection–mandatory for safety-isolated circuits like medical devices. Signal ground (downward triangle) appears inside floating digital circuits. Aggressive partitioning between analog and digital ground planes minimizes crosstalk; star-topology grounding resolves phantom voltage loops. Always verify continuity between bonded grounds using low-ohm scale on multimeters, targeting

How to Draft Your Initial Circuit Layout from Scratch

Select a grid-based tool with predefined symbols–KiCad, Eagle, or Fritzing recommend standard libraries for resistors, capacitors, and ICs. Verify the component footprint matches real-world dimensions before placement; misaligned pads waste prototype iterations.

Start with power rails at the top and bottom edges, labeling +5V, GND, and other voltages explicitly. Use 0.5mm lines for signals and 1.2mm for rails to distinguish hierarchies instantly. Color-code lines: red for power, black for ground, blue for data.

Place microcontrollers or central ICs first–position them centrally, then route peripherals outward in radial clusters. Leave 20mm margins for future wiring adjustments. Assign unique reference designators (R1, C1) immediately; manual renumbering later consumes hours.

Run critical traces–clock and control lines–straight, avoiding acute angles that introduce parasitic capacitance. Keep analog and digital domains separated, maintaining 5mm clearance or inserting a ground pour as a barrier. Label test points for oscilloscope probes on 1mm vias.

Add decoupling capacitors–100nF ceramics–adjacent to each IC power pin, connected with less than 2mm traces. For high-speed signals, match trace lengths within 1mm using serpentine patterns if necessary. Include series resistors (33Ω) on data lines to dampen overshoot.

Insert fiducial markers–1mm copper dots–near fine-pitch components for pick-and-place machine alignment. Document silkscreen annotations: component values, pin functions, and orientation warnings (e.g., “POLARITY!”). Avoid silkscreen overlap on pads.

Generate Gerber files and verify them in a viewer–confirm layer stack-up, drill hole sizes, and solder mask clearance. Order prototypes on 1oz copper with HASL finish for cost efficiency. Test continuity with a multimeter before powering the board.

Review design rules–minimum trace width (8mil), clearance (6mil), and annular ring (0.15mm). Export netlists to reconcile schematic connections; unrouted nets indicate errors requiring immediate correction. Archive project files with versioned filenames (e.g., rev1_20240515).
