Complete 2012 Ford Escape AC System Wiring Schematic Guide
Locate the climate control fuse first–labeled F48 in the under-dash panel, rated 10A. Confirm continuity before replacing; a common failure point in these vehicles is a blown fuse caused by a short in the blower resistor network near the evaporator housing.
Trace the blue/orange wire from the pressure switch (P/S)–pin C442-1 on the HVAC module–back to the condenser fan relay. If voltage drops below 11.5V at this junction during low-speed operation, suspect corrosion on the pink/light blue ground feed at G106, a notorious trouble spot behind the right front wheel well.
For recirculation actuator diagnosis, attach the positive meter lead to pin 2 (gray/red) of connector C306B. Actuate the system–if the motor draws >0.8A but fails to engage, replace the internal gear assembly; no wiring fixes exist.
Check the yellow/light green sensor circuit at pin C442-6. Factory spec calls for 2.5-3.2V at 75°F; readings outside this range typically indicate a faulty ambient temperature sensor or broken splice near the grille.
When routing replacement harnesses, secure bundles >2 inches from the A/C lines to prevent chafing. Use Adhesive-Lined Heat Shrink over all splices–standard tape fails within 18 months in these models.
Understanding the Climate Control Electrical Layout in a Mid-Size SUV
Begin troubleshooting by locating the fuse box under the dashboard on the driver’s side. The AC relay (position #17) and 30A fuse (#25) must be checked first. Use a multimeter to verify continuity–replace if readings exceed 0.2 ohms or show infinite resistance. Keep the key in the OFF position during this step to avoid accidental shorts.
Trace the wiring harness from the compressor clutch to the pressure switch and blower motor resistor. The compressor clutch coil draws 4.2–5.8 amps; anything outside this range indicates a failing clutch or corroded connections. Clean terminals with dielectric grease and a wire brush before reattaching. For the resistor, inspect the four-step resistance values:
| Speed Setting | Resistor Output (Ohms) |
|---|---|
| Low | 3.2–3.8 |
| Medium-Low | 1.9–2.3 |
| Medium-High | 1.1–1.4 |
| High | 0.1–0.3 |
Examine the dual pressure switch near the accumulator. The low-pressure cutoff activates at 25–28 psi, while the high-pressure cutoff engages at 390–420 psi. Bypass testing requires a scan tool to monitor live data; don’t rely on visual inspection alone. If readings fluctuate erratically, replace the switch–cost averages $45–$65.
Connector Pinouts and Sensor Locations
Disconnect the battery before probing connectors. The HVAC control module (behind the center console) uses a 24-pin connector. Critical pins include:
| Pin | Function | Voltage (Key ON) |
|---|---|---|
| 5 | Compressor clutch signal | 12V (when engaged) |
| 12 | Ambient temp sensor | 0.5–4.5V (varies with temp) |
| 18 | Blower motor speed | PWM signal |
Pay special attention to the cabin temperature sensor–its resistance decreases as temperature rises. At 25°C, expect 1.8–2.2 kΩ; at 0°C, readings should exceed 5 kΩ. If values deviate, recalibrate or replace the sensor (part #YA6Z-19A606-A). Use heat shrink tubing on repairs to prevent moisture ingress.
For blower motor issues, remove the glove box to access the module. The motor’s ground wire (black/yellow stripe) must show 0 ohms to chassis ground. If resistance is measurable, clean the ground bolt with a wire wheel and re-secure. Replace the motor if it draws more than 20 amps at high speed–this indicates bearing failure. Always reconnect the negative battery terminal last to prevent sparks near refrigerant lines.
Locating the Climate Control Pump Electrical Link Junctions

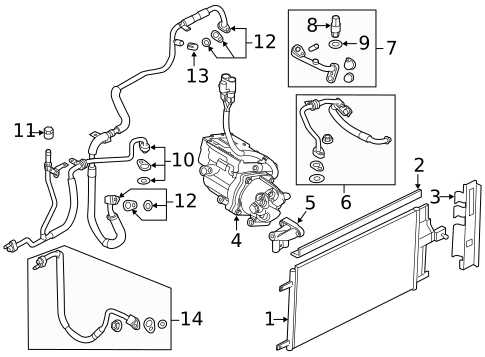

Begin beneath the vehicle’s hood, focusing on the passenger side near the firewall. The compressor’s primary connector is a two-pin plug housed in a black or dark grey plastic casing, typically secured with a retaining clip. Trace the high-pressure refrigerant line–this leads directly to the pump’s electrical junction, often obscured by a plastic cover or ductwork. Use a flashlight to identify the clip’s release mechanism; pressing downward while pulling gently separates the connector without damaging pins.
Secondary Connections Near the Condenser
Examine the front bumper reinforcement; the temperature sensor harness branches off the main bundle near the condenser’s left side. This thin, four-wire link (color-coded purple, yellow, brown, and black) clips into a small white or tan plastic socket. Disconnect the condenser’s cooling fan first to access it–wedge a trim removal tool between the socket and its mount to avoid snapping brittle plastic tabs. Label each wire with masking tape if reattaching later.
Behind the engine’s right strut tower, a single 10mm bolt anchors the ground wire for the compressor relay. Scrape off corrosion with a wire brush if resistance exceeds 0.2 ohms–clean contact prevents intermittent cooling failures. Recheck torque at 12 Nm; overtightening strips the aluminum thread in the cylinder head.
Locating Fuse and Relay Slots for Climate Control Circuits

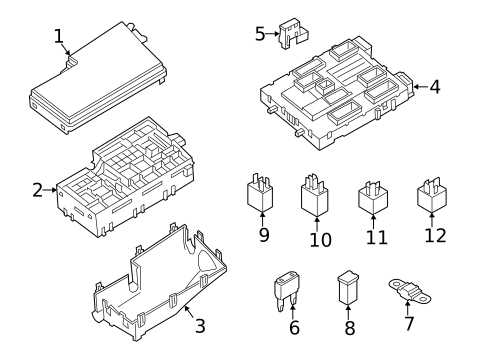

Start by accessing the integrated power distribution box beneath the instrument panel on the driver’s side. Remove the retaining clip securing the cover–label F47 corresponds to the main A/C compressor clutch relay, occupying slot 5 in the lower relay cluster. Verify its presence before proceeding; absence indicates a secondary mounting location under the hood.
Trace fuse #36 (20A) in the interior fuse block–this safeguards the dual-pressure switch and ambient temperature sensor. Cross-reference with the owner’s manual under “Climate System Protection” to confirm amperage; discrepancies suggest corrosion or prior tampering. Adjacent fuse #27 (10A) handles the blower motor high-speed resistor–test continuity if airflow cuts abruptly above midpoint settings.
Inspect the under-hood relay center for R3-06, labeled A/C Clutch Relay. Swap with a known-good relay (e.g., horn relay R3-02) to isolate failures. If engagement remains erratic, probe terminals 85 and 86 with a multimeter at KOEO–readings below 80Ω necessitate relay replacement. Terminal 30 should show battery voltage; voltage drops below 12.4V point to corroded joints at the condenser fan connector.
For the auxiliary climate control module, follow the wire harness from the cabin air filter housing to a white 10-pin connector. Pin 8 carries fused ignition voltage from fuse #19 (15A); absence signals a severed feed line likely chafed near the firewall grommet. Use a non-contact probe to verify live circuits before reconnecting–shorts here cascade to PCA failures.
Label each extracted relay/fuse with masking tape noting slot and function. Reinstall in reverse order, pressing firmly until retention tabs click; loose fits cause intermittent dropout under thermal expansion. Store backup fuses (5A, 10A, 20A) in the glove compartment–replace immediately if popped to prevent compressor seizure from prolonged inactivity.
Power Flow Analysis: Battery to AC Compressor Clutch in Compact SUVs
Locate the positive battery terminal–typically a 12V post with a red lead–and trace the main feed cable to the primary fuse block. In this model variant, the circuit is protected by a 60-amp megaswitch fuse, identifiable by its bolt-down connection adjacent to the battery tray. Disconnect the negative battery cable before proceeding to prevent shorting during continuity checks with a multimeter.
From the fuse block, the main power line routes to the underhood relay center. The AC clutch circuit is controlled by relay R2-15 (positioned in slot 5 of the upper fuse panel), which switches power when the climate control module sends a 12V activation signal. Verify relay functionality by swapping it with a known-good unit of identical rating, such as the horn relay, and testing system response.
The relay output line–a 14-gauge orange-striped wire–exits the relay center and travels along the vehicle’s firewall harness toward the engine compartment. At the evaporator assembly, the wire terminates at a single-pin connector labeled C142. Inspect this connection for corrosion or loose fit, as compromised integrity here causes intermittent clutch engagement or total failure.
Before reaching the compressor, the circuit passes through a 10-amp in-line fuse (blade type, located in a protective sleeve near the bulkhead). This fuse safeguards the clutch coil from overload. If the clutch fails to engage despite verified relay and relay input signals, replace this fuse with an exact 10A replacement–never substitute with higher amperage.
The final leg connects to the compressor clutch coil via a dedicated lead with a push-on spade connector. Ensure proper coil resistance (3.5–4.5 ohms at 20°C) using an ohmmeter across the clutch terminals; readings outside this range indicate internal damage. Clean the clutch’s electrical surface with dielectric grease to prevent oxidation and ensure reliable contact.
If the clutch engages but slips, check the ground return path–a black 12-gauge wire bolted to the engine block near the compressor. Secure this connection with a star washer to prevent corrosion buildup at the grounding point. Poor grounding mimics symptoms of low refrigerant charge or clutch wear, leading to incorrect diagnostics.
For systems exhibiting erratic behavior, inspect the climate control module’s output signal (yellow-striped wire at pin 12 of connector C201) with a test light or oscilloscope. A consistent 12V pulse confirms module functionality; absence of signal requires module replacement or reflashing via manufacturer software.
