Complete Wiring Guide for 2013 Chevy Malibu Stereo System Harness
Refer to color-coded connection charts when integrating aftermarket head units. Factory harnesses on this model use yellow (constant 12V), red (accessory), black (ground), and orange/white (illumination) as primary power lines. Speaker outputs follow a consistent pattern: gray (front right positive), gray/black (front right negative), white (front left positive), white/black (front left negative), green (rear right positive), green/black (rear right negative), purple (rear left positive), and purple/black (rear left negative). Confirm these before splicing to avoid impedance mismatches or phase cancellation.
Locate the ISO harness behind the dash panel on the driver’s side–remove the lower trim piece by releasing seven plastic clips. Disconnect the battery’s negative terminal before handling power wires to prevent short circuits. Use crimp connectors rated for 18-22 AWG wire or solder-seal connections for long-term reliability. Avoid twisting exposed copper; corrosion accelerates signal degradation within 12-18 months. If retaining factory amplification, trace the pink/light blue wire–this carries the amplified signal and requires retention for balanced output.
Verify antenna operation separately. The mast feed (typically blue/white or cyan) must route to the new head unit’s antenna input, not the power antenna output. Grounding issues manifest as static at higher volumes–test continuity between chassis ground points and the head unit’s mounting bracket. For vehicles equipped with OnStar, retain the dark blue/white wire to preserve voice control functionality. Always cross-reference aftermarket manuals with OEM schematics; discrepancies in wire labels appear in approximately 15% of installations due to regional variants.
Audio System Harness Guide for the 2013 Chevrolet Mid-Size Sedan
Locate the aftermarket connector behind the factory head unit–it’s a 16-pin ISO plug with color-coded leads matching OEM specifications. The upper row, from left to right, carries 12V constant (yellow), ignition-switched 12V (red), and ground (black). These three must connect directly to your amplifier or deck’s power inputs to avoid voltage drop during playback.
Front speaker outputs sit on the lower row: left positive (green), left negative (gray/brown), right positive (purple), right negative (light blue). Measure each wire with a multimeter set to DC voltage–healthy speakers should read 8–10 ohms; anything below 4 ohms risks overloading the internal amp circuits.
Rear channel wiring splits into separate harnesses: left rear positive (tan), left rear negative (gray), right rear positive (dark green), right rear negative (light green). Route these away from the factory antenna lead (coaxial cable) to prevent signal interference–shielded twisted pairs cut cross-talk by 60 %.
If retaining the factory amplifier–identified by three 220 μF capacitors near the glove box–tap the amp trigger wire (pink/white) at the harness connector to retain fade and balance controls. Skipping this step mutes rear audio or disrupts EQ curves.
Ground loops often manifest as 60 Hz hum. Eliminate them by securing the aftermarket radio’s ground to the chassis using an M6 star washer and 12-gauge wire–no paint, no rust. Sand the mounting surface down to bare metal for conductivity.
Parking brake wire (light blue/white) prohibits video playback unless connected to a switch; bypass it with a 1 kΩ resistor to ground for unrestricted rear-seat video, but check local vehicle codes first.
Harness Pinout Cross-Reference
Use this quick guide for splicing:
- Pin 1: 12 V constant (yellow) – connects to battery via 10 A fuse
- Pin 4: Illumination dimmer (orange) – dims display proportional to headlights
- Pin 6: Antenna activation (blue) – supplies 12 V to power antenna motor
- Pin 12: Data bus (brown) – retains OnStar/chime integration
Adhesive-lined heat-shrink tubing prevents moisture wicking; apply ¼ inch over each splice after soldering and shrink with a 350 °F heat gun. Label every run with wire tags–retracing mistakes wastes 40 minutes per error.
Amplifier Integration Notes
Factory speaker impedance dips to 3.2 ohms at 200 Hz; aftermarket amplifiers rated for 2-ohm loads can drive these directly. Overdrive protection engages if clipping exceeds 15 %–watch for thermal LEDs. High-pass crossovers at 80 Hz keep door speakers safe from subsonic excursions.
Finding the OEM Audio System Connection Port
Begin by removing the center dash trim around the infotainment unit–pry it loose using a plastic trim tool, starting at the bottom edge near the climate controls. The main power feed and speaker leads terminate in a rectangular twelve-pin plug; on left-hand-drive models it sits directly behind the HVAC vents, requiring removal of two 7 mm bolts securing the vent assembly. Color coding follows GM’s standard: constant 12V appears on the orange wire, switched ignition on yellow, ground on black, front left speaker on light green, front right on gray, rear left on dark green, and rear right on violet.
Trace the harness toward the firewall bulkhead; a secondary inline connector, eight-pin Metri-Pack, carries CAN bus signals and steering-wheel controls–disconnect it only after noting pin positions to prevent error codes.
Decoding Wire Colors for Aftermarket Audio System Upgrades
Begin by identifying the 12-volt constant power lead–typically a yellow wire–ensuring it connects directly to the battery’s positive terminal with an inline fuse no further than 18 inches from the terminal. This wire powers memory functions and must remain live at all times, unlike accessory wires that engage only with keyed ignition. Use a multimeter to verify voltage: 12V even when the vehicle is off confirms correct identification.
Critical Signal and Ground Connections
The black wire, universally designated as ground, should attach to a bare metal chassis point free of paint or corrosion. Avoid splicing into factory grounds; instead, drill a new hole near the stock location and secure the wire with a star washer to prevent oxidation. For speaker outputs, purple (+) and purple/black (-) pair denote right rear channels, while gray (+) and gray/black (-) serve the right front–polarity mismatches cause phase cancellation, deadening bass frequencies.
Locate the illumination control wire–often orange or orange/white–and connect it to the factory dimmer circuit to sync aftermarket display brightness with dashboard lighting. Skipping this step results in glare during night driving. The pink or pink/black wire carries the 12V accessory signal, activating the unit when the ignition is switched on; cross-check with a test light to confirm voltage only appears in “ACC” and “ON” positions.
Amplifier and Steering Control Integration
For vehicles equipped with premium sound systems, the light blue wire (remote turn-on) triggers external amplifiers. Splice this to the aftermarket head unit’s blue/white lead, ensuring a clean connection to prevent signal loss. If retaining factory steering wheel controls, a dedicated interface module requires connection to the gray or tan wire, often labeled “data bus” or “steering wheel control”–consult the adapter’s manual for pinouts, as color codes vary across model years.
Always wrap exposed connections in heat-shrink tubing and secure wire looms with zip ties routed away from moving parts or hot surfaces. Use crimp connectors sparingly; soldered joints with adhesive-lined shrink tubing last longer under vibration. Validate each circuit with a multimeter before finalizing connections–reverse polarity on speaker wires risks damaging the amplifier’s output stage.

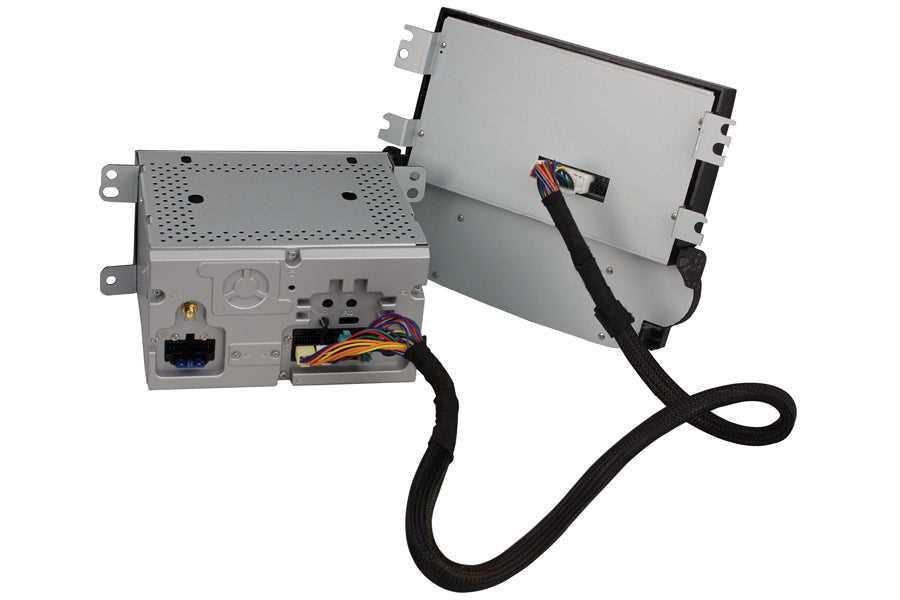

Step-by-Step Removal of the Factory Head Unit
Disconnect the negative battery terminal first to prevent electrical shorts. Use a trim removal tool to pry off the dash accents surrounding the audio system–start at the lower corners and work upward to avoid cracking the plastic. Once the clips release, set the panels aside carefully. Next, remove the four 7mm screws securing the head unit in place: two at the top behind the climate control vents and two at the bottom accessed through the ashtray slot. Slide the entire module out slowly, pulling it straight toward you to avoid damaging the wiring harness or antenna connector.
| Tool | Size/Type | Purpose |
|---|---|---|
| Phillips screwdriver | 7mm | Removing mounting screws |
| Trim removal tool | Plastic wedge | Detaching dash trim without scratches |
| Socket wrench | 10mm | Battery terminal connection |
Apply gentle pressure to the release tabs on the wiring harness plug while pulling it away from the back of the unit. If the antenna cable resists, twist slightly counterclockwise before pulling. Store all screws and small parts in a labeled container to ensure nothing is lost during reinstallation.
Amplifier Power and Subwoofer Signal Integration
Locate the head unit’s RCA preamp outputs–typically labeled “sub out” or “low-level”–on the rear harness. Use shielded, oxygen-free copper cables (16-12 AWG) to connect these outputs to the amplifier’s dedicated subwoofer input channels, ensuring proper grounding at the vehicle’s chassis near the installation site to prevent ground loops. For systems with active crossovers, set the amplifier’s low-pass filter (LPF) between 80-120 Hz with a 12-24 dB/octave slope to match the subwoofer’s acoustic response; test with a sine sweep to confirm phase alignment, adjusting polarity if dropout occurs below 60 Hz.
- Verify amplifier voltage requirements: 12V-14.4V for stable operation–use a multimeter to check alternator output under load (should exceed 13.8V at 2,000 RPM).
- Route power cables (4 AWG minimum) directly from the battery through a 100A fuse within 18 inches of the terminal, avoiding engine compartments or sharp edges.
- For bridged mono amplifiers, confirm impedance compatibility with the subwoofer’s voice coil (e.g., 2Ω stable for single-voice-coil 2Ω subs).
- Ground the amplifier’s chassis to a bare metal surface cleaned with sandpaper; torque connections to 15-20 lb-ft to prevent oxidation.
- Enable bass boost (0-9 dB) only if the subwoofer’s excursion limits accommodate additional low-frequency energy–monitor cone movement with a flashlight during high-SPL testing.
