2013 Dodge Ram Trailer Wiring Harness Installation and Connection Guide
Installing a 7-pin connector on your light-duty pickup requires exact wire placement. Pin A (yellow) delivers left turn and brake signals, while Pin C (brown) handles running lights–misrouting these causes intermittent failures. Verify conductivity with a multimeter before securing connections; corroded terminals in older models often mimic wiring errors. Replace frayed cables immediately–temporary fixes degrade under 40+ amp loads from electric trailer brakes.
Ground placement determines system reliability. Route the white wire directly to the chassis near the hitch receiver, avoiding bolted joints that collect moisture. For auxiliary circuits like 12V power (Pin F, purple), use a relay for consistent voltage; direct wiring risks voltage drop during simultaneous brake engagement. Factory harnesses in select trims include a built-in fuse–confirm its presence before bypassing.
Color-coded diagrams simplify troubleshooting but hide critical variations. Some OEM setups combine brake and turn signals on a single wire, requiring a converter for proper LED trailer compatibility. Test each function separately: activate brakes, then turn signals, then hazard lights to isolate shorts. For models with integrated transmission coolers, the wiring loom may include extra shielding–damaging it disrupts towing safety systems.
Aftermarket controllers demand strict adherence to pinout standards. Reversing polarity on the 7-way connector damages trailer modules costing $200+ to replace. Check tow/haul mode activation–incorrect wiring prevents engagement, reducing engine braking effectiveness by 35% on 6% grades. Always splice wires with heat-shrink crimp connectors, not electrical tape; vibration loosens adhesive-based wraps within weeks.
For dual-function setups (e.g., brake controller + backup lights), add a diode network to prevent signal bleed. Factory diagrams omit this–most failures trace back to absent isolation. When retrofitting a trailer brake system, consult the vehicle’s BCM chart; some configurations disable ABS if wiring conflicts exist. Keep spare fuses (15A, 20A) for pin F and C circuits–surge spikes during hookup frequently blow them.
How to Wire a Heavy-Duty Connector for Pickup Towing
Start by locating the OEM harness behind the vehicle’s rear bumper–it’s usually bundled with a 7-pin round connector tucked near the spare tire mount. Cut back the outer sheath 3 inches to expose the individual leads, then strip ¼ inch of insulation from each wire using a precision stripper to avoid nicking copper strands. Match the colors to this standard assignment: brown (tail lamps), green (right turn/brake), yellow (left turn/brake), white (ground), blue (auxiliary power), red (12V hot lead), and black (reverse lights).
Splice each lead to the corresponding pin on your new harness using heat-shrink crimp connectors; soldering yields a stronger bond but crimping works if done with ratcheting pliers at 15–20 pounds of pressure. Slide the shrink tubing over each joint before crimping, heat it with a thermal gun until fully sealed to prevent moisture ingress–water intrusion is the primary cause of intermittent failures. Route the harness away from sharp edges and suspension components, securing it every 12 inches with nylon zip ties spaced no wider than the harness diameter.
Test continuity with a 12V circuit tester: probe each circuit at the connector while an assistant cycles through the signals–turn signals, brakes, and marker lights–verifying voltage reaches 12.4–13.2V across all pins. If voltage sags, trace back to the fuse box; the brake circuit often shares a 20A fuse with the trailer brake controller, labeled “TBC” in the under-dash panel. Swap the fuse if readings dip below 12V, or check the controller’s manual for load limits–most aftermarket units handle 4–7 amps per circuit.
Ground the white lead directly to the chassis, not the bumper or plastic trim; drill a ⅜-inch hole, deburr the edges, and countersink the screw to prevent wire chafing. Clean the mounting surface with a wire brush and apply dielectric grease before securing the ring terminal–corrosion from road salt can increase resistance by 200% within months. For auxiliary circuits like cargo lights or a winch, run a dedicated 10-gauge wire fused at 30A no farther than 7 feet from the battery to avoid voltage drop.
Label each connection with colored heat-shrink tubing–green-red for right turn, yellow-black for left, blue-white for auxiliary–and photograph the finished setup for future reference. If reverse lights aren’t activating, check the transmission-neutral switch wiring looms; some models route the signal through a separate 3-pin connector near the tailgate latch. Use a scan tool to verify the ECU isn’t throttling voltage–a software reset (battery disconnect for 10 minutes) often resolves erratic trailer light behavior.
Choosing the Right Towing Harness Connector for Your Heavy-Duty Pickup

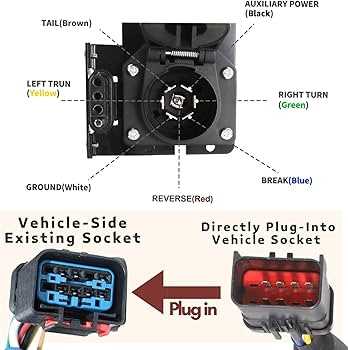

Begin by locating the factory towing port beneath the rear bumper, typically mounted on the driver’s side near the hitch receiver. The stock connector for this model uses a 7-way blade configuration, identifiable by its rectangular shape with rounded corners and a central locking tab. If your vehicle lacks the original harness, verify the connector type by comparing pin count and arrangement with aftermarket replacements–universal 7-way adapters often mismatch the OEM setup, causing intermittent signal loss.
For factory-installed systems, the connector follows this pinout:
| Pin | Function | Wire Color | Voltage (Idle/Active) |
|---|---|---|---|
| 1 | Left Turn/Brake | Yellow | 0V/12V |
| 2 | Reverse Lights | Green | 0V/12V |
| 3 | Electric Brakes | Blue | N/A |
| 4 | Right Turn/Brake | Dark Green | 0V/12V |
| 5 | Tail Lights | Brown | 12V |
| 6 | Ground | White | 0V |
| 7 | 12V Auxiliary | Black | 12V |
Aftermarket connectors labeled “vehicle-side” or “truck-side” must match this pinout precisely–deviations risk fusing turn signals with brake circuits or permanent ground faults. Avoid spliced adapters unless pre-crimped with heat-shrink terminals; soldered joints often corrode under road vibration. For heavy loads (≥10,000 lbs GVWR), ensure the harness includes a 30-amp circuit breaker within 18 inches of the battery.
Testing Compatibility Before Installation
Use a multimeter set to continuity mode to confirm each pin’s function before connecting. Probe the vehicle-side male pins while activating each light circuit–left turn should show ~12V only during signal activation, while tail lights remain constant. If reverse lights (pin 2) register no voltage, check the fuse (typically #9, 10A) in the integrated power module. For vehicles with factory-installed trailer brake controllers, pin 3 must read 0V until the controller engages; a constant voltage indicates a short to the brake circuit.
Common OEM connector part numbers include:
• Mopar 04892337AA (replacement pigtail)
• Curt 55565 (universal adapter, verify pinout first)
• Bargman 50-67-005 (direct OEM match)
Avoid cheap knockoffs–contacts often use copper-clad aluminum instead of pure copper, leading to rapid oxidation and intermittent failures. For hidden hitch setups, opt for a sealed connector with IP67 rating to prevent moisture ingress.
If retrofitting a harness, route wires along the existing loom using zip ties, avoiding sharp edges near the exhaust or suspension components. Secure the ground (pin 6) to bare metal with a star washer, not paint or undercoating. For diesel models with exhaust brakes, ensure the auxiliary power circuit (pin 7) has sufficient gauge–12 AWG minimum for loads exceeding 20A. Always disconnect the battery before handling powered circuits to prevent accidental shorts.
Step-by-Step Color Code Guide for 7-Way Vehicle Connector Installation
Begin by locating the power distribution module under the hood–identify the white wire with a thin red stripe as the primary ground. This wire must be secured to a clean, unpainted metal surface on the chassis using a ring terminal and a 10mm bolt. Ensure the connection is tight to prevent voltage drop during heavy draw situations.
Route the brown wire (tail lamps) through the firewall using a grommet to protect against abrasion. Connect it to the corresponding circuit on the vehicle’s lighting control module, typically marked “Tail” or “Marker Lights.” Verify functionality by activating the parking lights before proceeding.
Critical Circuit Connections
The yellow wire (left turn/brake) and green wire (right turn/brake) must be spliced into the vehicle’s existing turn signal lines. Use a circuit tester to confirm polarity–yellow should align with the left-side flasher relay output, while green pairs with the right. Avoid tap splices; instead, strip the wire insulation, twist strands securely, and solder before applying heat-shrink tubing.
The blue wire (electric brakes) requires a dedicated 30-amp breaker or fuse within 7 inches of the connection point. Run this wire directly from the tow vehicle’s brake controller output to the connector’s pin 5, using 12-gauge wire for minimal resistance. Test brake operation by applying manual override before road testing.
For the red wire (auxiliary power), connect to a switched 12V source–preferably the ignition feed–to prevent parasitic drain. Use a 20-amp fuse in-line and route through a relay if powering accessories exceeding 5 amps. Confirm voltage with a multimeter before finalizing the connection.
Inspect the black wire (battery charge) for corrosion; if present, clean the terminal with a wire brush and apply dielectric grease. Attach to the positive battery post or an existing fused circuit capable of handling 40 amps. Avoid routing near sharp edges or moving components.
Final Checks and Testing
After all wires are secured, wrap the harness in split-loom tubing or electrical tape to prevent chafing. Use zip ties to anchor the loom every 12 inches along the vehicle’s frame. Recheck each connection with a multimeter, testing for continuity and proper voltage under load.
Reinstall any interior panels removed during installation. Perform a functional test: activate all lights, brakes, and signal functions while observing the attached utility component (if connected). Listen for abnormal clicking or buzzing, which may indicate a poor ground or cross-wired circuits. Correct immediately to prevent damage to the vehicle’s electrical system.
