Step-by-Step Guide to Wiring a 3 Circuit Track Lighting Setup

Begin by mapping each conductive path separately–group fixtures by zones to ensure independent control. Use 12-gauge stranded copper wire for power feeds and 14-gauge for branch connections if the load per path stays under 10 amps. Label every wire at both ends before securing splices with lever-nut connectors; twist-and-tape joints fail within months under thermal cycling.

For a three-zone rail setup, dedicate one 20-amp breaker per zone. Run a dedicated 12/2 NM cable from the panel to a central junction box, then split into three sets of 14/2 cables–each feeding a separate conductive strip. Keep the neutral continuous but isolate the switched live wires to prevent cross-zone activation. Verify voltage drop remains below 3% on the longest run; lengths beyond 50 feet require upsized feeders.

Anchor rails to ceiling joists with 1/4-inch lag screws every 18 inches–drywall anchors shear under dynamic loads. Secure fixture stabs into rail slots firmly; loose connections cause flickering when current drops at dimmer transition points. Test each zone with a non-contact voltage detector before energizing; reverse polarity trips breakers instantly and risks circuit damage.

Install a compatible driver for LED assemblies. Low-voltage rails (12V/24V) need step-down transformers sized to the total wattage plus 20% headroom. Match fixture wattage ratings to drivers–mismatches burn out ballasts in hours. Ground the entire system via a 10-gauge copper wire bonded to the main panel bar; floating grounds introduce interference visible as micro-flicker.

After full assembly, measure continuity across each rail segment with a multimeter. Resistance should read near-zero ohms; higher values indicate corroded contacts or incomplete seating. Seal junction boxes with waterproof gaskets if routing through damp areas; moisture ingress accelerates oxidation, doubling resistance within weeks.

How to Install a Three-Phase Rail Illumination System

Connect each segment of your power rail to a separate dimmer switch using 14-gauge THHN wire for zones under 15 amps or 12-gauge for zones up to 20 amps. Label the wires at both ends: Phase A (black), Phase B (red), Phase C (blue), neutral (white), and ground (green). Use a three-pole breaker rated for 20 amps to supply the entire setup, ensuring the ground wire is secured to the metal housing of the power distribution block. Test each channel with a non-contact voltage detector before mounting any fixtures to confirm proper isolation between phases.

• Mount the power distribution block no more than 6 feet from the main breaker panel to minimize voltage drop.
• Space live-end connectors for each phase every 12 feet along the rail to maintain consistent voltage across fixtures.
• Use insulating plastic joint end caps at every splice to prevent accidental contact between conductive elements.
• Secure overhead suspension points every 4 feet for rails exceeding 8 feet in length to reduce sagging.
• Apply silicone dielectric grease to all screw terminals to prevent oxidation in humid environments.
• Verify breaker compatibility: only use Type QP or BR breakers with aluminum bus bars.
• Keep neutral wires from each phase separate all the way back to the panel; do not combine neutrals.

Selecting the Right Illumination Channel System for Your Space

Opt for a two-wire low-voltage rail configuration if your installation prioritizes energy efficiency and ease of adjustment. These systems typically operate at 12V or 24V, consuming up to 60% less power than standard line-voltage alternatives while providing identical lumen output per fixture. Brands like WAC Lighting and Tech Lighting offer models with integrated dimming down to 1%, allowing granular control over ambient levels without flicker–critical for spaces like art galleries or home theaters where precision matters. Verify compatibility with your existing dimmer switches; ELV (electronic low voltage) or MLV (magnetic low voltage) variants require specific dimmer types to avoid premature bulb failure or buzzing noises.

Key Factors to Compare Before Purchase

Feature	Line-Voltage Rails (120V-277V)	Low-Voltage Rails (12V/24V)	Considerations
Fixture Load Capacity	50W–150W per segment	20W–50W per segment	Low-voltage rails distribute load evenly; avoid exceeding 80% of rated capacity to prevent overheating.
Installation Depth	2–3 inches required behind ceiling	1–1.5 inches sufficient	Low-voltage rails fit tighter spaces like recessed ceilings or under cabinets.
Fixture Spacing	4–8 feet between connectors	2–4 feet for uniform coverage	Low-voltage systems reduce hotspots with closer spacing; ideal for task zones.
Bulb Longevity	1,000–2,000 hours	3,000–5,000 hours (LED-compatible)	Halogen bulbs in line-voltage degrade faster; low-voltage LED drivers last longer.

Choose monorail kits for curved layouts, as they bend on-site without tools–radius flexibility down to 12 inches. Ensure the rail’s finish (matte black, brushed nickel) matches surrounding hardware to avoid visual clutter. For linear runs exceeding 20 feet, opt for center-fed power sources to prevent voltage drop; commercial-grade rails like Juno’s Trac-Master support longer spans with bridge connectors. Always test fixture aim angles before finalizing placement–adjustable heads (e.g., Philips Ledino) tilt ±30° and rotate 355° for precise beam direction.

Installing Multi-Channel Rail-Mounted Fixtures: A Detailed Guide

Shut off power at the breaker panel before initiating any work–confirm absence of voltage using a non-contact tester on each conductive path.

Identify the three independently controlled feed lines within the linear bus system: L1 (black), L2 (red), L3 (blue). Label each with tape at both ends for clarity during termination.

• Attach a grounding pigtail (green or bare copper) to the rail’s bonding screw if metallic–mandatory for NEC compliance.
• For non-metallic rails, bond the fixture chassis directly to the grounding conductor from the supply cable.
• Strip 0.5 inches of insulation from each feed conductor using wire strippers calibrated for 12-14 AWG solid copper.

Align the fixture’s input terminals with the rail’s internal busbars–most adapters feature color-coded set-screws (black for L1, red for L2, blue for L3). Tighten each connection to 12 in-lbs torque using a precision screwdriver to prevent loosening under vibration.

Secure the fixture adapter to the rail by sliding the locking tabs into the designated slots–listen for an audible click confirming full engagement. Apply even pressure along the entire length to avoid uneven load distribution that can cause intermittent operation.

1. Re-energize each channel sequentially at the breaker, verifying illumination matches the intended color-coded supply path.
2. For dimmable units, test low-voltage compatibility with a 0-10V or ELV controller–observe smooth wattage transition without flicker below 10% intensity.
3. Install a second fixture downstream: ensure continuity of feed paths by linking busbars with provided jumpers–never splice within the rail housing.

Mounting height affects performance–adhere to IES recommendations: 6-8 feet for ambient wash, 4-5 feet for task-oriented zones. Position heads at 30° intervals for uniform wall grazing, avoiding shadow gaps wider than 12 inches when spacing exceeds 36 inches.

Finalize by verifying mechanical stability–apply lateral force equivalent to 5 lbs (2.2 kg) to each head; deflection should not exceed 0.25 inches. Seal entry points with silicone gel where conductors penetrate exterior-rated enclosures to maintain ingress protection (minimum IP44). Record breaker assignments in the electrical panel legend for future maintenance.

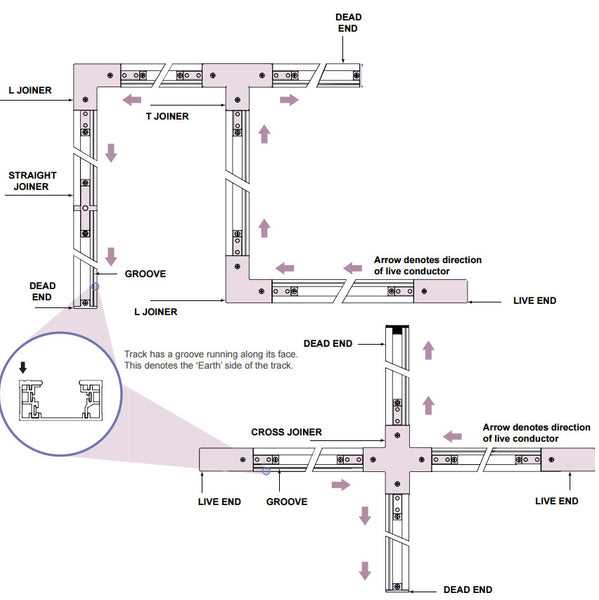

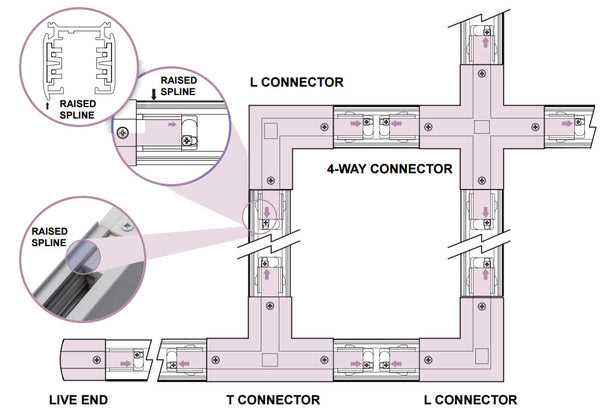

Connecting Rail Segments with Correct Cable Selection

Use stranded copper wires sized at least 12 AWG for all joints between conductive rail sections to ensure minimal voltage drop–calculate no more than 3% loss over 20 feet. Secure each connection with crimped ring terminals (tin-plated, 10-12 gauge) before fastening under terminal screws tightened to 12-15 inch-pounds; verify pull strength exceeding 15 lbs. For parallel runs exceeding 30 feet, upsize wire to 10 AWG and confirm compatibility with the power supply’s maximum output–most low-voltage transformers list capacity at 20A continuous.

Grounding and Isolation Practices

Ground each conductive segment individually using separate 12 AWG green-insulated grounding wires bonded directly to the electrical panel’s grounding bus–do not rely on conduit as sole grounding path. Isolate live conductors from adjacent metal surfaces using nylon spacers (minimum 0.125″ thickness) when routing through metallic enclosures or mounting channels. Before energizing, measure continuity between all joined segments; resistance should not exceed 0.5 ohms. Use a multimeter set to ohms (200Ω range) with one probe on each segment–replace any crimp exhibiting higher readings.

Solving Frequent Electrical Problems in Linear Fixture Systems

First, verify power delivery at the source by testing the conductor rails with a multimeter set to AC voltage (220-240V for main lines, 12V for low-voltage variants). If readings fluctuate or drop below 90% of expected values, inspect terminal connections for oxidation–clean contacts with 600-grit sandpaper and apply dielectric grease. Loose splices in junction boxes often cause intermittent failures; torque set-screw connectors to 8-12 in-lbs and wrap with self-fusing silicone tape to prevent corrosion from condensation in recessed installations.

Addressing Dim or Flickering Luminaries

Replace suspected faulty adapters with known-good units–match wattage (max 50W per segment for standard rails) and compatibility (magnetic vs. electronic transformers). Check for voltage drop across extended runs: for every 3 meters of copper rail, expect a 0.5V loss; if exceeded, increase conductor gauge or insert a repeater every 15 meters. Ensure all conductive joints are fully seated–gently flex each segment while observing output to reveal hidden gaps in contact points. High-frequency flicker (above 120Hz) often indicates incompatible dimmers; use only leading-edge or trailing-edge types specified for the rail’s transformer.

Thermal damage is another common culprit–confirm heat sinks on drivers aren’t obstructed, leaving a 2cm clearance for airflow. If a segment fails after prolonged use, measure resistance between hot and neutral rails; values below 10 ohms suggest insulation breakdown–replace the damaged section immediately. For smart rails, reset control modules by disconnecting power for 30 seconds, then reconfigure addressing sequences if luminaries respond erratically to commands.
