Complete 2013 Jeep Wrangler Stereo Wiring Guide and Color Codes

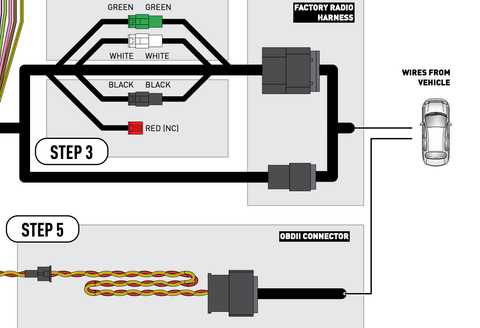

To upgrade the sound system in your rugged two-door SUV, start by locating the factory harness behind the dashboard on the driver’s side. The 12-pin connector (gray, rectangular) carries all speaker, power, and signal lines. Pin A4 (yellow/light green) delivers constant 12V; B2 (red/black) is accessory power (key-on). Ground attaches to A8 (black/dark green)–use a dedicated chassis point if resistance exceeds 0.2 ohms. For aftermarket amplifiers, splice B6 (dark blue/white)–this is the factory amplifier turn-on lead, rated for 200mA.

Match speaker wires by resistance, not color alone. Front door tweeters use 0.8mm² wire (A1: gray/violet, A2: gray/light blue)–verify with a multimeter; typical impedance should read 4Ω±0.5. Rear soundbar connections are thicker (1.0mm²), located at pins B3 (purple/white) and B4 (purple/orange). Avoid tapping directly into these lines; instead, use PAC SNI-1 interface for OEM integration. This preserves steering-wheel controls and OnStar chimes.

If retaining the stock head unit, disable the CAN bus wake-up signal by removing fuse F41 (10A). Without this step, the unit may enter sleep mode 30 seconds post-shutdown. For Bluetooth streaming upgrades, wire the MOST ring (orange/white, pin B5) through a Metra AX-TOCA1 adapter–this converts optical signals to analog without data loss. Double-check splices with a crimp tool; solder joints corrode within 18 months in climates above 70% humidity.

Use heat-shrink with adhesive lining for all outdoor connections. Factory wire gauges are undersized for 600W RMS systems–run 4AWG power cables directly from the battery, securing with split loom tubing to avoid chafing against the firewall. Test each circuit at 13.8V before final assembly; parasitic draws above 50mA indicate a faulty ground or shorted accessory line.

Aftermarket Audio Integration Guide for the 2013 MY Off-Road Vehicle

Locate the OEM harness behind the factory head unit–pinout consists of 12 wires: constant 12 V (yellow, 18 AWG), switched 12 V (red, 18 AWG), ground (black, 16 AWG), front left speaker (+/- in gray/light blue and gray/dark blue), front right speaker (+/- in white/light green and white/violet), rear left speaker (+/- in brown/yellow and brown/white), rear right speaker (+/- in dark green/light blue and dark green/orange), and illumination (purple, 20 AWG). Splice each speaker lead directly to an aftermarket amplifier’s high-level inputs instead of tapping RCA outputs–minimizes impedance mismatch and preserves factory fade/balance controls while preventing voltage drop across 15-foot runs to door tweeters.

Remove the glovebox to access the AMP-CON module (silver box, 4″ × 6″)–unplug its 24-pin connector and identify CAN-H (pin 7, blue/white) and CAN-L (pin 8, blue/brown). Bridge these two wires with a 120 Ω resistor before connecting any new head unit’s CAN bus interface; failure risks UConnect module corruption requiring dealer reflash. If retaining OEM satellite radio or steering-wheel controls, retain the harness’s data bus wires (pink/white pin 10, orange/white pin 12)–cut and terminate each with a 22 AWG crimp connector followed by 3M Scotchcast 8005 electrical tape to prevent chafing behind the A-pillar.

Ant. remote (tan, 18 AWG) must be rerouted through a 30 A fuse directly to the new head unit’s power antenna output; avoid splicing into the factory relay as its 4 A circuit overloads under high-gain aftermarket antennas. For non-navigation models, snip the speed-signal wire (light green/red, pin 14)–splice it to a vehicle speed pulse simulator set to 8,000 pulses per mile to maintain automatic mute during hard acceleration without triggering false ABS codes.

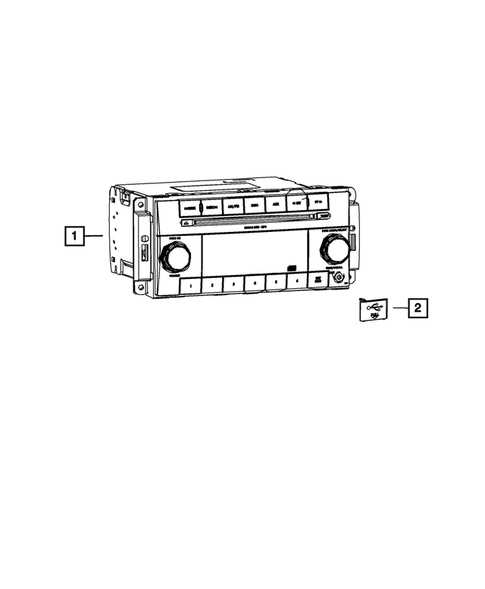

Finding the Head Unit Interface Connector Beneath the Instrument Panel

Begin by removing the center trim panel directly below the climate controls. Use a trim removal tool to pry the panel loose at the bottom corners–apply steady pressure to avoid breaking the plastic clips. Two screws secure the panel once the clips are released; set them aside in a labeled container.

The harness interface is typically positioned behind the lower section of the entertainment module, obscured by a protective plastic shroud. Gently pull the shroud downward after releasing the single retaining clip at the top. The connector should now be visible, but may still be partially obstructed by the HVAC ductwork.

• Locate the wiring bundle exiting the back of the unit–it consists of two plugs: a 12-pin rectangular for primary functions and an 8-pin for amplification.
• Follow the bundle downward into the cavity; the harness will terminate in a locking tab connector attached to the firewall bracket.
• Disconnect the battery ground cable before proceeding to avoid electrical shorts.

If the connector isn’t immediately visible, trace the wires from the back of the head unit. They route downward through a narrow channel between the transmission tunnel and the passenger footwell. A 10mm nut secures a grounding strap near the connector–loosen it to improve access.

Label each wire before disconnecting the plugs. The 12-pin plug includes:

1. Constant power (yellow, 18-gauge)
2. Switched power (red, 20-gauge)
3. Ground (black, 16-gauge)
4. Illumination (orange/white stripe, 22-gauge)
5. Speaker outputs–front/rear pairs (gray, white, purple, green)
6. Mute lead (brown/white stripe, 24-gauge)

Press the release tab on the plug before pulling–never force the connection.

Decoding Harness Wire Colors for Aftermarket Audio Integration

Begin by locating the 12-volt constant power lead–this is typically the yellow wire in the factory harness. Verify its function with a multimeter set to DC voltage; it should register between 11.8 and 13.2 volts regardless of ignition state. Failure to secure this connection will prevent memory retention in head units.

The ignition-switched power wire, often red, activates the system when the key is turned. Test it by probing while cycling the ignition–voltage should appear only in the “on” or “accessory” positions. Misidentifying this wire risks battery drain, as it may remain live unintentionally.

Ground connections, usually black or brown, demand direct chassis bonding. Scrape away paint at the attachment point to ensure bare metal contact. A loose or corroded ground manifests as interference or intermittent operation, so use a star washer and thread-locking compound for permanence.

Speaker wires follow a consistency pattern: front left positive (gray/violet stripe), front left negative (gray), front right positive (white/black stripe), front right negative (white). Rear channels mirror this logic with purple/tan for rear left positive and solid purple for negative, tan/light green for rear right positive, and tan for negative.

Subwoofer outputs, if present, are frequently solid orange for positive and orange/white for negative. Confirm these with an audio test tone–distorted or absent bass indicates reversed polarity or misrouting. For amplified systems, trace these directly to the amplifier harness.

Illumination wires, typically gray/red or light blue, dim the head unit display in sync with vehicle lighting. They carry no audio signal but must be connected for proper backlighting. Test by toggling the headlights–display brightness should adjust accordingly.

Mute or parking brake wires, often pink or pink/white, require special handling. In some configurations, accidental grounding of this circuit disables audio entirely. Consult service documentation before modifying or splicing, as incorrect routing may trigger safety interlocks.

For integrated steering controls, pinpoint the data bus wire–usually violet or violet/white–which carries serial communication. Corrupting this connection can disable volume knobs or voice commands, so maintain continuity with proper solder joints or crimp connectors designed for signal integrity.

Step-by-Step Guide to Connecting Aftermarket Speakers

Disconnect the vehicle’s battery negative terminal before handling any electrical components to prevent short circuits or damage. Identify the factory speaker wires–typically color-coded with constants like solid green for rear right positive, purple with a stripe for rear left positive, and their solid-color counterparts (green/white or purple/white) for negatives. Use a multimeter set to DC voltage to verify polarity; a brief 5V pulse confirms correct wire assignment. Cut the factory harness 2-3 inches from the connector, strip ½ inch of insulation, and twist the exposed strands to prevent fraying. Crimp or solder new connectors–bullet or spade types–matching the aftermarket speaker’s terminal requirements. Apply heat-shrink tubing over joints to insulate and reinforce, ensuring a watertight seal with a heat gun.

Testing and Securing the Installation

Reconnect the battery, power the audio system, and test each speaker individually using a 1kHz test tone at moderate volume. Listen for distortion or imbalance; if present, recheck connections for reversed polarity or loose terminals. Secure wiring with zip ties, routing cables away from moving parts (steering columns, pedals) and heat sources (exhaust manifolds). Use foam padding or rubber grommets where wires pass through metal firewall openings to prevent chafing. If the aftermarket setup includes an amplifier, verify its ground wire is attached to bare metal (sand away paint if necessary) within 18 inches of the unit. Adjust gain and crossover settings to manufacturer specifications–typically low-pass at 80Hz for woofers, high-pass at 120Hz for tweeters–to avoid signal clipping.
