Schematic Diagram vs PCB Layout Key Differences and Design Roles

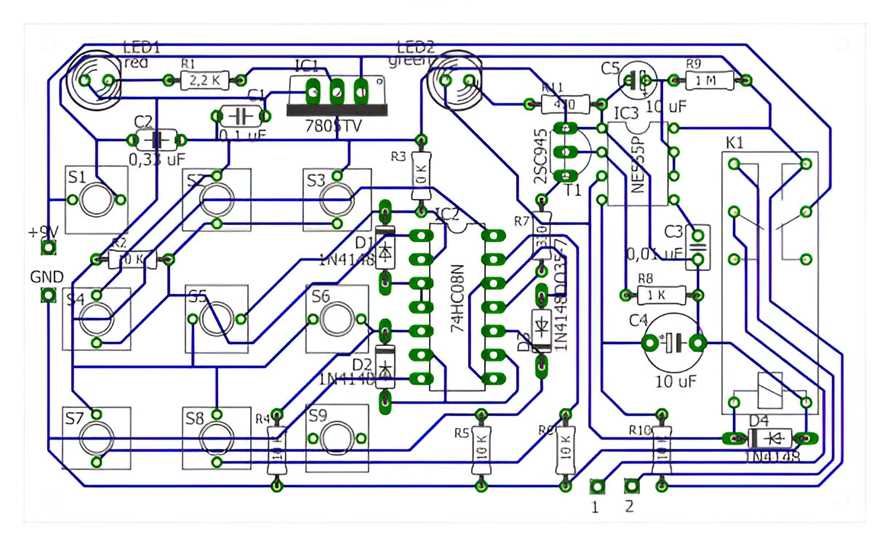

Start by assigning clear roles to each representation. A functional circuit map acts as an abstract model–defining connections, components, and signal paths without spatial constraints. Use it to validate logical flow before committing to hardware. The tangible board design translates this model into precise physical coordinates, accounting for trace widths, layer stacks, and manufacturing tolerances. Treat the former as a theory and the latter as its engineered execution.
Prioritize grid-based rules in the tangible board plan. Copper traces must adhere to minimum clearance standards–typically 0.15mm for standard processes–while component footprints demand exact pin spacing to avoid assembly failures. Functional circuit maps ignore these constraints, allowing rapid iteration. Export design rules from the tangible board into the abstract model only after finalizing critical dimensions to prevent cascading redesigns.
Assign net classes early in the tangible board design. High-speed signals demand controlled impedance traces–50Ω for single-ended, 100Ω for differential pairs–requiring precise stackup calculations. In contrast, the abstract circuit map labels nets but omits impedance details. Annotate the abstract model with these requirements post-layout to maintain accuracy when reusing or debugging the design later.
Define keep-out zones in the tangible board plan before placing components. Mechanical constraints–mounting holes, edge clearance, EMI shielding–dictate board shape and layer count. The abstract circuit map ignores these, focusing solely on electrical connectivity. Cross-reference both representations to ensure no missed constraints during revisions.
Generate a bill of materials directly from the abstract circuit map. Component designators here must match those in the tangible board design to avoid assembly errors. Use unique identifiers–R1, C5, U3–instead of generic labels like “resistor” or “capacitor.” Export a preliminary BOM from the abstract map to guide procurement while refining the tangible board plan.
How Circuit Blueprints and Board Designs Serve Distinct Roles
Begin by assigning clear, functional labels to every component in your electrical plan before translating it into physical traces. A well-documented blueprint prevents misinterpretation during manufacturing–ensure resistor values, IC pinouts, and net names follow consistent naming conventions. Use hierarchical blocks for complex designs to maintain readability while still preserving accuracy for downstream processes.
Convert critical nets into power planes early in the physical drafting phase, especially for high-current paths. Copper pours reduce resistance and improve thermal management, but they require precise clearance rules to avoid shorts. Set DRC constraints upfront: minimum trace width for 1A currents should be at least 0.3mm (1oz copper), scaling linearly with current. Ignoring these parameters risks board failure under load.
Place decoupling capacitors adjacent to power pins of ICs in the physical draft–ideal positioning is within 2mm. Longer traces introduce parasitic inductance, compromising noise suppression. Route sensitive analog traces perpendicular to digital lines to minimize crosstalk. Use differential pairs for high-speed signals like USB or PCIe, maintaining equal trace lengths (±5 mils) and controlled impedance (typically 90Ω for USB).
Critical Layer Stack Decisions
Select layer count based on signal integrity needs, not cost alone. A 4-layer board with dedicated power and ground planes outperforms a 2-layer design in EMI reduction and heat dissipation. For RF applications, additional layers may be necessary to isolate sensitive traces from noisy components. Adjust prepreg thickness to meet impedance targets–standard FR-4 dielectric constant (~4.5) simplifies calculations but verify with your fabricator.
Test points should be strategically dispersed across the physical draft to verify functionality without cluttering the design. Add via stitching along high-current paths or near thermal pads to improve reliability. Avoid placing vias under BGAs or fine-pitch components–opt for dog-bone patterns or via-in-pad where absolutely necessary, but confirm manufacturability with your supplier.
Manufacturing Constraints and Iterations
Export Gerber files with aperture sizes rounded to the nearest 0.05mm to comply with most fabrication tolerances. Include a drill file specifying hole sizes and plating requirements–non-plated holes for through-hole components should be 0.1mm larger than the pin diameter. Panelize the board with fiducial marks and breakaway tabs if assembling multiple units. Run a DFM check to flag issues like acute angles, slivers, or insufficient annular rings.
Validate the physical draft against the electrical plan using netlist comparisons. Discrepancies often stem from incorrect footprints or missing connections–use DRC to catch shorts or opens before prototyping. For multi-board projects, maintain consistent reference designators across revisions to streamline debugging. Finally, document trace widths, via sizes, and stackup details in a fabrication notes layer for future reference.
Key Purposes of Circuit Blueprints in Electronic Development
Start by defining component interactions with pinpoint accuracy–misplaced connections lead to functional failures or, worse, hardware damage. A well-structured blueprint pinpoints every resistor, capacitor, and IC, ensuring their roles align with the intended signal flow. Use standardized symbols (IEEE 315 or IEC 60617) to eliminate ambiguity; inconsistencies here cascade into PCB errors. Label power rails (VCC, GND) distinctly–confusing them risks short circuits during prototyping.
Optimize hierarchical organization for complex designs. Break down multi-stage circuits into sub-blocks (e.g., power supply, amplification, logic), each with clear input/output ports. This isolates debugging scope: a malfunctioning amplifier won’t mask a faulty regulator. Tools like KiCad or Altium allow nested hierarchies; exploit them to manage 100+ component rigs without visual clutter. Verify connections between blocks using net labels–manual cross-checks waste hours.
- Simulate before fabrication: SPICE models integrated into tools (LTspice, OrCAD) predict behavior under load, revealing design flaws early.
- Annotate tolerances: Specify ±5% for resistors in precision analog sections, as blindly trusting default values skews performance.
- Document ESD precautions: Mark high-impedance nodes prone to static discharge (e.g., MOSFET gates) to guide assembly handling.
Ensure compliance with safety standards. Highlight high-voltage traces (＞30V) with red outlines and clearance notes–violating IPC-2221 spacing rules invites arcing. For medical or aerospace projects, flag galvanically isolated sections (e.g., optocouplers) to meet IEC 60601 or DO-160 requirements. Neglecting these risks certification delays or legal liabilities.
Facilitate team collaboration through structured revision control. Use Git with schematic-specific tools (e.g., Altium’s versioned projects) to track changes–unauthorized netlist edits break builds. Insert descriptive commit messages: “Adjusted R7 to 4.7kΩ per feedback from thermal testing” prevents guesswork. For global teams, embed time zones in design notes to coordinate reviews efficiently.
Prioritize manufacturability by flagging non-standard footprints (e.g., BGA with 0.4mm pitch) and supplier lead times. Annotate alternate part numbers (e.g., LM358 vs. MCP6002) to avoid sole-source bottlenecks. Include assembly notes like “Hand-solder QFN packages” for prototype runs, saving hours of troubleshooting. Never assume fabricators infer intent–explicit instructions prevent costly rework.
How Circuit Board Design Turns Electrical Plans into Hardware Reality
Begin by defining rigid versus flexible substrate material early, as this dictates trace geometry constraints. FR-4 (1.6 mm thick) tolerates 0.15 mm traces with 0.15 mm spacing at 30 V, while polyimide flex (0.1 mm thick) demands 0.075 mm traces with 0.075 mm spacing for the same voltage–double-check IPC-2221B for precise calculations before routing.
| Material | Min Trace Width (mm) | Min Clearance (mm) | Max Current (A) |
|---|---|---|---|
| FR-4 (1 oz Cu) | 0.15 | 0.15 | 1.0 |
| Polyimide (0.5 oz Cu) | 0.075 | 0.075 | 0.3 |
| Aluminum Core (2 oz Cu) | 0.3 | 0.3 | 3.5 |
Place decoupling capacitors within 2 mm of IC power pins–measured center-to-center–not pad edge; use 0402 packages for 100 MHz to reduce loop inductance. For DDR4 traces, maintain 0.5 mm within-pair skew and 12 mm length matching between byte lanes, verified with a TDR-based tool before Gerber generation.
Thermal vias under QFNs must have 0.3 mm drill size, 0.1 mm annular ring, and filled plating; calculate copper weight needed for heat dissipation using q = mcΔT where m = 2.7 g/cm³ × via volume. For high-speed differential pairs, ensure 100 Ω ±10% impedance by adjusting trace width (typically 0.2 mm) and spacing (0.2 mm) per stack-up dielectric constant–verify with a controlled impedance calculator like Polar SI9000.
Critical Components Represented Differently in Circuit Blueprints Versus Board Designs
A resistor in a circuit blueprint appears as a simple zigzag line with a value label, while the board design demands exact physical dimensions–width, length, and pad spacing–dictating thermal performance, current handling, and manufacturability. For instance, a 0805 SMD resistor occupies 2.0 × 1.25 mm on the board, but the blueprint only denotes its resistance (e.g., 10kΩ) and tolerance. Ground pours, absent in blueprints, require polygon fills in designs, defining copper area for heat dissipation and EMI shielding. Always cross-check IPC-7351 land pattern guidelines to avoid mismatches between blueprint values and real-world pad sizes.
Silicon and Passive Element Discrepancies
ICs in blueprints reduce to pinout symbols and functional blocks, but board designs assign each pin a precise copper pad, solder mask opening, and silkscreen reference. A microcontroller’s TQFP-64 package spans 10 × 10 mm with 0.5 mm pitch; blueprints omit pad shape (rectangular vs. rounded) yet designs must comply with stencil apertures (e.g., 1:1 paste release ratio). Decoupling capacitors–abstracted as single components in blueprints–become arrays of vias and plane splits in designs to suppress noise at sub-ns rise times. Verify signal integrity with impedance-controlled traces: 50Ω single-ended or 100Ω differential, adjusting trace width and dielectric thickness per stackup.
