Complete Wiring Guide for Nissan Rogue 2013 Car Stereo System Installation
For direct integration with factory harnesses, connect the aftermarket head unit’s power (yellow) to the blue/white stripe (12V constant) wire in the OEM plug. The red (accessory) wire must link to the red/black stripe (ignition-switched) terminal–failure here causes erratic operation. Confirm ground via the black wire, secured to the chassis near the glovebox hinge for lowest resistance.
The speaker outputs follow this pairing: front left (+) to green/black, front left (–) to green; front right (+) to white/black, front right (–) to white. Rear channels: gray/black (+) and gray (–) for right, violet/black (+) and violet (–) for left. Avoid reversing polarity–distortion and premature amplifier failure result.
Amplifier control is handled by the blue stripe wire; splice this into the orange/black stripe (factory amp trigger) to retain steering-wheel audio commands and equalizer presets. If retaining the stock subwoofer, leave the purple/white stripe (subwoofer +/-) untouched. For bypassing the factory amplifier, strip and twist the speaker wires directly–but expect a 4-5 dB drop in output without aftermarket amplifier compensation.
Verify connections with a multimeter: continuity between yellow and chassis (0 Ω), red only showing voltage when ignition is ON, and each speaker wire’s (+)/(-) pairs at 4-8 Ω impedance. Use crimp connectors instead of solder for vibration resistance; heat-shrink tubing prevents corrosion on exposed splices. Label every wire with color-coded flags before assembly to prevent cross-wiring.
Vehicle Audio System Connection Guide for 2013 Compact SUV
Start by identifying the power harness behind the factory head unit–it uses a 16-pin white connector. Pin 4 delivers constant 12V from the battery (red wire), while pin 7 provides switched power (yellow wire) triggered by ignition. Ground connects to pin 5 (black wire). Verify these with a multimeter before splicing into aftermarket equipment; incorrect connections risk blowing fuses or damaging the alternator.
| Connector Pin | Wire Color | Function | Voltage (Key ON) |
|---|---|---|---|
| 4 | Red | Battery + | 12V |
| 7 | Yellow | Ignition + | 12V |
| 5 | Black | Ground | 0V |
| 10 | Green/Black | Left Front Speaker + | 4Ω |
| 11 | Green | Left Front Speaker – | 4Ω |
Speaker outputs follow a dual-wire scheme per channel–positive and negative leads must never cross or touch chassis ground. Front left signals emerge from pins 10 and 11 (green/black stripe and solid green), front right from pins 12 and 13 (gray/black stripe and solid gray). Rear outputs are on pins 14 (purple/black) and 15 (purple) for left, 16 (white/black) and 8 (white) for right. Use twisted pairs when extending wires to prevent interference.
For amplifier integration, locate the data bus wire (pin 1, orange/white stripe)–it carries speed-sensitive volume and control signals. Splice this only if the aftermarket unit supports Nissan’s proprietary protocol; otherwise, cap it with electrical tape. The antenna trigger (pin 6, blue) activates when the radio powers on–connect this to automatically raise motorized antennas or turn on external amplifiers.

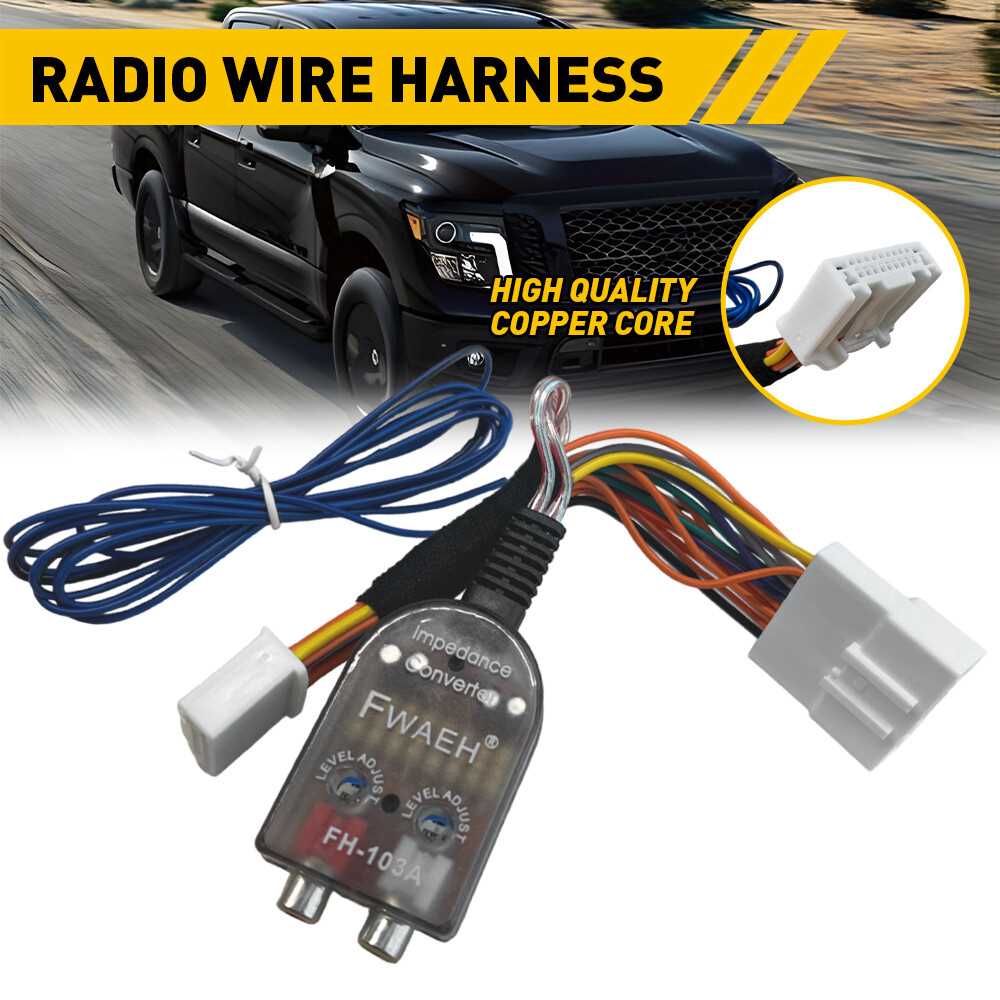

Subwoofer pre-outs are absent in the stock harness; if needed, tap into the rear speaker wires with RCA adapters or add a line-out converter. Set the converter’s gain to match the factory output–typically 4V peak-to-peak–to avoid clipping. Secure all splices with solder and adhesive-lined heat shrink tubing, not electrical tape, to prevent corrosion.
Test the system with the key in the ACC position before finalizing trim panels. Confirm all speakers produce clear sound and the head unit retains memory when cycling the ignition. If static or dropouts occur, check for loose grounds or shielded cables making contact with uncoated metal. Retain the original harness for resale or diagnostics; no permanent modifications should void manufacturer warranties.
Finding the Original Equipment Harness Plug Behind the Stock Audio Unit
First, remove the trim panel surrounding the dashboard’s media receiver by gently prying along its perimeter with a plastic panel tool. The lower edge typically releases first; tilt it outward to expose the retention clips securing the head unit. Disconnect the antenna cable and any visible wiring plugs attached to the back before sliding the unit forward–this prevents damaging the connectors during extraction.

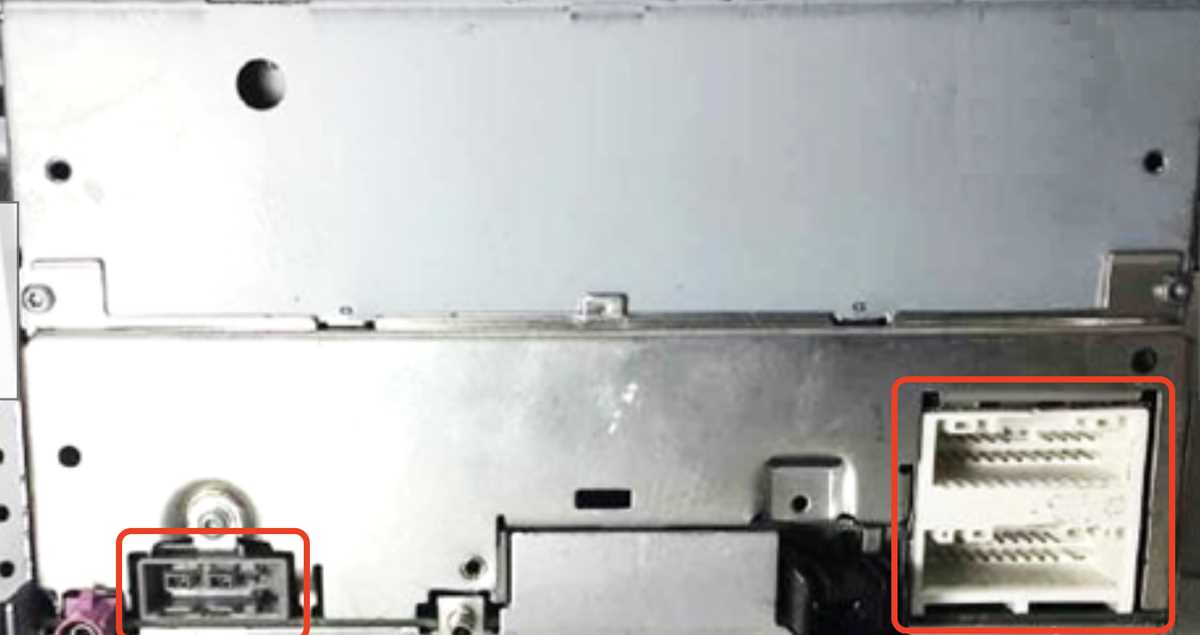

Behind the audio module, the primary harness connector is a rectangular, multi-pin plug with a distinct tab locking mechanism. It’s usually positioned on the right side when facing the mounting bracket. Press the tab downward while pulling the connector straight out to release it–twisting or tugging at an angle can bend the pins. Note the color-coding: power wires (yellow, red), illumination (orange), ground (black), and speaker outputs (varied, often striped).
The secondary harness may include smaller plugs for amplifier controls, steering wheel audio buttons, or satellite radio integration. These are often bundled with tape or zip ties; carefully cut or unwrap them to avoid straining the wires. If the vehicle has factory navigation, a separate rectangular plug with thicker gauge wires will be present–label this before disconnecting to ensure proper reconnection later.
Inspect the harness plug for corrosion or loose terminals before proceeding. A quick visual check can reveal bent pins or dirt buildup, which can cause intermittent connectivity issues. Use a non-conductive pick or tweezers to realign any misaligned pins without touching adjacent terminals. For dirt or oxidation, a contact cleaner spray applied to a lint-free cloth works better than abrasive cleaning.
If the connector doesn’t release smoothly, verify that all locking tabs are fully depressed. Some models integrate a secondary latch near the top–slide it to the side before attempting removal. Avoid excessive force; if resistance persists, check for hidden screws or clips securing the harness bracket to the chassis–these are sometimes overlooked during disassembly.
Before modifying or splicing into the harness, document the original pinout with a photo or diagram. Pay close attention to the red (constant power) and yellow (switched power) wires, as mixing these can drain the battery if not reconnected correctly. For aftermarket installations, match the new unit’s wiring harness to these points precisely–guesswork here risks electrical shorts or fuse overloads.
Reinstallation requires seating the harness plug fully until it clicks into place. Test the audio system with the vehicle’s key in the accessory position to confirm all functions–speakers, display, and steering controls–operate before reassembling the trim. If the radio powers on but has no sound, revisit the speaker outputs on the harness; a loose wire here is a common culprit.
Identifying Wire Colors and Their Corresponding Functions
Start by locating the harness connector behind the head unit–typically a 16-pin plug with distinct color-coded leads. The yellow wire delivers constant 12V power from the battery, ensuring memory retention for presets and settings, while the red wire supplies switched 12V accessed only when the ignition is active. Pair these with the black wire (ground), verifying continuity to the chassis with a multimeter (0 ohms). Speaker outputs follow a pattern: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left, green (+) and green/black (-) for rear right, and purple (+) and purple/black (-) for rear left. Avoid reversing polarity to prevent phase cancellation and diminished audio clarity.
- Blue/white striped wire: Powers the electric antenna or amplifier remote turn-on (12V when the system activates).
- Orange or orange/white wire: Illumination/parking light dimmer control–connect to adjust display brightness automatically.
- Brown or pink wires (varies by trim): Mute signal for hands-free integration; check voltage drop during calls.
Test each lead before splicing–use a non-contact voltage probe for live circuits and probe wires with the ignition in both off and on positions to confirm function. Label all connections with colored tape matching the factory codes to simplify future upgrades or diagnostics.
Step-by-Step Guide to Integrating Aftermarket Connector with Factory Vehicle Cabling
Disconnect the negative terminal of the battery before handling any electrical components. Use a multimeter set to continuity mode to verify power wires–factory harnesses typically use yellow for constant 12V, red for switched accessory, and black for ground. Confirm these with the aftermarket connector’s pinout to avoid mismatches.
Strip ¼ inch of insulation from both the OEM wires and aftermarket leads using precision strippers. Crimp-connect matching wires with butt connectors rated for 18-22 AWG, then solder for durability; heat-shrink tubing must fully cover exposed copper to prevent corrosion. Avoid twisting wires–this creates resistance and voltage drop.
Locate the vehicle’s fuse box for accessory power if the factory harness lacks a dedicated switched wire. Insert an add-a-circuit fuse tap into an unused slot (10A rating max) and splice the red aftermarket lead into it. Verify functionality with a test light before finalizing connections to prevent damaging the new unit.
Ground the aftermarket system properly by scraping paint off the chassis where the black wire connects. Factory grounds often use screw terminals–secure the new ground tightly to bare metal. Poor grounding causes static, alternator whine, or complete system failure, so check resistance (should be under 0.5 ohms).
For speaker wiring, match the aftermarket harness colors to the factory wires–commonly white (front left +), white/black (front left –), gray (front right +), gray/black (front right –), and so on. Use a wiring harness adapter if colors differ; never bridge speaker wires to power or ground–this destroys the amplifier.
Reconnect the battery and test each function: power, illumination, amplifier turn-on (blue/white wire), and speaker output. Use an oscilloscope if possible to check for clean sine waves–distortion indicates reversed polarity or shorted wires. If static persists, reroute RCA cables away from power wires to minimize interference.
Secure all splices with braided loom or split conduit, then zip-tie the harness away from moving parts or sharp edges. Reassemble dash panels carefully–snapped clips or pinched wires are common failures. Label all connections with masking tape if future troubleshooting is needed.
