Ford F150 2014 Blower Motor Circuit Wiring Schematic Guide
Replace the 15-amp fuse feeding the HVAC fan relay first–corrosion at the under-dash fuse block often mimics circuit failure. Trace the red wire with a white tracer (circuit S342) from the fuse panel to the climate control module; if resistance exceeds 0.3 ohms between pin 10 and ground, resolder the module’s connector or run an 18-gauge bypass straight to the fan harness. Avoid back-probing the module’s 22-pin plug–heat cycles weaken the tin plating–use a pigtail splice instead.

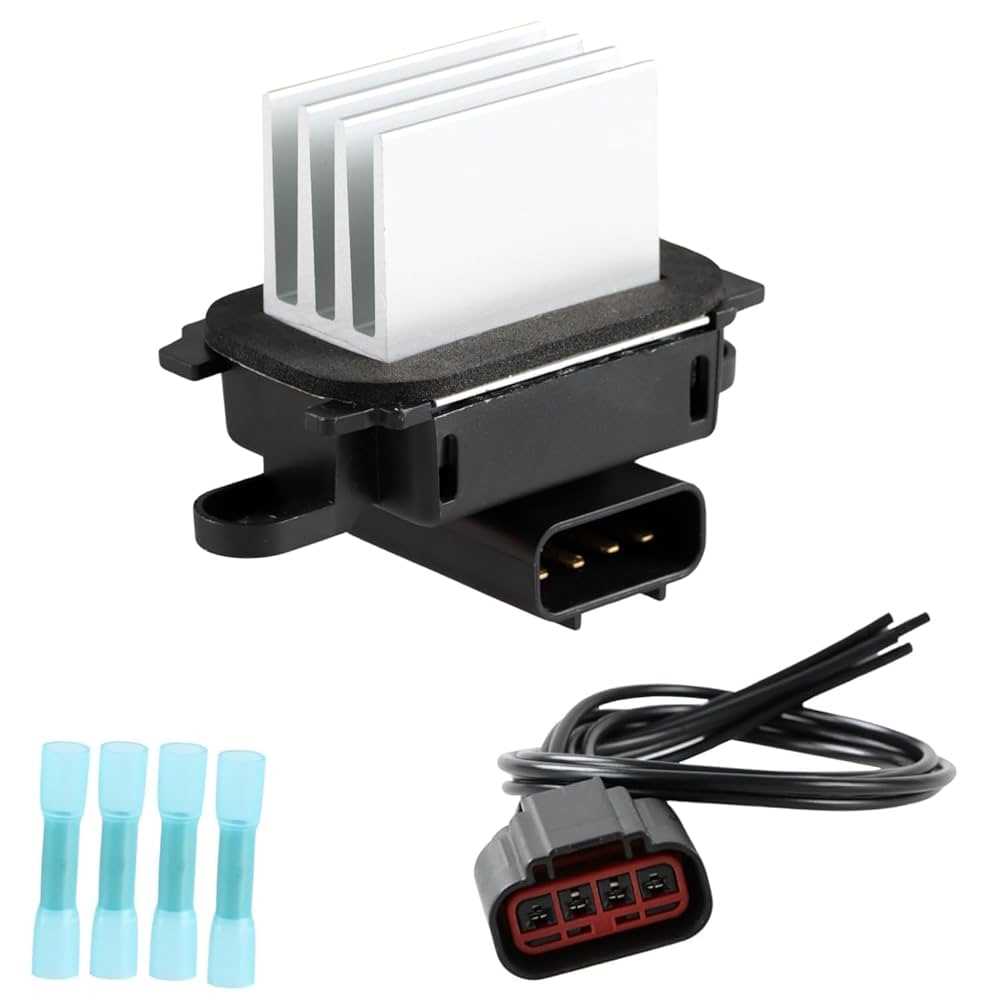

Locate the blower speed resistor pack mounted in the passenger-side footwell duct; inspect for scorched traces on the ceramic substrate. If the 1.1k-ohm resistor is open, swap the pack–aftermarket units labeled “heavy duty” often lack the proper thermal compound between the resistor and duct, causing premature failure. Probe the dark-blue wire (circuit C693) at the junction where it exits the resistor pack; a drop below 11.8V during high-speed operation points to a bad ground at G101 beneath the right-hand kick panel.
Disconnect the fan assembly’s three-wire connector before testing continuity through the motor windings. A reading below 1.2 ohms between the purple (low-speed) and tan (high-speed) wires confirms internal brush wear–replace the motor if free-spin torque is under 0.4 Nm. Secure the new unit with T27 torx bolts torqued to 9 Nm; over-tightening cracks the plastic manifold housing, introducing unfiltered air and debris into the cabin.
Map every wire color, circuit number, and pin assignment onto a 1:1 scale sketch before reconnecting anything–automotive wiring schematics compress multiple splice points onto single lines, obscuring potential shorts. Label each splice with J-numbers (e.g., J202) and verify power before attaching the negative battery terminal; a reversed hookup will fry the body control module’s flash memory, requiring a dealer reflash.
Electrical Schematic for Cabin Airflow Systems in Light-Duty Trucks

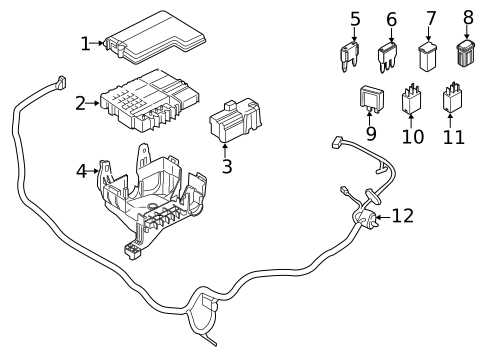

Locate the fuse box beneath the dashboard on the driver’s side–labelled “FCU” or “Front Control Unit”–and verify fuse #27 (30A) is intact before proceeding. This fuse powers the HVAC fan assembly, and corrosion here often mimics resistor failure.
Remove the lower glovebox panel by releasing three 7mm screws and disconnecting the ambient light switch. The fan speed module sits directly behind, secured by two Torx T-20 fasteners. Label each connector with masking tape: C1 (12V constant), C2 (ground), and C3-C6 (resistor taps 1-4).
Trace the wiring loom from the fan unit upward along the firewall using a multimeter set to continuity. Black/yellow stripes denote main power; orange/light blue stripes indicate speed signals. Any reading above 0.5 ohms between these and chassis ground suggests a short–inspect for pinched wires near the brake booster.
- Fan Relay (K14): Located in the underhood relay block (position #4). Swap with a known-functioning relay (e.g., horn relay) to isolate faults.
- Resistor Pack: Mounted to the blower housing. Test resistance across pins: 0.5Ω (high), 1.0Ω (medium-high), 2.2Ω (medium), 3.5Ω (low).
- Climate Control Module: Pin 17 (light green/white) carries fan request signal. Backprobe with ignition ON and fan OFF–should read 0V; fan ON (any speed) should show 4-6V.
If the fan operates only on high speed, bypass the resistor pack temporarily by jumpering the high-speed terminal (C6) to the main power input (C1). Run the engine to 1,500 RPM and measure voltage at each resistor terminal–any drop below 11V indicates a failing alternator or corroded battery connections.
- Disconnect negative battery cable before servicing.
- Remove the cabin air filter housing to access blower assembly.
- Release the blower motor electrical connector by depressing the tab and rotating clockwise.
- Inspect the harness for brittle insulation–common at the firewall grommet where water intrusion occurs.
- Reconnect the battery and test each speed setting using a scan tool to command fan speeds (PID “Fan Speed Request” should match actual RPM within 150 units).
Replace the resistor pack if any terminal reads open circuit or voltage fluctuates erratically. Use a thermal imaging camera to check for hot spots on the new pack–normal operating temperature should not exceed 120°C under peak load.
Final verification: With ignition ON, engine OFF, activate each fan speed while monitoring current draw at the fuse. Low speed: 4-6A; medium: 8-10A; high: 15-18A. Exceeding these values indicates a failing fan motor–replace the entire assembly if bearings emit grinding noises at speed.
Finding the Climate Control Connector Assembly
Begin by removing the lower dash panel beneath the passenger-side glove compartment. The panel is secured with three 7mm screws and two plastic clips–pry the clips gently with a trim tool to avoid breaking them. Once the panel is detached, the climate control module’s harness will be visible, bundled in a black sleeve near the cabin air filter housing. Trace the bundle upward; it terminates in a rectangular 6-pin connector attached to the HVAC control unit.
Key identifiers for the correct harness include:
- A white-and-orange striped wire (permanent +12V feed from fuse 29, 30A).
- A solid light-blue wire (ground, G201, located behind the right kick panel).
- A purple wire with a white tracer (resistor network tap, controlled by the front control module).
These wires converge at the blower’s speed controller, which is mounted directly behind the cabin filter housing–follow the sleeve upward 12 inches to locate its 2-pin output connector.
Accessing the Speed Controller
Disconnect the negative battery terminal before handling any connectors to prevent shorts. The speed controller is a small black box with cooling fins, secured by a single 8mm bolt to the firewall–remove it to gain better access. The output harness splits into two thicker wires (red for power, black for ground) that lead directly to the fan assembly. If resistance values are needed for diagnostics, probe the 6-pin connector while the system is powered: settings 1-4 should read 4.5Ω, 2.8Ω, 1.2Ω, and 0.8Ω respectively.
For hidden junctions, check behind the right-side under-dash relay box. A second 4-pin inline connector (often overlooked) splices into the main harness–this branch carries the low-speed signal from the climate control head. If the fan fails on speeds 1-3 but operates on 4, inspect this connector for corrosion or melted terminals. Clean contacts with electrical cleaner and a wire brush, ensuring all pins align snugly when reconnected.
Step-by-Step Guide to Testing HVAC Fan Electrical Connections
Begin by locating the fuse box under the dashboard on the driver’s side. Remove the cover and identify the 30-amp fuse labeled for the climate control system. Use a multimeter set to continuity mode–touch the probes to both fuse terminals. If the reading doesn’t show near-zero resistance, replace the fuse immediately.
Disconnect the battery negative terminal before proceeding. The fan assembly is accessed by removing the glovebox; press the sides inward to release the clips. Behind it, you’ll find the resistor block and the fan’s power connector. Wiggle the connector while inspecting for corrosion, melted plastic, or bent pins–common failure points.
Set the multimeter to DC voltage mode (20V range). Reconnect the battery, turn the ignition to “ON” (engine off), and set the climate control to the highest speed. Probe the connector’s terminals with the black lead on a ground source (e.g., bare metal chassis) and the red lead on each wire. Expected readings:
| Fan Speed Setting | Terminal Voltage (Volts) |
|---|---|
| Low | ~4.5 |
| Medium-Low | ~6.0 |
| Medium | ~8.5 |
| High | 12.0–14.0 |
Volts below specifications indicate a faulty resistor pack or switch assembly. For further isolation, remove the resistor block (two screws) and test resistance across its terminals with the multimeter in ohmmeter mode. Compare readings to the factory service manual–deviations above 10% warrant replacement.
If voltage checks pass but the fan remains inoperative, the issue lies downstream. Remove the fan assembly (three screws behind the glovebox) and disconnect its power lead. Use a 12V test light or jumper wire to bypass the resistor by connecting the fan’s power wire directly to the battery. A spinning fan confirms a wiring or resistor fault; silence points to a seized or burned-out unit.
Inspect the ground wire (typically black) at the fan’s housing. Clean the connection point with a wire brush and apply dielectric grease to prevent future corrosion. Reconnect and reassemble components in reverse order, ensuring all fasteners are torqued to 2–3 Nm to avoid rattles.
Recheck function after reassembly. If intermittent operation persists, focus on the wiring harness between the switch and resistor–look for chafed insulation or broken strands near stress points (e.g., under the dashboard or near the firewall grommet). Repair with heat-shrink butt connectors, avoiding electrical tape for long-term reliability.
Understanding Resistor Circuit Colors in HVAC Fan Assemblies
Locate the resistor module behind the cabin air filter housing–four wires connect to the unit, each corresponding to a specific speed setting. The dark blue (DB) wire links to the highest fan speed, while the light blue (LB) handles the second-highest. A white/orange (W/O) stripe denotes the medium speed, and the brown (BN) wire controls the lowest. Verify continuity with a multimeter: set to ohms (Ω), probe each terminal against ground–readings should match the resistor’s resistance chart (e.g., 0.5Ω for DB, 1.2Ω for LB, 2.8Ω for W/O, 4.5Ω for BN). Discrepancies indicate heat damage or corrosion at the connector pins.
Before disassembly, disconnect the negative battery terminal to prevent short circuits–these circuits carry up to 30A under load, enough to melt insulation if mishandled. Use dielectric grease when reconnecting terminals; oxidation on the BN or W/O wires is common in high-mileage vehicles and causes intermittent speed failures. For replacement, select an OEM-equivalent resistor with the same part number (e.g., Motorcraft YH-1838 or equivalent aftermarket). Third-party units often lack proper heat dissipation plating, leading to premature burnout.
Trace the wiring harness upward toward the dash’s left side–identify the 18-gauge harness clamp securing the bundle to the firewall. This clamp prevents chafing; if loose, wires can rub against the HVAC housing, exposing copper filaments. When reconnecting, match wire colors precisely; swapping LB and W/O, for example, reverses fan speeds and strains the system. For diagnostics, backprobe the connector while cycling the fan switch–voltage should toggle cleanly between terminals without dropouts. If readings flicker, inspect the dash switch or the body control module fuse (position 23 in the under-dash panel).
