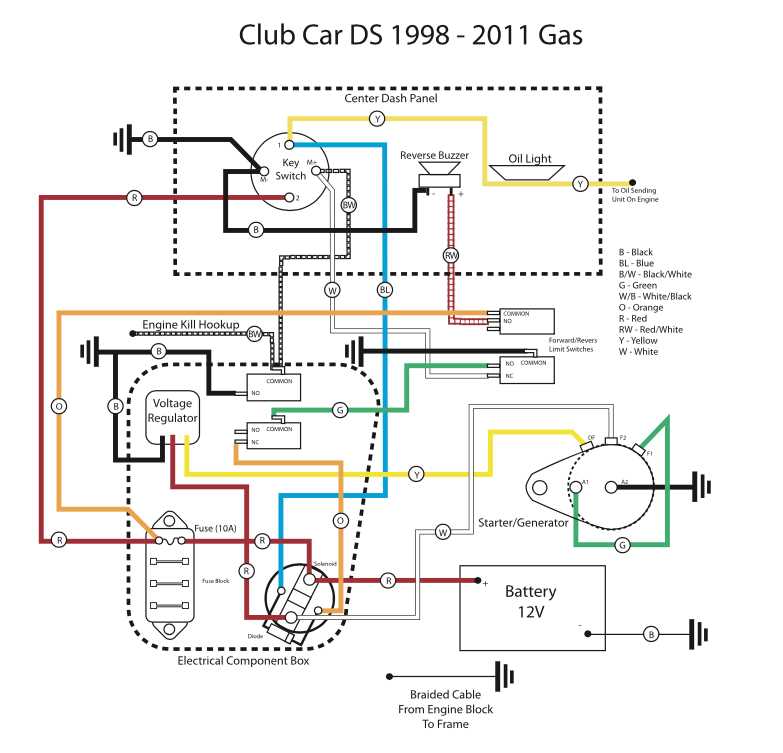

Club Car Gasoline Engine Wiring Schematic for Golf Carts 1995-2023

Begin by locating the main power distribution panel beneath the dashboard. Most models use a 12-volt system with a color-coded harness: red for primary voltage, black for ground, yellow for ignition-switched circuits, and blue for accessories. Verify connections with a multimeter–readings should show 12.6–13.8V at the battery terminals under load. If voltage drops below 12.2V, inspect the alternator output regulator first, then trace the starter solenoid circuit.

For ignition troubleshooting, follow the purple wire from the key switch to the coil. A common failure point is the capacitor-resistor module on older models–if the engine misfires or stalls, bypass this component temporarily with a 0.22μF 250V capacitor. Fuel pumps in these systems often rely on a green/white relay-controlled wire; if the pump doesn’t prime, check the inertia switch (mounted near the rear axle) for tripped status before replacing the relay.

Headlight circuits frequently suffer from corroded connectors. The white/striped wire carries high-beam current, while gray handles low-beam–both should register 5–7 ohms at the bulb socket. If dimming occurs at idle, test the voltage stabilizer (a black box near the battery) with a scope; expect a clean 13.5V square wave output. Fuses (typically 10–30A) are housed in a central block–replace any blown fuses with exact amp ratings to prevent fire hazards.

For reverse polarity protection, identify the diode pack (usually a silver cylinder) inline with the starter motor cable. If the engine cranks but doesn’t start, probe the orange wire at the ignition control module–it should pulse 3–5V during cranking. Ground issues manifest as intermittent failures; secure all ground straps to unpainted metal surfaces (preferably near attachment points) using star washers for improved conductivity.

Key Electrical Blueprint Insights for Your Compact Utility Vehicle

Begin by isolating the ignition switch harness–locate the red (battery-positive) and black (ground) wires on the back of the switch. Use a multimeter set to 20VDC to verify 12.6V across these terminals with the key in the “ON” position. If voltage drops below 12.2V, inspect the main fuse (30A) near the battery and check for corrosion on the terminal connections. Avoid splicing wires here–replace damaged sections with 14-gauge marine-grade copper wire to prevent resistance buildup.

Solenoid and Starter Relay Diagnostics

Trace the starter solenoid’s thick purple wire (labeled “S”) to the ignition switch–this should show continuity only when the key turns to “START.” If the solenoid clicks but the motor doesn’t crank, probe the large post (connected to the starter) for voltage. Zero volts indicates a faulty solenoid; swap it with a 12V 200A unit rated for deep-cycle applications. For intermittent failures, clean the grounding strap between the motor housing and frame with a wire brush–oxide buildup here mimics solenoid failure.

Finding Critical Electrical Parts in Your Vehicle’s System

Begin under the dashboard near the driver’s side kick panel. The central fuse block houses relays controlling the ignition, solenoid, and voltage regulator. Identify the thick red cable leading to the battery–this is the main positive feed, typically secured with a 10mm bolt. Adjacent to it, locate the black ground strap connecting to the chassis. Verify these connections with a multimeter; readings should match battery voltage (12.6V–14.5V) when the system is active.

Solenoid and Starter Circuit

Trace the solenoid beneath the front hood or beneath the seat, depending on the model year. It resembles a cylindrical or rectangular component with two large terminals. The smaller terminal receives a 12V signal from the ignition switch, while the larger terminal links to the starter motor. Check for corrosion on the terminals–clean with a wire brush if resistance exceeds 0.2 ohms. For pre-1995 models, look for an additional smaller relay controlling fuel pump activation adjacent to the solenoid.

• Ignition coil: Mounted on the frame near the backside of the vehicle. Look for a small black box with two thinner wires (signal) and one thicker wire (power).
• Voltage regulator: Typically integrated into the alternator but may appear as a separate module in older variants. Test for AC ripple exceeding 0.5V with the powertrain running–indicative of a failing regulator.
• Key switch wires: Color-coded–red (battery), yellow (solenoid trigger), black (ground), orange (accessory). Use a continuity tester to confirm connectivity when turned to the “on” position.

Inspect the harness running along the frame rail for brittle insulation or exposed copper. Repair with heat-shrink tubing rather than electrical tape. Focus on junctions where wires enter through grommets–these are common failure points. For models with electronic speed controllers, the throttle potentiometer connects via a three-wire plug near the accelerator pedal. Test its resistance range (typically 0.5kΩ–4.5kΩ fully depressed). Replace if readings drift outside this range.

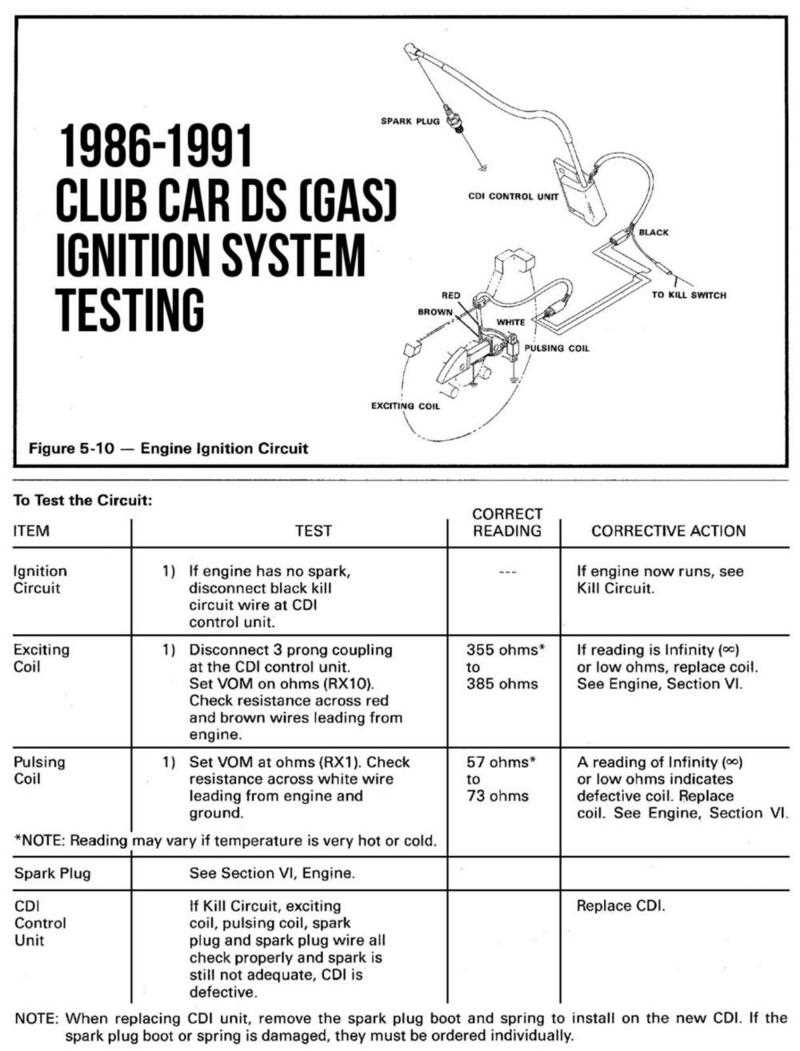

Step-by-Step Tracing of Ignition System Conductors

Locate the battery’s positive terminal and follow the red conductor to the ignition switch. Use a multimeter set to continuity mode to verify connectivity; expect a reading below 0.5 ohms if the path is intact. If resistance exceeds this value, inspect for corrosion at connection points or frayed insulation–common failure points in older vehicles.

Trace the switch’s output terminal to the ignition coil’s primary circuit. Label each segment with masking tape (e.g., “S1 to Coil Primary”) to avoid confusion during reassembly. Check for voltage at the coil’s positive terminal while cranking the starter; absence suggests a faulty switch, solenoid, or broken conductor between these components.

• Primary coil circuit: 12V input, resistance 0.3–1.0 ohms.
• Secondary circuit: high-voltage output (20kV+), resistance 6–15k ohms.
• Distributor rotor gap: 0.020–0.040 inches for optimal spark distribution.

From the coil’s secondary terminal, follow the high-tension lead to the distributor cap’s central post. Remove the cap and rotor; inspect for carbon tracking or moisture intrusion–evidenced by dark, conductive deposits. Replace the cap if resistance between adjacent posts drops below 50M ohms. Route the spark plug wires in firing order (e.g., 1-3-4-2 for inline-four models) and secure with dielectric grease to prevent moisture ingress. Test plug gap before installation: 0.030–0.040 inches for most small-displacement powertrains.

Identifying and Testing the Starter-Generator Circuit

Locate the voltage regulator first–typically a small rectangular unit mounted near the starter-generator assembly, secured with two screws and a multi-pin connector. Disconnect the battery ground cable before handling any components to prevent accidental shorts. Use a multimeter set to DC voltage (20V range) to probe the field terminal (F) at the regulator while the ignition is on but the system is not cranking. A reading of 12V confirms the field circuit is receiving power; deviations suggest a faulty regulator or broken feed wire.

Inspect the armature circuit next. The starter-generator houses both functions within a single housing, identifiable by its cylindrical shape and rear-mounted brush set. With the multimeter on continuity mode, test between the armature terminal (A) and the positive battery post. A zero-ohm reading verifies intact windings; resistance above 0.5 ohms indicates worn brushes or shorted coils. For cranking verification, clamp an inductive ammeter around the main positive cable while engaging the starter. Current draw should stabilize between 100-200 amps during cranking–lower values signal weak brush contact, higher values point to internal shorts.

Key Terminal Checks

Trace the solenoid feed wire (thick red or orange) from the battery to the starter-generator’s solenoid terminal. Use a test light or multimeter to confirm 12V presence when the key is turned to “start.” If voltage exists but the unit doesn’t engage, the solenoid plunger may be stuck–rap it sharply with a tool handle while activating the ignition. For generator output testing, run the system at 2,000 RPM and measure voltage at the battery posts: 13.8-14.5V indicates proper charging; readings below 13V suggest a faulty diode trio or regulator.

Examine the brush holder assembly for excessive wear or seized springs. Remove the end cap by unscrewing four small bolts, then lift the brush plate to inspect carbon deposits. Brushes should retract freely and extend at least 5mm beyond the holder; replace if shorter. Clean commutator bars with 600-grit sandpaper–never use emery cloth–then blow out debris with compressed air. Check brush lead continuity by probing the holder’s spade terminals; infinite resistance requires brush replacement.

If the unit spins but fails to crank, focus on the overrunning clutch. Rotate the pulley by hand–forward rotation should engage the gear, reverse rotation should spin freely. Grinding noises during cranking indicate worn clutch springs or damaged flywheel teeth. Replace the clutch if slippage occurs under load. For systems with external voltage regulators, jumper the F terminal to ground briefly while monitoring RPM–RPM should dip slightly; no change suggests internal field winding failure.

Reassembly requires precise brush positioning. Reinstall the brush plate, ensuring leads align with the correct terminals (field and armature). Torque end cap bolts cross-pattern to 8 ft-lbs for even pressure. After reconnecting all cables, test the cutoff circuit: with the system running, disconnect the battery positive cable–the unit should continue running on generated power alone for 30+ seconds before stalling. Premature cutoff points to weak residual magnetism or faulty cutoff diodes.
