Complete Hyundai Elantra 2017 Radio Wiring Diagram Guide for DIY Installation

Locate the 12-pin harness behind the head unit to start. Pin assignments break down as follows: Battery constant (red, 12V) delivers power regardless of ignition, accessory (yellow, 12V) activates with the key, ground (black) ties to chassis metal, illumination (orange) dims display with headlights, left front (+ gray) and right front (+ light gray) carry speaker signals, left front (- dark gray) and right front (- tan) complete the circuit. Verify continuity with a multimeter before connecting aftermarket components.

Steering wheel controls relay through a separate 8-pin plug. Data lines (white/green and white/brown) require a resistor-based interface–adapters like Metra ASWC-1 handle protocol translation. If bypassing the OEM unit entirely, crimp male spade connectors to match the factory harness; soldering ensures corrosion resistance. For vehicles with navigation, the GPS antenna (blue/white) must remain connected to avoid losing satellite lock.

Antenna power (blue) defaults to 12V–confirm this with a test light when troubleshooting weak reception. If adding amplifiers, run solid 10-gauge wire directly from the battery with an inline fuse (20A minimum) positioned within 18 inches of the terminal. Use relays for high-current accessories to prevent voltage drop. Double-check all ground points: bare metal surfaces must be free of paint or rust before securing connections.

Aftermarket units often require a harness adapter (e.g., Metra 70-2103). Strip wires back 3/8″, twist strands, and use heat-shrink tubing–not electrical tape–to seal crimps. Label each wire during disassembly to avoid misplacement. For manual climate controls, the blower motor feed (green/white) may share a common fuse–replace it if the radio powers down with the fan.

Car Audio System Connection Guide for the 2016+ Sedan

Locate the 12-pin ISO connector behind the factory head unit to access the full wiring harness. Pin assignments follow this sequence: A1 (battery +12V, yellow), A4 (illumination control, orange), A7 (ground, black), B2 (front left speaker positive, gray/black), B4 (front right speaker positive, white/black), B6 (rear left speaker positive, green/black), and B8 (rear right speaker positive, violet/black). Antenna trigger (blue) sits at A8–connect this to aftermarket amplifiers requiring remote turn-on.

Color codes remain consistent across trims, including the Limited and Sport variants. Aftermarket adapters like Metra 70-1004 or Scosche HO01B simplify integration with Pioneer, JVC, or Sony receivers without cutting factory wires. Verify pin voltages with a multimeter: ignition-switched +12V (red, A6) must read 0V with key off, 12V with accessory or ignition on. Splice connections using solder and heat-shrink tubing to prevent corrosion–avoid crimp connectors for permanent installations.

Rear camera compatibility requires tapping the pink/black reverse signal wire (pin A5) and connecting it to the new head unit’s video input. For vehicles with factory navigation or premium audio, the brown CAN bus wire (pin A12) must be retained to maintain steering wheel controls and vehicle settings integration. Check DIN dimensions–double-DIN units fit without dash modifications, while single-DIN installs may need a mounting kit like Metra 99-8205.

Matching Factory Stereo Interface Plugs for Your Vehicle’s Audio System

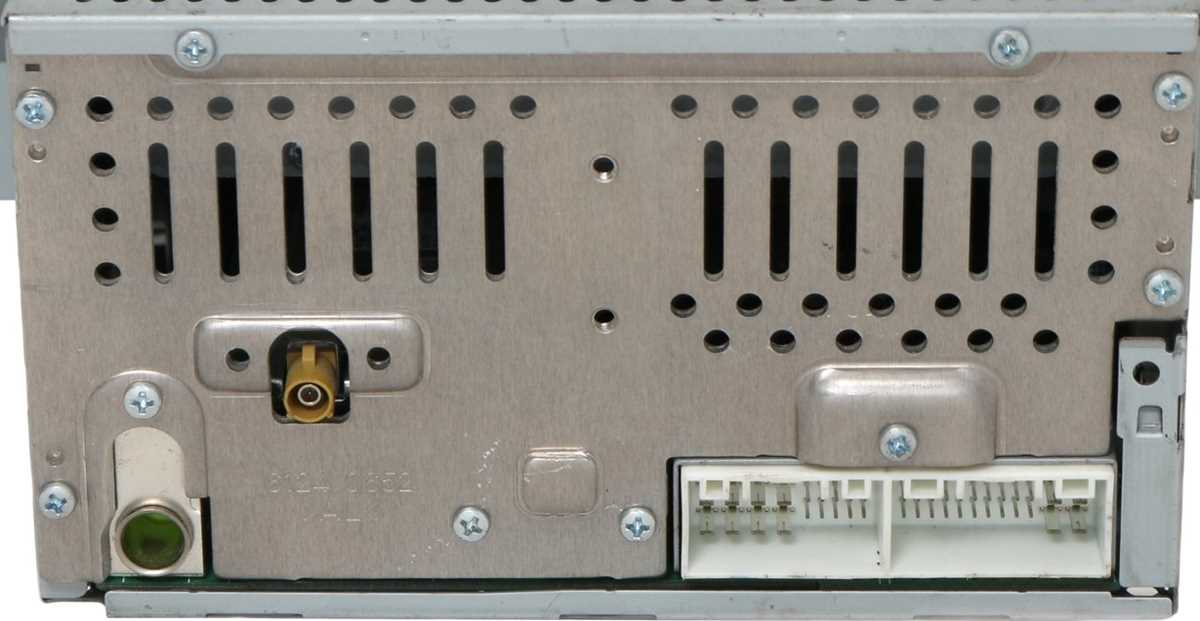

Begin by locating the original head unit’s rear panel. The connector assembly consists of two principal plugs: an 18-pin white harness (A) and a 20-pin black harness (B). The white plug handles most speaker outputs, power supply lines, and illumination control, while the black connector manages amplifier triggers, antenna activation, and data bus communication. Verify pin assignments with a multimeter–grounds should read 0 ohms, constant power (12V) should show battery voltage, and switched power should drop to near-zero when ignition is off.

Check the vehicle’s service manual for harness pinout confirmation. Below is a simplified reference table for the most critical connections:

Connector	Pin Number	Function	Expected Voltage
White (A)	1-4	Front & rear speaker outputs (±)	4-8V AC with audio signal
White (A)	5	Ground	0V
White (A)	6	Constant 12V	12-14V DC
White (A)	7	Illumination	12V when lights on
White (A)	8	Switched 12V	0V ignition off, 12V ignition on
Black (B)	1	Data bus (CAN high)	Variable digital signal
Black (B)	2	Antenna power	0V or 12V depending on mode

Misidentifying pins can damage the replacement head unit or the car’s electrical system. Use a continuity tester to trace each wire from the plug back to its origin–speaker cables will terminate at the corresponding door or rear fader, while power lines connect to the fuse box or ignition switch. If adapting an aftermarket stereo, note that some vehicles use a 120-ohm resistor on the illumination circuit; bypassing this may cause display malfunctions.

Aftermarket adapters often include color-coded wiring looms designed for specific model years. Confirm compatibility by cross-referencing the adapter’s part number against the original plugs. For instance, the Metra 70-1002 harness matches the white 18-pin plug but requires manual connection for amplifier control (black plug, pin 3) if the factory amplifier remains in use. Avoid splicing into CAN bus wires–these carry critical data for steering wheel controls, diagnostics, and climate interfaces.

Label each wire with masking tape before cutting or crimping. Apply heat-shrink tubing over connectors to prevent corrosion and short circuits. Test for proper operation by powering the system in stages–first verify constant power, then switched power, followed by speaker outputs, and finally illumination. If rear speakers produce no sound, check the fader settings and potential blown fuses in the trunk’s amplifier relay box.

For vehicles equipped with premium audio (e.g., Infinity), an additional 8-pin harness controls the amplifier’s logic board. This plug is typically yellow and located near the subwoofer enclosure. Disconnecting it without an aftermarket bypass may trigger error codes or disable the entire audio system. Adapter kits like the PAC RP4-KI01 include a dummy load module to simulate the factory amplifier’s resistance, preventing “no speaker” warnings.

Final verification involves testing all functions: radio reception, CD playback (if applicable), USB/auxiliary inputs, and steering wheel controls. If the display flickers or resets, revisit ground connections–poor grounding is a common culprit. For persistent issues, consult an oscilloscope to analyze data line integrity on the CAN bus pins.

Step-by-Step Guide to Finding the Audio System Connector Schematic Behind the Panel

Disconnect the vehicle’s negative battery terminal first to prevent short circuits or electrical damage while accessing the center console. Use a 10mm socket or wrench to loosen the terminal nut, then secure the cable away from the battery post. This step eliminates risks of accidental power surges while working near sensitive components.

Remove the decorative trim surrounding the infotainment unit by inserting a flathead screwdriver or trim removal tool into the gaps along the edges. Work slowly to avoid cracking plastic clips–there are typically six to eight securing the bezel. Once freed, set the trim aside. If necessary, label each clip’s location with masking tape to simplify reassembly later.

Locate the retaining screws securing the head unit. Most models use four 7mm bolts, two at the top and two at the bottom. A magnetic screwdriver helps prevent dropped bolts from falling into the dashboard cavity. After removal, gently pull the unit outward to expose its rear connections. If resistance is felt, check for additional screws or hidden latches before applying force.

• Identify the main harness connector at the back of the unit–it’s a single rectangular plug with multiple colored wires bundled together.
• Look for a smaller auxiliary connector (often white or black) that controls steering wheel controls or amplifier signals.
• Follow the wires from these connectors toward the dashboard’s firewall side; the factory schematic is usually printed on a thin label wrapped around the harness near the kick panel or glovebox area.

If the printed label is missing or illegible, trace the wires manually using a multimeter in continuity mode. Probe each pin while referencing a generic aftermarket wiring guide for the corresponding functions (e.g., yellow for constant 12V, red for switched 12V, black for ground). Document each wire’s color and function on paper or with a digital camera to avoid confusion during reinstallation. Reconnect the battery only after verifying all connections match the expected power and signal outputs.

Standardized Audio System Connector Color Schemes and Terminal Layouts

Identify the main 12-pin harness by locating the solid orange cable–this is the ignition-switched power lead, configured to deliver 12V only when the vehicle’s ignition is active. Pair it directly with the head unit’s red input to prevent battery drain during parked periods. Avoid connecting this to the yellow memory retention terminal, which should instead match the constant 12V line, typically a thicker yellow wire with a white stripe in most harness bundles.

Ground connections demand isolation from painted surfaces–attach the black wire to a bare metal chassis point within 30cm of the audio interface to minimize signal interference. Verify continuity with a multimeter before finalizing; resistance above 0.5 ohms indicates a poor ground requiring reattachment. Never splice ground wires with other low-current circuits, as shared paths introduce electrical noise.

Speaker outputs follow a bilateral color symmetry: front left (+) pairs with light green, front left (-) with gray/black; front right (+) gold, front right (-) dark green/black; rear left (+) gray, rear left (-) brown/black; rear right (+) violet, rear right (-) light blue/black. Confirm impedance using an ohmmeter–each pair should register 2-4 ohms per channel. Crossed polarity reverses audio phase, resulting in canceled bass response.

• Illumination control: Connect the dimmer-compatible wire (usually pink) to the headlight switch circuit–this reduces display brightness in sync with dash lights. Omit this link if retaining full-intensity illumination.
• Parking brake bypass: For navigation-capable units, link the brown/slate wire to the parking brake sensor circuit to maintain full functionality while driving–consult local regulations before modifying safety interlocks.
• Antennas: The 5-8V motorized antenna trigger (typically a thin blue wire) requires activation for powered antennas; aftermarket amplifiers use this same signal as a remote turn-on. Isolate this from the speaker-level blue/white wire to prevent feedback.

Factory mute functions often rely on a dedicated tan wire–this temporary pauses audio during phone calls or reverse gear engagement. If retaining this feature, connect directly to the corresponding vehicle signal; otherwise, leave unattached to avoid unintended interruptions. Verify all non-speaker connections with a test light before permanent crimping; improperly powered head units emit high-pitched whines from switched-mode power supplies.

Aftermarket harness adapters frequently repurpose orange illumination wires to blue for older universal interfaces–cross-reference wiring guides specific to both the vehicle’s original harness and the replacement audio system. Even minor color variations between model years necessitate meter verification rather than reliance on color codes alone. Document all connections with labeled tape or digital photos before final assembly.

Final checks should include:

1. Power cycling the ignition across all key positions (off, accessory, run) to test retained memory settings.
2. Auditioning each speaker at moderate volume for distortion, confirming correct channel assignment.
3. Activating fade/balance controls to isolate partial wiring errors.
1. If rear speakers remain silent, recheck the violet/light blue pair.
2. Static noise often traces to unshielded auxiliary inputs or power wire proximity to signal wires–reroute or add ferrite beads.
