2020 Chevy Malibu Factory Amplifier Wiring Color Codes and Diagram Guide

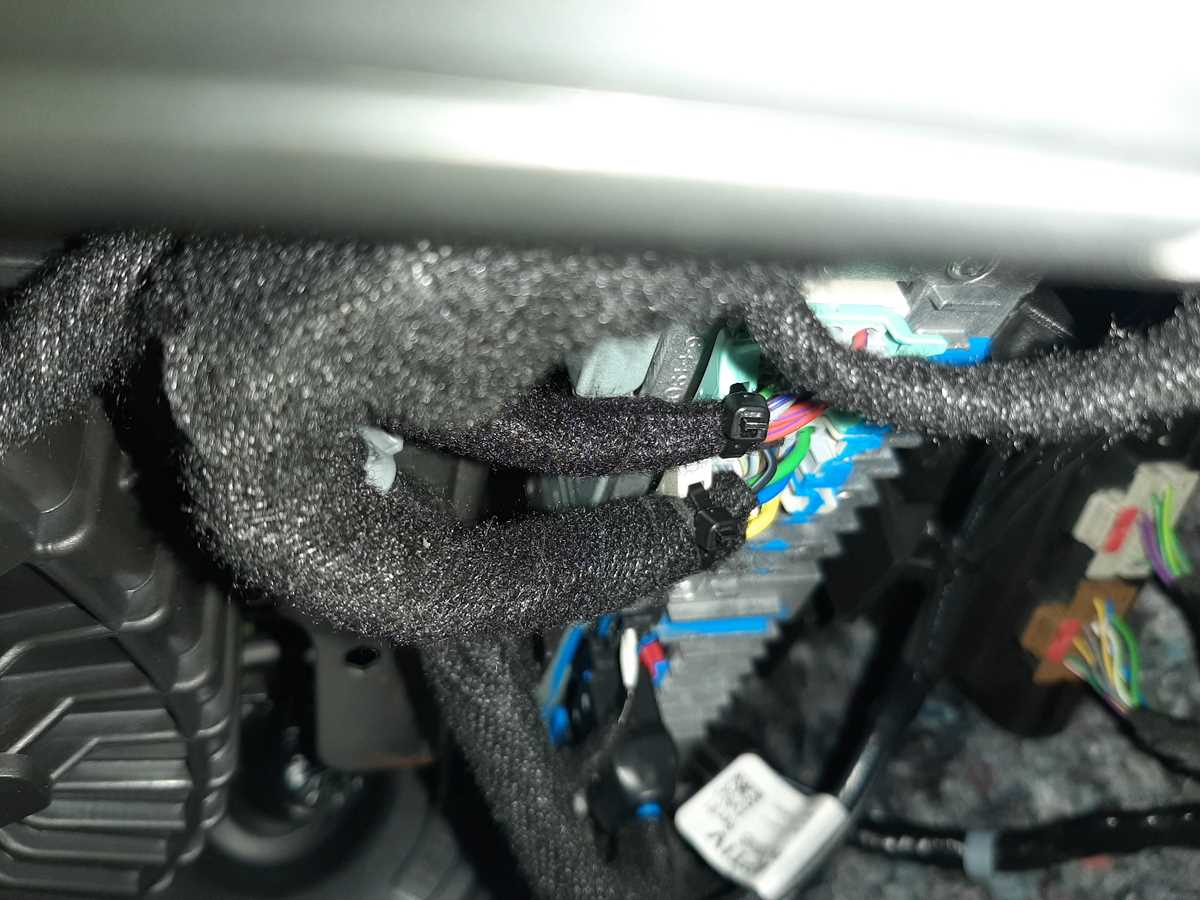

Locate the stock amplifier harness behind the glove compartment on the passenger side. Pin assignments follow a standardized color code: yellow (B+), black (ground), gray/purple (left front +), gray/light blue (left front -), dark green/white (right front +), and dark green/light green (right front -). Verify connections with a multimeter–voltage should read 12V DC at rest and spike to 14V DC during ignition.

Use 18-gauge wire for signal leads and 16-gauge for power distribution. Twist speaker wires at a rate of twist per inch to reduce interference. Secure connections with solder and shrink tubing–avoid butt connectors for high-current paths. The amplifier’s turn-on lead (typically purple) requires a 1kΩ resistor to prevent relay chatter.

Check fuse ratings–factory setup uses a 30A fuse for the power feed. Replace it with a 40A fuse if upgrading to an aftermarket amplifier. Ground the amplifier to bare metal within 12 inches of its mount point; sand the contact area to ensure conductivity. For signal noise, route RCA cables away from power wires by at least 8 inches.

Refer to the OE service manual’s electrical schematics (section 8B) for pinouts of the BCM and radio harness. If retaining the stock head unit, retain the data bus (orange/white) to maintain chime alerts and steering wheel controls. Disconnect the battery’s negative terminal before splicing into any circuits.

Understanding the Audio Signal Flow in GM Sedans

Locate the amplifier’s wiring harness near the vehicle’s rear deck or beneath the rear seat. Pinout configuration follows this structure: orange/black (B+) connects to constant 12V power; gray (ground) links to chassis; purple (left front +), light blue (left front –), dark green (right front +), and tan (right front –) carry speaker outputs. Verify connections with a multimeter–resistance should measure below 0.5 ohms between ground and chassis, ensuring a stable reference point.

Signal inputs from the head unit arrive via twisted-pair cables: yellow (LF+), yellow/black (LF-), brown (RF+), and brown/black (RF-). These feed the built-in DSP before amplification. If static persists, inspect the RCA-to-factory adapter for impedance mismatch–standard aftermarket units expect 2–4 volts, while OEM systems often deliver 5 volts. Replace adapters with direct solder joints for cleaner transmission.

For subwoofer integration, splice into the rear speaker lines (dark blue/white and dark blue for L/R) using a line-level converter set to 50 Hz high-pass filtering. Avoid tapping into the amplifier’s high-current outputs–excessive load risks thermal shutdown. Use 16-gauge wire for extensions, as smaller gauges degrade signal integrity under 100Hz frequencies.

After reassembly, reset the vehicle’s infotainment module by disconnecting the battery for 10 minutes. Persistent audio cuts may indicate a faulty amplifier relay–diagnose via OBD-II port (U1400 code) or listen for a faint 1kHz test tone during ignition. Replace the relay if absent.

Finding the OEM Sound Booster in the Current Model Sedan

Begin by removing the right rear side panel in the trunk area to expose the built-in signal processor. This panel is secured with three 8mm screws and two plastic retainers–use a trim removal tool to avoid cracking the fasteners. Behind this panel, the amplifier module is mounted vertically on the wheel well, identifiable by its metal casing and attached wiring harness. The harness connector has 24 pins divided into three rows, matching the color-coded outputs listed in service manuals under section 8B.

To confirm exact placement, trace the main speaker wires from the door tweeters and midrange units. All four door channels converge into a single multi-conductor cable that enters the vehicle’s interior through a grommet behind the rear seat. This cable runs under the carpet alongside the emergency brake cable, then rises into the amplifier’s rear input slot. A quick voltage check–with the audio system active–on the green/white wire (left front positive) should yield approximately 3.5V RMS when playing a 1kHz test tone at moderate volume.

Access Point	Fastener Type	Tool Required	Removal Difficulty (1-5)
Right trunk side panel	8mm screws + plastic retainers	Ratchet (10mm socket) + trim tool	2
Rear seat bottom cushion	None (spring clips)	Flathead screwdriver	1
Amplifier mounting bracket	Torx T-25 bolts	Torx driver	3

For deeper diagnostics, disconnect the negative battery terminal first–this prevents accidental short circuits during probe testing. The amplifier’s mounting bracket is held by four Torx T-25 bolts; remove them to tilt the unit forward, revealing its backside cooling fins and grounding strap connected to the chassis. The grounding strap is critical; ensure it makes clean contact without corrosion, as poor grounding creates audible distortion in bass frequencies.

Once the unit is accessible, inspect the harness connector for bent pins or melted plastic–common signs of previous aftermarket interference. The harness includes dual CAN bus lines (yellow/brown and white/brown) that interface with the vehicle’s infotainment controller; damaging these will disable dashboard audio controls. Use a multimeter’s continuity mode to verify pin integrity before attempting any upgrades or repairs.

Alternative Methods if Primary Access Fails

In rare cases where trunk panel removal doesn’t expose the amplifier, check beneath the rear seat. Lift the bottom cushion by releasing two spring clips at the front edge–no tools required. The amplifier may be mounted horizontally here in some trim levels, though this configuration is less common in recent production cycles. If still not found, consult the build sheet sticker inside the driver’s door jamb for the RPO code “UQA”–this confirms the presence of the OEM signal processor and rules out head-unit-only audio configurations.

Identifying Wire Colors and Pinouts for the OEM Sound System Integration

Locate the 16-pin connector behind the vehicle’s infotainment unit–this houses all audio signal lines. Pins 1 (blue), 3 (gray), 5 (purple), and 7 (dark green) carry front left, front right, rear left, and rear right speaker outputs respectively. Verify continuity with a multimeter to avoid confusion with ground or constant-power wires, which often share similar color stripes.

Ground references cluster on the outer pins: 2 (black), 6 (brown), 10 (tan/black), and 14 (pink/black). Use a 12V test light to confirm absence of voltage–these should only register 0 ohms when probed against chassis ground. Misidentifying these as signal lines risks short circuits to the chassis, permanently damaging the audio module.

Auxiliary Power and Signal Confirmation

Constant 12V power feeds via pin 9 (orange), switched ignition 12V on pin 16 (yellow/black). Measure voltage drop while cycling the key–switched leads should jump from 0 to 14.5V, constant stays live regardless of ignition state. Adjacent pins–8 (red/white) and 12 (light blue)–serve as data lines for the infotainment bus; avoid loading these with speaker loads.

• Front-left tweeter: white wire (pin 1, high-pass)
• Subwoofer pre-out: gray/black (pin 11, low-pass)
• Mute trigger: light green (pin 13, +12V active)

Interference-prone lines–like the mute signal–should be routed away from alternator feed cables. Shielded twisted pairs (not stock) reduce induced whine in aftermarket upgrades. For infotainment integration, splice into pins 8 and 12 only after bench-testing the system with a 2.5A fuse inline to prevent ECU lockouts.

Color Code Pitfalls and Workarounds

Manufacturers reuse colors across models: purple may switch between rear-left and rear-right roles. Cross-reference with service manuals–paint-swatches on wires (e.g., dark green with yellow stripe) differentiate ‘parking brake’ from ‘rear-right’ despite identical base coloring. For quick diagnostics, strip 1mm insulation on suspect wires, probe with a oscilloscope: audio signals register 1-4V peak-to-peak, while data lines manifest as 5V square waves.

Step-by-Step Guide to Reaching the Electrical Connections Behind the Instrument Panel

Start by removing the lower dash cover beneath the steering column. Use a 7mm socket to unscrew the four bolts securing the panel–two are visible near the pedals, while the other two require reaching upward behind the fuse box. Disconnect the negative battery terminal to prevent short circuits before proceeding. Label each connector with masking tape to avoid confusion during reassembly.

Disconnecting the Climate Control and Infotainment Unit

Gently pry off the trim panel surrounding the climate controls using a plastic trim tool, working from the outer edges inward to avoid snapping clips. Detach the electrical plugs by pressing the release tabs–some may require a firm tug, but avoid excessive force. For the infotainment unit, remove the trim bezel first, then unscrew the four Torx T20 bolts holding the module in place. Slide it out carefully to expose the bundled cables behind it.

Locate the primary harness connector near the center console’s rear edge, typically secured with a plastic retaining clip. Depress the clip’s tab using a small flathead screwdriver while pulling the connector free. If resistance is felt, wiggle the connector side-to-side rather than pulling straight out to prevent damaging pins. For hidden connections, follow the harness downward toward the firewall, where it may be routed behind the brake pedal assembly.

Inspect the harness for wear or corrosion before handling. If splicing or repairs are needed, strip wires cautiously with a specialized tool, ensuring no strands fray. Reattach all panels in reverse order, verifying each clip audibly snaps into place. Reconnect the battery last and test all electronics–including lights, gauges, and audio–to confirm functionality.
