Complete Ford F150 2020 Speaker Wiring Diagram Guide for Audio Upgrades

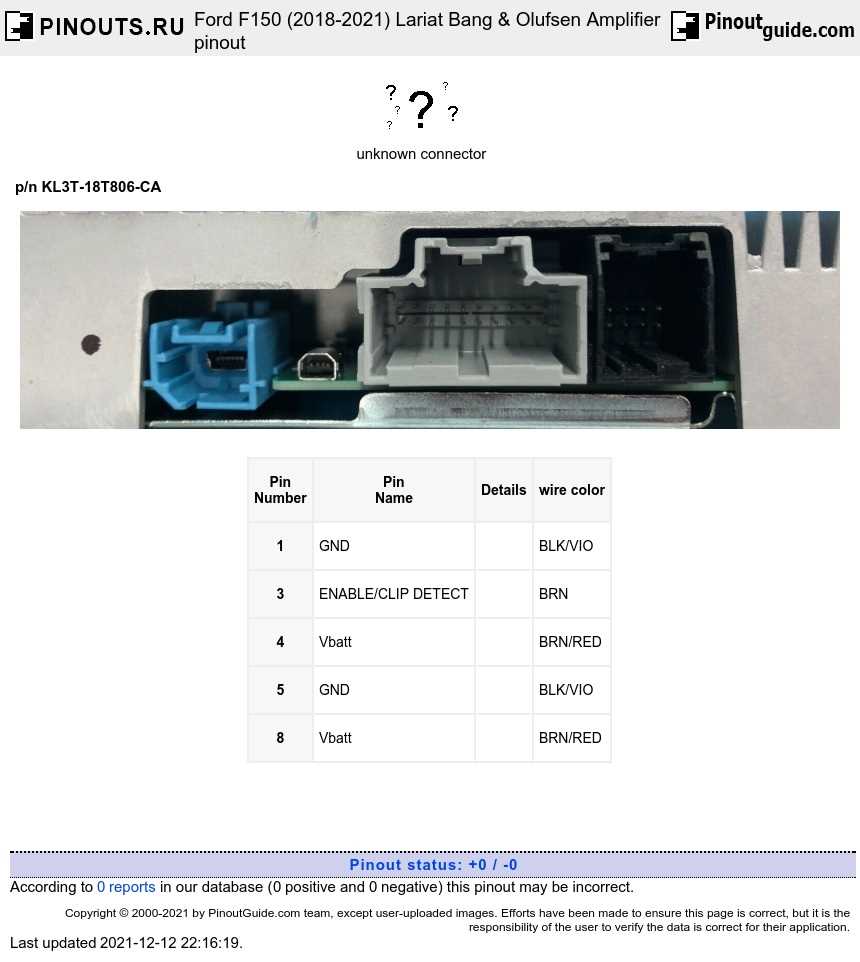

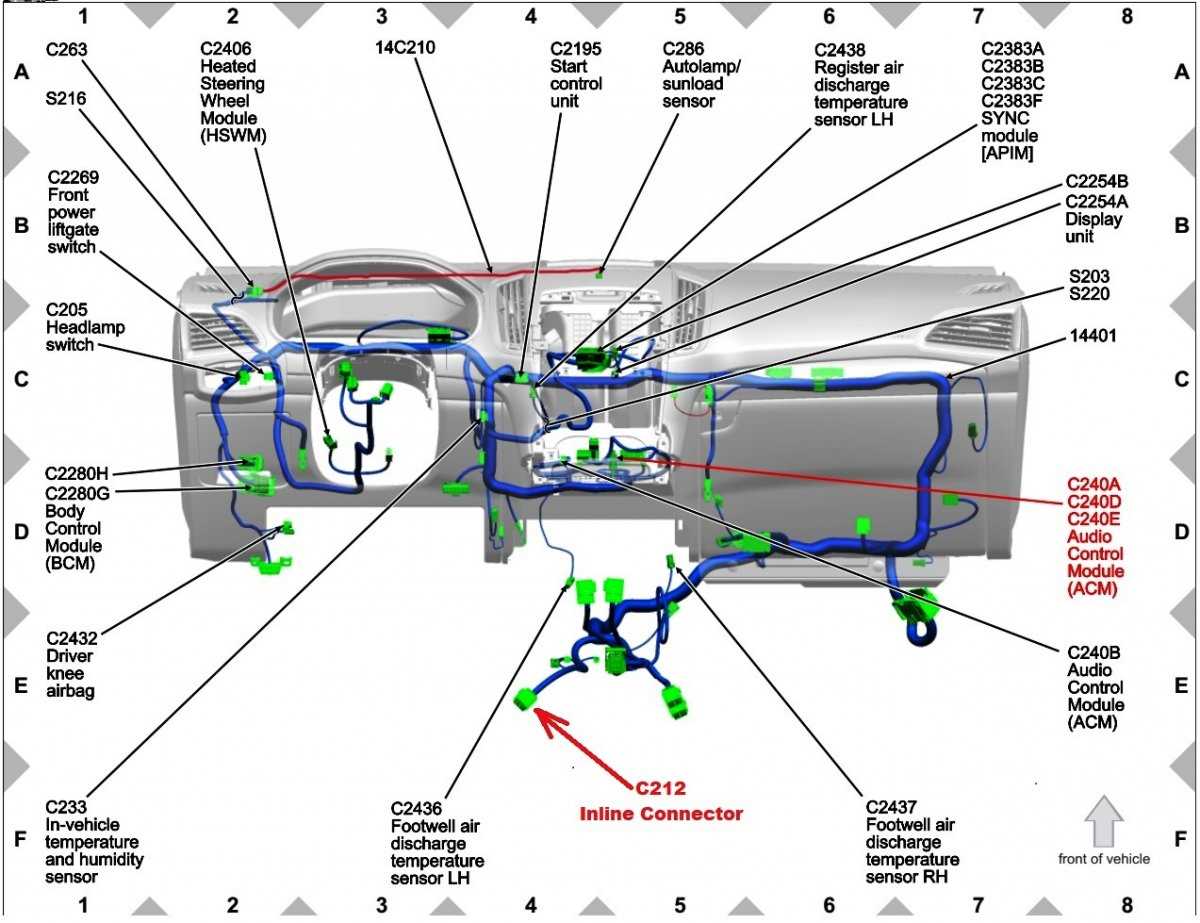

Locate the factory amplifier under the driver-side dashboard near the kick panel–this is where most connection points originate. Trace the main harness labeled C2280B (gray, 24-pin) and C2280A (black, 16-pin) for the front and rear channels respectively. The left front and right front signals run through pins 1 (white/light blue) and 3 (dark green/light blue) on C2280B, while the rear channels use pins 1 (violet/light blue) and 3 (brown/light blue) on C2280A. Ground wires are consistently black and terminate at chassis points behind the glovebox.

For aftermarket upgrades, bypass the factory amplifier by splicing into the pre-amp outputs at the head unit connector (C2380, 14-pin). Signal wires for front channels are 6 (gray/red, left) and 7 (gray/black, right), while rear channels use 8 (white/violet) and 9 (black/violet). Use a multimeter to verify impedance–factory drivers run at 2 ohms, ensuring compatibility with most third-party units. Avoid tapping the door harness directly; rerouting through the firewall grommet (passenger side) reduces noise interference.

Follow the vehicle’s SYNC module documentation to preserve steering wheel controls. The data line (pin 10, purple/white) on C2380 must remain intact unless using a CAN bus interface adapter. For subwoofer installations, the dedicated output (pin 11, dark green/violet) is limited to 4 volts peak-to-peak–amplify it externally if higher output is required. Always fuse new connections at the battery with a 30-amp inline fuse to prevent shorts.

Check the door wiring harness for water ingress near the hinge pivot; corrosion here is a common failure point. Replace any brittle wires with 18-gauge tinned copper to maintain signal integrity. If retaining the stock system, ensure all connectors snap securely–loose fits cause intermittent disruptions. For troubleshooting, the Fuse #41 (10 amp) powers the audio system; a blown fuse often indicates a deeper wiring issue.

Understanding Audio System Connections for Ford’s Latest Pickup

Locate the factory amplifier behind the rear passenger panel–remove the trim using a plastic pry tool to avoid scratches. The amplifier housing contains 12 labeled outputs: front left/right (LF/RF), rear left/right (LR/RR), and subwoofer (SW) channels. Each channel uses a distinct color-coded pair: LF is white/white-black, RF is gray/gray-black, LR is green/green-black, RR is purple/purple-black, and SW is brown/brown-black. Verify these against the vehicle’s service manual as Ford occasionally updates batch codes for specific trims.

For aftermarket upgrades, disconnect the negative battery terminal before splicing. Use a crimper with heat-shrink tubing for joints–never solder alone, as vibrations from the truck’s suspension can cause fractures over time. If integrating a new head unit, match impedance: the stock setup runs at 2 ohms for door units and 4 ohms for the sub. Exceeding these values risks overheating the receiver or distortion at high volumes, especially with critical bass frequencies below 80Hz.

Troubleshooting Common Audio Faults

Silent channels often trace to corroded pins in the 24-pin connector linking the amplifier to the dashboard harness. Clean contacts with electrical contact cleaner and a microfiber swab; re-seat the connector firmly. Static or intermittent sound may indicate a frayed ground wire–check the chassis ground near the rear axle mounting point. Test continuity with a multimeter; resistance should read below 0.5 ohms. If the subwoofer produces only a hum, inspect the brown/brown-black pair for shorts–Ford’s wiring insulation can degrade near the exhaust heat shield.

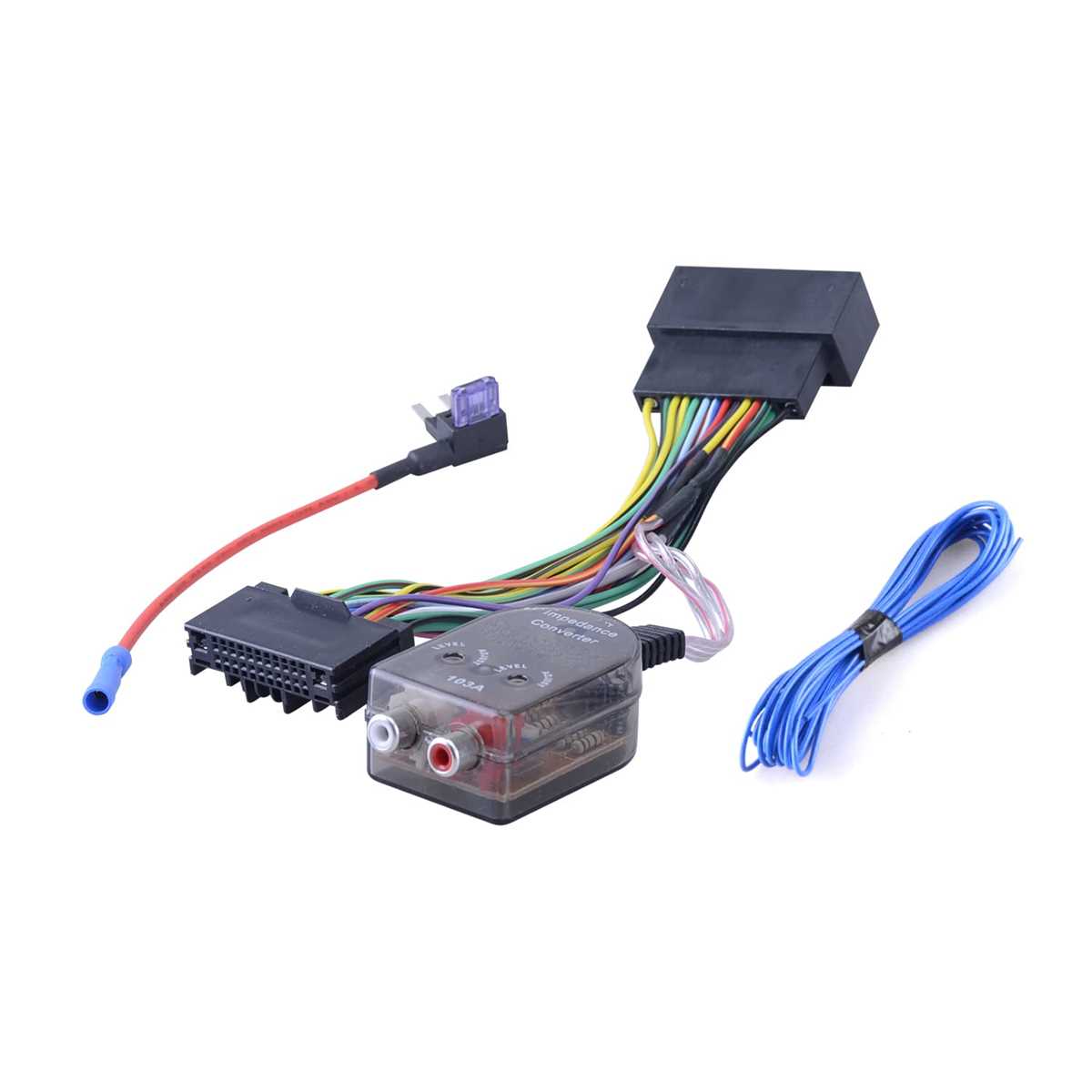

Retain the factory radio’s SYNC compatibility by preserving the telematics harness (orange/white and blue/white wires). These carry vehicle data critical for voice commands and emergency protocols. When bypassing the amplifier, link the head unit’s front outputs directly to the door harnesses, but note that rear fill will drop by ~3dB due to the lack of amplification. For premium systems, install a line output converter rated for 100W RMS per channel to maintain signal integrity.

Aftermarket kits often omit the front-center dash tweeter wiring (light blue/light blue-black). If missing, this channel can be repurposed by connecting the tweeter leads to the RF or LF outputs, but expect reduced spatial separation. Always secure loose cables away from moving pedals and the steering column shroud to prevent rattles. For dual-zone configurations, Ford’s wiring supports rear-seat entertainment via the violet/white and gray/white pairs–verify these aren’t mistakenly tied to the rear door circuits during modifications.

Finding Audio System Connector Points in the 2020 F-Series Truck

Begin by removing the door panel trim to access the primary sound output connectors. The upper rear corner behind the interior release handle houses the harness plug for the door-mounted tweeter and mid-range unit. Use a trim removal tool to pry the panel without damaging the retaining clips–apply steady pressure near the edges, avoiding the center where fragile sensors may be embedded.

The dashboard integration points require partial disassembly of the center console. Locate the screws beneath the climate control module, typically secured by Torx T20 fasteners. Once removed, lift the console upward to reveal the amplifier harness connections beneath. The front and rear channels terminate in a 12-pin Molex-style plug, color-coded as follows:

• Front left positive: White with violet stripe
• Front left negative: White with orange stripe
• Front right positive: Gray with violet stripe
• Front right negative: Gray with orange stripe
• Rear left positive: Green with violet stripe
• Rear left negative: Green with orange stripe
• Rear right positive: Purple with violet stripe
• Rear right negative: Purple with orange stripe

For the cabin-mounted subwoofer, trace the harness behind the rear seatback. Fold the seat forward to expose a 6-pin rectangular plug near the cargo anchor point. Test continuity before disconnecting–factory amplifiers often retain power briefly after ignition shutoff. A multimeter set to 20VDC range should show

Under-seat connections vary by trim level. Base models use a single 8-pin circular plug, while premium variants include an additional 4-pin harness for ambient lighting integration. Label each connector before detachment–factory harnesses lack universal color standardization across model years. Photograph the orientation of locking mechanisms before applying release tools.

The cargo area tweeters in extended cab models are accessible via the rear quarter panel. Remove the storage compartment liner to reveal a snap-fit cover concealing dual 3-pin connectors. These terminate in bare piggyback leads requiring specialized crimp connectors; soldering risks melting adjacent insulation due to compact wire gauges (typically 18-22 AWG).

When reassembling, verify all ground connections. The factory uses dedicated grounding points beneath the driver’s seat frame–clean surfaces with 80-grit sandpaper to ensure

Color Codes and Connector Pin Layouts for Cabin Audio Components

Start by verifying the harness connections at the amplifier or head unit interface. For front door units, the standard configuration uses a 4-wire setup: violet (+) and violet/black (-) for the tweeter, and gray (+) with gray/black (-) for the midrange driver. Rear coaxial setups follow a similar pattern–green (+) paired with green/black (-) on the left, and white (+) with white/black (-) on the right. Check for deviations in higher trim packages, where additional channels may introduce light blue, tan, or dark blue wires for secondary outputs.

Pin assignments for factory-installed systems typically align with a 16-pin connector layout. Positions 1-4 handle the front left outputs, 5-8 the front right, while 9-12 and 13-16 correspond to rear left and right respectively. Confirm polarity before soldering–reversing leads reduces soundstage accuracy. Aftermarket setups often use an 8-pin layout with simplified color pairs: white/white-black for left, gray/gray-black for right, adapting to both two- and four-channel amplifiers without repinning.

For door panel integration, trace the factory harness along the hinge pillar. The connector block usually reveals a 6-pin arrangement: pins 1-2 carry +12V triggers, 3-4 signal ground, and 5-6 speaker-level inputs. Miswiring here risks shorting the amplifier’s protection circuits. Use a multimeter to verify resistance (4-8 ohms expected) before connecting new drivers–bridged connections can halve impedance, stressing stock amplifiers.

Rear cargo area tweeters (common in extended cabs) follow distinct wiring: orange (+) and orange/black (-) feed the left channel, while brown (+) and brown/black (-) handle the right. Trim panels often conceal a secondary harness spliced into the main loom–remove interior panels carefully to avoid damaging clips. Vehicle-specific manuals may list alternate colors; cross-reference with an ohm meter if documentation conflicts with observed wiring.

Subwoofer wiring diverges significantly–look for thick single-conductor cables (frequently purple or dark green) routed separately from the main loom. These terminate at a dedicated amplifier output, often paired with a fused lead (10A-20A) for power delivery. Verify the sub’s enclosure matches 2-4 ohm impedance; factory amps struggle with 1-ohm loads, leading to thermal shutdown. For amplified systems, note that the remote turn-on wire (solid blue or blue/white) must maintain continuity to prevent silent operations.

When upgrading, bypass factory crossovers by connecting directly to the driver terminals. The door tweeter’s high-pass filter (typically a 2.2µF capacitor in-line) can be removed or replaced with a custom value for extended response. Label all wires during disassembly–door panels alone may have 8-12 connectors, including window switches and lock actuators. For amplified setups, splice the new harness into the existing loom using T-taps or solder-and-heat-shrink joints; never rely on crimp connectors alone for high-current paths.
